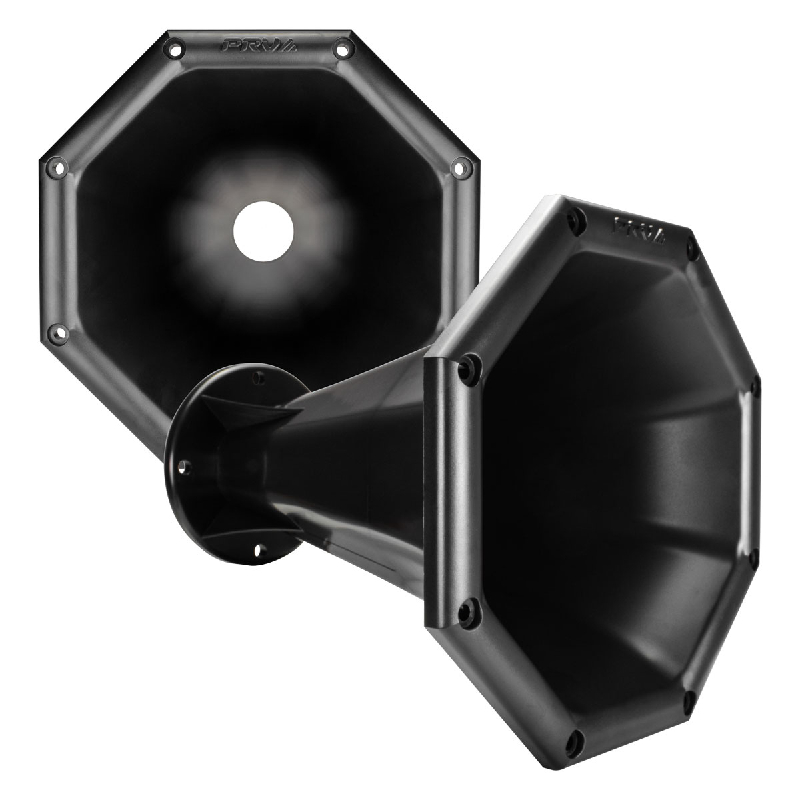

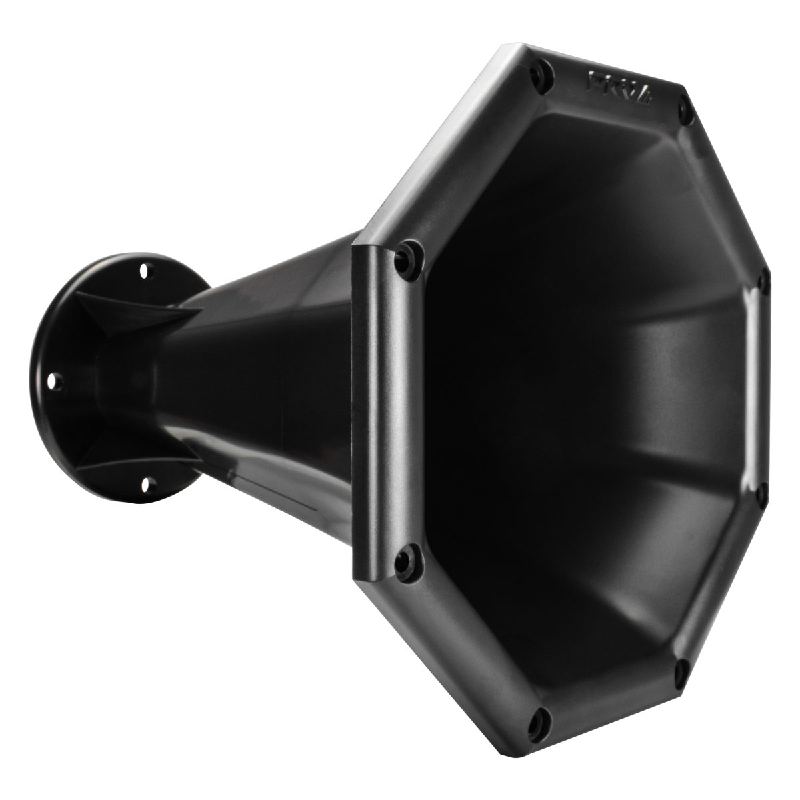

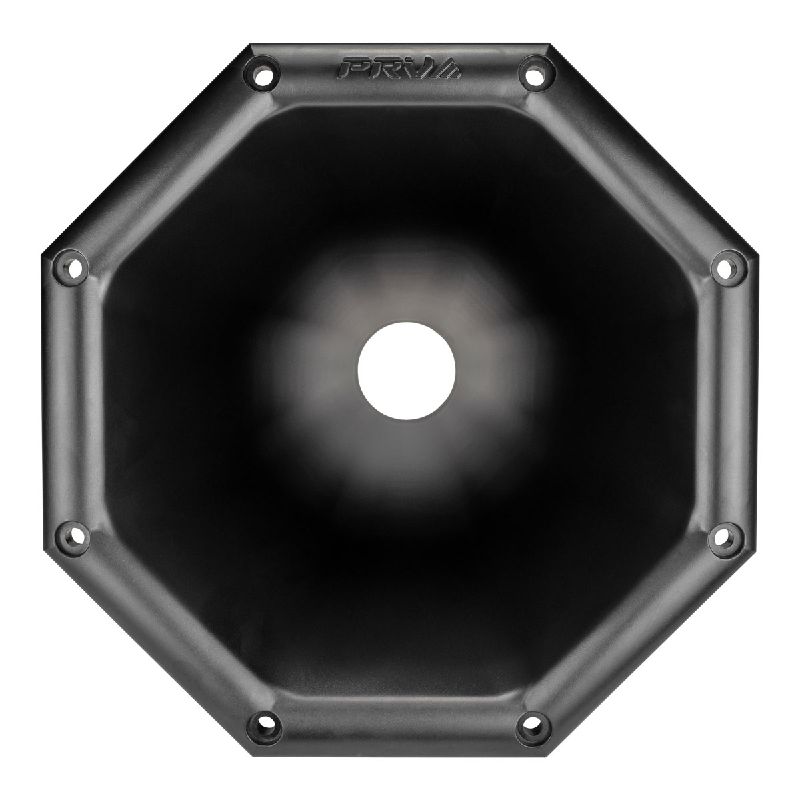

PRV Audio WGP22-50X WGP Series 2" Exit Long Horns Bolt-On Black Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • WGP Series 2" Exit Long Horns Bolt-On Black Waveguides
- • Owner's Manual
Focused Midrange Authority That Cuts Through the Noise
If you want vocals that don’t just sit in the mix but push right through it, the PRV Audio WGP22-50X BLACK 2” Exit Long Horn is built exactly for that job. Its long-throw acoustic design is made to project strong midrange presence with serious forward clarity, giving your system that loud, clean, and commanding vocal output car audio lovers chase. With a low frequency cutoff optimized at 350 Hz, it keeps articulation tight and powerful so voices stay sharp even when the volume climbs.
Precision Dispersion Built for Serious Staging
This horn doesn’t spray sound everywhere, it controls it with purpose. The narrow 30° x 30° dispersion pattern is designed for focused projection, making it perfect for long-distance sound staging and precise tuning setups where accuracy matters more than spread. Whether you are building a competition style system or a clean daily driver setup, it helps lock your imaging right in front of you so every detail lands exactly where it should.
Heavy Duty Build That Fits Pro-Level Installs
Built around a 2” (50.8 mm) throat with a standard 4-bolt mounting pattern, this horn locks in tight with compatible compression drivers for a solid, vibration-resistant fit. The extended 10.32” mounting depth adds serious acoustic loading for stronger output efficiency, while the reinforced ABS construction keeps resonance under control even at high volume. Add in its compact stackable frame and dual finish styling options, and you get a horn that not only performs hard but also fits clean into custom builds without fighting your layout.
Frequently Asked Questions (FAQ)
- • Why isn't my PRV Audio WGP22-50X BLACK producing any sound?
The WGP22-50X BLACK is a waveguide and does not generate sound by itself. It must be paired with a compatible compression driver that is correctly connected to your audio system.
- • Can I use the WGP22-50X BLACK with any compression driver?
It is designed to work with compatible compression drivers that match the required throat size and mounting specifications. Always confirm compatibility before installation.
- • Why does my compression driver keep loosening after installation?
Continuous vibration from high output audio systems can gradually loosen threaded connections. Checking and retightening the driver during regular maintenance can prevent this issue.
- • Why do my vocals sound too harsh through the waveguide?
This is usually caused by crossover settings that are too low, excessive treble boost, or incorrect DSP tuning rather than the waveguide itself.
- • Is the WGP22-50X BLACK suitable for competition car audio systems?
Yes. Many SPL and demo vehicle builders use it because it offers controlled sound projection and works well in high output audio systems.
- • Why does my speaker enclosure vibrate when the volume is high?
The vibration is often caused by loose mounting hardware or insufficient cabinet bracing. Securing the enclosure can reduce unwanted noise.
- • Can I install the WGP22-50X BLACK in a custom speaker pod?
Yes. It is commonly installed in custom door panels, kick panels, speaker pods, and fabricated enclosures. Measuring the mounting area beforehand helps ensure a proper fit.
- • Why is the sound stronger directly in front of the waveguide?
The waveguide is engineered to provide controlled sound dispersion. Repositioning it toward the primary listening area can improve overall sound coverage.
- • Can I use the WGP22-50X BLACK in outdoor or powersports audio systems?
Yes. It is suitable for motorcycles, UTVs, boats, and other recreational applications when paired with compatible components and installed in a protected environment.
- • Do I need to retune my DSP after replacing my old waveguide with the WGP22-50X BLACK?
Yes. Installing a new waveguide can change the way high frequencies are projected, so adjusting your crossover, equalizer, and time alignment can help achieve the best sound quality.
Features:
- 2" Exit Compression Driver Compatibility: Designed with a standard 2" (50.8 mm) throat and 4-bolt mounting pattern to ensure secure and efficient integration with compatible midrange compression drivers.
- Long-Throw Acoustic Design Architecture: Engineered to maximize vocal projection and forward clarity, delivering strong midrange presence for high-output car audio systems.
- Narrow 30° x 30° Controlled Dispersion: Provides highly focused sound coverage ideal for direct sound staging, long-distance projection, and precision tuning applications.
- Extended 10.32" Mounting Depth Structure: Built for advanced installations requiring deeper horn geometry, supporting enhanced acoustic loading and increased output efficiency.
- Non-Resonant Reinforced ABS Construction: Utilizes durable plastic material designed to minimize resonance and maintain tonal accuracy under demanding playback conditions.
- Dual Finish Styling Options (Black/White): Available in multiple color finishes to integrate seamlessly into custom builds and aesthetic system designs.
- Compact Squared Edge Stackable Frame: Allows flexible multi-driver stacking configurations for optimized system layout in custom fabrication projects.
- Low Frequency Cutoff Optimization at 350 Hz: Supports extended vocal response performance, ensuring powerful midrange reproduction with improved articulation and clarity.

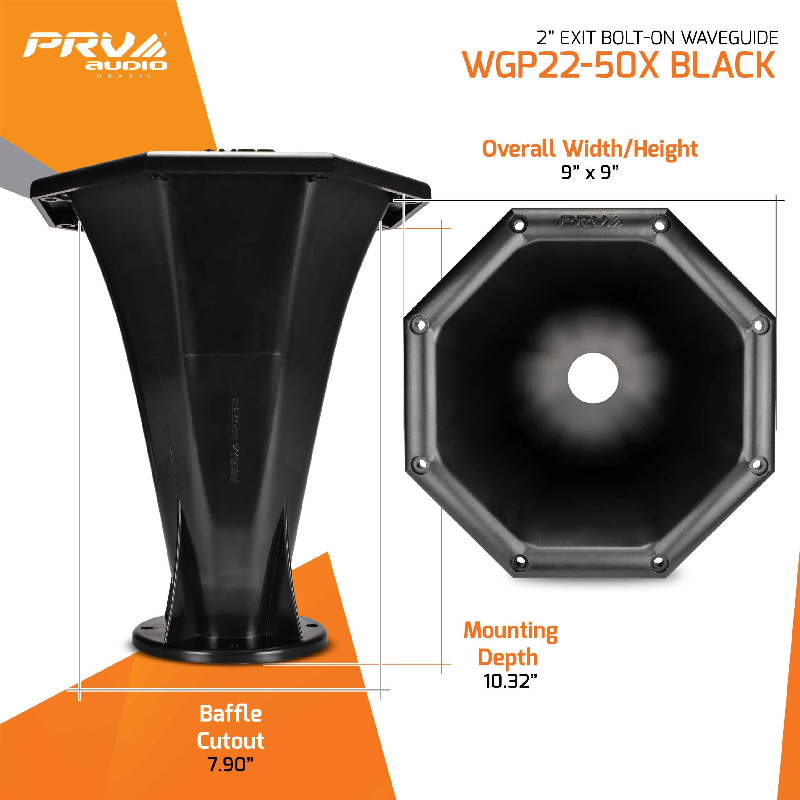

Specifications:
- Throat Diameter: 2” (50.8 mm)
- Mounting Type: Bolt-on
- Hole Dimensions: 0.31” (8 mm)
- Bolt Circle: 4” (102 mm)
- Nominal Coverage Horizontal: 30°
- Nominal Coverage Vertical: 30°
- Flare Type: Hybrid
- Material: Plastic (ABS)
- Finish / Coating: Black/White
- Height: 9.00” (228.6 mm)
- Width: 9.00” (228.6 mm)
- Depth: 10.85” (275.5 mm)
- Mounting Depth: 10.32” (262 mm)
- Baffle Cutout Diameter: 7.9” (200.7 mm)
- Net Weight: 1.23 lbs
- UPC: 810075525618
- Weight: 1.23
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
