Audison  AV 12 D4 II

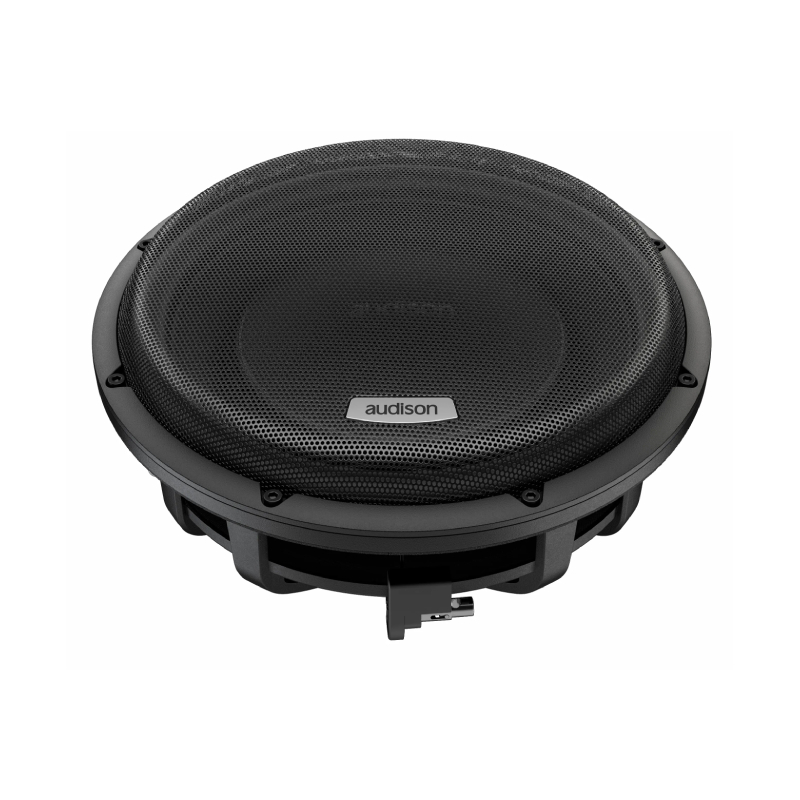

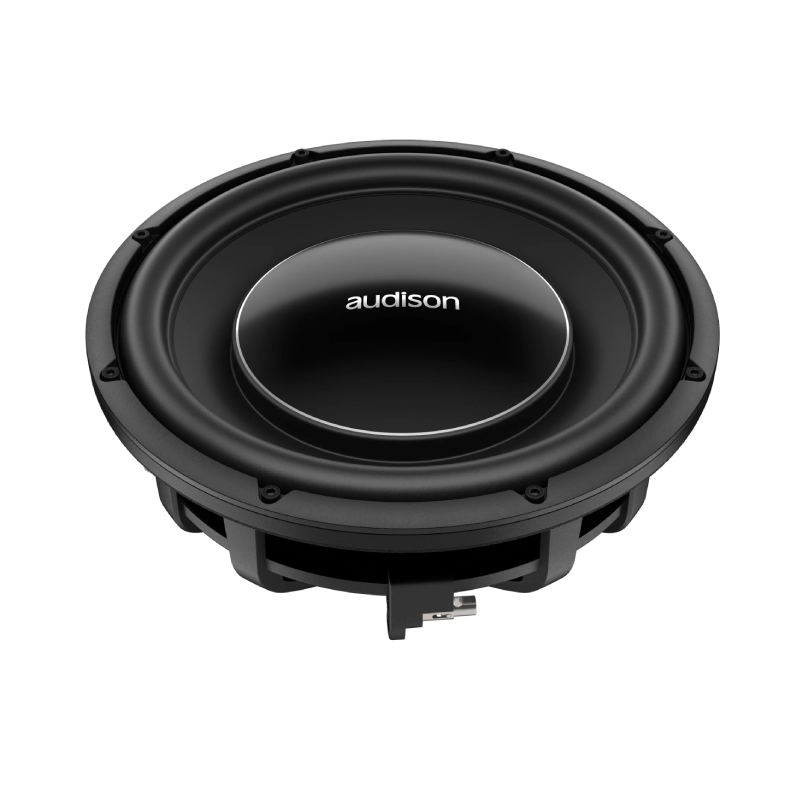

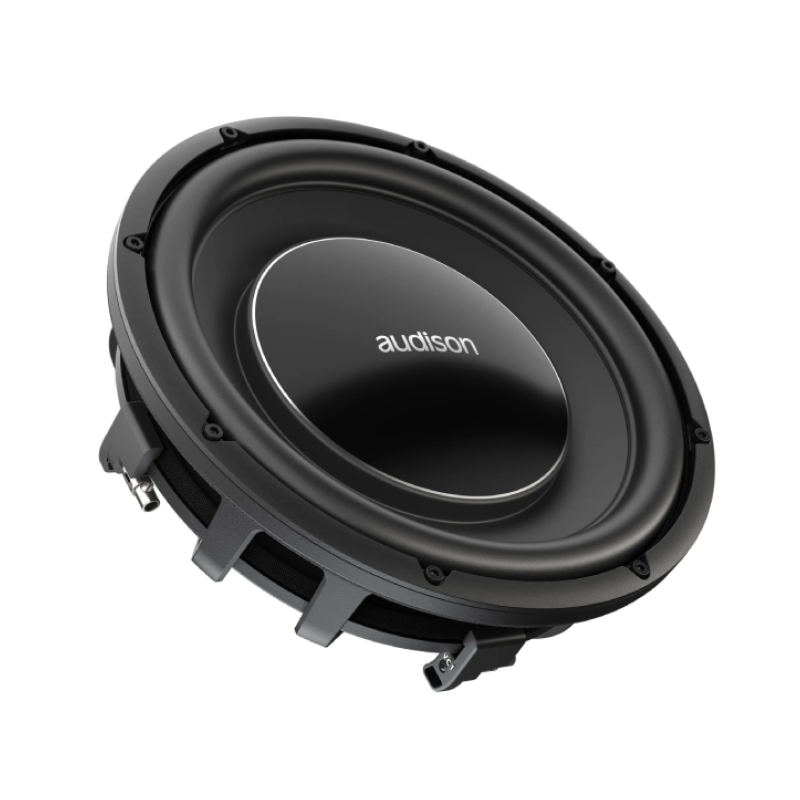

Voce II Series 12" 1100W Peak Power Handling 4 Ohms, Dual Voice Coil Component Car Subwoofer (Grille Included)

Item #97541

Condition:   Brand New

Product Highlights

  • Voce II Series
  • 12" 1100W Peak Power Handling
  • 4 Ohms
  • Dual Voice Coil
  • Component Car Subwoofer
  • (Grille Included)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$899.99

Reg. Price $999.00  Save $99.01
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


AudioControl AV 12 D4 II Voce II Series 12" 550W RMS (1100W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer (Grille Included)


We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" Component Car Subwoofer (Grille Included)
  • Owner's Manual
AudioControl_LC4800
Dual 4-Ohm High-Performance Subwoofer

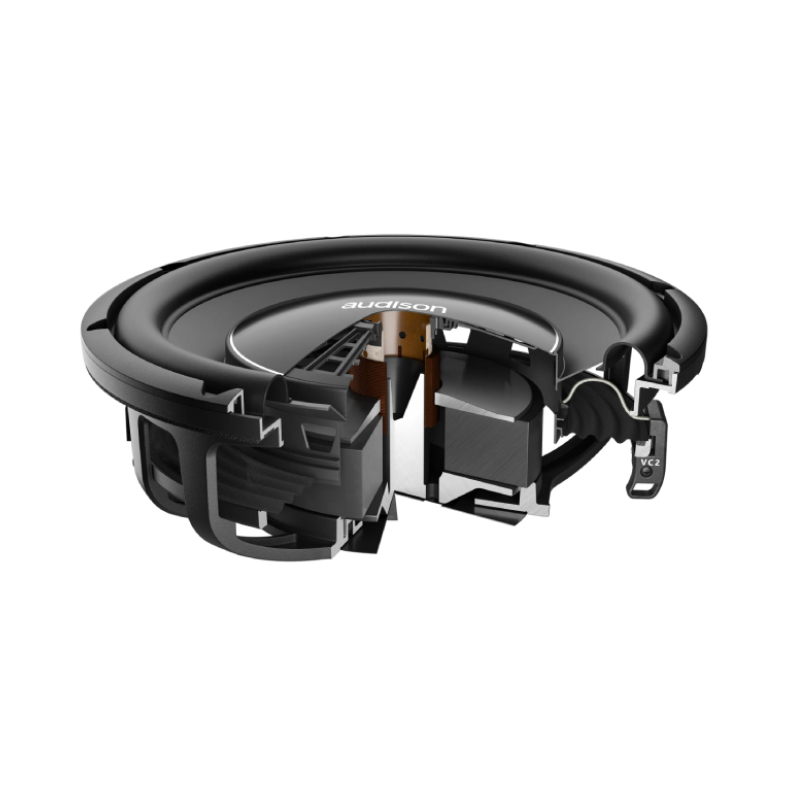

Engineered for precision and power, this 12-inch subwoofer features a die-cast aluminum basket and FEM-optimized magnetic assembly for deep, distortion-free bass. Its dual 4-ohm voice coils provide flexible wiring options, while the rigid construction ensures clean performance in sealed enclosures.

Advanced Cone & Cooling Technology

Built for power and precision, this subwoofer features a polypropylene cone reinforced with Radial Reinforcement Framework (R.R.F.) for superior stability and low distortion. Its 1.5-inch CCAW voice coil on a glass fiber former delivers durability and accuracy, while the efficient cooling system ensures reliable performance even under high-power conditions.

AudioControl_LC4800
Precision Connectivity & Italian Craftsmanship

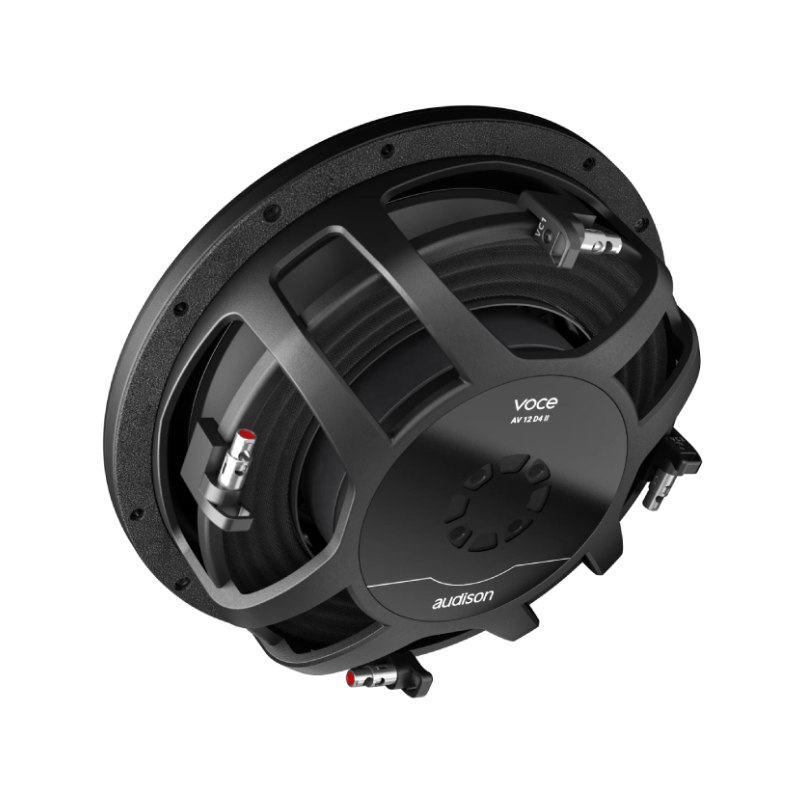

Features spring-loaded terminals compatible with 8 AWG cables for secure, high-current connections. Designed in Italy, it blends acoustic precision with refined craftsmanship, delivering premium performance and style in any car audio system.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 84.5 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1100 Watts
  • Number of Voice Coils : Dual
  • RMS Power Handling : 550 Watts

FEATURES


Features:

  • High-Performance Bass Driver: 12-inch (300 mm) subwoofer delivers deep, accurate, and distortion-free bass ideal for sealed enclosures.
  • Dual 4-Ohm Voice Coil: Provides flexible wiring configurations for optimized amplifier matching.
  • Precision Engineering: FEM-optimized magnetic assembly ensures efficient energy transfer and superior thermal stability.
  • Rigid Construction: Die-cast aluminum basket offers excellent rigidity, reducing vibrations and resonance.
  • Advanced Cone Design: Polypropylene cone reinforced with Radial Reinforcement Framework (R.R.F.) for stability during high excursion.
  • High-Quality Voice Coil: 1.5-inch Copper-Clad Aluminum Wire (CCAW) wound on a glass fiber former ensures durability and consistent performance.
  • Efficient Cooling: Engineered for superior heat dissipation during extended, high-power operation.
  • Secure Connections: Spring-loaded terminals compatible with 8 AWG cables for reliable high-current connections.
  • Italian Design: Combines acoustic precision with elegant craftsmanship for premium in-car sound.



Specifications:

  • Nominal Diameter: 300 mm (12 in)
  • Impedance: Dual 4 Ohm
  • Power Handling (Peak): 1100 Watts
  • Power Handling (RMS): 550 Watts
  • Sensitivity (1W/1m): 84.5 dB
  • Frequency Response: 25 Hz – 400 Hz
  • Voice Coil Diameter: 38.6 mm (1.5 in)
  • Voice Coil Material: Copper-Clad Aluminum Wire (CCAW)
  • Former Material: Glass Fiber
  • Cone Material: Polypropylene
  • Chassis Material: Die-Cast Aluminum
  • Magnet Material: Ferrite
  • Magnet Size (D × d × h): 156 × 60 × 34 mm
  • Xmax (One-Way): 16.8 mm (0.66 in)
  • Xmech: 20 mm (0.79 in)
  • BL Factor: 12.2 T•m
  • Fs: 23 Hz
  • Qts / Qes / Qms: 0.5 / 0.5 / 6.2
  • Vas: 63 L (2.225 ft³)
  • Effective Piston Area (D): 539 cm² (83.545 in²)
  • Recommended Enclosure (Sealed): 21 L (0.742 ft³)
  • Recommended Tuning: 45 Hz
  • UPC:
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
