PRV Audio  1DF5200H

8 Ohm High Pass Crossover

Item #97567

Condition:   Brand New

Product Highlights

  • 8 Ohm
  • High Pass Crossover

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$29.91

Reg. Price $35.89  Save 17%
Add Extended Warranty
  Free 1-Year Warranty Included!

PRV Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

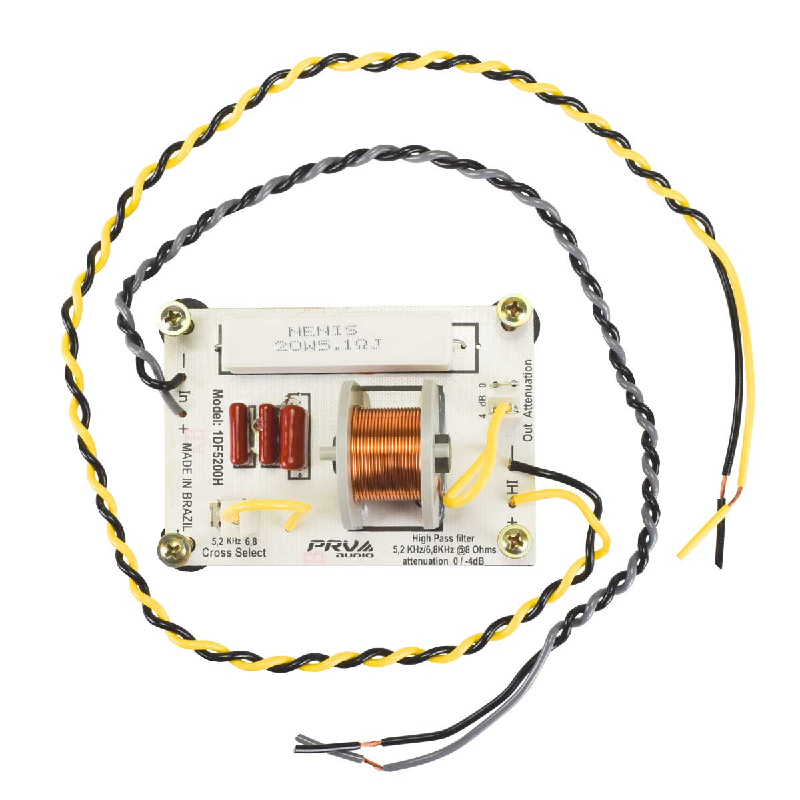

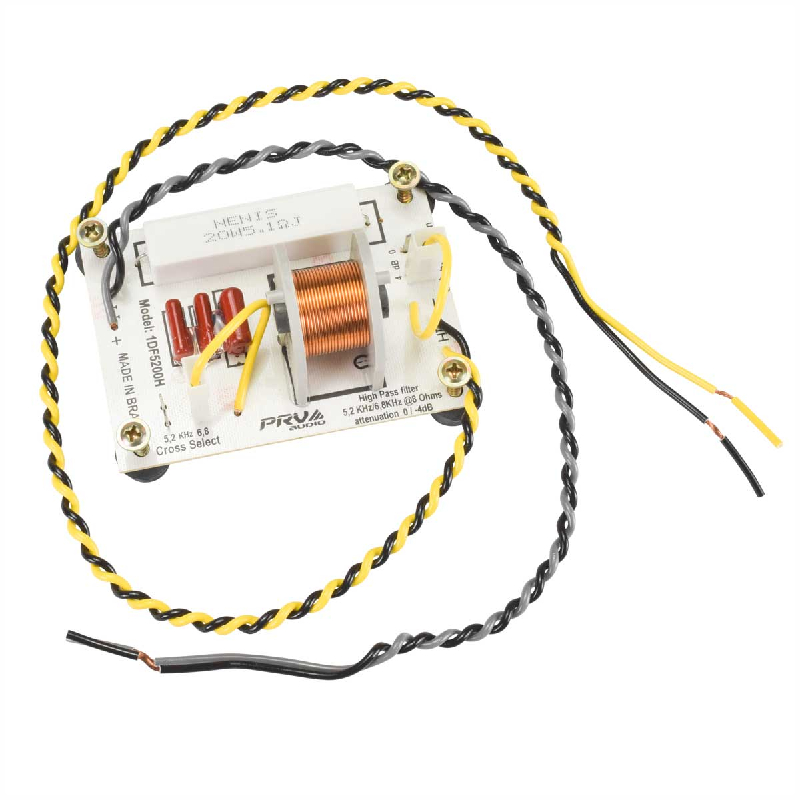

PRV Audio 1DF5200H 8 Ohm High Pass Crossover


We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
Versatile High-Performance Crossover

Designed for both durability and superior sound, this crossover features rugged construction and premium components that withstand the demands of transportation and live performance. With selectable woofer impedance for 8 or 4 Ohm speakers—including series or parallel combinations—it provides a single, flexible solution for multiple cabinet configurations.

Precision Audio Control Crossover

Achieve perfectly balanced sound with adjustable woofer roll-off, allowing selection between 6 dB/octave or 12 dB/octave filtering to match the natural characteristics of different woofers—available on 2DF1800 (two-way) and 3DF400/1800 (three-way) crossovers. Individual speaker attenuation lets you fine-tune output levels for seamless transitions across low, mid, and high frequencies, ensuring smooth and consistent performance even when driver sensitivities vary.

Enhanced Clarity & Easy Setup Crossover

Boost the clarity, presence, and definition of your audio with brightness adjustment that compensates for the natural high-frequency roll-off of large-format compression drivers, enhancing energy above 6 kHz. For convenience, all crossovers come factory-set for quick installation, while still allowing fine adjustments to optimize the final sound performance of your system.


SPECIFICATIONS



FEATURES


Features:

  • Rugged Construction & Premium Components: Built to deliver exceptional sound quality while withstanding the rigors of transportation and live performance use.
  • Woofer Impedance Selection: Allows compatibility with 8 or 4 Ohm speakers, including series or parallel combinations, giving one crossover solution for multiple cabinet configurations.
  • Woofer Roll-Off Crossover Adjustment: Select between 6 dB/octave or 12 dB/octave filtering to match the natural roll-off characteristics of different woofers for smoother frequency transitions. Available on 2DF1800 (two-way) and 3DF400/1800 (three-way) crossovers.
  • Speaker Attenuation: Adjust individual speaker output levels to create a seamless transition across low, mid, and high frequencies, especially helpful when driver sensitivities differ.
  • Brightness Adjustment: Compensates for natural high-frequency roll-off of large format compression drivers, boosting energy above 6 kHz for enhanced clarity, presence, and definition.
  • Factory-Set for Convenience: All crossovers come preset for quick installation, but adjustments can be made to optimize the final sound performance for your system.



Features:

  • Type: High Pass
  • Impedance: 8 Ohms
  • Crossover Point: 5,200 Hz
  • Woofer Impedance: –
  • Rated AES Power Handling – RMS: 100 Watts
  • Program Power: 200 Watts
  • Selectable Crossover Point: 6,800 Hz
  • HF Attenuation: 0/4 dB
  • Brightness: Yes
  • Woofer Octave Selection: –
  • Midrange Attenuation: –
  • Octave: 12 dB
  • UPC: 799928734639
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.
