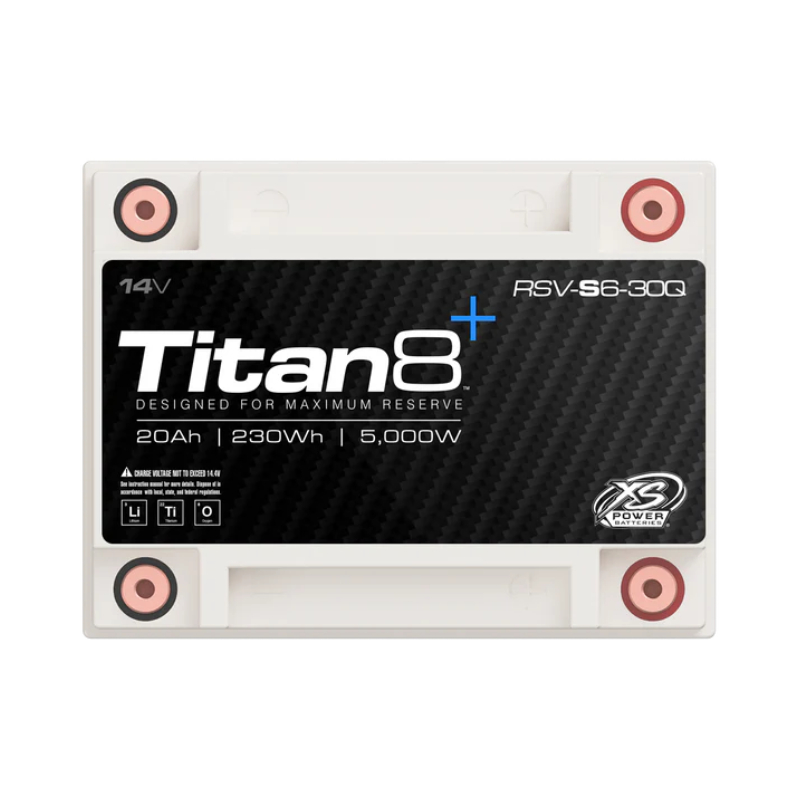

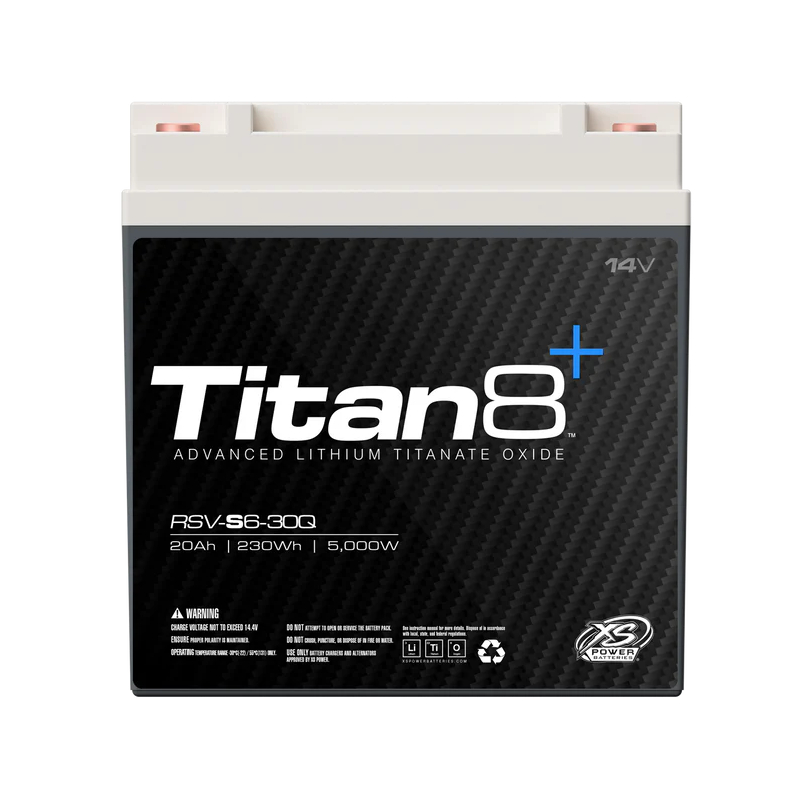

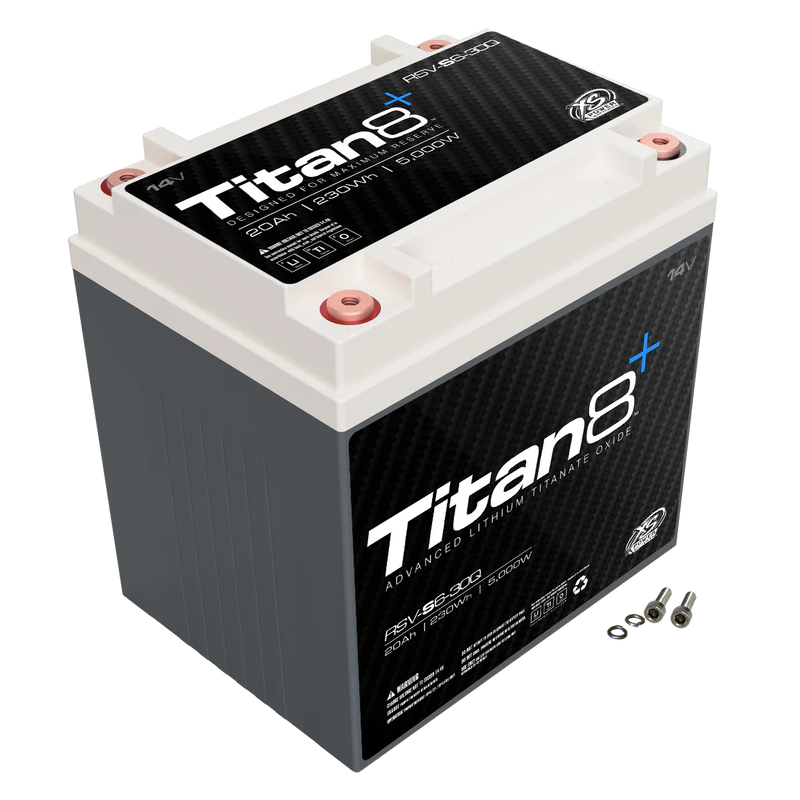

XS Power RSV S6-30Q RSV S6 Series 5000W 14V Lithium Titanate Oxide Battery
We are a XS Power Authorized Dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 5000W 14V Lithium Titanate Oxide Battery
- • M6 Terminal Hardware
- • Owner's Manual
Ultimate Lightweight Power for Extreme Builds
This 14V BCI Group 30/30L Lithium Titanate Battery packs serious performance into just 8.25 lbs. Delivering a solid 14V output, up to 6,000W of power, and 2,000 max amps for explosive bursts, it ensures your audio system runs clean and strong. With 144Wh energy capacity, 1,000A cranking power, and AGM-equivalent ratings of 1,500A CA Pb Eq* and 30Ah Pb Eq*, it combines massive endurance with compact, space-saving dimensions (8.07" L × 7.64" H × 7.21" W) and comes installation-ready with M6 terminal hardware for secure, hassle-free setup.
High-Power, Lightweight LTO Battery
Delivering a true 20Ah of energy in a compact 9.25 lb package, this Lithium Titanate Oxide (LTO) battery packs extreme punch with up to 12,000 watts for short bursts. Designed for easy installation with included M6 terminal hardware, it features built-in heavy-duty 2/0 AWG bussing with four positive and four negative hidden direct connections—perfect for high-performance audio or extreme power setups.
Ultimate Expandable Power Solution
This versatile battery features two top terminals plus four expansion terminals, making it easy to build a series or parallel battery bank of nearly any size. For seamless integration, OEM-friendly BCI direct-fit models are also available with full insulation and built-in temperature monitoring, perfect for under-hood use.
Frequently Asked Questions (FAQ)
- • Will the RSV-S6-30Q work with my existing 12V electrical system?
The RSV-S6-30Q is marketed as a 12V LTO battery with a 14V operating platform, so your vehicle's charging system and connected equipment should be verified for compatibility before installation.
- • Why doesn't the RSV-S6-30Q have the same amp-hour rating as my AGM battery?
The battery is rated at 20Ah, while its AGM-equivalent rating is listed as 60Ah. These figures should not be treated as identical measurements because they describe performance using different comparison methods.
- • Can I connect factory battery cables directly to the RSV-S6-30Q?
The battery includes M6 terminal hardware, while clamp-style installations may require optional terminal adapters. Checking your existing cable ends before installation can prevent a frustrating fitment problem.
- • Why does the RSV-S6-30Q seem much smaller and lighter than my old battery?
Its LTO construction provides high output from a compact package. The battery weighs roughly 9.25 pounds, making it substantially lighter than many conventional batteries designed for similar high-output applications.
- • Is the RSV-S6-30Q powerful enough for a large car-audio system?
It is designed specifically for high-output applications and is marketed for systems around 5,000–6,000 watts, depending on the published specification and application. Proper wiring, charging, and system design remain essential when operating at high power.
- • Why can't I assume the RSV-S6-30Q will fit my factory battery tray?
Although it uses a Group 30/30L format, physical dimensions and terminal positioning still need to be checked against the vehicle. The listed dimensions are approximately 8.07" × 7.64" × 7.21", so measuring the tray and cable clearance beforehand is recommended.
- • Can I add another RSV-S6-30Q later if one battery isn't enough?
The RSV Series is designed with series and parallel expansion connections, allowing multiple modules to be configured into a larger battery bank. The final configuration must match the voltage requirements of the vehicle and electrical equipment.
- • Why are my existing battery terminals not working with the RSV-S6-30Q?
A common installation mismatch can occur when a vehicle uses clamp-style terminals while the battery is configured around threaded M6 connections. XS Power lists optional hardware for clamp-style installations, so the correct adapter may be needed.
- • Is the RSV-S6-30Q a good choice if I need strong burst power rather than huge capacity?
Yes. The RSV-S6-30Q is designed around high-burst output, with XS Power highlighting its ability to deliver substantial current for demanding audio applications. This makes its performance profile different from simply choosing a battery based on amp-hour capacity alone.
- • Why should I check the installation instructions before connecting the RSV-S6-30Q?
The RSV-S6-30Q uses lithium-titanate technology and specialized terminal hardware, so treating it exactly like a conventional AGM battery can lead to compatibility or installation problems. Reviewing the manufacturer's instructions and confirming the charging and wiring requirements before connecting it is an important step.
Features:
- 14V LTO Powerhouse: Runs on a high-power 14-volt Lithium Titanate Oxide (LTO) cell for extreme performance
- AGM Equivalent Capacity: Delivers an impressive 60 AGM-equivalent amp hours
- Strong Cranking Force: Provides 500 cranking amps for reliable starts
- High Burst Capability: Pushes up to 1,000 max amps when needed
- Massive Wattage Output: Supports systems up to 5,000 watts
- True 20Ah Capacity: Offers 20 amp hours of real energy storage
- Easy Installation: Includes M6 terminal hardware
- Lightweight Build: Weighs only 9.25 lbs for easy mounting
- Extreme Burst Power: Capable of 12,000 watts for five seconds thanks to its high-power LTO cell
- Built-In Heavy-Duty Bussing: Integrated 2/0 AWG bussing allows four positive and four negative hidden direct connections
- Expandable Battery Bank: Features two top terminals plus four expansion terminals for series or parallel setups
- Flexible System Building: Easily build a battery bank of nearly any size imaginable
- OEM-Friendly Options: Also available in BCI direct-fit models with full insulation and built-in temperature monitoring for under-hood use
Specifications:
- BCI Group Size: –
- Voltage: 14V
- Max Amps: 1000A
- CA: 500
- CA Pb Eq: 750
- Ah: 20
- Ah Pb Eq: 60
- Energy (Wh): 276
- Wattage Support: 5000W
- Polarity: L/R
- Included Hardware: M6 Terminal Hardware Included
- UPC:
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
