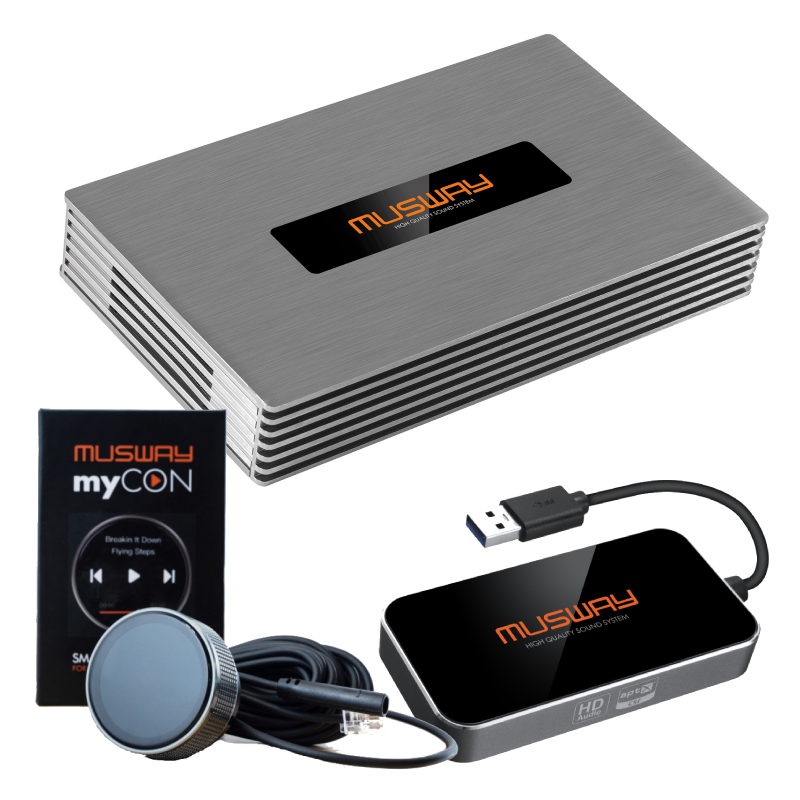

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)
Features:
- High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
- Premium Aluminum Housing: Durable and sleek design for a modern look
- Multi-Function Control: Rotate, press, and touch functions for intuitive operation
- DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
- Customizable Backlight: Choose from multiple color options to match your style
- Flexible Mounting: Includes a long cable for versatile installation locations
Specifications:
- Compatible with all Musway DSP Amps (v3 & Mini Series)
- High-Def AMOLED Touchscreen
- Premium Aluminum Housing
- Rotate • Press • Touch Controls
- Custom Backlight Colors
- Long Cable Included for Flexible Mounting
Bluetooth USB Dongle for HD Audio Streaming and App Control
Features:
- Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.
- Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.
- Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.
- Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.
- Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).
- Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.
Specifications:
- Only compatible with all MUSWAY DSP-512K models
- Integrated Bluetooth 5.1 receiver
- Supports music formats: aptX, aptX-LL, aptX-HD
- Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz
- Illuminated MUSWAY logo
- Incl. USB connection cable
10-Channel 135W x 8 at 2 Ohm + 9th and 10th Channel 220W x 2 at 2 Ohm, Class-D Full Range Car Amplifier with 14-Channel Digital Sound Processor Output - German Engineered
Features:
- Smart Signal Protection: High-Level Input with EPS® keeps your system safe from overloads
- Always Ready: Start-Stop compatibility with hassle-free Auto Turn-On
- Elite Audio Hardware: Burr-Brown converters and Analog Devices DSP for precision sound
- Powerful Processing: Dual 64-bit, 295 MHz DSP controllable via PC or smartphone app
- Smooth and Stable: Soft-Clipping ensures clean performance at 2 Ohm loads
- Crystal-Clear Sound: Impressive 95dB Signal-to-Noise Ratio
- Full-Range Fidelity: Wide Frequency Response from 15 Hz to 22 kHz (-3dB)
- Ultra-Low Distortion: Just 0.05% THD at 1 kHz, 4 Ohms, 90% Power
- Total Input Control: Individually adjustable sensitivity (Ch 1–8, Ch 9–10, AUX) with Clipping LEDs
- Wireless Freedom (Optional): Add BTS, BTS-HD, or BTA2 Bluetooth® dongles for streaming and DSP app control
- Take Command (Optional): DRC1 digital remote with OLED display puts full DSP control at your fingertips
Musway DSP Software for Windows:
Specifications:
POWER SUPPLY
- Voltage: 7.6 – 17.3 VDC
- Idle Current: 2.0 A
- Switched Off: <0.1 mA
- Remote IN: 7.5 – 15 VDC (1 mA)
- Remote OUT: 11 – 15 VDC (200 mA)
- Internal Fuse on PC Board: 40 A × 2
AMPLIFIER STAGE
- Distortion (THD, 1 kHz @ 4 Ω, 10 W): 0.01 %
- Bandwidth (-3 dB, 2 V RMS, 4 Ω): 5 Hz – 22 kHz
- S/N Ratio (@ A-weighted, 1 V, Max Power): 95 dB A
- Damping Factor (@ 1 kHz, 2 V RMS, 4 Ω): >100
- Input Sensitivity: CH 1–8: 8 – 24 V RMS (High-level), CH 9–10: 8 – 32 V RMS (High-level), 2 – 6 V RMS (Low-level), 1 – 8 V RMS (AUX)
- Input Impedance: 13 Ω (High-level), 47 kΩ (AUX/Low-level)
Output Power @ 13.8 VDC, 1% THD
- 8 × 155 W RMS @ 2 Ω (Channels 1–8 DHR*) + 2 × 220 W RMS @ 2 Ω (Channels 9/10)
- 8 × 80 / 135 W RMS @ 4 / 2 Ω (Channels 1–8) + 2 × 120 / 220 W RMS @ 4 / 2 Ω (Channels 9/10)
Output Power Bridged @ 13.8 VDC, 1% THD
- 4 × 310 W RMS @ 4 Ω (Channels 1–8 DHR*) + 1 × 440 W RMS @ 4 Ω (Channels 9/10)
- 4 × 270 W RMS @ 4 Ω (Channels 1–8) + 1 × 440 W RMS @ 4 Ω (Channels 9/10)
- UPC:
- Weight: 13
- Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
