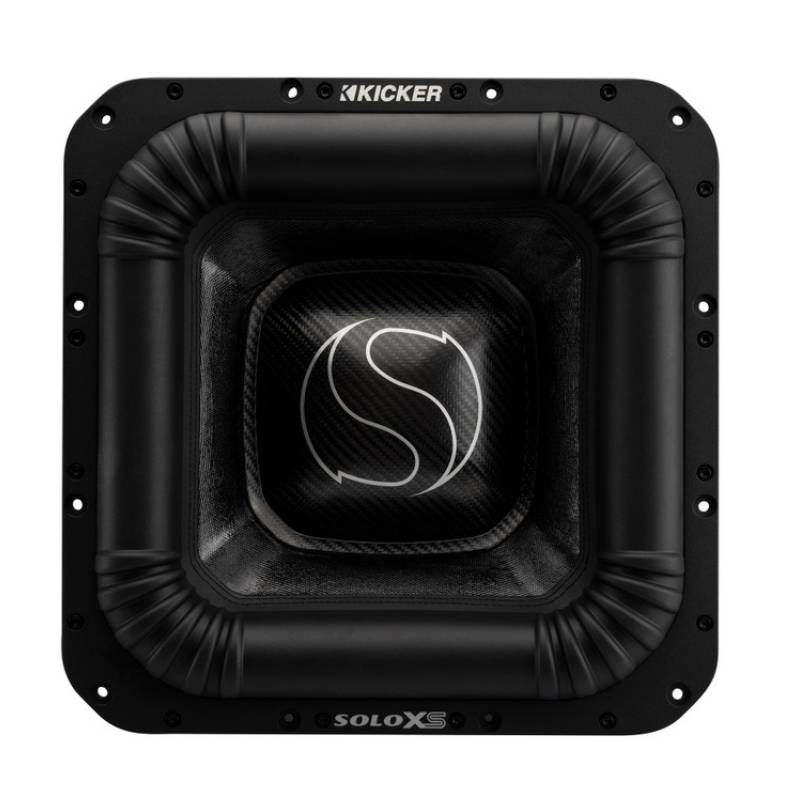

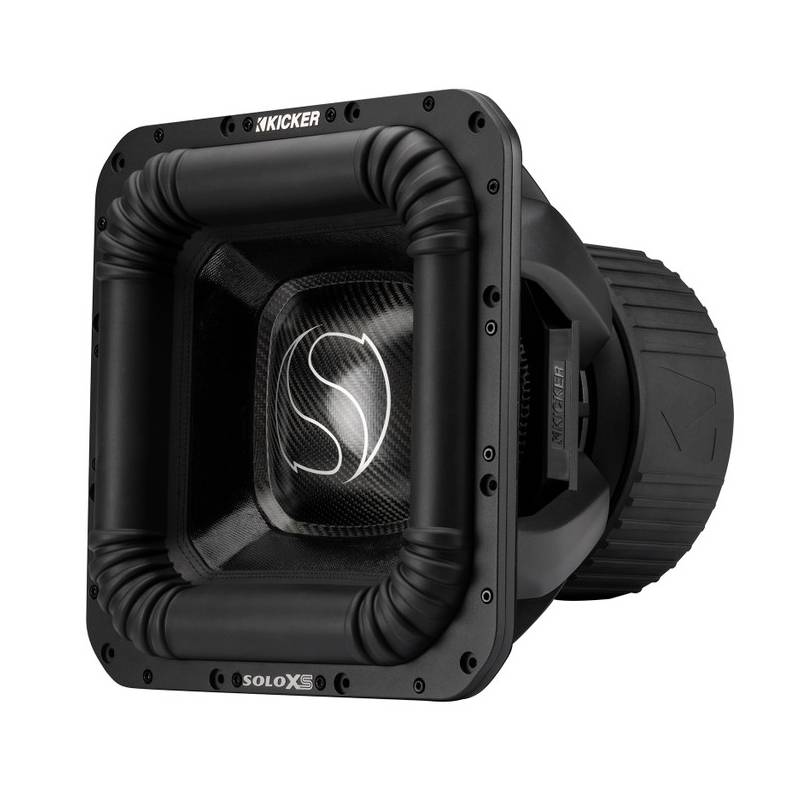

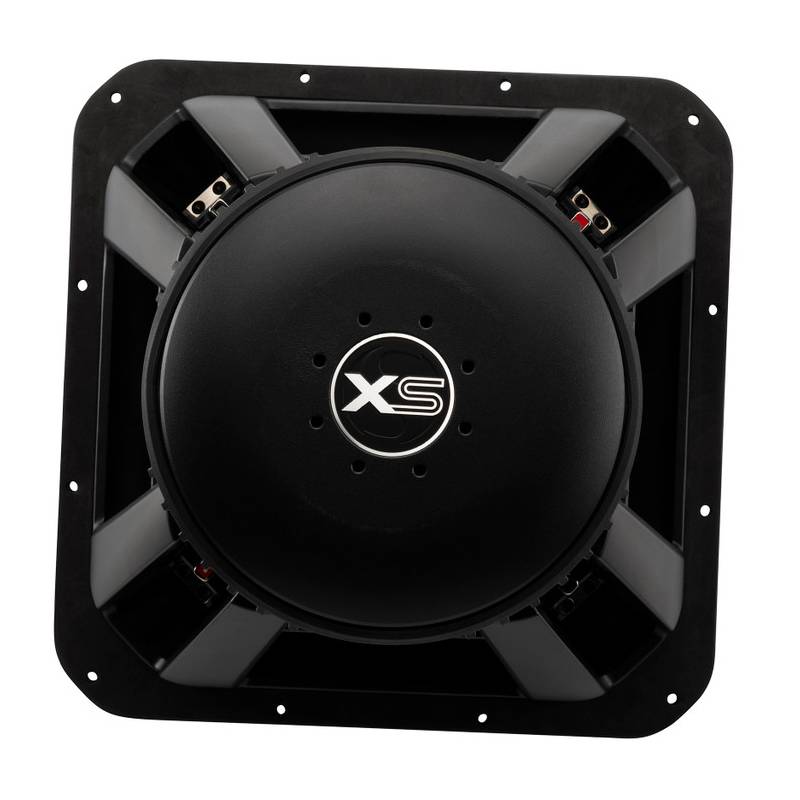

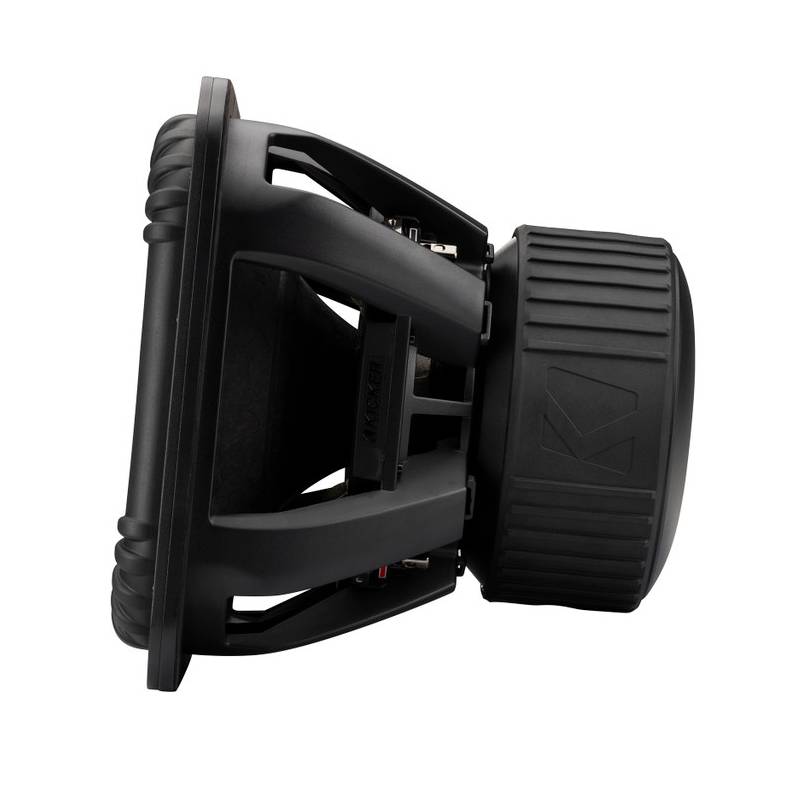

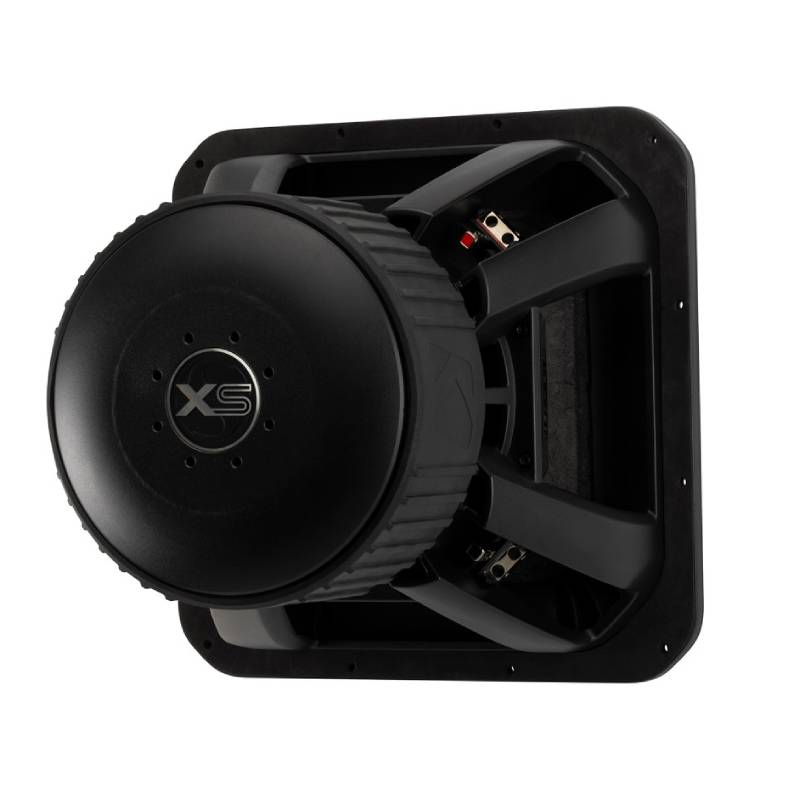

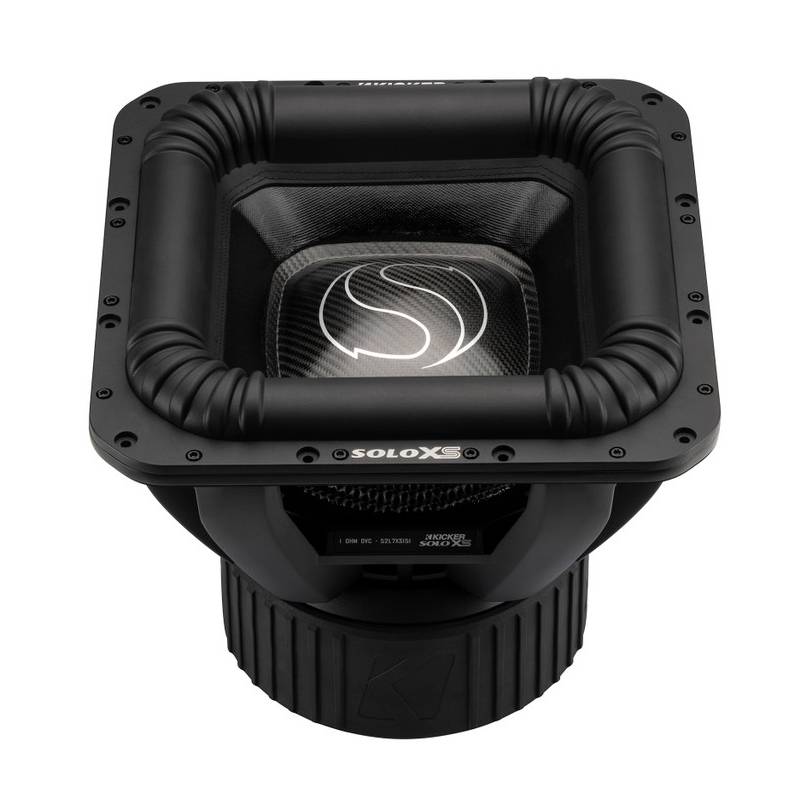

Kicker 52L7XS151 SoloXS L7XS Series 15" 3000W RMS at 1-Ohm, Dual Voice Coil Component Car Subwoofer/h3>
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • SoloXS L7XS Series 15" 3000W Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Why Choose Kicker 52L7XS151 Component Car Subwoofer?
Powerful 15" Bass Performance
The 15" Dual 1-Ohm SoloXS L7XS Series square subwoofer is built for serious bass, handling 1,500–3,000 watts RMS of recommended amplifier power. Its double-pressed pulp cone and durable NBR rubber surround deliver strong, controlled movement for deep and powerful bass. A 3" aluminum voice coil former adds durability and helps the subwoofer perform reliably under high-power demands.
Built For Deep and Powerful Bass
Experience hard-hitting bass with 43.1 mm of linear excursion and a 705 oz. triple-stacked ferrite magnet motor built for high-output performance. Dual Conex meta-aramid fiber spiders, a custom rubber boot, and a cast-aluminum basket provide strength, protection, and maximum cooling. Heavy-duty 8 AWG push and dual 4 AWG terminals deliver secure connections for demanding car audio systems.
Deep Bass with Precise Performance
Dual high-strand tinsel leads provide reliable power delivery, while aerodynamic basket brace channels help reduce back pressure for smoother bass response. With an 18–100 Hz frequency response, this subwoofer delivers deep, powerful low-end performance across your favorite music. The 5 cu. ft. optimal ported enclosure, 11-9/16" mounting depth, and 13-3/4" cutout make installation planning simple for a high-output setup.
Frequently Asked Questions (FAQ)
- • What is the Kicker 52L7XS151?
The Kicker 52L7XS151 is a 15-inch SoloXS L7XS Series square subwoofer designed for high-output car audio systems, featuring a dual 1-ohm voice coil and 3,000 watts RMS power handling.
- • How much amplifier power does the 52L7XS151 need?
The recommended amplifier power is 1,500–3,000 watts RMS. For best performance, use an amplifier that can provide suitable power without clipping.
- • What impedance does the 52L7XS151 have?
It uses dual 1-ohm voice coils (DVC). The coils can typically be wired to a 0.5-ohm or 2-ohm final load, depending on the amplifier and wiring configuration.
- • Can I run the 52L7XS151 at 0.5 ohms?
Yes, when the two 1-ohm voice coils are wired in parallel, the final load is 0.5 ohms. However, the amplifier must be specifically rated to operate safely at 0.5 ohms.
- • What type of enclosure should I use?
A properly designed ported enclosure is recommended for getting strong, deep bass from the L7XS Series. The enclosure should follow KICKER's recommended air volume and port specifications for the specific 15-inch model.
- • Why does my 52L7XS151 sound weak?
Weak bass can be caused by an incorrect enclosure, improper port tuning, incorrect phase, poor amplifier settings, or incorrect voice-coil wiring. Check the complete installation before assuming there is a problem with the subwoofer.
- • Will the 52L7XS151 require an electrical upgrade?
A system producing up to 3,000 watts RMS can place significant demand on the vehicle's charging system. Depending on the amplifier and vehicle, upgraded power and ground wiring, battery capacity, or alternator support may be needed.
- • Can a 3,000-watt amplifier damage the 52L7XS151?
Yes, if the amplifier is incorrectly tuned or driven into clipping. Match the amplifier to the subwoofer's RMS rating and set the gain properly rather than relying only on the amplifier's maximum wattage.
- • Is the 52L7XS151 suitable for competition-level bass?
It is designed for high-power, high-output bass systems, making it a strong option for enthusiasts who want serious low-frequency performance. Proper enclosure design, electrical support, amplifier matching, and tuning are essential to get the most from it.
- Diameter : 15 Inch
- Impedance : 1 Ohm
- Frequency Response : 18-100 Hz
- Top Mount Depth : 11-9/16 Inches
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- RMS Power Handling : 3000 Watts
Features:
- 15" Dual 1 ohm SoloXS L7XS Series Square Subwoofer
- Power Handling:
- Recommended Amplifier Power (RMS): 1500 - 3000 watts
- Double-pressed pulp Cone
- Nitrile Butadiene Rubber NBR Surround
- 3" Aluminum voice coil former
- 43.1 mm Xmax (Linear Excursion)
- 705 oz. Triple Stacked Ferrite magnet motor structure
- Custom rubber boot for oversized ferrite magnet
- Dual conex meta-aramid fiber spiders for superior strength
- Maximum cooling, cast-aluminum basket
- Single 8 AWG push terminal and dual 4 AWG terminal block
- Dual tinsel leads with considerably more strands than L7X
- Aerodynamic basket brace channels reduce back pressure
- Frequency Response: 18 - 100 Hz
- Optimal ported box volume: 5 cubic feet
- Top-mount depth: 11-9/16"
- Cutout diameter: 13-3/4"
Subwoofer Specifications:
- Series: SoloXS L7XS Series
- Subwoofer Size: 15"
- RMS Power Handling: 3000 watts
- Voice Coil(s): Dual
- Impedance (Per Voice Coil): 1 ohm
- Voice Coil Diameter: 3"
- Subwoofer Design: Square
- Main Cone Color: Black
- Woofer Composition: Double-pressed pulp
- Woofer Surround: Nitrile Butadiene Rubber NBR
- Magnet Structure: Triple Stacked
- Magnet Weight: 705 oz.
- Magnet Type: Ferrite
- Subwoofer Grille: No
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented
- Optimum Ported Box Volume: 5 cubic feet
- Top-Mount Depth (Mounting Depth): 11-9/16"
- Cutout Diameter: 13-3/4"
- Shallow Mount Installation: No
- UPC: 713034092209
- Weight: 107.6
