Morel  SENSUS 63

Sensus Series 6.5" 300W Peak Power Handling 4 Ohm, 3-Way Car Component System with Two Silk Dome Car Tweeters and Two MXR133S Crossovers

Item #98184

Condition:   Brand New

Product Highlights

  • Sensus Series
  • 6.5"
  • 300W Peak Power Handling
  • 4 Ohm
  • 3-Way Car Component System
  • Two Silk Dome Car Tweeters
  • Two MXR133S Crossovers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$759.00

Reg. Price $859.00  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Morel Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

Morel Sensus 63 Sensus Series 6.5" 120W RMS (300W Peak Power Handling) 4 Ohm, 3-Way Car Component System with Two Silk Dome Car Tweeters and Two MXR133S Crossovers


Morel Banner

We are a Morel authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

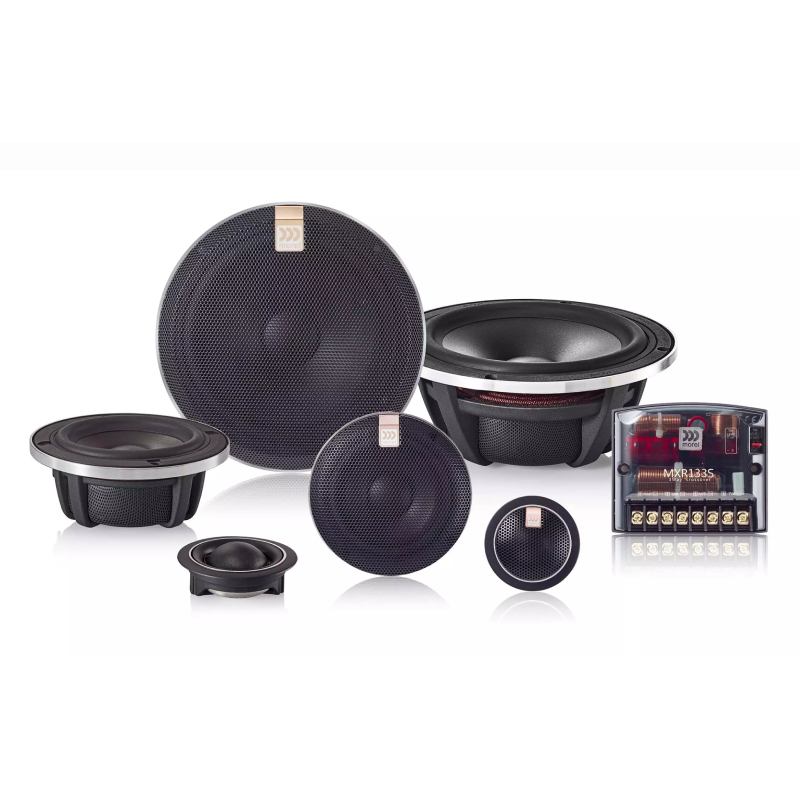

What's Inside?
  • • (2) MS6 Woofers
  • • (2) MS3 Midrange
  • • (2) Midrange grilles
  • • (2) TS1 Tweeters (with attached 8" length of speaker wire)
  • • (2) Tweeter grilles (installed)
  • • (2) MXR133S Crossovers
  • • (2) Flush mount tweeter housings
  • • (2) Flush mount clamps
  • • (2) Angled surface mount tweeter housings
  • • (8) 1" Screws
  • • (8) 3/4" Screws
  • • (4) 5/8" Flat-head screws
  • • (8) Speed clips (large)
  • • (8) Speed clips (small)
  • • Grille putty
  • • (4) 0.25" Crimp-on female quick slides
  • • (4) 0.25" Quick slide insulating covers
  • • (2) 0.187" Crimp-on female quick slides
  • • (2) 0.187" Quick slide insulating covers
  • • (2) 0.110" Crimp-on female quick slides
  • • (2) 0.110" Quick slide insulating covers
  • • Morel sticker
  • Owner's Manual





Elevate Your Listening Experience

This Morel 6.5"/6.75" component system delivers precision sound with installation-friendly features. While commonly referred to as 6½", it requires a slightly larger cutout similar to a 6¾" speaker—vehicle fit verification is recommended. The included tweeter adapters allow for flush or surface mounting, with surface mounts angled ~45° for improved sound staging, and flush mounts offering a clean 0.388" height, 0.68" depth, and 1.815" cutout. Surface mount tweeters measure 1.45" high, 2.125" wide, and 2.7" deep. Precision outboard crossovers feature screw-terminal inputs/outputs (0.315") and optimized 600Hz and 3.3kHz crossover points with 12dB/octave slopes. Tweeter output is adjustable via jumper at 0dB or +3dB, and the compact crossover housing (3.9" × 1.26" × 3.28") ensures easy installation in any setup.


SPECIFICATIONS


  • Diameter : 6.5 Inch
  • Sensitivity : 88 dB
  • Frequency Response : 40-25000 Hz
  • Peak Power Handling : 300 Watts
  • Woofer Composition : Polypropylene
  • Tweeter Composition : Silk Dome
  • RMS Power Handling : 120 Watts

FEATURES


Features:

  • 6.5"/6.75" Size Classification: Commonly called a 6½" by Morel, but requires a larger cutout similar to a 6¾" speaker—vehicle fit verification recommended
  • Flexible Tweeter Mounting: Includes adapters for flush or surface mounting to suit different installation needs
  • Angled Surface Design: Surface mount housing angles the tweeter approximately 45° for improved sound staging
  • Flush Mount Tweeter Fit: 0.388" mounting height, 0.68" mounting depth, and 1.815" cutout diameter for a clean install
  • Surface Mount Tweeter Profile: 1.45" mounting height with a compact 2.125" width and 2.7" depth
  • Precision Outboard Crossovers: Screw-terminal inputs and outputs (0.315") for secure, installer-friendly connections
  • Optimized Crossover Points: 600 Hz and 3.3 kHz crossover frequencies with 12 dB/octave slopes
  • Adjustable Tweeter Output: Jumper-selectable tweeter level control at 0 dB or +3 dB
  • Compact Crossover Housing: Measures 3.9" wide × 1.26" high × 3.28" deep for easy mounting



Specifications:

  • Speaker Size: 6.5"
  • Driver Design: 3-way
  • Woofer Design: Cone
  • Woofer Material: Polypropylene
  • Woofer Surround: Rubber
  • Midrange Design: Cone
  • Midrange Material: Polypropylene
  • Tweeter Design: 1.1" Dome
  • Tweeter Material: Silk
  • Super Tweeter Design: ---
  • Super Tweeter Material: ---
  • Impedance: 4 Ohms
  • Weather-Resistant: No
  • Grilles Included: No
  • Sensitivity (1W at 1 meter): N/A
  • Sensitivity at 2.83 volts: 88 dB
  • Frequency Response: 40 – 25,000 Hz
  • Maximum RMS Power Handling: 120 W
  • Peak Power Handling: 300 W
  • Top-Mount Depth: 2.5"
  • Bottom-Mount Depth: 2.75"
  • Cutout Diameter: 5.5"
  • Mounting Height: 0.38"
  • Frame Width: 6.53"
  • Frame Length: 6.53"
  • UPC:
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
