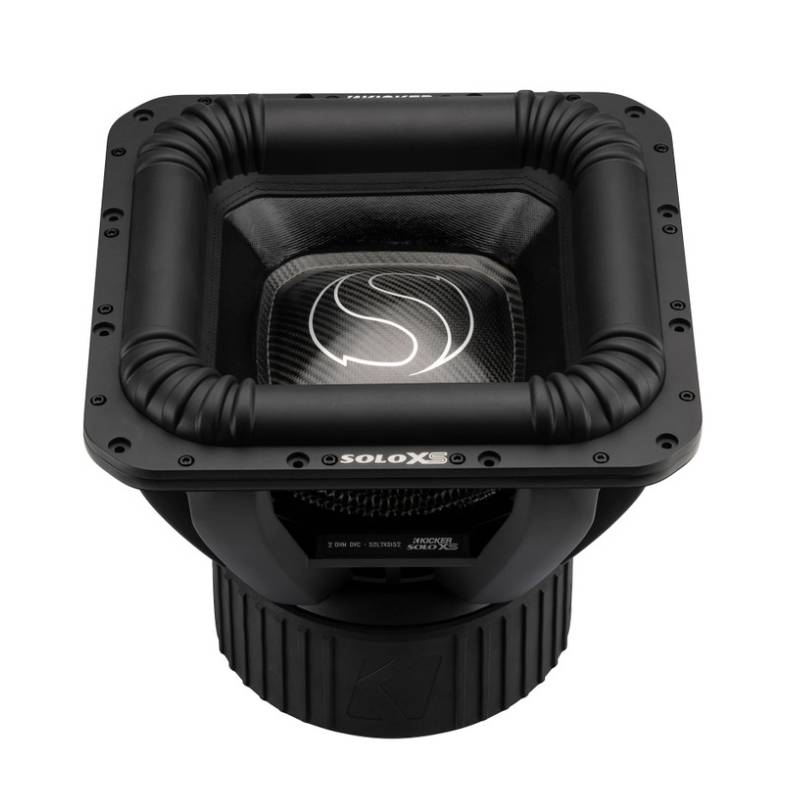

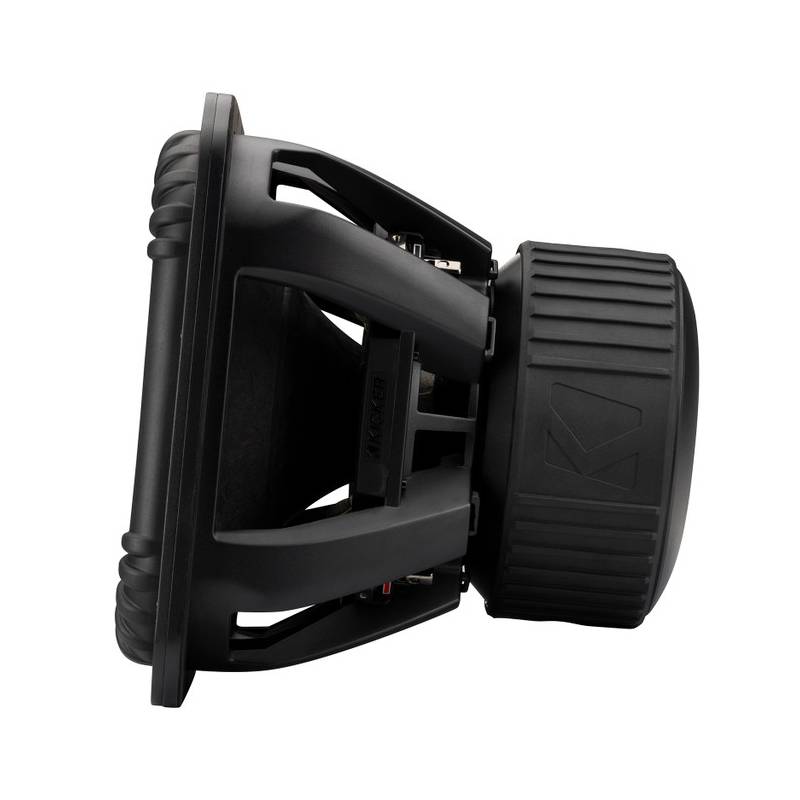

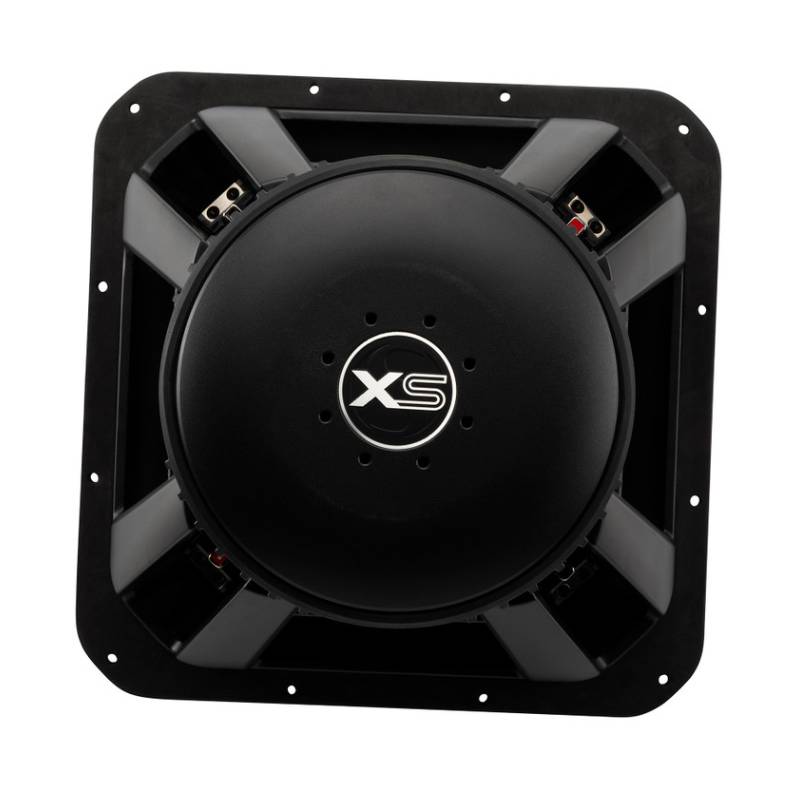

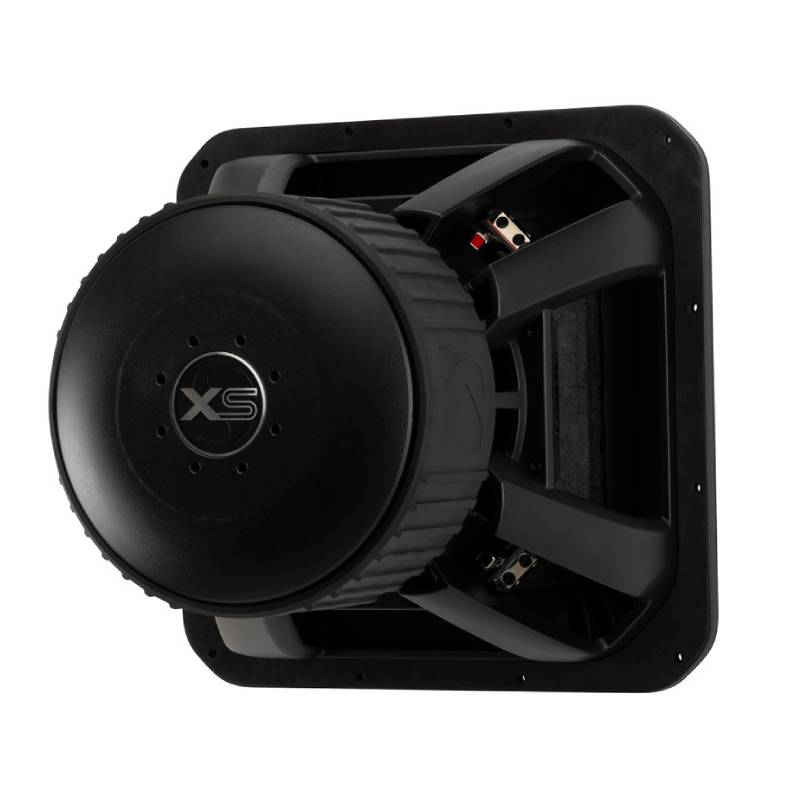

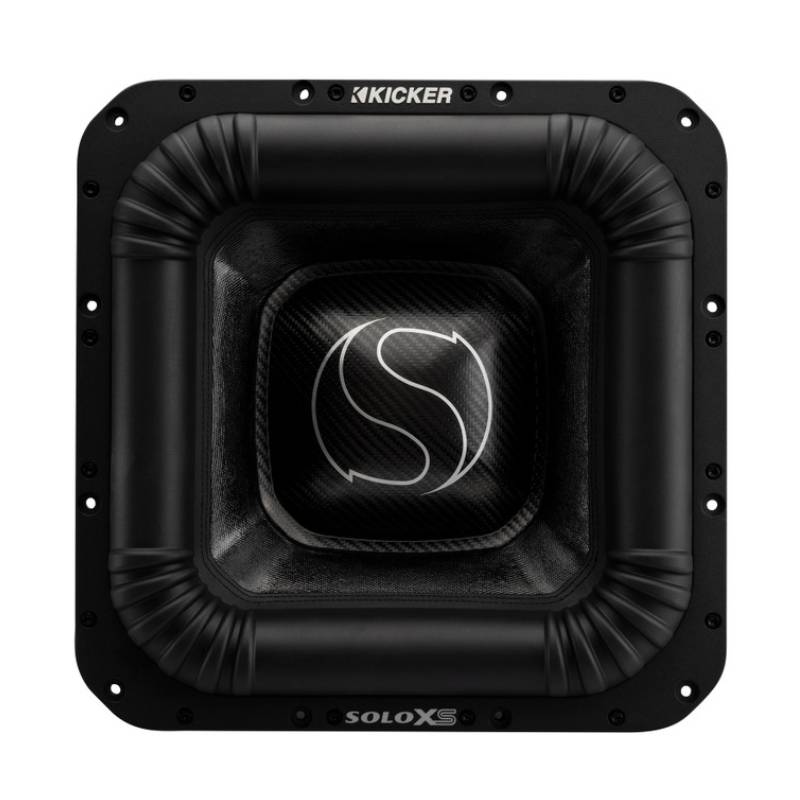

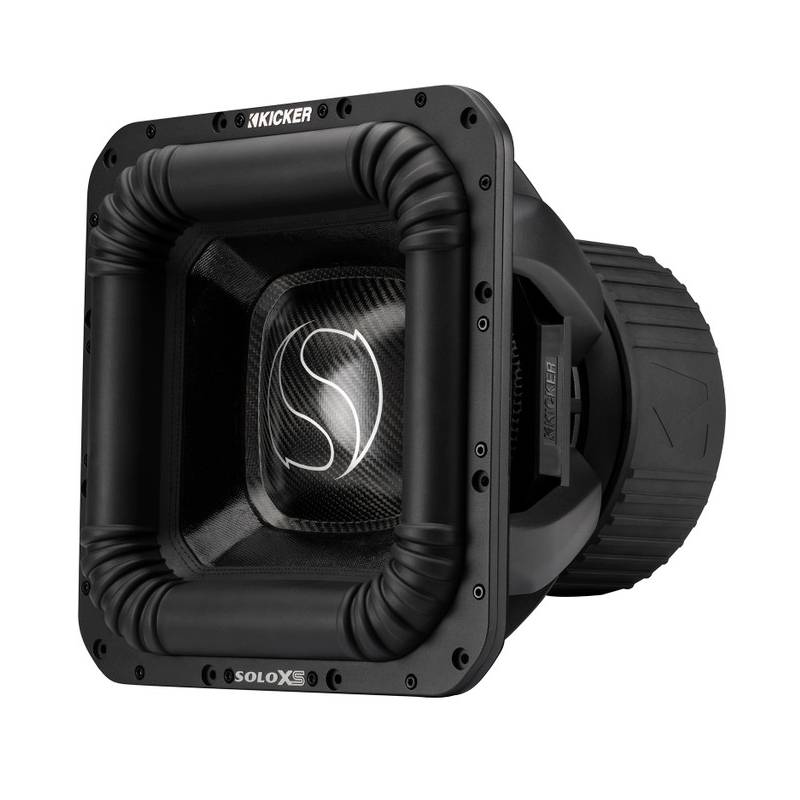

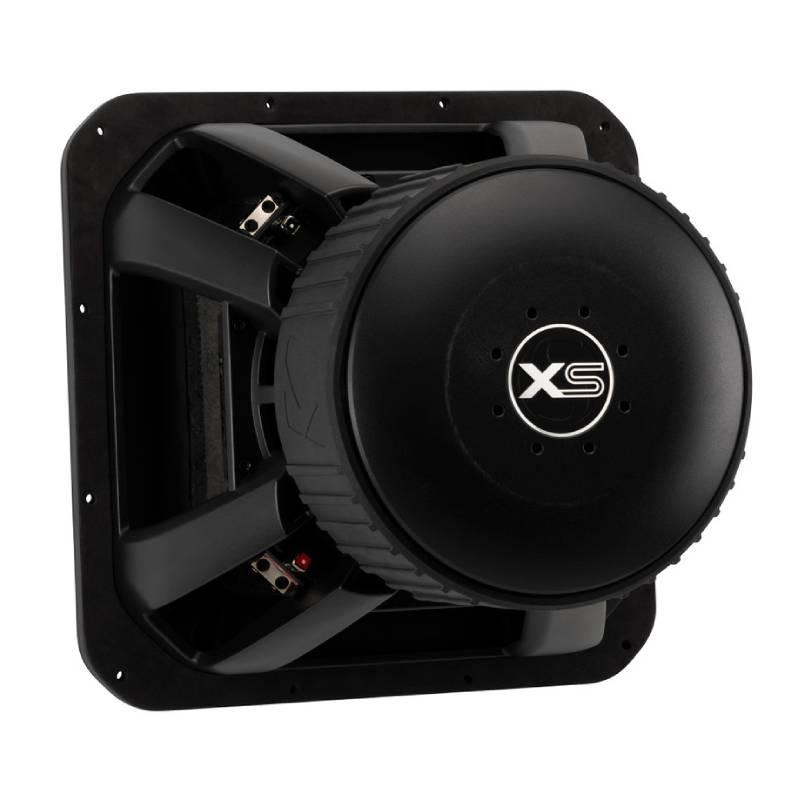

Kicker 52L7XS152 SoloXS L7XS Series 15" 3000W RMS at 2-Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • SoloXS L7XS Series 15" 3000W Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Why Choose Kicker 52L7XS152 Component Car Subwoofer?
Extreme Bass, Built To Perform
The 15" Dual 2-Ohm SoloXS L7XS Series square subwoofer delivers powerful bass with 1,500–3,000 watts RMS of recommended amplifier power. Its double-pressed pulp cone, durable NBR surround, and 3" aluminum voice coil former are built for reliable high-power performance. With 43.1 mm of linear excursion, it moves serious air to produce deep, hard-hitting bass.
Built For Serious Bass
A 705 oz. triple-stacked ferrite magnet motor delivers the power and control needed for intense low-frequency performance. Dual Conex meta-aramid fiber spiders, a custom rubber boot, and a cast-aluminum basket provide strength, protection, and maximum cooling during demanding play. Heavy-duty 8 AWG push and dual 4 AWG terminals ensure secure, reliable connections for high-powered audio systems.
Deep Bass, Smooth Performance
Dual high-strand tinsel leads deliver reliable power flow, while aerodynamic basket brace channels help reduce back pressure for cleaner bass response. With an 18–100 Hz frequency response, this subwoofer delivers deep, powerful low-end sound that brings your music to life. The 5 cu. ft. optimal ported enclosure, 11-9/16" mounting depth, and 13-3/4" cutout make it ready for a serious high-output installation.
Frequently Asked Questions (FAQ)
- • What is the Kicker 52L7XS152?
The Kicker 52L7XS152 is a 15-inch SoloXS L7XS Series square subwoofer with a dual 2-ohm voice coil and 3,000 watts RMS recommended amplifier power.
- • How much amplifier power does the 52L7XS152 need?
It is designed for approximately 1,500–3,000 watts RMS of amplifier power. Proper gain adjustment is important to get strong output without damaging the subwoofer.
- • What impedance options does the 52L7XS152 provide?
The subwoofer has dual 2-ohm voice coils. Wiring the coils in parallel gives a 1-ohm final load, while series wiring produces a 4-ohm final load.
- • Can I run the 52L7XS152 at 1 ohm?
Yes. Connecting the two 2-ohm voice coils in parallel creates a 1-ohm final impedance. Make sure your amplifier is stable at 1 ohm before using this wiring setup.
- • What enclosure should I use for the 52L7XS152?
A properly designed ported enclosure is recommended for maximum bass performance. Using the correct enclosure volume and port design helps the subwoofer play deeper and more efficiently.
- • Why does my 52L7XS152 have weak or distorted bass?
Incorrect enclosure design, amplifier clipping, improper gain settings, incorrect wiring, or phase problems can all affect performance. Check the complete system setup before assuming the subwoofer is faulty.
- • Can my vehicle's electrical system handle this subwoofer?
A system capable of delivering up to 3,000 watts RMS can draw substantial current. Depending on the amplifier and vehicle, upgraded power wiring, batteries, or charging-system components may be necessary.
- • Can I use an amplifier rated higher than 3,000 watts?
It is possible, but the amplifier must be carefully tuned so the subwoofer does not receive excessive power or clipped signal. Matching the amplifier to the subwoofer's RMS rating is generally the safer approach.
- • Is the 52L7XS152 good for a high-output bass system?
Yes. Its 15-inch square design, 3,000-watt RMS capability, dual 2-ohm voice coils, and heavy-duty construction make it well suited for serious bass systems. A properly built enclosure and correctly matched amplifier are key to getting the best results.
- Diameter : 15 Inch
- Impedance : 2 Ohm
- Frequency Response : 18-100 Hz
- Top Mount Depth : 11-9/16 Inches
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- RMS Power Handling : 3000 Watts
Features:
- 15" Dual 2 ohm SoloXS L7XS Series Square Subwoofer
- Power Handling:
- Recommended Amplifier Power (RMS): 1500 - 3000 watts
- Double-pressed pulp Cone
- Nitrile Butadiene Rubber NBR Surround
- 3" Aluminum voice coil former
- 43.1 mm Xmax (Linear Excursion)
- 705 oz. Triple Stacked Ferrite magnet motor structure
- Custom rubber boot for oversized ferrite magnet
- Dual conex meta-aramid fiber spiders for superior strength
- Maximum cooling, cast-aluminum basket
- Single 8 AWG push terminal and dual 4 AWG terminal block
- Dual tinsel leads with considerably more strands than L7X
- Aerodynamic basket brace channels reduce back pressure
- Frequency Response: 18 - 100 Hz
- Optimal ported box volume: 5 cubic feet
- Top-mount depth: 11-9/16"
- Cutout diameter: 13-3/4"
Subwoofer Specifications
- Series: SoloXS L7XS Series
- Subwoofer Size: 15"
- RMS Power Handling; 3000 watts
- Voice Coil(s): Dual
- Impedance (Per Voice Coil): 2 ohm
- Voice Coil Diameter: 3"
- Subwoofer Design: Square
- Main Cone Color: Black
- Woofer Composition: Double-pressed pulp
- Woofer Surround: Nitrile Butadiene Rubber NBR
- Magnet Weight: 705 oz.
- Magnet Type: Ferrite
- Magnet Structure: Triple Stacked
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented
- Optimum Ported Box Volume: 5 cubic feet
- Top-Mount Depth (Mounting Depth): 11-9/16"
- Cutout Diameter: 13-3/4"
- Shallow Mount Installation: No
- UPC: 713034092223
- Weight: 99.1
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
