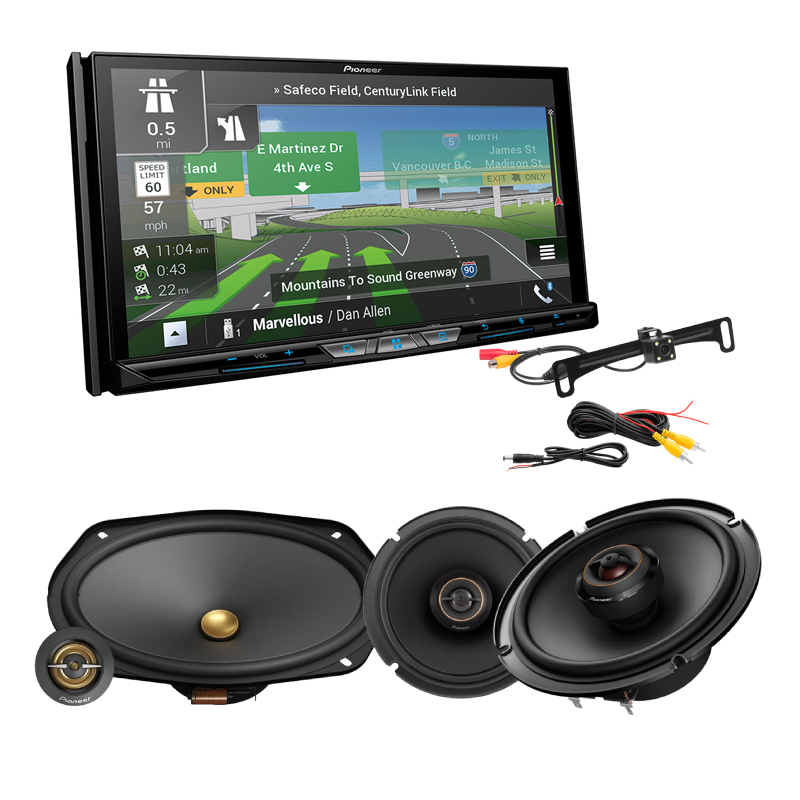

Pioneer  AVIC-W8600NEX-Bundle1 New

AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth® + TS-A6901C A-Series 6x9" 450W Peak Power Handling at 4 Ohms, 2-way Component Car System + TS-D65F D-Series 6.5" 270W Peak Power Handling at 4-Ohms, 2-Way Coaxial Car Speaker + ELPC40B Rear-View License Plate Mount Camera with Weatherproof, High-Resolution Color, and Wide-Angle View

Item #98362

Condition:   Brand New

Product Highlights

  • AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver
  • TS-A6901C A-Series 6x9" 450W Peak 4 Ohms 2-Way Component Car System
  • TS-D65F D-Series 6.5" 270W Peak 4 Ohms 2-Way Coaxial Car Speaker
  • ELPC40B Rear-View License Plate Mount Camera

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$1,651.46

Reg. Price $1,851.46  Save $200.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Pioneer Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Pioneer AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth® + Pioneer TS-A6901C A-Series 6x9" 450W Peak Power Handling at 4 Ohms, 2-way Component Car System + Pioneer TS-D65F D-Series 6.5" 270W Peak Power Handling at 4-Ohms, 2-Way Coaxial Car Speaker + Boss Elite ELPC40B Rear-View License Plate Mount Camera with Weatherproof, High-Resolution Color, and Wide-Angle View


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • AVIC-W8600NEX Navigation receiver with motorized 6.94" monitor (10A fuse)
  • • AVIC-W8600NEX Wiring harness
  • • AVIC-W8600NEX AV/preout harness
  • • AVIC-W8600NEX Remote control (CD-R33)
  • • AVIC-W8600NEX CR2025 3V lithium battery (installed in remote)
  • • AVIC-W8600NEX GPS antenna (attached 11.5' cable)
  • • AVIC-W8600NEX 58" USB extension cable
  • • AVIC-W8600NEX 6.5' Stereo minijack extension cable
  • • AVIC-W8600NEX Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
  • • AVIC-W8600NEX Two-sided tape
  • • AVIC-W8600NEX (6) Pan-head ISO screws (M5 x 6mm)
  • • AVIC-W8600NEX (6) Flat-head ISO screws (M5 x 6mm)
  • • AVIC-W8600NEX Wire-tie
  • • AVIC-W8600NEX Self-adhesive square
  • • AVIC-W8600NEX (3) Self-adhesive clips
  • • AVIC-W8600NEX Sticker labels
  • • AVIC-W8600NEX Quick Start Guide
  • • AVIC-W8600NEX Important Information for the User
  • • AVIC-W8600NEX Online Product Registration
  • • AVIC-W8600NEX Installation Manual
  • • TS-A6901C (2) 6"x9" woofers
  • • TS-A6901C (2) Pioneer Multi-Fit mounting brackets
  • • TS-A6901C (8) 1-1/8" Screws
  • • TS-A6901C (8) 3/8" Screws
  • • TS-A6901C (2) tweeters (with attached 10" speaker leads terminated with quick-connects)
  • • TS-A6901C (2) Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
  • • TS-A6901C (2) Tweeter angled surface mount housings
  • • TS-A6901C (2) Tweeter flush mount rings
  • • TS-A6901C (2) Tweeter factory mount brackets
  • • TS-A6901C (2) Adhesive backed foam discs
  • • TS-A6901C (6) 1/2" Screws
  • • TS-A6901C Warranty information
  • • TS-A6901C Template and specs on box
  • TS-A6901C Owner's Manual
  • • TS-D65F (2) 2-way speakers
  • • TS-D65F (8) 3/4" Screws
  • • TS-D65F Warranty information
  • TS-D65F Owner's Manual
  • • ELPC40B Rear-View License Plate Mount Camera
  • ELPC40B Owner's Manual
Apple CarPlay®

The AVIC-W8600NEX features Apple CarPlay®, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

Android Auto

The AVIC-W8600NEX also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead.

Pandora

Pandora is personalized internet radio that is designed to help you discover new music that you'll love mixed in with music that you already know. With the AVIC-W8600NEX, you can enjoy superior sound quality and full control of the Pandora experience in your car directly from the touchscreen display of the receiver. You are able to give tracks "thumbs up" or "thumbs down," bookmark a song so you can purchase it later, easily switch between your personalized radio stations, and view full track data and album art.





Drive to the Beat of Perfection

The Pioneer TS-A6901C A-Series speakers have been meticulously engineered to seamlessly integrate power handling, size considerations, and advanced component design, all with the singular goal of delivering unparalleled audio excellence within the confines of a car audio setup.

Discover Clarity in Every Frequency

A 2-way component system features individual drivers for different frequency ranges in each speaker: a woofer for lows and a tweeter for highs. This configuration enhances sound quality across all frequencies, contrasting with coaxial speakers where drivers share the same axis.

Crank Up the Quality

These speakers possess a 4-ohm impedance, indicating their resistance to alternating current within a circuit. Car audio setups commonly function at 4 ohms, making these speakers generally compatible with the majority of car stereos and amplifiers.

Polyester Soft Dome Tweeter

For top-notch car audio, consider the Pioneer TS-D65F. This two-way speaker offers impressive full-range sound with Pioneer's signature smoothness, seamless mid-to-high transitions, and durable construction. Its polypropylene cone with aramid fibers and rubber surround ensures accurate bass even during extended high-volume use.

Advanced Computer-aided Manufacturing

The Pioneer TS-D65F speaker features a 1-inch polyester tweeter for clear high frequencies, complementing its renowned two-way audio performance. Delivering 90 Watts continuous power and 270 Watts peak power at 4 ohms, this 6.5-inch speaker offers impressive full-range sound with minimal distortion. Its frequency response ranges from 32 Hz to 49 kHz, and it boasts a sensitivity rate of 85 dB, ensuring powerful and distortion-free sound.

Sleek and Smart Rearview Solution

Experience a clean, factory-style installation with the Hidden Mount Design, fitting neatly behind your license plate using existing screws. Enjoy crystal-clear visuals from the High-Resolution Color Camera, and park confidently with the On-Screen Distance Guide, which provides accurate visual markers for safer reversing.

Reliable Visibility in Any Condition

Drive and park with confidence using a Wide-Angle View that minimizes blind spots and enhances safety. The Low Light Visibility feature ensures clear imaging even at night, while the Weatherproof Construction withstands rain, dust, and harsh environments. Compatible with most systems, the NTSC Output guarantees seamless integration for a worry-free setup.


SPECIFICATIONS


  • Satellite Radio Ready : Yes
  • DIN : 2

FEATURES


AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth®



Features:

  • 7" WVGA (Capacitive)
  • Apple CarPlay® (Wired, Wireless)
  • Android Auto™ (Wired, Wireless)
  • Amazon Alexa Built-in when Paired with Pioneer Vozsis App



Specifications:

STANDARDS

  • CTA-2006: Yes



PERFORMANCE

  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
  • RCA Preamp Outputs: 6-ch
  • RCA Pre-out: 4V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm



DISPLAY

  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: 5 display colors, 112 key colors
  • Device (Non-DIN/Modular Unit): 2-DIN
  • Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
  • Display Off Mode: Yes
  • Home Screen Customization: Yes
  • Monitor Mechanism: Motorized
  • Resolution: WVGA (800 x 480)
  • Screen Size/Aspect Ratio: 7"/16:9
  • Touch Screen: Capacitive



NAVIGATION

  • 3D City Maps: Included
  • 3D Landmarks: Included
  • Coverage Area: Alaska, Canada, Contiguous 48 States, Hawaii, Puerto Rico
  • Display Modes: 2D Heading-Up, 2D North-Up, 3D View
  • Enhanced Junction View & Realistic Road Signs: Yes
  • External GPS Antenna: Yes
  • Free Lifetime Traffic by Total Traffic: Yes
  • Lane Formation: Yes
  • Map Data: 16gb Flash Memory
  • Map Provider: HERE
  • Navi Menu Language: English, French, Spanish
  • Point of Interest: Approx 12 Million
  • RDS-TMS Traffic Tuner: Yes
  • Speed Limit & Warnings: Yes
  • Text to Speech (TTS) Voice Guidance with Street Names: English, French, Spanish



BLUETOOTH

  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth®: Yes
  • Dual Phone Connection: Yes
  • Hands-Free: Yes
  • Microphone Included: Yes
  • Phone Registration: 5-phone
  • Secure Simple Pairing (SSP): Yes
  • Serial Port Profile (SPP): Yes
  • Sound Retriever Air: Mode 1/Mode 2/Off



TUNER

  • Best Station Memory: Yes
  • HD Radio™: Built In / Artist Experience / Multicasting
  • Local Seek tuning: Yes
  • Presets: 18 FM, 6 AM
  • RDS: Yes
  • SiriusXM-Ready™ (Tuner Sold Separately): Yes



INTEGRATION

  • Amazon Alexa: Paired with Pioneer Vozsis
  • Android Auto™: Wireless Connection or Wired USB Connection
  • Apple® CarPlay: Wireless Connection or Wired USB Connection
  • Mirroring: Miracast-Android Phones Only
  • Mobile Operating System: Android / Apple iOS
  • Pandora®: With Apple CarPlay or Android Auto
  • Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
  • Siri® Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: With Apple CarPlay or Android Auto
  • Voice Control: Yes
  • WiFi: Yes



DIGITAL MEDIA PLAYBACK

  • Audio Playback via CD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / CD Audio Playback
  • Audio Playback via DVD: AAC Audio Playback / MP3 Audio Playback / WMA Audio Playback
  • Audio Playback via SD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
  • Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
  • Audio Video Playback via CD-R/CD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
  • Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
  • Audio Video Playback via SD: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
  • Audio Video Playback via USB: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
  • Image Display via SD: JPEG
  • Image Display via USB: JPEG



AUDIO

  • Advanced Sound Retriever: Mode-1/Mode-2/Off
  • Bass Boost: Yes
  • Auto EQ (CD-MC20 Microphone sold separately): Yes
  • Automatic Level Control: Mode-1/Mode-2/Off
  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Network Mode: HPF/Band Pass/LPF
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Dynamic Bass Enhancer: Yes
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Loudness: High/Mid/Low/Off
  • Speaker Output: 4-ch
  • Spectrum Analyzer: Yes
  • Subwoofer Control: Yes



EXPANDABILITY

  • Dual Zone Rear-Seat Entertainment: Yes
  • OEM Integration: iDatalink® Maestro™ - RR (DATA)
  • Parking Assist Lines: Yes
  • RCA Video Output: Yes
  • SD/SDHC Memory Card Slot: SD
  • USB: Dual Rear Type-A (5 V, 1.5 A)
  • USB Direct Control for iPhone®: 5s and newer



INPUTS

  • Input 1: Backup Camera Dedicated
  • Input 2: AUX (Minijack)
  • Input 3: A/V or 2nd Camera
  • Input 4: HDMI Standard (Type A)



GENERAL

  • Detachable Face Security: Fixed
  • Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
  • Music Browser: USB
  • Remote Control: Included
  • Steering Wheel Control Ready (Adapter Sold Separately): Yes



TS-A6901C A-Series 6x9" 450W Peak Power Handling at  4 Ohms, 2-way Component Car System



Features:

  • 450 Watts Max Power
  • 100 Watts RMS
  • 20mm Polyetherimide (PEI) Tweeter
  • 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Universal woofer basket design expands installation
  • Sold as pair



Specifications:

  • System Type: 2-way Component
  • Sound Pressure Level (Sensitivity): 92 dB (+- 1.5dB)
  • Frequency Range: 29 Hz to 58k Hz
  • Continuous Power Handling (RMS): 100 Watts
  • Maximum Peak Power Handling: 450 Watts
  • Nominal Impedance: 4 ohms
  • Woofer Diameter: 6 x 9"
  • Woofer Cone Material: Carbon and mica reinforced IMPP
  • Woofer Surround Material: Elastic polymer
  • Woofer Basket Material: Iron Plate Press
  • Woofer Magnet Material: Ferrite
  • Woofer Magnet Weight: 13 oz
  • Woofer Voice Coil Bobbin: Glass Imide
  • Woofer Voice Coil Wire: Copper
  • Woofer Mounting Depth: 2-7/8" (Shallow basket)
  • Tweeter Type: Separate Component Polyetherimide (PEI) hard dome tweeter
  • Tweeter Diameter: 20 mm
  • Tweeter Diaphragm Material: Film (PEI)
  • Tweeter Magnet Material: Neodymium
  • Tweeter Magnet Weight: 0.17
  • Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year



TS-D65F D-Series 6.5" 270W Peak Power Handling at 4-Ohms, 2-Way Coaxial Car Speakers



Features:

  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality



Specifications:

SYSTEM

  • System Type: 2-way Coaxial
  • Sound Pressure Level (Sensitivity): 85dB (+- 1.5dB)
  • Frequency Range: 32 Hz to 49 kHz
  • Continuous Power Handling (RMS): 90 Watts
  • Maximum Peak Power Handling: 270 Watts
  • Nominal Impedance: 4 ohms



WOOFER

  • Diameter: 6.5”
  • Cone Material: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
  • Surround Material: Butyl Rubber
  • Magnet Material: Ferrite
  • Magnet Weight: 11.3 oz



TWEETER

  • Type: Soft Dome
  • Diameter: 26mm
  • Diaphragm Material: Polyester
  • Magnet Material: Neodymium
  • Magnet Weight: 6.4 g
  • Swivel Type: Yes



CROSSOVER NETWORK

  • Crossover Frequency: 3900 Hz



ELPC40B Rear-View License Plate Mount Camera with Weatherproof, High-Resolution Color, and Wide-Angle View



Features:

  • Hidden Mount Design: Installs discreetly behind the license plate using existing mounting screws for a clean, factory look.
  • High-Resolution Color Camera: Delivers sharp, vibrant video for clear rear visibility.
  • On-Screen Distance Guide: Built-in parking lines help you gauge distance and park with confidence.
  • Low Light Visibility: Provides clear imaging even in dimly lit environments for safer nighttime driving.
  • Weatherproof Construction: Built to withstand rain, dust, and harsh outdoor conditions.
  • Wide-Angle View: Expands your field of vision to reduce blind spots when reversing.
  • NTSC Output: Compatible with most aftermarket and factory video display systems.
  • UPC:
  • Weight: 30
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!

Must haves for Pioneer AVIC-W8600NEX-Bundle1:

Other items that might interest you:

Other customers also shopped for:
