Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Stinger IX210 HORIZON10 1-DIN 10.1" Floating Touchscreen Display Weather-Resistant Digital Multimedia Receiver with Wireless Apple CarPlay & Android Auto, SiriusXM Ready, and Built-In Bluetooth (Does not play CDs) + Alpine S2-W12D2 S Series 12" 1800W Peak Power Handling at 2 Ohms, Dual Voice Coil Car Subwoofer + Musway MC6.2C MC Series 6.5" 100W RMS 4 Ohms, Active 2-Way Car Component System + Musway MC62 MC Series 6.5" 100W RMS, 4 Ohms 2-way Coaxial Speakers (Pair) + Musway FIVE.100+ MX Series 5-Channel 115W RMS x 4 at 4 Ohm + 5th channel 600W x 1 at 1 Ohm, Class-D Full Range Car Amplifier + Stinger SRK-JK11HX IX210 / UN1810 HEIGH10 FULL RADIO INTEGRATION KIT FOR 2011-2018 JEEP WRANGLER JK + MDQ112P (12” Ported Sub Box)
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

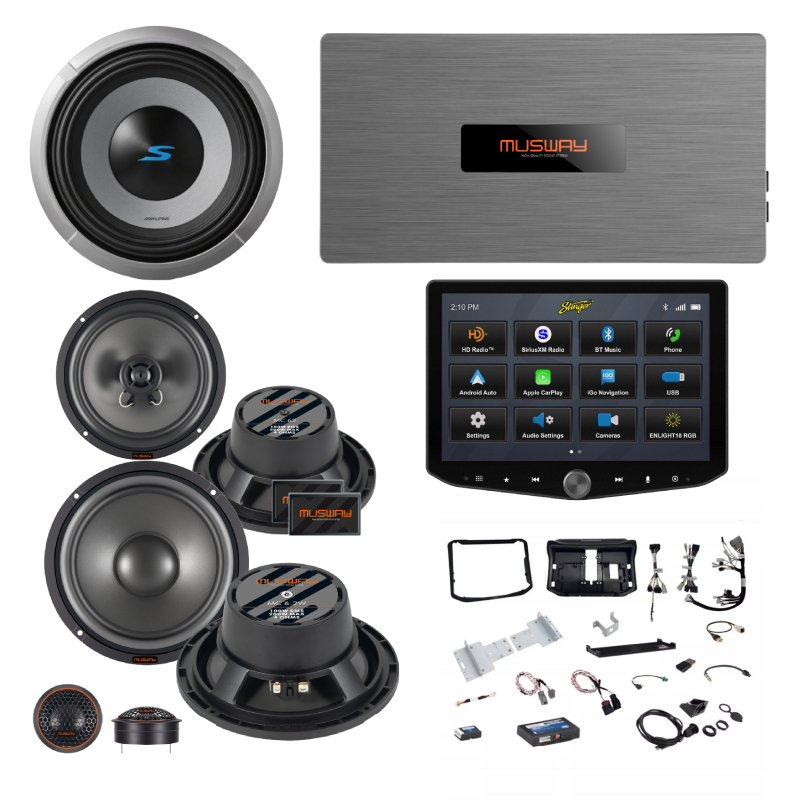

What's Inside?
- • IX210 10.1" Touchscreen Display
- • IX210 Source Unit
- • IX210 16-Pin AV harness
- • IX210 12-Pin preout harness
- • IX210 14-Pin data harness
- • IX210 26-Pin power/speaker harness
- • IX210 LVDS display cable
- • IX210 External microphone (attached 10' cord terminated by a male mono-minijack connector)
- • IX210 Mic windscreen
- • IX210 Mic surface-mount bracket
- • IX210 Mic visor-clip
- • IX210 GPS antenna (attached 16' cord terminated by SMB connector)
- • IX210 GPS mounting plate
- • IX210 Display bracket
- • IX210 Nose bracket
- • IX210 Connector cover
- • IX210 (10) Waterproof plugs
- • IX210 (5) M3x6mm screws
- • IX210 (4) M4x10mm screws
- • IX210 (4) M5x10mm screws
- • IX210 Locking-screw
- • IX210 Screen cloth
- • IX210 QR Code Card for User Guide
- • IX210 Firmware Update Information Card
- • IX210 Owner's Manual
- • S2-W12D2 12" Dual 2-ohm voice coil subwoofer
- • S2-W12D2 Trim ring (installed)
- • S2-W12D2 Subwoofer Application Guide (English/ French)
- • S2-W12D2 (2) 3" jumper cables (each has a single banana connector on each end)
- • S2-W12D2 On-line product registration information (English/ French/ Spanish)
- • S2-W12D2 Warranty information (English/ French)
- • S2-W12D2 Important Notice! (English/ French)v
- • S2-W12D2 Owner's Manual
- • MC6.2C (2) 6.5" Midrange Car Speakers
- • MC6.2C (2) Car Tweeters
- • MC6.2C Installation Accessories
- • MC6.2C Owner's Manual
- • MC62 MC Series 6.5" 4 ohms 2-way Coaxial Speakers
- • MC62 User's Manual
- • FIVE.100+ 5-Channel Class-D Full Range Car Amplifier
- • FIVE.100+ Remote Level Control
- • FIVE.100+ Owner’s Manual
- • SRK-JK11HX Factory-matched radio mounting panels for HORIZON10 or HEIGH10
- • SRK-JK11HX Vehicle-specific plug-n-play wire harness
- • SRK-JK11HX PAC-Link adapter for Stinger multimedia units
- • SRK-JK11HX Antenna adapters for satellite and AM/FM radio
- • SRK-JK11HX USB retention cables
- • SRK-JK11HX Owner's Manual
- • MDQ112P (12” Ported Sub Box)
Seamless Connectivity and Stunning Display
Experience seamless connectivity with both wireless and wired Apple CarPlay, Android Auto, and hands-free Bluetooth, all on a stunning 10.1" HD touchscreen featuring anti-glare, anti-reflection, and anti-fingerprint protection. For the best performance, we recommend professional installation, ensuring you get the most out of your smart features!
Ultimate Convenience and Premium Features
Unlock the ultimate in convenience with optional offline iGO navigation, a weather-resistant IP65 display, on-screen accessory control, advanced 15-band audio tuning for Hi-Fi sound, and SiriusXM-ready features for endless entertainment!
Versatile Inputs and Advanced On-Screen Control
Enhance your driving experience with versatile inputs, HD radio for crystal-clear sound, on-screen control of accessories and AudioControl's DM series, and dynamic ENLIGHT10 lighting for ultimate visibility—all at your fingertips!
Performance & Value
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 12” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 86dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Perfect Power Match
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power up to two S2-W12D2 subwoofers effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair up to four S2-W12D2 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and perfomance.
Features a Progressive Spider
Alpine's subwoofer features a progressive spider ensuring reliable tinsel lead control, compound radius curve pole geometry for optimized magnetic fields and reduced distortion, dual voice coils offering system flexibility, spring terminals for versatile wiring options, included jumpers for easy voice coil wiring, and recommends sealed enclosures for precise sonic reproduction or ported enclosures for increased output, with ideal volumes specified for each.
Big Sound and Slim Design
Deliver powerful, precise audio with 100W RMS and 200W peak power—covering 65–6000Hz for everything from tight, punchy bass to smooth, detailed highs. Its slim 60mm mounting depth offers versatile installation in virtually any vehicle.
Clear, Refined, and Built to Perform
Enjoy natural, distortion-free sound with a 25.5mm voice coil for efficient power handling—paired with 25mm silk dome tweeters that deliver smooth, detailed highs for a truly refined listening experience.
Reliable Sound and Easy Upgrade
Count on years of consistent performance with durable construction built to handle the road—featuring a 144mm mounting diameter for quick, hassle-free installation in most vehicles.
Immerse Yourself in Automotive Audio Excellence
The Musway MC62 MC Series 6.5" 2-way Coaxial Speakers are car audio speakers designed to reproduce sound in vehicles. Coaxial speakers are a popular choice for car audio setups as they are relatively easy to install and provide decent sound quality for most users.
Unite Clarity and Convenience with Our 2-Way Coaxial Speaker
It is a 2-way coaxial speaker which means that the speaker has two separate drivers (a tweeter and a woofer) integrated into a single unit. The coaxial design allows for more straightforward installation and better sound integration compared to separate component systems.
Unleash the Power of Polypropylene Cone
The cone material is a crucial component of a speaker driver. In this case, the cone is made from polypropylene. Polypropylene is a type of plastic known for its durability, rigidity, and resistance to moisture and temperature changes. It is a popular material choice for speaker cones due to its ability to deliver accurate and clear sound reproduction in the lower frequency range.
Seamless Performance and Advanced Design for Unmatched Reliability
Experience seamless performance with start-stop vehicle systems, reliable operation with advanced EPS protection, and cutting-edge 4-fold laminated circuit boards that ensure a compact design while effectively suppressing EMI interference, meeting the highest European standards for Class D amplifiers.
Versatile Connectivity and Convenient Controls in a Durable Design
Enjoy versatile connectivity with high- and low-level input options, enhanced by an RCA output for added flexibility, all housed in a durable brushed aluminum design for superior heat management. Plus, benefit from the convenience of automatic turn-on via DC Offset or Signal Sensing and an included remote level controller for effortless sound adjustments.
Seamless Integration & Advanced Control
Upgrade to the HORIZON10 multimedia system for seamless integration with your factory features like high-definition cameras, factory amplifier, USB ports, and steering wheel controls. Customize vehicle performance apps directly from the system and enjoy advanced control with RadioPRO Advanced, offering custom camera triggers and enhanced functionality of your factory controls.
HORIZON10 with Plug-and-Play Installation for Jeep Wrangler JK
Upgrade your Jeep Wrangler JK effortlessly with the HORIZON10! Enjoy a quick, plug-and-play installation with the included factory-matched dash kit, mounting hardware, and wire harness—no modifications needed. Enhance your audio and visual experience while keeping a sleek, OEM look with this perfect factory radio upgrade.
- Vehicle Make : Jeep
- Vehicle Model : JK
IX210 HORIZON10 1-DIN 10.1" Floating Touchscreen Display Weather-Resistant Digital Multimedia Receiver with Wireless Apple CarPlay & Android Auto, SiriusXM Ready, and Built-In Bluetooth (Does not play CDs)
Features:
- Wireless & Wired Smartphone Integration: Access smart features with wired or wireless Apple CarPlay, Android Auto, and hands-free Bluetooth. (Note: USB-C only for wired connection)
- Professional Installation Recommended: For optimal performance, professional installation is advised. No dash kit or plug-and-play installation included.
- High-Resolution Touchscreen: 10.1" 1280x800 HD screen with anti-glare, anti-reflection, and anti-fingerprint protection.
- Micro-SD Card Slot for iGO Navigation: Optional offline iGO Navigation with reliable maps (SD Card sold separately).
- IP65 Weather Resistant Display: Optically bonded for dust and moisture protection. (Radio chassis not IP rated)
- On-Screen Accessory Control: Control up to 4 accessories on-screen without additional switches.
- Advanced Audio Features: 15-band equalizer with 6 custom presets for superior Hi-Fi audio playback.
- SiriusXM-Ready: Access a wide range of music, sports, and entertainment options (SiriusXM tuner sold separately).
- Multiple Input Options: 3 USB inputs (1 USB-C and 2 USB-A), HDMI input, and AV input.
- HD Radio: Clear digital sound from local stations with no static or subscription fees.
- Accessory Control: Control up to four accessories with customizable icons on-screen (relays needed, SwitchHub recommended).
- AudioControl Compatibility: Control AudioControl's DM series processors and amplifiers on-screen without a laptop or tablet.
- ENLIGHT10 Lighting Integration: Illuminate your ride with dynamic LED lighting for superior visibility, controlled on-screen.
Specifications:
- AUX Input: RCA (rear)
- Audio/Video Input: RCA (rear)
- USB Input: Rear (3)
- USB Port Power: 3.0, 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- Preamp Outputs: 8-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Memory Card Slot: USB
- Smartphone Control: iPhone Compatibility (5 and newer), CarPlay (Wired or wireless), Siri Control (CarPlay only), Android Control, Android Auto (Wired or wireless), Alexa Voice Control (No)
- FM Sensitivity: ---
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3, WMA, AAC, FLAC, WAV, OGG
- High-res Playback: No
- Navigation: CarPlay, Android Auto
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Bluetooth: Built-in
- Bluetooth Version: 5.1
- Satellite Radio Ready: SiriusXM 2.0
- HD Radio: Yes
- Video Screen: Yes
- Preamp Voltage: 4.5
- Screen Size: 10.1"
- Screen Type: Swipeable (Capacitive)
- Display Color: ---
- Key Button Color: Variable
- EQ Bands: 15
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Chassis Depth: 5.405"
- Chassis Width: 7.015"
- Chassis Height: 1.975"
S2-W12D2 S Series 12" 1800W Peak Power Handling at 2 Ohms, Dual Voice Coil Car Subwoofer
Features:
- Progressive Spider: The progressive spider has reinforced layer tinsel leads to ensure reliable and consistent control of the tinsel leads and eliminate any mechanical noise or interference often seen in high excursion cone designs.
- Compound Radius Curve Pole Geometry: Alpine's Patented Compound Radius Curve extended pole geometry ensures a symmetrical magnetic field, while optimizing flux density to reduce distortion and further improve power handling and output.
- Dual Voice Coils: For system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
- Spring Terminals: The spring post terminals are all located on one side of the woofer. The terminals will accept pin connectors, single banana plugs, or bare wire up to 8-gauge.
- Jumpers: Included with the woofer are two voice coil terminal jumpers. These jumpers allow you to easily wire the voice coils in parallel (for a 1Ω load) or series (for a 4Ω load).
- Sealed Box: Alpine recommends a sealed enclosure with an internal volume between 0.61 and 1.06 cubic feet, with an ideal volume of 0.85 cubic feet. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
- Ported Box Volume: The recommended ported box volume ranges from 1.06 cubic feet to 1.56 cubic feet, with the ideal size being 1.51 cubic feet, using a slot port measuring 12½" (W) x 1" (H) x 16" (L).
Specifications:
- Size: 12 -inch
- Impedance (Ohms): 1, 4
- Cone Material: Carbon Fiber/Polypropylene
- Surround Material:Rubber
- Free-Air: No
- Dual Voice Coil: Yes
- Sensitivity: 85.7 dB at 1 watt
- Frequency Response: 23 - 215 Hz
- Max RMS Power Handling: 600
- Peak Power Handling (Watts): 1800
- Top Mount Depth (inches): 5 1/16
- Cutout Diameter or Length (inches): 10 5/8
- Frame Width: 12.5
- Frame Length: 12.5
- Vas (liters): 55.1
- Fs (Hz): 26.6
- Qts: 0.43
- Xmax (millimeters): 15
Box Requirements
- Ideal Sealed Box Volume (cubic feet): 0.85
- Minimum Sealed Box Volume (cubic feet): 0.61
- Maximum Sealed Box Volume (cubic feet): 1.2
- Ideal Ported Box Volume (cubic feet): 1.51
- Minimum Ported Box Volume (cubic feet): 1.06
- Maximum Ported Box Volume (cubic feet): 1.6
MC6.2C MC Series 6.5" 100W RMS 4 Ohms, Active 2-Way Car Component System
Features:
- Powerful Sound Performance: 100W RMS and 200W peak power deliver exceptional audio clarity, depth, and precision
- Impressive Frequency Response: Covers 65–6000Hz, capturing everything from punchy bass to smooth highs with accuracy
- Slim & Versatile Fit: Just 60mm mounting depth for flexible installation in a wide variety of vehicles
- High-Quality Components: 25.5mm voice coil ensures efficient power handling and reduced distortion for natural sound reproduction
- Smooth Highs: 25mm (1") silk diaphragm dome tweeters deliver clean, detailed treble for a refined listening experience
- Built for the Long Haul: Durable construction withstands road conditions for years of reliable performance
- Easy Installation: 144mm mounting diameter allows for quick, hassle-free integration into most car models
Specifications:
Midbass Speakers (MC6.2W - Pair)
- Size: 6.5" (16.5 cm)
- Power Handling: 100 Watts RMS / 200 Watts Max
- Impedance: 4 Ohms
- Frequency Response: 65Hz - 6,000Hz
- Mounting Dimensions: 144mm Diameter / 60mm Depth
- Cone Material: Durable Polypropylene
- Voice Coil Size: 25.5mm
Component Tweeters (Pair)
- Size: 1" (25mm)
- Power Handling: 100 Watts RMS / 200 Watts Max
- Impedance: 4 Ohms
- Frequency Response: 1,500Hz - 20,000Hz
- Dome Material: Silk Diaphragm for Smooth Highs
- Mounting Dimensions: 46mm Diameter / 25mm Depth
MC62 MC Series 6.5" 100W RMS, 4 Ohms 2-way Coaxial Speakers (Pair)
Product Overview
- Exceptional sound quality and durability: Enhance your audio experience with the Musway MC62 6.5" 2-Way Coaxial Speakers. Designed to deliver exceptional sound quality and durability, these speakers are perfect for any car audio enthusiast.
- Power handling: With a robust power handling capability of 100W RMS and a maximum power rating of 200W, these speakers pack a punch, filling your vehicle with immersive and dynamic sound. Whether you enjoy smooth jazz or booming bass, the Musway MC62 is designed to impress.
- Easy installation: The 60mm mounting depth ensures easy installation in most vehicles, allowing you to upgrade your sound system without hassle. The 4-ohm impedance ensures efficient power transfer, maximizing the potential of your amplifier.
- Frequency response: Experience a wide range of audio frequencies with the impressive 65-20000Hz frequency response. From rich lows to crystal-clear highs, these speakers deliver balanced audio reproduction across the entire spectrum. The woofer's polypropylene cone provides excellent rigidity and low distortion, resulting in tight and accurate bass response.
- Performance: For impeccable high-frequency performance, the tweeter features a silk diaphragm dome. This premium material produces smooth and detailed highs, adding depth and clarity to your favorite tracks.
Specifications:
- 16.5cm (6.5") 2-Way Coaxial Speakers
- Power Rating RMS: 100 Watts
- Power Rating Max: 200 Watts
- Impedance: 4 Ohms
- Frequency Range: 65-20000hz
- Mounting Diameter: 144mm
- Woofer Polypropylene Cone
- Tweeter Silk Diaphragm
FIVE.100+ MX Series 5-Channel 115W RMS x 4 at 4 Ohm + 5th channel 600W x 1 at 1 Ohm, Class-D Full Range Car Amplifier
Features:
- Start-Stop Ready: Designed to work seamlessly with start-stop vehicle systems.
- EPS Protection: Intelligent High-Level Input Error Protection System ensures reliable operation.
- Advanced Circuit Boards: Utilizes 4-fold laminated circuit boards for a compact size and effective EMI (RF) interference suppression.
- EMI Compliance: Passes stringent EMI European standards for full-range Class D amplifiers.
- Input Options: Features both high- and low-level input compatibility.
- RCA Output: Includes an RCA (low-level) output for added connectivity.
- Durable Design: Brushed aluminum heat sink and end panels for heat management and durability.
- Auto Turn On: Activates automatically via DC Offset or Signal Sensing.
- Remote Level Control: Includes a remote level controller for convenient adjustments.
Specifications:
- Output Power RMS @ 13.8V:
- (CH1 - CH4) 4 x 115W @ 4 Ohms
- (CH1 - CH4) 4 x 200W @ 2 Ohms
- (CH1 - CH4) 2 x 400W @ 4 Ohms bridged
- (CH5) 1 x 225W @ 4 Ohms
- (CH5) 1 x 400W @ 2 Ohms
- (CH5) 1 x 600W @ 1 Ohm
- Output Power RMS @ 14.4V:
- (CH1 - CH4) 4 x 125W @ 4 Ohms
- (CH1 - CH4) 4 x 225W @ 2 Ohms
- (CH1 - CH4) 2 x 450W @ 4 Ohms bridged
- (CH5) 1 x 250W @ 4 Ohms
- (CH5) 1 x 425W @ 2 Ohms
- (CH5) 1 x 650W @ 1 Ohm
- Frequency Range (-3dB): 4 - 39,000 Hz
- Damping Factor: 300
- Signal-to-Noise Ratio: > 107 dB
- THD+N: < 0.02%
- Input Sensitivity (Low-Level): 0.3 - 7.8V
- Input Sensitivity (High-Level): 0.7 - 15.6V
- Channel 1/2 Crossover Modes: Full - HP - Copy
- Channel 1/2 High Pass Filter: 50 - 5000 Hz
- Channel 3/4 Crossover Modes: Full - HP - LP/BP
- Channel 3/4 High Pass Filter: 10 - 500 Hz
- Channel 3/4 Low Pass Filter: 50 - 5000 Hz
- Channel 5 Subsonic Filter: 10 - 40 Hz
- Channel 5 Low Pass Filter: 40 - 150 Hz
- Channel 5 Bass Boost: 0 - 18 dB @ 45 Hz
- Channel 5 Phase Shift: 0 - 180
- Start-Stop Capability: 8.5V
- High-Level Input with EPS: Yes
- Auto Turn On: Via DC or Signal
- Fuse Rating: 1 x 125A (external)
- Dimensions: 295 x 45 x 150 mm
SRK-JK11HX IX210 / UN1810 HEIGH10 FULL RADIO INTEGRATION KIT FOR 2011-2018 JEEP WRANGLER JK
Features:
- Complete Integration – Retains essential factory features like high-definition cameras, a factory amplifier, USB ports, and steering wheel controls.
- Customizable Vehicle Performance Apps – Provides enhanced control over vehicle performance apps directly from the HORIZON10 multimedia system.
- Advanced Control Features – Offers custom camera triggers and optimized use of steering wheel controls and factory amplifier through RadioPRO Advanced.
- Plug-and-Play Installation – Includes factory-matched dash kit, mounting hardware, and plug-and-play wire harness for seamless installation without vehicle modifications.
- Premium Audio and Visual Upgrades – Ideal for upgrading the factory radio with the HORIZON10 while maintaining a sleek OEM look in the Jeep Wrangler JK.
Specifications:
- Brand: PAC
- Assembled Product Dimensions (L x W x H): 14.00 x 4.00 x 10.00 Inches
- UPC:
- Weight: 71.45
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
