PRV Audio RS1400 BASS RS Series 2200W Max Power, Class-D Mono Subwoofer Car Amplifier
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Full-Scale Bass Domination Power
If you are ready to take your subwoofer setup to the absolute next level, the PRV Audio RS2200 BASS 1 Ohm Class-D Mono Amplifier is built for exactly that mission. With a massive true 2200W RMS output at 1 ohm, this amplifier is designed for serious SPL pressure and deep, chest-thumping bass that never feels weak or washed out. Its high-output monoblock Class-D architecture focuses all energy into clean, controlled low frequencies, giving you that aggressive sound that hits hard whether you are competing or just enjoying daily drive intensity.
Built Tough with Stable Copper Core Engineering
This amplifier is not just powerful, it is engineered to stay stable under pressure. The reinforced copper power infrastructure works hand in hand with a heavy-duty PCB platform to keep current flowing smooth even during extreme bass peaks. You get solid, consistent output without random drops or strain on your system. Add in the compact high-efficiency chassis and smart thermal design with active cooling, and you have an amp that stays cool, controlled, and ready for long, loud sessions without backing down.
Precision Control, Safety, and Everyday Ease
Dialing in your perfect bass setup becomes effortless with smart tuning features built right in. The adjustable bass boost lets you shape low-end response up to +10 dB, while the wide 5Hz to 200Hz range gives you full command over your subwoofer’s behavior. A 19ft remote bass knob with LED display puts real-time control at your fingertips, while the clip indicator helps you avoid distortion before it happens. With a full 4-way protection system, OEM integration support, and high-current terminals, this amplifier is designed to install easy, perform hard, and protect your entire system while doing it.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio RS2200 BASS 1 Ohm go into protection mode after a few minutes?
Protection mode is often caused by low battery voltage, overheating, poor grounding, or an incorrect speaker load. Inspect the amplifier wiring and verify that your electrical system is supplying stable power.
- • Can I use the RS2200 BASS 1 Ohm with a factory alternator?
For light to moderate use it may be sufficient, but many users upgrade to a high output alternator and stronger battery to support demanding bass performance.
- • Why does my amplifier stay on but the subwoofer has no sound?
This can happen because of loose speaker wires, a blown subwoofer, incorrect RCA connections, or crossover settings that prevent bass frequencies from reaching the subwoofer.
- • Why does my bass sound distorted at higher volume levels?
Distortion is commonly caused by excessive gain, amplifier clipping, incorrect crossover settings, or a subwoofer that is exceeding its power or excursion limits.
- • Can I connect two subwoofers to the RS2200 BASS 1 Ohm?
Yes, multiple subwoofers can be connected as long as the final impedance matches the amplifier's recommended 1 ohm operating load.
- • Why does my voltage drop whenever the bass gets loud?
High current demand from the amplifier can overload a factory charging system. Upgrading the battery, alternator, or power cables helps maintain consistent voltage.
- • Why does the amplifier get hot even when the gain is low?
Poor airflow, incorrect speaker impedance, or continuous operation at high power can cause heat buildup even with conservative gain settings.
- • What is the biggest wiring mistake people make with the RS2200 BASS 1 Ohm?
A common mistake is wiring dual voice coil subwoofers incorrectly, resulting in an impedance that does not match the amplifier's intended operating range.
- • Can the RS2200 BASS 1 Ohm be used in a daily driven vehicle?
Yes, it is well suited for daily bass systems when paired with compatible subwoofers, quality wiring, and a healthy vehicle charging system.
- • How can I get louder and cleaner bass from the RS2200 BASS 1 Ohm?
Choose the correct enclosure, wire the subwoofers to the proper impedance, use heavy duty power and ground cables, tune the gain and crossover carefully, and maintain a stable electrical system for maximum performance.
- Maximum Power : 2200 Watts
- Low Frequency Response : 5 Hz
- High Frequency Response : 200 Hz
- Number of Channels : 1
- Frequency Response : 5-200 Hz
- Amplifier Class : D
Features:
- Command-Level Bass Authority Engine: Designed for SPL-focused builds, delivering a true 2200W RMS at 1 Ohm for extreme low-frequency performance in competitive and daily systems.
- High-Output Monoblock Class-D Design: Engineered as a single-channel amplifier optimized for subwoofer control, maximizing efficiency and deep bass impact.
- Reinforced Copper Power Infrastructure: Utilizes an overbuilt power supply architecture with true copper components to maintain stable current flow and consistent output under heavy load.
- Heavy-Duty PCB Performance Platform: Built on a reinforced circuit board design to ensure durability, thermal stability, and long-term reliability in high-demand audio environments.
- Intelligent 4-Way Protection System: Integrated safeguards against high voltage, low voltage, short circuit, and overcurrent conditions to protect both amplifier and system.
- Real-Time Clip Indicator Monitoring: Built-in LED clip indicators provide instant feedback for precise gain setting and distortion prevention.

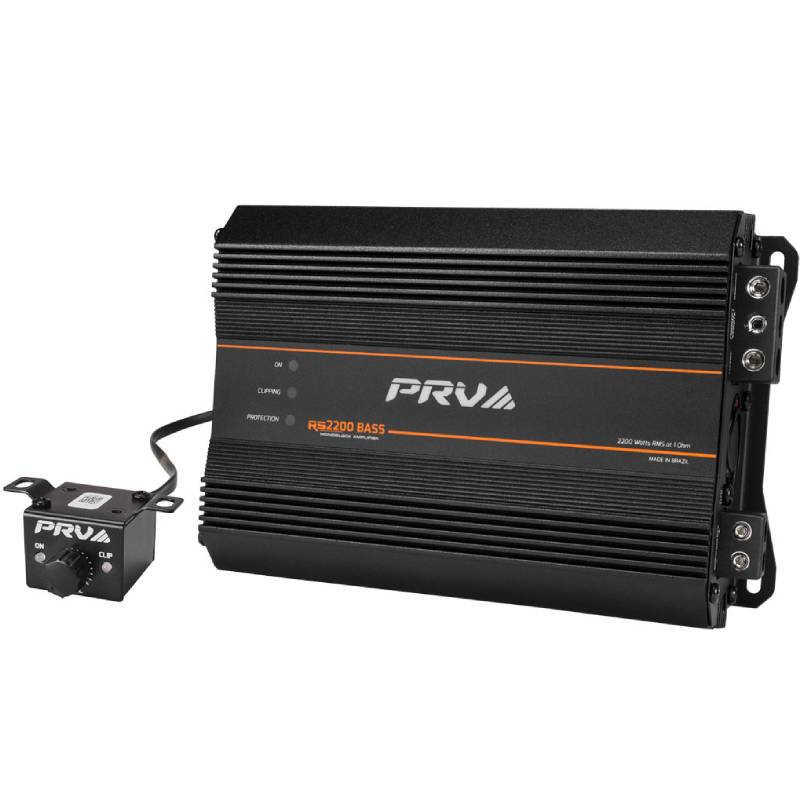

- Extended Wired Bass Control Interface: Includes a 19ft remote bass knob with LED status display for convenient, real-time bass adjustment from the driver position.

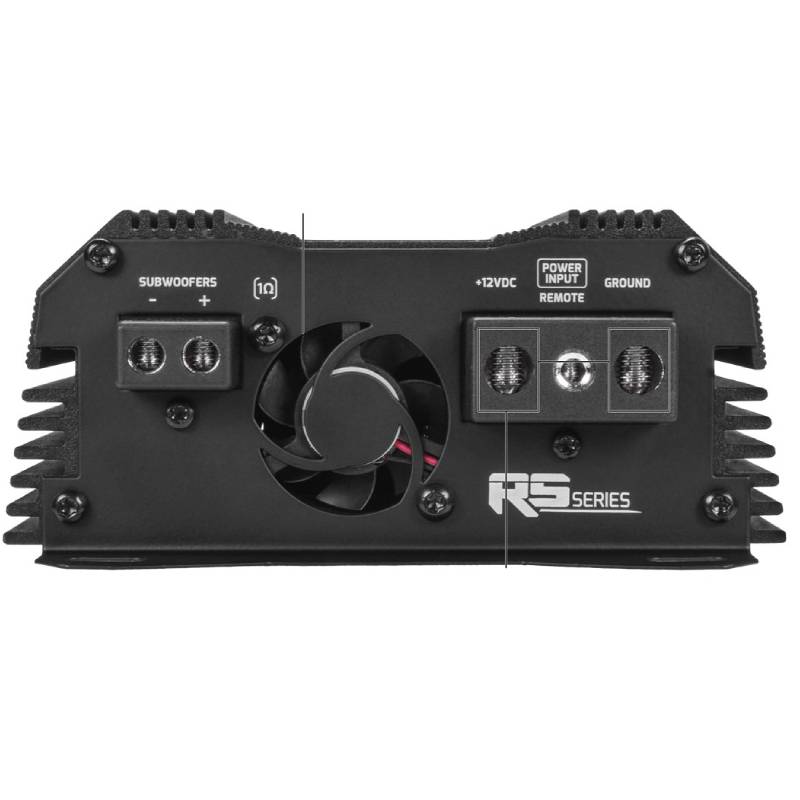

- High Current Input and Output Terminals: Equipped with 4-gauge power inputs and 10-gauge speaker outputs for efficient energy transfer and stable performance.
- High-Capacity Energy Reserve System: Large internal capacitor bank ensures sustained power delivery and strong bass response during peak audio demands.

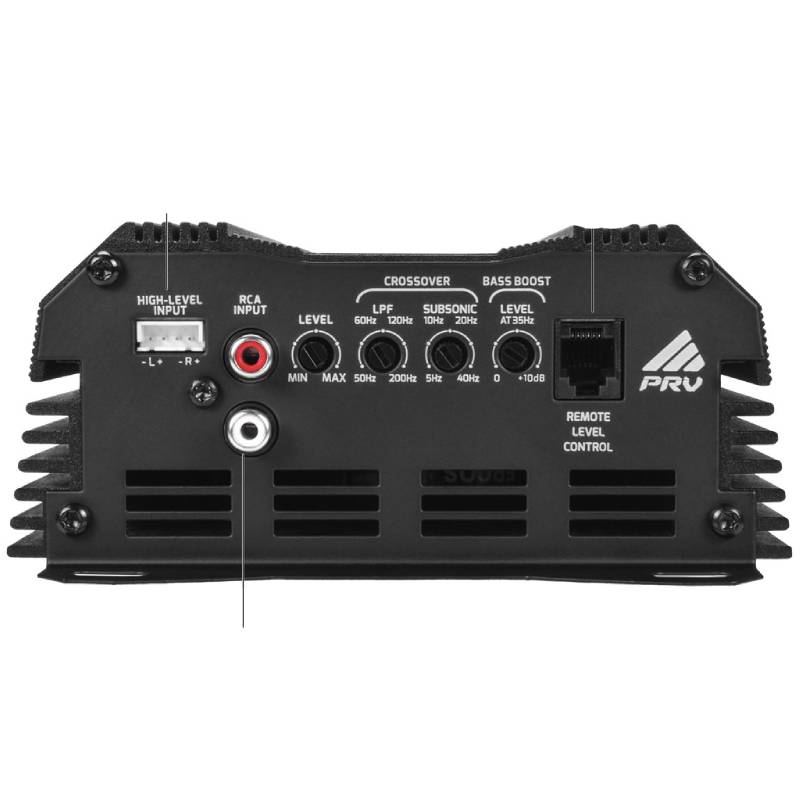

- Precision Low-End Tuning Control: Adjustable bass boost up to +10 dB at 35Hz allows tailored sub-bass enhancement for custom system tuning.
- Full Spectrum Subwoofer Optimization: Operates within a 5Hz to 200Hz range with integrated subsonic and low-pass filters for accurate frequency shaping.
- Seamless Factory System Integration: High-level input with auto turn-on capability enables direct connection to OEM audio systems without requiring a remote wire.

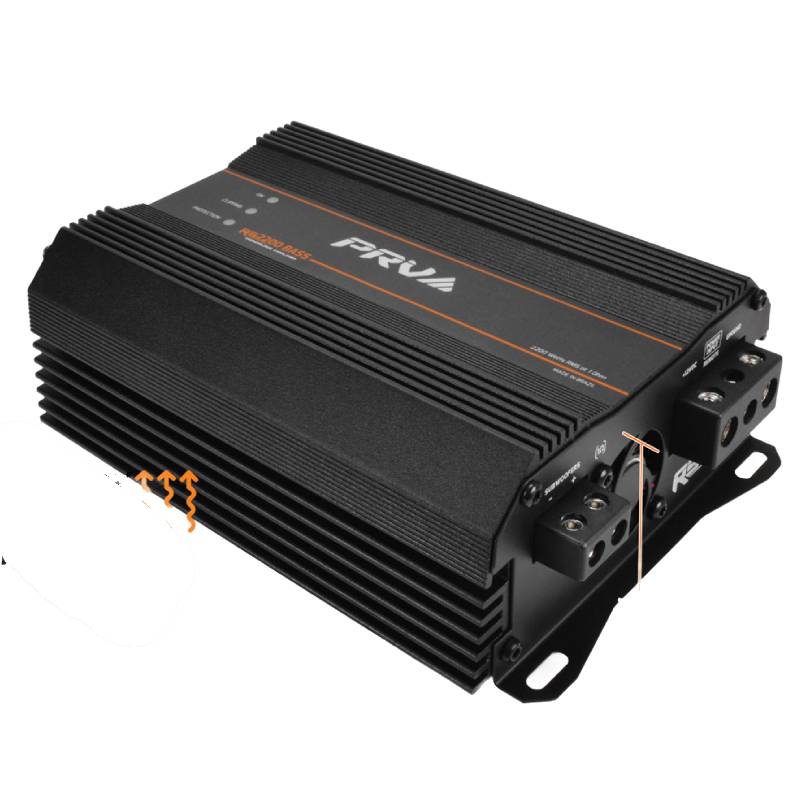

- Advanced Thermal Management Design: Compact heatsink combined with an integrated cooling fan maintains stable operating temperatures under continuous high output.
- Compact High-Efficiency Chassis: Space-saving design allows flexible installation in various vehicle layouts without sacrificing power performance.
- Lightweight High-Power Build: Weighing just 4.15 lbs, it delivers an optimized balance of portability and extreme output capability for custom audio installations.
Specifications:
- Impedance: 1 Ohm
- Channels: 1 Channel
- Rated RMS Power at 14.0 V at 1 Ohm: 2200 Watts
- Rated RMS Power at 14.0 V at 2 Ohm: 1800 Watts
- Average Efficiency: 81%
- Operating Voltage: 9 to 16 Volts
- Musical Current Draw: 140 A
- Minimum Power Wire Input: (OFC) 4 Gauge
- Protection Fuse or Circuit Breaker: 150 Amps
- Minimum Speaker Wire Output: (OFC) 14 Gauge
- Frequency Response(-3dB): 5 - 200 Hz
- Min. Input Sensitivity for Max. Output 200 mV
- Signal Input: 1 Pair RCA
- Signal to Noise: >90 dB
- Protection System: Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
- Heat Sink Type: Heavy Duty Cast Aluminum
- UPC: 810075526493
- Weight: 4.15
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
