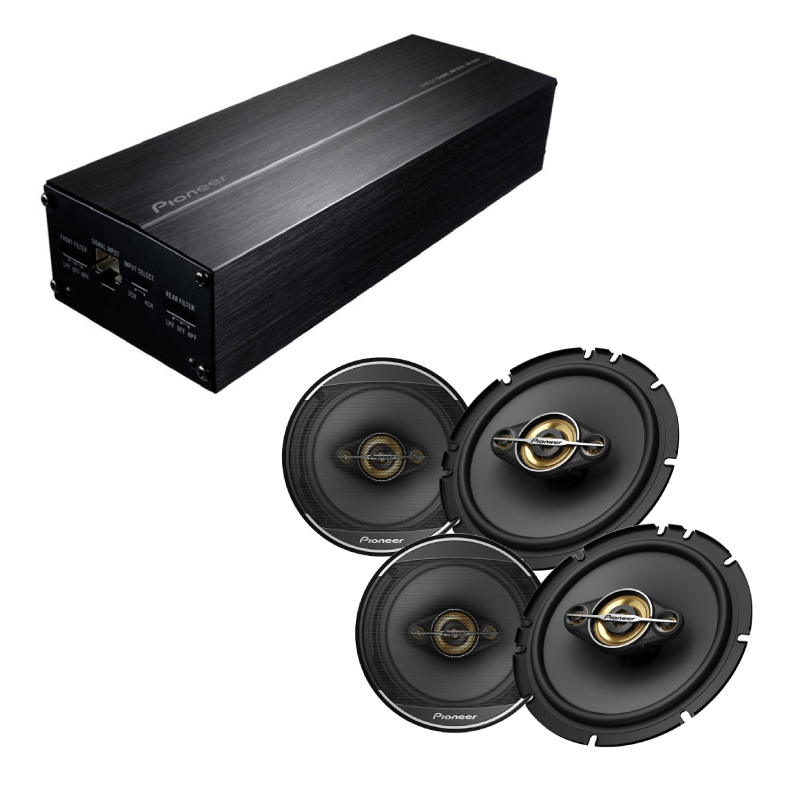

Pioneer  GM-D1004-Bundle1 New

GM-D1004 GM Series 4-Channel 45W RMS x 4 at 2-Ohms, Class FD Car Amplifier + 2 Pairs of TS-A1681F A-Series 6.5" 350W Peak Power Handling at 4 Ohms, 4-Way Coaxial Speakers (Sold as pair)

Item #98690

Condition:   Brand New

Product Highlights

  • GM-D1004 GM Series 4-Channel Class FD Car Amplifier
  • 45W RMS x 4 at 2 Ohms
  • 2 Pairs of TS-A1681F A-Series 6.5" 4-Way Coaxial Speakers (Pair)
  • 350W Peak Power Handling at 4 Ohms
  • Complete Amplifier & Speaker Upgrade Combo

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$311.00

Reg. Price $417.89  Save $106.89

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Pioneer GM-D1004 GM Series 4-Channel 45W RMS x 4 at 2-Ohms, Class FD Car Amplifier + Pioneer 2 Pairs of TS-A1681F A-Series 6.5" 350W Peak Power Handling at 4 Ohms, 4-Way Coaxial Speakers (Sold as pair)


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GM-D1004 4-Channel amplifier
  • • GM-D1004 (1) 15 amp mini blade fuse (installed)
  • • GM-D1004 8" Line-level input harness x 4
  • • GM-D1004 39" Speaker-level input harness
  • • GM-D1004 39" Power/Output harness
  • • GM-D1004 (2) Mounting brackets
  • • GM-D1004 (2) 3/4" Self-tapping screws
  • • GM-D1004 Warranty Information
  • GM-D1004 Owner's Manual
  • • TS-A1681F (2) 4-way speakers
  • • TS-A1681F (2) Grilles
  • • TS-A1681F (2) Grille frames
  • • TS-A1681F (2) Multi-application mounting brackets
  • • TS-A1681F (2) 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
  • • TS-A1681F (8) 3/4" screws
  • • TS-A1681F (8) 3/8" screws
  • • TS-A1681F (8) Flat washers
  • • TS-A1681F Warranty information
  • • TS-A1681F Specifications and template on box
  • TS-A1681F Owner's Manual
Compact Design

The Pioneer GM-D1004 is a compact and versatile amplifier that delivers powerful sound and easy installation. Designed for use in car audio systems, the GM-D1004 is a must-have for anyone looking to enhance their listening experience on the road. The GM-D1004 features a Class FD topology and can deliver up to 400 watts of maximum power. The amplifier is equipped with Pioneer's patented A/B channel architecture, which ensures high-fidelity sound reproduction and efficient power handling. Additionally, the GM-D1004 features a compact design that makes it easy to install in any car audio system.

Flexible Connectivity

One of the key advantages of the GM-D1004 is its versatility. The amplifier features a 4-channel configuration that allows for easy customization of the sound output. The amplifier is also bridgeable, allowing for the creation of a more powerful and efficient sound system.

Features a Variable High-pass Crossover

Additionally, the GM-D1004 features a variable high-pass crossover and a bass boost circuit, allowing for easy customization of the sound output. The GM-D1004 is also easy to install. The GM-D1004 features a compact design that makes it easy to fit in tight spaces.

Excellent Choice

The Pioneer GM-D1004 is an excellent choice for anyone looking to enhance their car audio system with a powerful and versatile amplifier. With its compact design, easy installation, and high-fidelity sound reproduction, the GM-D1004 is sure to impress even the most discerning audiophile.

Pioneer A-Series Speakers: Where Quality Meets Affordability in Perfect Harmony

Meet the Pioneer A-Series speakers, offering high-quality audio immersion at a fraction of the cost. These speakers deliver rich, detailed sound with powerful bass, increased volume, and crystal-clear quality while remaining budget-friendly. Their design combines subwoofers and full-range speakers for a flawless audio experience, providing impactful bass that lets you not just hear but feel the music, all at an affordable price. Pioneer's OPEN & SMOOTH sound concept ensures a seamless transition between drivers, perfect for automotive settings where speakers may be placed away from the listener's ears.

Power and Precision: Pioneer A-Series 6-1/2" Speakers

These 6-1/2" speakers boast a large voice coil and magnet, allowing them to handle a powerful 80 watts RMS. Thanks to their efficient design, they perform exceptionally well even when powered by a factory or aftermarket radio. Drawing on Pioneer's extensive expertise in car audio design, these speakers deliver clear, balanced sound that fills your vehicle with rich detail. If you're ready to replace your worn-out speakers, the authentic sound of Pioneer's A-Series + speakers will bring your music back to life.


SPECIFICATIONS



FEATURES


GM-D1004 GM Series 4-Channel 45W RMS x 4 at 2-Ohms, Class FD Car Amplifier



Features:

  • Compact Design: Whether you call it “compact” or “micro” the GM-D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, you’ll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.
  • Small But Powerful: It may be small but don’t let the size fool you. This Receiver is capable of delivering up to 400 Watts of maximum output and is more than comfortable providing 45 Watts of power per channel, that’s more than enough juice to improve the performance of your factory or aftermarket speakers.
  • Variety of Installs: Today more and more music lovers are taking their music off-road and finding ways to enjoy their music recreationally. With this amplifier you can add great sound to your motorcycle, ATV, or boat where a conventional size amplifier may not fit.
  • Flexible Connectivity: For DIYers, this amplifier is not only small and powerful but it’s easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi-level or low-level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket headunit.



Specifications:

  • 400 Watts Max Power
  • Variable High Pass and Low-Pass Filters
  • Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
  • CEA-2006 Compliant: Yes
  • Allowable Load Impedance: 2 ohm to 8 ohm allowable
  • Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
  • Bass Boost: 75 dB
  • Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
  • Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
  • Crossover Network Channel Slope: -12db/oct (A/B Ch)
  • Crossover Network Subwoofer Channel: 80 Hz
  • Crossover Network Subwoofer Slope: -12 dB/octave
  • Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
  • Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
  • Fuse Rating: 15 A
  • Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
  • RCA Input: 4-Channel
  • Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
  • Speaker Line input Sensor: Yes
  • THD - Subwoofer: < 0.05% (1 kHz)
  • THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch
  • Bridgable: Yes
  • Class: FD
  • Grounding System: Negative
  • Power Source: 14.4V (10.8 V to 15.1 V allowable)
  • Protection Control system: Yes
  • Terminal Type: Removable



TS-A1681F A-Series 6.5" 350W Peak Power Handling at 4 Ohms, 4-Way Coaxial Speakers (Sold as pair)



Features:

  • 350 Watts Max Power (80 Watts Nominal)
  • 11mm Tweeter and 11mm Super Tweeter
  • 1-5/8" polyetherimide cone midrange
  • 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction



Specifications:

  • System Type: 4-way Coaxial
  • Sound Pressure Level (Sensitivity): 91 dB (+- 1.5dB)
  • Frequency Range: 35 Hz to 29 kHz
  • Continuous Power Handling (RMS): 80 Watts
  • Maximum Peak Power Handling: 350 Watts
  • Nominal Impedance: 4 ohms
  • Woofer Diameter: 6-1/2"
  • Woofer Cone Material: Carbon and mica reinforced IMPP
  • Woofer Surround Material: Elastic Polymer
  • Woofer Basket Material: Iron Plate Press
  • Woofer Magnet Material: Ferrite
  • Woofer Magnet Weight: 11.29 oz
  • Woofer Voice Coil Bobbin: Glass Imide
  • Woofer Voice Coil Wire: Copper
  • Woofer Mounting Depth: 2-3/8" (Deep basket)
  • Tweeter Type: Twin Polyethylene terephthalate (PET) dome
  • Tweeter Diameter: 11 mm (Super) and 11 mm
  • UPC:
  • Weight: 29
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
