JL Audio SBX-GM-5GSUV/10TW3 Stealthbox Series Single 10" TW3 Enclosed Subwoofer for 2021-Up Cadillac, Chevrolet and GMC Full-Size SUVs
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Why Choose JL Audio SBX-GM-5GSUV/10TW3 10" TW3 Enclosed Subwoofer?

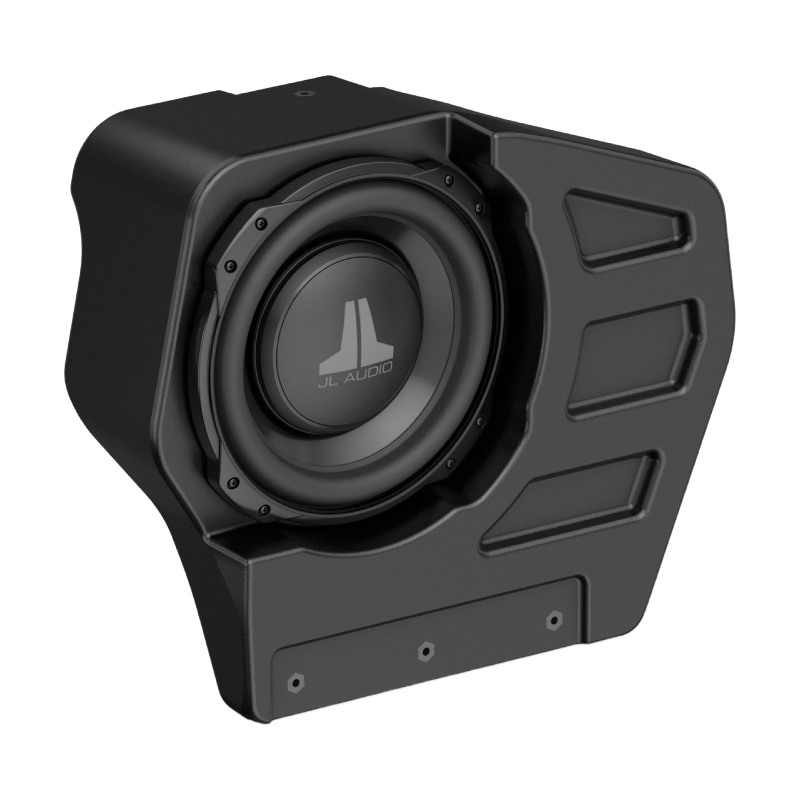

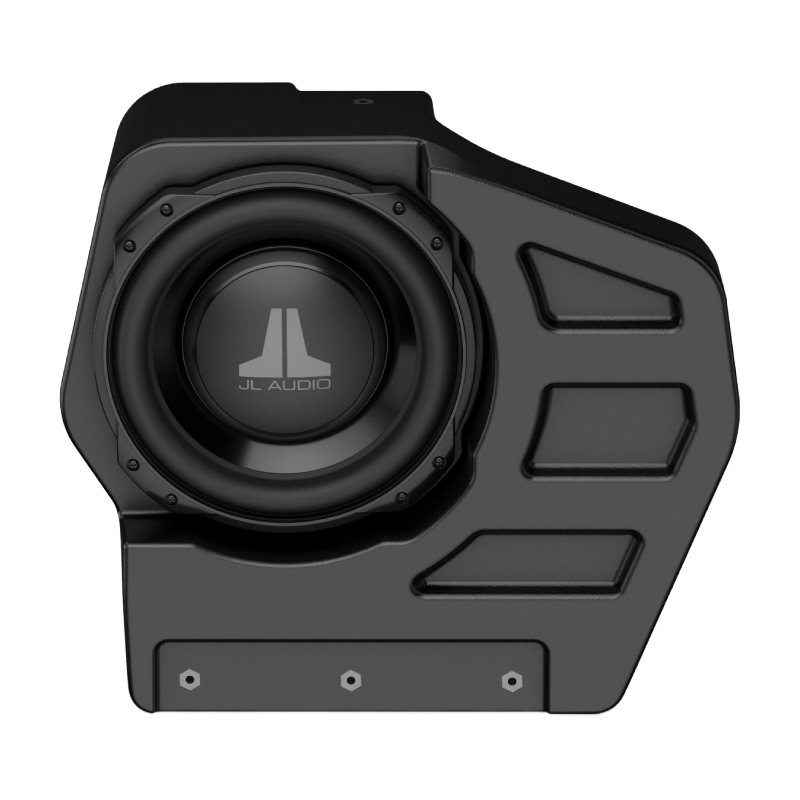

Custom-Fit Stealthbox® for 2021-Up Full-Size SUVs
The JL Audio SBX-GM-5GSUV/10TW3 Stealthbox® is the perfect bass upgrade for 2021-up Cadillac, Chevrolet, and GMC full-size SUVs. Its custom-fit enclosure installs discreetly behind the factory cargo panel, delivering powerful bass without taking up valuable cargo space or altering your SUV's clean OEM appearance.
10-Inch TW3 Thin-Line Subwoofer Performance
Featuring a 10-inch JL Audio TW3 thin-line subwoofer, the SBX-GM-5GSUV/10TW3 delivers deep, tight, and accurate bass that enhances both factory and aftermarket audio systems. The sealed enclosure is precisely engineered for clean, distortion-free low-frequency performance.
Factory-Integrated Bass Upgrade
The JL Audio SBX-GM-5GSUV/10TW3 offers a hidden, factory-style installation while providing the legendary sound quality JL Audio is known for. Pair it with a compatible JL Audio amplifier to enjoy powerful, immersive bass without compromising your SUV's storage space.
JL Audio 10W3v3-4 vs 10W1v3-2 vs 10W1v3-4 vs 10W0v3-4 | Which 10" JL Audio Subwoofer Is Best?
| JL Audio 10" Subwoofer Performance Battle |
JL Audio 10W3v3-4
10" W3v3 Series Single 4-Ohm High-Performance Subwoofer
BEST OVERALL
- • 10" Subwoofer
- • 500 Watts RMS
- • 1000 Watts Peak
- • Single 4-Ohm Voice Coil
- • DMA Optimized Motor
- • Excellent Sound Quality
- • Highest Output Capability
- • Best for SQL Systems
|
JL Audio 10W1v3-2
10" W1v3 Series Single 2-Ohm Sound Quality Subwoofer
BEST VALUE SQL
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 2-Ohm Voice Coil
- • Compact Enclosure Friendly
- • Excellent Sound Quality
- • Easy to Power
- • Strong Low-End Extension
- • Ideal for Mono Amps
|
JL Audio 10W1v3-4
10" W1v3 Series Single 4-Ohm Sound Quality Subwoofer
MOST FLEXIBLE
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Excellent Sound Quality
- • Compact Box Compatible
- • Flexible System Matching
- • Tight & Accurate Bass
- • Great Daily Driver
|
JL Audio 10W0v3-4
10" W0v3 Series Single 4-Ohm Entry-Level Subwoofer
BUDGET PICK
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Affordable JL Audio Option
- • Smooth Musical Bass
- • Easy Installation
- • Small Sealed Box Friendly
- • Great for Factory Upgrades
|
JL Audio 10W3v3-4 Recommended Amplifiers | Best Monoblock Amp Pairing for Maximum Output & Clean Bass Performance
JL Audio 10W3v3-4 Amplifier Matching Guide
Best Monoblock Amplifiers for Clean Power Delivery, Deep Bass Extension & High-Output Performance
Amplifier Matching Overview
10W3v3-4 Power Rating: 500W RMS
Voice Coil Configuration: Single 4-Ohm
Ideal Amp Range: 400W – 600W RMS @ 4Ω
Goal: Maximum bass output, clean dynamics, and distortion-free low-frequency performance
Best Setup: Dedicated monoblock amplifier with clean headroom
Top Recommended Amplifiers for JL Audio 10W3v3-4
JL Audio RD500/1: Best overall match – delivers the subwoofer's full rated RMS power with outstanding control and sound quality.
JL Audio JD500/1: Best value option – clean 500W RMS output with excellent reliability and affordability.
Alpine S2-A60M: Best upgrade option – powerful amplifier with extra headroom for future system expansion.
Gain & Tuning Recommendations
Gain Setting: Match amplifier output to the subwoofer's 500W RMS rating using an oscilloscope, distortion detector, or multimeter method.
Low-Pass Filter (LPF): 70Hz – 90Hz for smooth integration with front speakers.
Subsonic Filter: 25Hz – 30Hz for ported enclosures; OFF for sealed enclosures.
Bass Boost: OFF or minimal use to preserve sound quality and prevent clipping.
Phase Adjustment: Set for strongest bass response at the listening position.
EQ: Start flat and make small corrections based on vehicle acoustics.
Enclosure Matching Tips
Sealed Box: Best for tight, accurate bass and superior sound quality.
Ported Box: Best for maximum output, deeper extension, and increased SPL performance.
Power Recommendation: The 10W3v3-4 performs best when supplied with a clean 450W–500W RMS signal.
Pro Tip: The JL Audio 10W3v3-4 is widely regarded as one of the best SQL (Sound Quality + Loudness) subwoofers in its class. Pairing it with a clean 500W RMS monoblock amplifier provides the ideal balance of output, control, and long-term reliability.
Frequently Asked Questions (FAQ)
- • Why isn't my JL Audio 10W3v3-4 hitting as hard as I expected?
The most common cause is insufficient amplifier power or an improperly designed enclosure. The 10W3v3-4 performs best with 400–500W RMS of clean power and a box built to JL Audio's recommended specifications.
- • Can I run the JL Audio 10W3v3-4 on a 300W RMS amplifier?
Yes, but many users report noticeably better output and deeper bass when the subwoofer receives power closer to its 500W RMS rating. Lower power is safe but may leave performance on the table.
- • Why does my JL Audio 10W3v3-4 sound weak in a sealed box?
A sealed enclosure produces tighter and more accurate bass but typically less output than a ported enclosure. Users seeking maximum loudness often switch to a properly tuned ported box.
- • Why does my JL Audio 10W3v3-4 distort at high volume?
Distortion is usually caused by amplifier clipping, excessive bass boost, or incorrect gain settings. Proper amplifier tuning and clean power delivery are critical for maintaining sound quality.
- • Should I choose a sealed or ported enclosure for the JL Audio 10W3v3-4?
Choose sealed if you prioritize sound quality, accuracy, and tight bass response. Choose ported if you want more output, deeper bass extension, and stronger low-frequency impact.
- • Why doesn't my JL Audio 10W3v3-4 play very low frequencies?
This is often caused by enclosure design, incorrect low-pass filter settings, or an overly aggressive subsonic filter. Proper tuning and box design are essential for deep bass performance.
- • Is a single JL Audio 10W3v3-4 enough bass for daily driving?
For most listeners, yes. A properly powered 10W3v3-4 delivers strong, clean bass that satisfies the majority of daily drivers. Users seeking extreme SPL often move to dual subwoofers.
- • Why is my JL Audio 10W3v3-4 making a mechanical noise?
Mechanical noises can result from over-excursion, amplifier clipping, damaged voice coils, or enclosure air leaks. The system should be inspected immediately to prevent permanent damage.
- • Does the JL Audio 10W3v3-4 need a break-in period?
Yes. Many owners notice improved low-frequency extension and smoother performance after several hours of normal listening. The suspension loosens slightly as the subwoofer breaks in.
- • Is the JL Audio 10W3v3-4 worth the extra cost over the W0 or W1 series?
Most enthusiasts say yes. The W3 offers greater output capability, deeper bass, better power handling, and improved sound quality, making it one of the most popular SQL (Sound Quality + Loudness) subwoofers available.
Learn How To Wire Subwoofers
- Diameter : 10 Inch
- Impedance : 4 Ohm
- Peak Power Handling : 800 Watts
- Number Of Subwoofers : 1
- Vehicle Make : Cadillac
- Vehicle Make : Chevrolet
- Vehicle Make : GMC
- RMS Power Handling : 400 Watts
Features:
- 10-Inch TW3 Thin-Line Subwoofer: Delivers deep, impactful bass with JL Audio's advanced thin-line subwoofer technology.
- Custom Stealthbox® Sealed Enclosure: Features a rugged, form-fitting sealed enclosure engineered for optimal low-frequency performance.

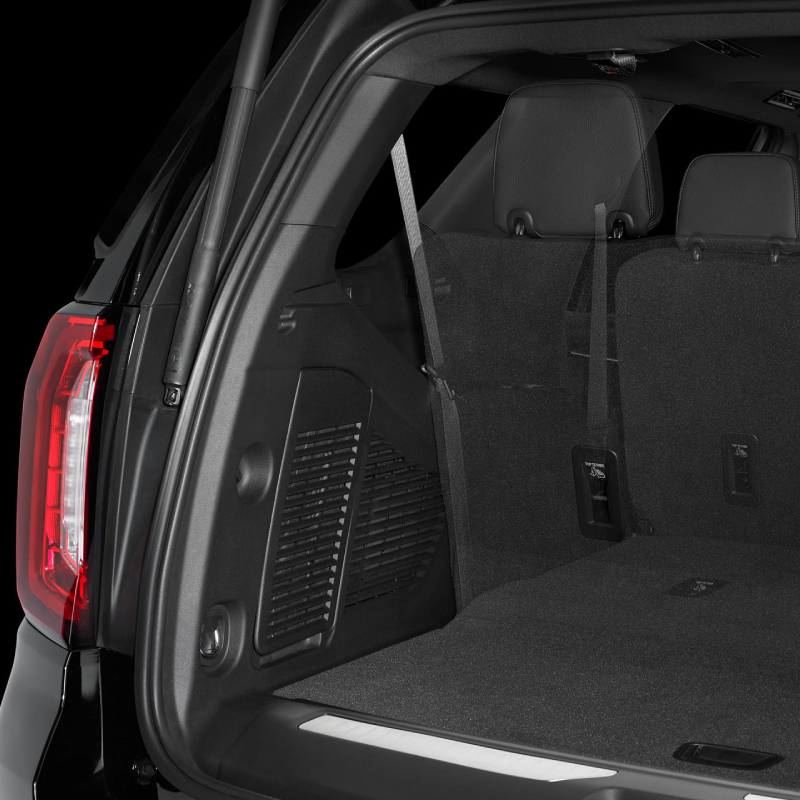

- Hidden Factory-Style Installation: Mounts discreetly behind the driver-side cargo trim panel and factory grille for a clean, OEM appearance.
- Cargo Space-Saving Design: Provides impressive sub-bass output without sacrificing valuable cargo or storage space.
- Direct OEM Subwoofer Replacement: Replaces the factory-installed OEM subwoofer system on compatible vehicles for an easy upgrade.
- Vehicle-Specific Fit: Precision-engineered for 2021-up Cadillac, Chevrolet, and GMC full-size SUVs.
- Premium Low-Frequency Performance: Produces rich, accurate, and powerful bass for a more immersive listening experience.
- Factory-Integrated Stealthbox® Design: Blends seamlessly with the vehicle's interior while delivering high-performance bass in a concealed installation.
- UPC:
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
