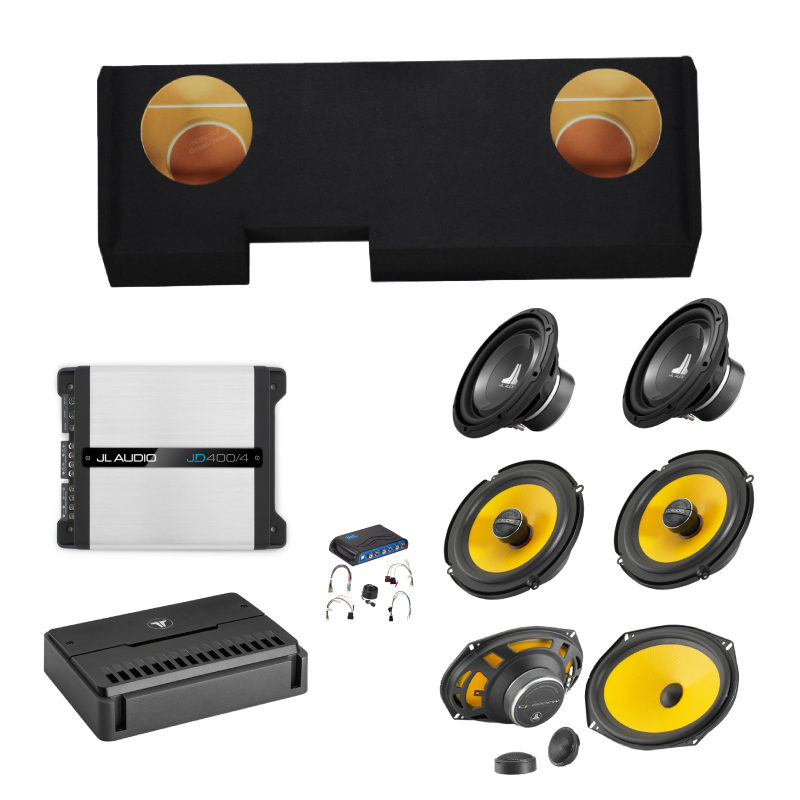

JL Audio  C1-690-Bundle for 2009-Up Chevy Silverado and GMC Sierra New

C1 Series 6"x9" 225W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System + C1 Series 6.5" 225W Peak Power Handling 4 Ohms, 2-way Coaxial Car Speakers (Pair) + (2) W1v3 Series 10" 600W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer + 10" Dual Sealed Sub Box for 1999-2026 Chevy Silverado Double & Crew-Cab (Black) + JD Series 4-Channel 100W RMS x 4 at 2 Ohm, Class-D Full-Range Car Amplifier with NexD™ Switching Technology + RD Series 500W RMS x 1 at 2 Ohm, Class-D Mono Subwoofer Car Amplifier with NexD™ Switching Technology + Amplifier Integration Interface for Select 2018 and Up GM Vehicles with AVB Ethernet Amplified System

Item #99939

Condition:   Brand New

Product Highlights

  • Complete JL Audio Audio Upgrade Bundle for Select 2018-Up GM Vehicles
  • Includes C1 6x9" Component & 6.5" Coaxial Speakers
  • Includes Two 10" W1v3 Subwoofers with Dual Sealed Silverado Sub Box
  • Includes JD 4-Channel & RD Mono Amplifiers with NexD™ Technology
  • Includes Amplifier Integration Interface for AVB Ethernet Amplified GM Systems
  • Sub Box Fits 1999-2026 Chevy Silverado Double & Crew Cab

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$2,283.94

Reg. Price $2,791.93  Save $507.99
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
JL Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio C1 Series 6"x9" 225W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System + JL Audio C1 Series 6.5" 225W Peak Power Handling 4 Ohms, 2-way Coaxial Car Speakers (Pair) + (2) JL Audio W1v3 Series 10" 600W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer + Ground Shaker 10" Dual Sealed Sub Box for 1999-2026 Chevy Silverado Double & Crew-Cab (Black) + JL Audio JD Series 4-Channel 100W RMS x 4 at 2 Ohm, Class-D Full-Range Car Amplifier with NexD™ Switching Technology + JL Audio RD Series 500W RMS x 1 at 2 Ohm, Class-D Mono Subwoofer Car Amplifier with NexD™ Switching Technology + Stinger Amplifier Integration Interface for Select 2018 and Up GM Vehicles with AVB Ethernet Amplified System


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • C1-690 (2) C1-690cw Woofers
  • • C1-690 (2) Bottom mount woofer brackets
  • • C1-690 (2) C1-100ct Tweeters (with 6" wires attached)
  • • C1-690 (2) Tweeter crossovers
  • • C1-690 (2) Flush mount tweeter housings (tweeters installed)
  • • C1-690 (2) Surface mount tweeter housings
  • • C1-690 (2) Metal spring clips for tweeter fixtures
  • • C1-690 (2) Crimp-on 0.187" Female quick slides
  • • C1-690 (2) Crimp-on 0.110" Female quick slides
  • • C1-690 (4) 5/8" Flat head screws
  • • C1-690 (8) 3/4" Pan head screws
  • • C1-690 (8) 1-1/2" Pan head screws
  • • C1-690 (2) 25mm Stud bolts
  • • C1-690 (2) 10mm Stud bolts
  • • C1-690 (2) M5 Nuts
  • C1-690 Owner's Manual
  • • C1-650x (2) 2-way speakers
  • • C1-650x (2) Multi-application adapter brackets
  • • C1-650x (8) 3/4" Screws (#8)
  • • C1-650x (8) 1/4" Thread forming screws (#8)
  • • C1-650x (2) 0.187" Crimpable female quick slides
  • • C1-650x (2) 0.110" Crimpable female quick slides
  • C1-650x Owner's Manual
  • • 10W1v3-4 (2) 10" Single Voice Coil Component Car Subwoofer
  • • 10W1v3-4 Black Plastic Trim Ring
  • 10W1v3-4 Owner's Manual
  • • LCHV210B 10" Dual Sealed Sub Box
  • • LCHV210B Owner's Manual
  • • JD400/4 4-Channel amplifier
  • • JD400/4 2.5mm Hex key
  • • JD400/4 3 mm Hex key
  • JD400/4 Owner's Manual
  • • RD500/1 Mono amplifier
  • • RD500/1 2.5 mm Allen-wrench
  • • RD500/1 Self-adhesive JL Audio badge
  • RD500/1 Owner's Manual
  • • AP4-GM71 Amplifier integration interface module
  • • AP4-GM71 Rotary-knob with 6' cable
  • • AP4-GM71 17" Power/ground/speaker harness (D)
  • • AP4-GM71 17" Speaker harness (C)
  • • AP4-GM71 9" Y-harness (A)
  • • AP4-GM71 9" Harness (B)
  • AP4-GM71 Owner's Manual
JL Audio C1-690 Component Systems Woofer Flat Overhead View
Optimized Component Sound

This 3-way component speaker system includes 2 woofers and 2 separate tweeters, delivering superior sound staging and a balanced audio experience. The 6"x9" mineral-filled polypropylene woofers with rubber surrounds produce deep, punchy lows and smooth midrange, while 1" aluminum edge-driven tweeters provide clear, detailed highs with minimal distortion. Inline high-pass filters protect the tweeters and ensure a seamless frequency transition from woofer to tweeter for consistently balanced sound.

Flexible, Powerful, and Efficient

Inline crossovers can be connected to the woofer or directly to amplifier outputs, giving you flexible installation options. With high sensitivity of 94dB at 2.83V, these speakers deliver strong output even when paired with factory head units. Built to handle up to 60W RMS (225W peak), they provide consistent, powerful performance across your entire audio system.



JL Audio C1-690 Component Systems Woofer Angled Three-Quarter View Facing Right
JL Audio C1-690 Component Systems Woofer Angled Three-Quarter View Facing Left
Easy Installation and Long-Lasting Reliability

With a top-mount depth of 2-3/4", these speakers fit easily into most factory locations. No grilles are included, as they’re designed to work seamlessly with factory grilles, maximizing performance. Durable rubber surrounds and high-quality materials ensure long-lasting reliability, providing excellent sound for years to come.



JL Audio C1-650x Full Range Car Speakers Front Right Angled View
JL Audio C1-650x 6.5-Inch Coaxial Speakers with Crisp Highs & Powerful Midbass

Upgrade your factory audio with the JL Audio C1-650x 6.5-inch 2-way coaxial car speakers, engineered to deliver clear, balanced sound across the entire frequency range. The 3/4-inch aluminum edge-driven dome tweeter produces crisp, detailed highs with excellent clarity, while the mineral-filled polypropylene woofer delivers punchy midbass and smooth, natural vocals. An optimized built-in crossover seamlessly blends the woofer and tweeter, creating an immersive listening experience for every genre of music.

High-Sensitivity 6.5-Inch Car Speakers for Easy Factory Upgrades

The JL Audio C1-650x is designed for excellent performance with both factory and aftermarket head units thanks to its 90.5 dB sensitivity and efficient 4-ohm design. Its compact 2-1/8-inch mounting depth allows for easy installation in a wide range of vehicles with minimal modification, making it an ideal OEM replacement speaker for drivers seeking better sound quality without complicated installation.



JL Audio C1-650x Full Range Car Speakers Full Frontal View
JL Audio C1-650x Full Range Car Speakers Back and Magnet Structure Angled View
Durable JL Audio C1-650x Speakers Built for Long-Lasting Performance

Built with premium materials for years of reliable performance, the JL Audio C1-650x features a durable butyl rubber surround and rugged woofer construction that maintain accurate sound even during extended high-volume listening. Rated to handle 50 watts RMS and 225 watts peak power, these speakers provide clean, distortion-free output when paired with a quality head unit or 4-channel amplifier. Designed without aftermarket grilles, they integrate seamlessly behind factory speaker grilles for a clean OEM appearance while focusing every dollar on superior sound quality.

JL Audio 10W1v3-4 10-Inch Subwoofer side Angled View
JL Audio W1v3 10-Inch Subwoofer for Tight, Accurate Bass

The JL Audio W1v3 10-inch subwoofer delivers tight, accurate bass from compact sealed or ported enclosures. Its DMA-optimized motor and suspension minimize distortion, while the black mica-filled polypropylene cone, durable rubber surround, and aluminum dust cap produce clean, punchy low frequencies with long-lasting reliability.

Compact 10-Inch Car Subwoofer with Shallow Mount Design

Designed for compact car audio systems, the 10-inch JL Audio W1v3 requires only a 4-5/8-inch mounting depth, making it ideal for vehicles with limited installation space. The paintable trim ring and optional grille inserts allow for a custom appearance, while compatibility with 75–300 watts RMS amplifiers ensures outstanding performance in a wide range of audio setups.

JL Audio 10W1v3-4 10-Inch Subwoofer Rear View
JL Audio 10W1v3-4 10-Inch Subwoofer Side View
Premium JL Audio W1v3 Performance for Sealed & Ported Enclosures

Inspired by JL Audio's flagship technologies, the W1v3 subwoofer features advanced cooling, precision cone construction, and a highly linear suspension for reliable, low-distortion bass. Engineered for small sealed and ported enclosures, it delivers powerful, musical low-end performance, making it an excellent choice for anyone seeking premium JL Audio sound at an exceptional value.

Kicker_KM
Powerful 10" Dual Sealed Sub Box

Experience deep, punchy bass with this 10" dual sealed sub box, designed to elevate your Chevy Silverado’s audio system. Featuring a 9 1/4" cutout diameter, 1.85 ft³ total air volume, and dual chambers, it delivers tight, precise low-end performance. Weighing 46 lbs with a 6 1/2" mounting depth, it fits perfectly under your rear seat while providing professional-grade sound.

Low-Profile 10" Sub Box

This 10" dual-sealed sub box is designed with a height of 9 1/2", a length of 49 1/2", and a depth of 17" for a perfect under-seat fit in your Chevy Silverado. Its spacious interior maximizes air volume for deeper, more powerful bass. The low-profile design ensures a clean, secure installation while delivering professional-quality sound.



Kicker_KM
Kicker_KM
Premium 10" Dual Sealed Sub Box

Built with 5/8" high-quality MDF wood, this sub box is engineered for strength and long-lasting performance. The durable carpeted trunk liner, along with Titebond silicone and wood glue sealing, ensures vibration-free, crystal-clear bass. Equipped with 2 binding post terminals, it offers secure, reliable connections for effortless installation and professional-grade sound.





JL Audio JD400/4 4-Channel Amplifier Main View
Compact and Powerful Full-Range Car Amplifier

Are you looking for a full-range car amplifier that is compact and can pack a lot of punch? The JL Audio 400/4 is maybe what you are looking for. This 4-channel car amplifier can easily be installed anywhere inside your vehicle as it does not need much space to power up your vehicle's audio system.

3-Way Protection Circuitry

The JL Audio 400/4 also comes with a 3-way protection circuitry that protects your amplifier from thermal, overload, and short circuit problems. With JL Audio's NexD Switching Technology, the amplifier can deliver superior power output with reduced distortion. It also has Differential-Balanced Inputs, eliminating noise from your connections and setup.

JL Audio JD400/4 4-Channel Amplifier Side Controls View
JL Audio JD400/4 4-Channel Amplifier Top Angle View
Powerful Class-D Performance

Thanks to its Class-D amplifier, the JL Audio 400/4 can handle a power output of 75 Watts RMS at 4 ohms and 100 Watts RMS at 2 ohms per channel. It has a signal-to-noise ratio rate of 108 dB and a frequency response of 12 Hz to 22 kHz, which really allows the amplifier to go loud with minimal distortion while still being able to deliver an extensive full-range frequency performance.

Flexible Two-Channel Mode and Enhanced Audio Quality

Although the JL Audio 400/4 is a four-channel amplifier, you can set it in a two-channel mode, allowing you to power up a pair of subwoofers while delivering 200 Watts of continuous power output. Lastly, it has variable high and low-pass filters to filter out unwanted frequencies, resulting in a more defined audio quality while protecting your speakers from blowing off.

JL Audio JD400/4 4-Channel Amplifier Connection Panel View



JL Audio RD500/1 Mono Subwoofer Amplifier Three Quarter Front View
JL Audio NexD™ Switching Technology

Experience powerful performance with 500 watts at 2 ohms or 250 watts at 4 ohms, all delivered with ultra-low distortion thanks to our innovative NexD™ Switching Technology. Housed in a sleek, ultra-compact design with a durable black powder-coated finish, this amplifier combines high output with refined efficiency for pure subwoofer bliss.

Effortless Control and Advanced Audio Customization with Variable Bass Boost

Enjoy easy access to top-mounted controls, neatly protected under a sleek cover, while advanced signal processing with a 12 dB/octave low-pass filter lets you fine-tune frequencies from 50-500 Hz. Take your sound to the next level with a variable bass boost EQ for enhanced bass control and customized audio.

JL Audio RD500/1 Mono Subwoofer Amplifier Direct Rear Connection Panel View
JL Audio RD500/1 Mono Subwoofer Amplifier Top Down View
Seamless Integration and Effortless Activation with Versatile Inputs and Preamp Outputs

With versatile dual-range, differential-balanced inputs that accept most voltage levels, this amplifier ensures seamless integration. Automatic turn-on via signal or DC-offset sensing makes activation effortless, while preamp outputs allow you to easily pass signals to additional amplifiers for a more powerful audio setup.

Quick Sensitivity Adjustment and Real-Time Status Monitoring with Optional Remote Control

Easily set input sensitivity with the onboard LED clipping indicator, while the top-mounted dual-color LED light strip keeps you informed of the amplifier’s status at a glance. For added convenience, pair it with the optional RBC-1 remote control (sold separately) to adjust subwoofer output directly from the driver’s seat.

JL Audio RD500/1 Mono Subwoofer Amplifier Three Quarter Rear View
Effortless Audio Upgrades with AmpPRO

Upgrade your vehicle’s sound with AmpPRO—designed to easily integrate high-performance amplifiers while retaining your factory radio’s look, feel, and features. Enjoy premium audio like never before—just remove the factory amp and let AmpPRO do the rest.


SPECIFICATIONS



FEATURES


C1 Series 6"x9" 225W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System



Features:

  • Component Speaker System: Includes 2 woofers and 2 separate tweeters for optimized sound staging.
  • Mineral-Filled Polypropylene Woofer: 6"x9" injection-molded cone with rubber surround delivers deep, punchy lows and smooth midrange.
  • Aluminum Edge-Driven Tweeter: 1" separate tweeter provides clear, detailed highs with minimal distortion.
  • Inline High-Pass Filters: Protects tweeters and ensures smooth frequency transition from woofer to tweeter.
  • Inline Crossovers: Can be connected to woofer or directly to amplifier outputs for flexible installation.
  • High Sensitivity: 94 dB at 2.83V allows strong output even with factory head units.
  • Power Handling: Handles up to 60 watts RMS (225 watts peak).
  • Top-Mount Depth: 2-3/4" allows easy installation in most factory speaker locations.
  • No Grilles Included: Designed for use with factory grilles to maximize speaker performance.
  • Durable Construction: Rubber surrounds and quality materials ensure long-lasting reliability.



Specifications:

  • Speaker Size: 6"x9"
  • Driver Design: 2-Way Component
  • Woofer Design: Cone
  • Woofer Material: Mineral-Filled Injection-Molded Polypropylene
  • Woofer Surround: Rubber
  • Tweeter Design: 1" Edge-Driven Dome
  • Tweeter Material: Aluminum
  • Impedance: 4 Ω
  • Weather-Resistant: No
  • Grilles Included: No
  • Sensitivity (1W/1m): 91.5 dB
  • Sensitivity at 2.83V: 94 dB
  • Frequency Response: 39 – 22,000 Hz
  • Maximum RMS Wattage: 60 W
  • Peak Power Handling: 225 W
  • Top-Mount Depth: 2-3/4"
  • Bottom-Mount Depth: 3-9/16"
  • Cutout Diameter: N/A
  • Mounting Height: 0.256"
  • Frame Width: 6.391"
  • Frame Length: 9.338"



C1 Series 6.5" 225W Peak Power Handling 4 Ohms, 2-way Coaxial Car Speakers (Pair)



Features:

  • Aluminum Edge-Driven Dome Tweeter: Delivers clear, detailed high frequencies with minimal distortion.
  • Mineral-Filled Polypropylene Woofer: Provides deep, punchy lows and smooth midrange performance.
  • 2-Way Design: Optimized crossover for seamless integration between woofer and tweeter.
  • High Sensitivity: 93 dB at 2.83V ensures excellent sound even at lower power levels.
  • Compact Mounting Depth: 2-1/8" top-mount depth allows for easy installation in most vehicles.
  • No Grilles Included: JL Audio focuses on building a superior speaker rather than including unnecessary grilles.
  • Durable Construction: Rubber surrounds and solid materials for long-lasting performance.
  • Power Handling: Handles up to 50 watts RMS (225 watts peak).



Specifications:

  • Speaker Size: 6-1/2"
  • Driver Design: 2-Way
  • Woofer Design: Cone
  • Woofer Material: Mineral-Filled Injection-Molded Polypropylene
  • Woofer Surround: Rubber
  • Tweeter Design: 3/4" Edge-Driven Dome
  • Tweeter Material: Aluminum
  • Impedance: 4 Ω
  • Sensitivity (1W/1m): 90.5 dB
  • Sensitivity at 2.83V: 93 dB
  • Frequency Response: 48 – 24,000 Hz
  • Maximum RMS Wattage: 50 W
  • Peak Power Handling: 225 W
  • Top-Mount Depth: 2-1/8"
  • Bottom-Mount Depth: N/A
  • Cutout Diameter: 5"
  • Frame Width: 6.255"
  • Frame Length: 6.255"
  • Weather-Resistant: No
  • Grilles Included: No



(2) W1v3 Series 10" 600W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer



Features:

  • Engineered for Performance: The W1v3 subwoofer delivers impressive output, accuracy, and sound quality at moderate power levels, fitting comfortably in space-saving enclosures for compact and mid-sized vehicles.
  • Dynamic Motor Analysis (DMA) Optimized Speakers: Proprietary DMA technology ensures linear motor force across a wide range of cone excursions and power levels, producing tight, clean, and articulate bass with minimal distortion.
  • Polypropylene Cone Technology: The injection-molded, black mica-filled polypropylene cone with durable rubber surround provides crisp, strong bass while withstanding extended high-volume play. An aluminum dust cap with the JL Audio logo adds a premium finishing accent.
  • Shallow Mounting Depths: Compact motor and shallow design allow installation where traditional subwoofers won’t fit, with the 10-inch model requiring only 4 5/8 inches of mounting depth.
  • Custom Accents: The included removable trim ring can be painted to match your vehicle’s color scheme, and optional steel-mesh grille inserts (sold separately) can be installed easily for protection and style.
  • Powerfully Adaptable: Compatible with sealed or ported enclosures, supporting amplifiers from 75-300 watts RMS for 10- and 12-inch models.
  • Legendary JL Audio Engineering: Incorporates features from the W7 series, including specialized venting to keep the sub cool, precise cone bonding, and a sophisticated suspension system to maintain linear movement and reliability.
  • Solid Bass for Compact Boxes: Optimized for smaller vehicles and hard-to-fit spaces, delivering punchy low-end performance without requiring a large enclosure.
  • Affordable and Reliable: Offers JL Audio-quality sound and engineering at a moderate price point, ensuring dependable performance for everyday listening.



Specifications:

  • Size: 10-inch
  • Impedance: 4 Ohms
  • Cone Material: Mica-filled polypropylene
  • Surround Material: Rubber
  • Grille: None included
  • Free-Air Capability: No
  • Dual Voice Coil: No
  • Sensitivity: 84.2 dB at 1 watt
  • Frequency Response: 25 – 250 Hz
  • Max RMS Power Handling: 300 watts
  • Peak Power Handling: 600 watts
  • Top Mount Depth: 4 5/8 inches
  • Cutout Diameter: 8 7/8 inches
  • Frame Width/Length: 10.508 inches
  • Vas (liters): 43.41
  • Fs (Hz): 26.15
  • Qts: 0.446
  • Xmax (mm): 11.4
  • Ideal Sealed Box Volume: 0.55 cubic feet
  • Minimum Sealed Box Volume: 0.44 cubic feet
  • Maximum Sealed Box Volume: 0.69 cubic feet
  • Ideal Ported Box Volume: 0.937 cubic feet
  • Minimum Ported Box Volume: 0.75 cubic feet
  • Maximum Ported Box Volume: 1.24 cubic feet



10" Dual Sealed Sub Box for 1999-2026 Chevy Silverado Double & Crew-Cab (Black)



Specifications:

  • Cutout Diameter: 9 1/4"
  • Total Air Volume: 1.85 ft³
  • 2 Individual Chambers
  • Volume per Subwoofer: 0.92 ft³
  • Weight: 46 lbs
  • Mounting Depth: 6 1/2"



Dimensions:

  • Height: 9 1/2"
  • Length: 49 1/2"
  • Depth: 17"



Construction:

  • Built with 5/8" high-quality MDF wood
  • Carpeted with durable trunk liner finish
  • Sealed with high-quality Titebond silicone
  • Glued with high-quality Titebond wood glue
  • Equipped with 2 binding post terminals



Installation:

  • Fits under rear seat
  • Down-firing design for optimized bass projection



JD Series 4-Channel 100W RMS x 4 at 2 Ohm, Class-D Full-Range Car Amplifier with NexD™ Switching Technology



Features:

  • Amplifier Type: 4-channel Class D full-range amplifier
  • Power Output: 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω (14.4V, 1% THD)
  • Technology: NexD™ high-speed switching technology for high efficiency and low distortion
  • Bridgeable Configuration: Fully bridgeable for use as a 3-channel or 2-channel amplifier (200W x 2 @ 4 Ω)
  • Control Layout: Input panel with controls for signal processing and settings
  • Chassis Design: Speaker and power connections on opposite ends of the extruded aluminum chassis
  • Signal Processing: High/low-pass filters (12 dB/octave) for each channel pair, with frequency adjustment from 50-500 Hz
  • Input Compatibility: Differential-balanced inputs compatible with line-level or speaker-level signals
  • Turn-On Capability: Automatic turn-on via signal sensing or DC-offset sensing
  • Input Sensitivity Adjustment: LED-clipping indicators for precise input sensitivity adjustments
  • Preamp Outputs: Buffered pass-through preamp outputs for sending signals to an additional amplifier



Specifications:

  • RMS Power Output (Watts x Channels): 75 x 4
  • Power at 2 Ohms (Watts x Channels): 100 x 4
  • Bridged Power (Watts x Channels): 200 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 12-22k Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 104 dB
  • Input Voltage: 14.4v
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-500 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: 50-500 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: No
  • Fan Cooled: No
  • Fuse Rating: 40
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Width (inches): 9-7/8
  • Height (inches):2-1/8
  • Depth (inches): 7-1/2



RD Series 500W RMS x 1 at 2 Ohm, Class-D Mono Subwoofer Car Amplifier with NexD™ Switching Technology

Features:

  • EFFICIENT CLASS-D DESIGN: Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.
  • CLEAN, POWERFUL, RELIABLE: With a choice of 500- or 1000-watt versions — stable to 2 ohms, or a 1500-watt version stable to 1 ohm — the RD series offers a variety of models to drive your subwoofer. The high-efficiency design enables them to run cooler and put less strain on your electrical system than conventional amplifiers.
  • STUDIO-GRADE SIGNAL PROCESSING: For easy setup and interface with your speaker system, the RD series features a 12-decibel/octave low-pass filter, with continuously variable frequency selection from 50–500 Hz and a variable bass boost EQ.
  • LED CLIPPING INDICATOR RINGS: An LED clipping indicator ring that surrounds each input level potentiometer lets you quickly and accurately set your amplifier’s input sensitivity, without the need for additional test equipment.
  • AUTOMATIC TURN-ON FEATURE: This helpful feature, selectable between signal sensing and DC offset sensing modes, comes standard on all RD series amps.
  • DIFFERENTIAL-BALANCED INPUTS: Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
  • NexD SWITCHING TECHNOLOGY: Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.



Specifications:

  • RMS Power Output (Watts x Channels): 250 x 1
  • Power at 2 Ohms (Watts x Channels): 500 x 1
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 7-500 Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 60 dB
  • Input Voltage: 14.4v
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-500 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled: No
  • Fuse Rating: 50
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 2
  • Width (inches): 9-13/16
  • Height (inches): 2-3/16
  • Depth (inches): 7



Amplifier Integration Interface for Select 2018 and Up GM Vehicles with AVB Ethernet Amplified System



Features:

  • Retains GM Super Cruise feature
  • Factory amplifier must be removed from vehicle when installing this interface



Year(s)MakeModelCompatible feature(s)Not compatible feature(s)
2020-2024 CADILLAC CT5 With BOSE Without BOSE
2019-2025 CHEVROLET BLAZER With BOSE Without BOSE
2019-2024 CHEVROLET CAMARO With BOSE Without BOSE
2019-2022 CHEVROLET COLORADO With BOSE Without BOSE
2020-2025 CHEVROLET CORVETTE With BOSE Without BOSE
2019 CHEVROLET SILVERADO New model, With BOSE Classic model, Without BOSE
2020-2025 CHEVROLET SILVERADO With BOSE Without BOSE
2021-2025 CHEVROLET SILVERADO HD With BOSE Without BOSE
2021-2024 CHEVROLET SUBURBAN With BOSE Without BOSE
2021-2024 CHEVROLET TAHOE With BOSE Without BOSE
2020-2023 CHEVROLET TRAVERSE With BOSE Without BOSE
2020-2023 GMC ACADIA With BOSE Without BOSE
2019-2022 GMC CANYON With BOSE Without BOSE
2019-2025 GMC SIERRA With BOSE Without BOSE
2021-2025 GMC SIERRA HD With BOSE Without BOSE
2021-2024 GMC YUKON With BOSE Without BOSE
2021-2024 GMC YUKON XL With BOSE Without BOSE
  • UPC:
  • Weight: 97.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!

Must haves for JL Audio C1-690-Bundle for 2009-Up Chevy Silverado and GMC Sierra:

Other items that might interest you:

Other customers also shopped for:
