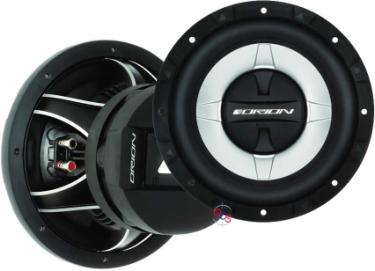

Orion  HP-12D4

12" 1000W Dual 4-Ohm Subwoofer

Item #16590

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 87 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1000 Watts
  • Number of Voice Coils : Dual

FEATURES


  • Vas.2: 1.79 cu ft
  • Vas.4: 1.78 cu ft
  • Sensitivity: 87/ 85dB
  • Linear Excursion: 14mm
  • Dimentions: 11"/ 7"
  • Power Handling 500 Watts RMS / 1000 Watts Peak
  • Machined Custom Die-Cast Basket
  • Open Loop Motor Design
  • Metalized Poly Cone and Medium Roll NBR Surround
  • Tight Small Sealed Box Performance
  • Custom Tooled Reversible Wrap Gasket and Protective Magnet Boot
  • Heavy Gauge Wire Terminals
  • 2.5 Inch Voice Coil on Aluminum Former
  • Priced Per Speaker
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • I have one of these in a ported pro box hooked to a 500.2 precision power amp(the best amps) and this thing knocks the shirt oof my girlfriend. but really these are very strong well built subs. They go low and sound great. they dont look bad ethier. i reccomend them but if you bridge it like me you need at least 600-700 watts going to it to make it work.

    trey lovelace
    9/8/2006

  • I have two of these hooked up in a jetta with ported sub boxes built by myself ported to factory specifications. These have an awkward RMS to peak ratio, which is hard to find a matching amp, however i have a power acoustik 3000w mono amp hooked up to run 1 ohm to two 4 ohm subwoofers. In a competition with only one hooked up to my amplifier it hit 141.9 db in a 1.2 cu ft ported box non inverted. I won first place at NOPI Nationals with both hooked up to the amp, inverted, reversed, at 146.7 dB, these have the power to really pump but be ready to smell the box frying from insane bass pounding. This sub really pushes. This is not necessarily the best sub for quality but mostly for loudness. If you want quality, make it a sealed enclosure if you want it to hit quick notes, i did and it sounded great. No complaints other than i didnt buy these first

    Chris S.
    10/6/2006

  • I bought two of these and have them in a custom ported box powered by a Crossfire 600D and i just hit a 142.8 the other day. these subs are very nice and well worth the money.

    Jeff
    10/29/2006

  • I got one of these in a bass boster probox and a 800w orion amp! it its hard! and keeps up with the speed bass! this a very sweet sub!

    GAGE
    2/11/2008

  • I got 2 of these in a custom ported box with a 1200w class D mono amp from orion and these things can be heard from blocks!

    Jim Smith
    6/4/2008

  • These subs hit pretty hard i have them hooked up to a hifonics 1600 class D amp,we have them on one ohm.NNIIIICCCCEEEE

    Serena
    12/25/2008

  • i got these 2 hook to my hyphnics brutes amp 2100 and they hit hard i tell u theyre well money spent

    eddieboy
    6/22/2010

  • I bought these out of a pawnshop! I have them for 8 years and they still hit harddddd!

    mack hathorn
    2/14/2015
