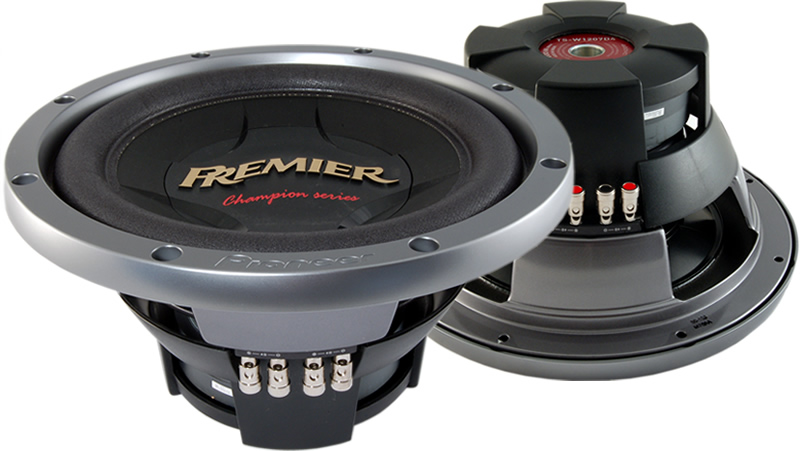

Pioneer Premier  TS-W1207D4

12" 1200W Dual 4-Ohm Subwoofer

Item #17682

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 12 Inch
  • Low Frequency Response : 18 Hz
  • High Frequency Response : 500 Hz
  • Sensitivity : 89 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1200 Watts
  • Number of Voice Coils : Dual

FEATURES


  • Premier 12" Champion Series Subwoofer with 1200 Watts Max.
  • IMPP with Aramid Fiber Cone
  • Integrated Single Sided Silver Binding Posts
  • Composite IMPP Cone using Interlaced Aramid Fiber Woofer Cone Material
  • Cone Reinforcement Arcs Woofer Cone Design
  • Wide Roll, Three-Layer Fiber Woven Radial Surround
  • 4-Layer, Long Voice Coil
  • Copper Voice Coil Wire
  • Phenol Resin Coated Glass Cloth Voice Coil Bobbin
  • Conex Damper (Spider)
  • Damper Ring
  • Standard Top Plate
  • Projected Pole Yoke with Vented Pole
  • Double Mass High-Power (83oz) Magnet Construction
  • Stamped Basket Design with Magnet Cover
  • Gasket Molded
  • Integrated Single-Sided Silver Compression Terminal Wire
  • Dimensions: 327 mm x 172 mm
  • Mounting Depth: 153 mm
  • Recommended Enclosure: 0.85 to 1.75 Cubic Feet
  • Priced per speaker
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.

Do you own this product?

Write a review!
  • overall the sub is good for the money it hits hard than my fosgate P2's but it doesnt sound good for the mid or high bass notes only the low ones, if money is an issue i would get this sub but if not rockford fosgate all the way either t1's ot t2's is the way to go

    e simms
    3/12/2007

  • Wow, this sub really impressed me. I have it wired for 2ohms to a Boss GT1000M 200W RMS (at 4 ohm not 2) and it really sounds amazing. I guestimate it's only receiving 200-250w total and yet it's still enough power to send that cone out a good inch or so. Only bad thing so far is it makes a loud knocking noise at certain high volume low frequencies.

    Fishie
    11/3/2007

  • I powered this sub with a soundstream Di475.1 and it really rocks it handles the low freqs good for the price, I'm supprised

    flemo
    11/20/2007

  • I have these 2 of these subs powered by a 1000w Lanzer Mxa and let me say one word, WHAM!!!!! The mid and high bass notes could be better but as far as the low bass notes I have not heard anything better.

    Speedy
    11/26/2007

  • Purchased one a year ago, and finally found the time to build an enclosure for it. 1.3 cubic ft. sealed, down firing in an extended cab ranger, powered by a rockford fosgate 300a1 amp pushing 380w rms. Sounds fantastic, hits the low notes very loud and clear. Only problem is now I need to invest in sound deadening material for my truck!

    Carl
    12/22/2007

  • The more I run em, the better they sound.. Not yet thumping enough to get me pulled over, could be I dont have a good box to put it in, not tuned right, not wired right or the truck I drive.. Overall: Extremely Worth It

    Justin Cider
    1/15/2008

  • I bought one of these back in the fall powered even by the a small amp I'm talking super small like 250w it still thumps like a beast. Its survien the cold extemely well. I'm comen back for another one and a a bigger amp to run both

    Bo
    1/20/2008

  • Pioneer just never ceases to amaze. I have two of these installed in a custom box powered by a hifonics brutus amp at 1 ohm. They bang incredibly hard, had to turn them down almost all the way because they're just that loud!

    Dustin
    2/23/2008

  • Wow, for $65 can't beat it. I got two and just ordered a Brutus 1606D amp to push them, kept blowing the two 25A fuses in my MTX and the speakers weren't close to peaking, very happy with pioneer can't wait for the money to upgrade to the pro series 3000 watters.

    Shane
    2/28/2008

  • WHAM!!! these subs hit hard as hell, i got 2 of these in my honda civic and it rattles like crazy, im running them on a SPL 2200 watt amp and they blast, Pioneer all the way :)

    Jonathan
    3/2/2008

  • These subs hit hard and look sweet as hell in my custom box for only 65 dollars a piece thats an increable deal i would recommend to anyone, they are very clear they hit hard only hooked up to a 1000 watt max kenwood amp awesome product pioneer

    Matt
    3/19/2008

  • over all the sub is very well built, a little cheapo with the plastic magnet cover though. i got this beasty running off an Insignia NS-A1000. got the amp for $90 at Best Buy. now that i see OCS i wish i would have shoped here. cheaper, better stuff. anyhow got the two 40hm VCs in parellel running off the amp at 2ohms, 320w continuous + a Q Lodgic ported box. this sub needs a ported box, sounds ten times better. great buy, i think it sounds better than a Alpine typer R. that's just me though. and i do LOVE Alpine stuff.

    MASTA K
    4/18/2008

  • just got 2 of them. Wired up to a legacy 800w amp at 4 ohm in a f-150 ext cab. In a ported box. They pound but I think I need a bigger amp. My ears ring by the time I get to work. Highly recommend. I am really impressed with what they can handle.

    Ben M
    4/21/2008

  • Im so impressed by the sound they put out. I am also impressed by the way they wont heat up. Some subs might get warm but these stay cool therefore i never worry about over heating.

    Arron Nicklas
    5/5/2008

  • i had 2 of these subs in seperate sealed boxes in a 98 mustang with 2 750 watt lighting audio amps(generic rockfordfosgates) and full farad capacitor and they were insane your eyes rattled at stoplights i even got a ticket for amplified sound by the city police 175.00 dollar fine but the proudest day of my life im on here buying more i sold my last set

    bryan littlejohn
    5/16/2008

  • DAMN THESE SUBS BUMP! i have 2 of these in a sealed box with a hifonics 1200 watt amp and damn these babys shake the HELL out of my car.. i can be heard from hella far away! i definetely reccommend these subs.. GO OCS!!

    ROLANDO
    7/29/2008

  • i have these subs before they burned out. my trunk was full of smoke. dont get me wrong these subs would pound. i had a hifonics 2000W amp hooked up to it and ended blowing them out because of the powerfull amp.

    Sergio
    8/23/2008

  • I have three of these hooked up to a sound storm 1200W amplifier along with a 2.o farad soundstorem capacitor, in my 1995 ford explorer. These subs hit hard!!! I have had complaints with neighbors that they can here me in my drive way. over all these subs are worth $65.00 and i highly recommend them.

    Michael G.
    10/9/2008

  • Bought these subs and they hit hard! This is a steal if you looking for some Pioneer Subs!

    Eddie
    10/23/2008

  • Very satisfied with this sub's performance. For the price, cant be beat. Running 2 dvc 4 ohm subs only at 4 ohms for now with a hifonics 1608d(only around 550 watts @ 4 ohm). As far as the overall performance, 5 out of 5. Give them around the rms rating with good clean power and they slam, especially in a custom ported box. For the price, U won't regret. Gr8 starter sub. And we all have heard... "U get what u pay for".. in this case U actually come out on top. Also, much respect to OCS, great service as well as prices... Thanks

    J.R.
    12/22/2008

  • These subs hit hard. I have 2 of these in a vented box bridged to a 2400 watt 2 channel legacy amp and they do pound in my crown vic!!! THEY POUND the subs are lightweight and they really do hit and got them in 2 days too with standard shipping because onlinecarstereo has an alternate warehouse.

    Devin
    12/23/2008

  • I have 2 of these subs in my toyota tacoma. they hit extremely hard i had to get my windshield resealed. I only have a 500 watt alpine amp hooked up to them but i plan to go bigger (1000 watt). These subs are a steal!!!

    Alex
    12/30/2008

  • i bought these back in october for the same price shown. $65 pc. i have them bridged to 1 ohm to a 1600 watt planet audio amp. first day i tested them out. they hit so hard my alternator started squeeling from all the power being pulled. they rattled my mirror off. they maxed out at 160 dessibles. id say these are most definately the biggest bang for the buck

    Brent
    1/28/2009

  • i just put one of these into my 2005 frontier hooked up to a kenwood 1000watt 500watt RMS amp running the sub at 2ohms and you can hear me coming from 1/2 mile in my house with out bass boost on and my amp set to 1 so deff most bang for your buck! recomend to anyone looking for a hard hitting sub for low cost!

    Corey
    4/15/2009

  • 2 12s in a ported box pushed by a 1250 planet audio, I knocked my rear view mirror off the first week i hooked the system up, most bang for your buck!

    B.A
    4/20/2009

  • Best subs I have ever owned and for this price you can't beat them anywhere

    Auggie
    9/25/2009
