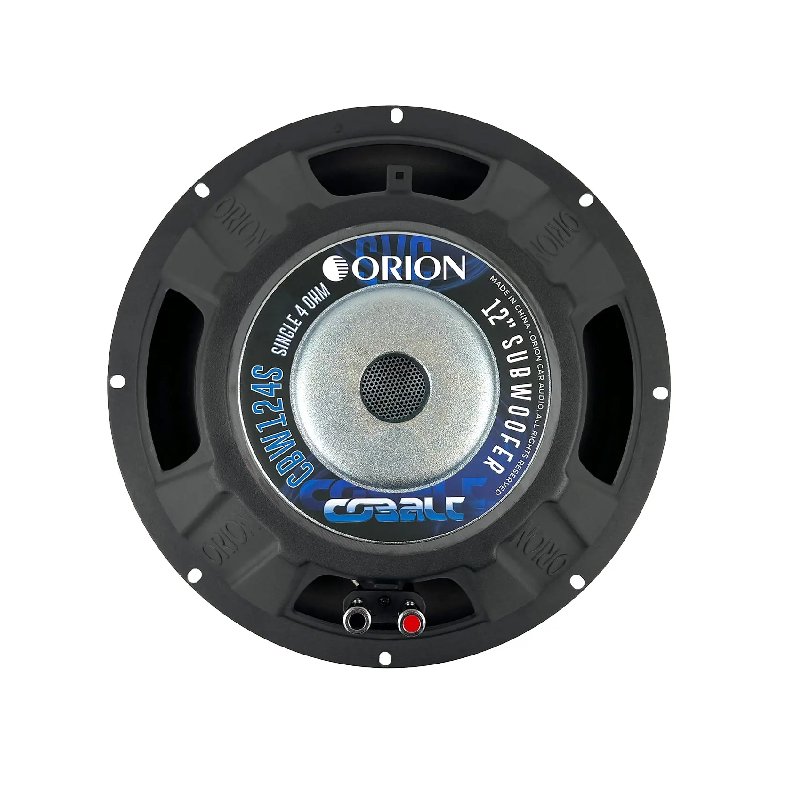

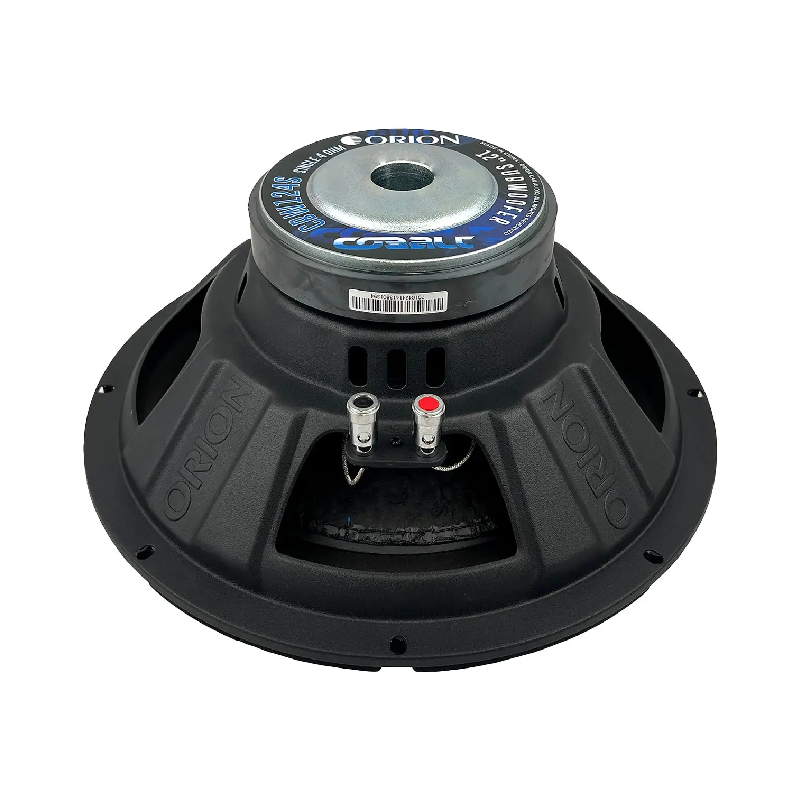

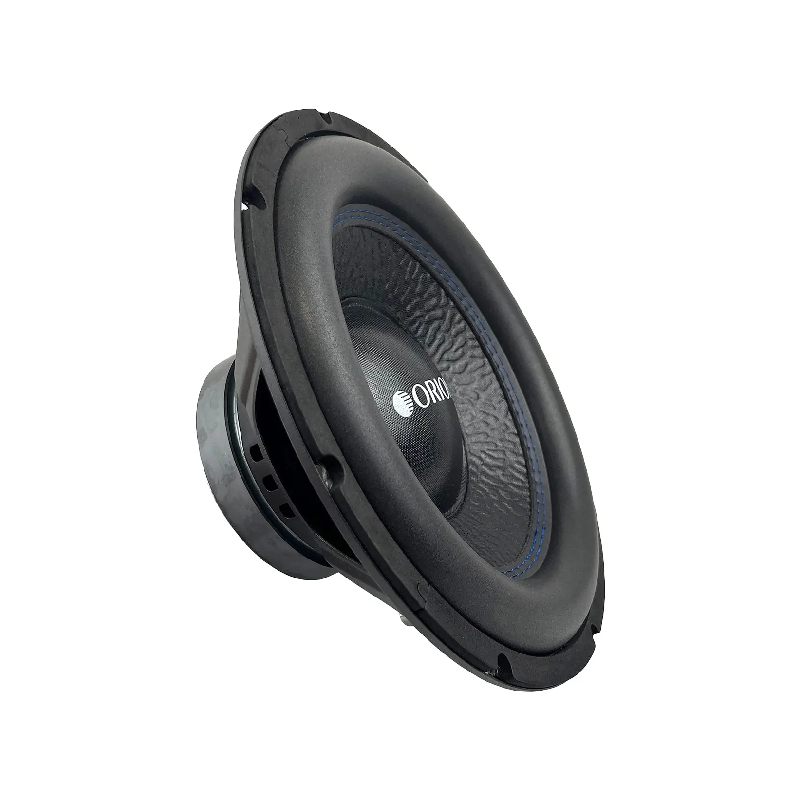

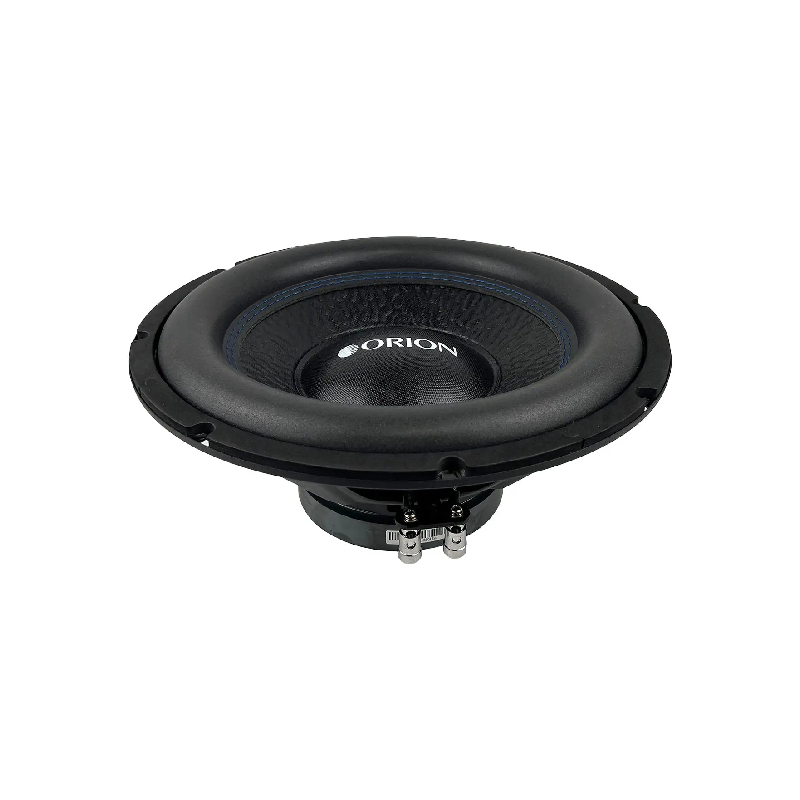

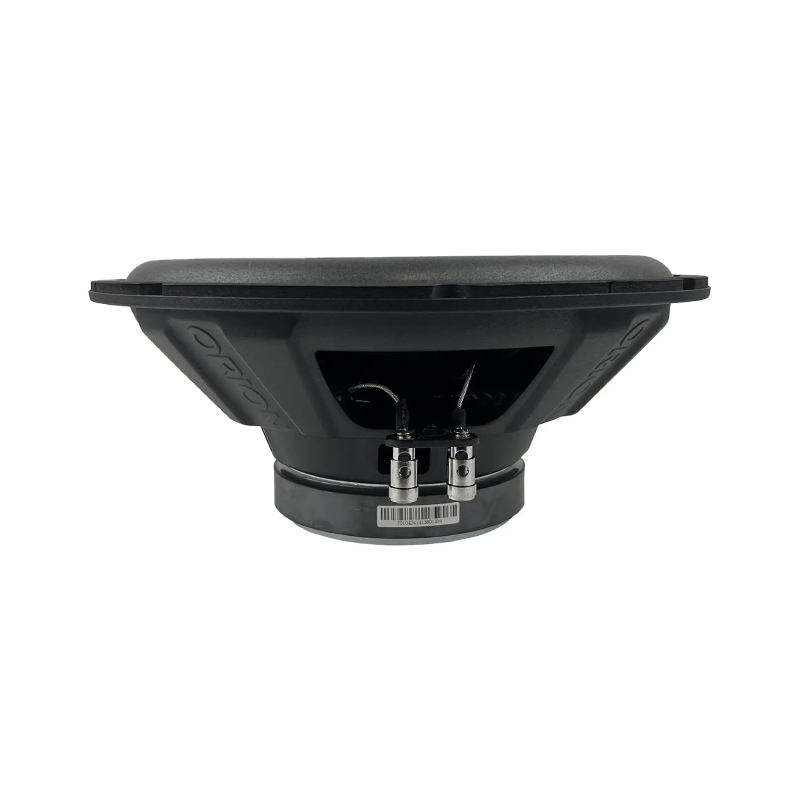

Orion CBW124S Cobalt Series 12" 400W RMS (1600W Peak Power Handling), 4 Ohm, Single Voice Coil Component Car Subwoofer
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" 1600W Peak Power Handling, 4 Ohm, Single Voice Coil Component Car Subwoofer
- • Owner's Manual
12-Inch Subwoofer with Powerful, Reliable Performance
Experience deep, room-shaking bass with a 12-inch subwoofer engineered for maximum impact and clarity. Its single 4-ohm voice coil design allows for easy installation and simple wiring, while delivering an impressive 1600 Watts of peak power and 400 Watts RMS for consistent, high-energy performance that keeps your music powerful and precise.
Engineered for Precision, Power, and Deep Bass Response
Enjoy powerful, distortion-free bass with a reinforced paper cone that delivers exceptional strength and clarity even at high volumes. The durable foam surround ensures smooth, accurate low-frequency response, while the 87 dB sensitivity provides efficient sound output across any setup. With a wide 20 Hz – 300 Hz frequency range and a 4-ohm impedance for flexible amplifier pairing, this subwoofer captures every detail of your bass with precision and impact.
Precision Bass, Rugged Build, and Reliable Performance
Experience rich, dynamic bass with a powerful ferrite magnet that delivers tight, controlled low frequencies for superior sound precision. The advanced heat dissipation system keeps performance consistent during long play sessions, while the durable Cobalt construction ensures lasting reliability. Designed for flexibility, its compact build fits most standard 12-inch enclosures—bringing deep, high-impact bass to any setup with ease.
Frequently Asked Questions (FAQ)
- • Why Does the CBW124S Sound Different in a Sealed Box Compared With a Ported Box?
The enclosure design has a major effect on bass response. The CBW124S is designed to work in both sealed and ported enclosures, so changing the box type can noticeably alter the amount, tightness, and character of the bass.
- • Can I Use the CBW124S With an Amplifier Rated Above 400 Watts RMS?
An amplifier with a higher rating can be used only with careful gain and signal management. Since the CBW124S is rated for 400 watts RMS, sending excessive continuous power can overdrive the voice coil and potentially damage the subwoofer.
- • Why Does My Amplifier Get Hot When Driving the CBW124S?
The CBW124S has a single 4-ohm voice coil, so the amplifier must be properly matched to a 4-ohm load. An unsuitable amplifier configuration or excessive gain can increase heat and cause protection issues.
- • Why Is My CBW124S Bass Louder at Certain Frequencies?
Vehicle acoustics and enclosure characteristics can create peaks or dips at particular frequencies. The subwoofer's 20–300 Hz operating range also means that crossover settings can significantly change how its bass blends with the rest of the system.
- • Why Does the CBW124S Need a Large Enclosure Opening?
Although it is marketed as a 12-inch subwoofer, the actual cutout requirement is approximately 11.81 inches, with an overall diameter of about 12.32 inches. Measuring the enclosure before cutting can prevent fitment problems.
- • Why Is My CBW124S Hitting the Back of the Enclosure?
The mounting depth is approximately 4.80 inches, while the overall depth is about 5.59 inches. Insufficient clearance behind the magnet or terminals can cause installation problems, so the enclosure should provide adequate internal space.
- • Why Does the CBW124S Make a Buzzing or Rattling Noise?
A buzzing sound may come from loose enclosure hardware, an improperly secured speaker, damaged wiring, or panels vibrating around the box. Checking the mounting screws and enclosure before assuming the driver is defective can help identify the source.
- • Can I Wire Two CBW124S Subwoofers to the Same Amplifier?
Two CBW124S drivers can be wired together, but because each uses a single 4-ohm voice coil, the final impedance depends on whether they are wired in series or parallel. The amplifier must be capable of safely handling the resulting load.
- • Why Doesn't the CBW124S Produce the Same Bass as a Larger Competition Subwoofer?
The CBW124S is designed as a Cobalt-series 12-inch subwoofer with 400W RMS power handling, so its performance should be evaluated within those specifications rather than against substantially larger or higher-powered competition drivers.
- • Why Does the CBW124S Bass Become Weak When I Open the Trunk?
The vehicle cabin and trunk can contribute to bass reinforcement. Opening the trunk changes the acoustic environment, which can make the bass sound less pronounced even though the subwoofer itself is operating normally.
- Diameter : 12 Inch
- Sensitivity : 87 dB
- Depth : 5.59 Inch
- Impedance : 4 Ohm
- Frequency Response : 20-300 Hz
- Peak Power Handling : 1600 Watts
- Number of Voice Coils : Single
- Mounting Depth : 4.80 Inches
- RMS Power Handling : 400 Watts
Features:
- Subwoofer Size: 12-inch design delivers deep, room-shaking bass with maximum impact.
- Voice Coil Configuration: Single 4-ohm voice coil (SVC) ensures easy installation and simple wiring.
- Power Handling (Peak): Produces an impressive 1600 Watts of peak power for powerful, high-energy performance.
- Power Handling (RMS): Sustains 400 Watts continuous power for consistent and reliable sound output.
- Cone Material: Reinforced paper cone provides strength, clarity, and distortion-free bass even at high volumes.
- Surround Material: Durable foam surround allows smooth cone movement for accurate low-frequency response.
- Sensitivity: Rated at 87 dB for efficient sound conversion and impactful audio at any volume.
- Frequency Response: Wide range of 20 Hz – 300 Hz captures everything from deep rumbles to detailed bass notes.
- Impedance: 4-ohm configuration offers flexible amplifier compatibility and efficient power use.
- Magnet Structure: Enhanced ferrite magnet delivers tight, controlled bass for superior sound precision.
- Heat Dissipation System: Advanced cooling design prevents overheating during extended play sessions.
- Build Quality: Cobalt construction ensures rugged durability for long-lasting performance.
- Installation Flexibility: Compact yet powerful design fits most standard 12-inch enclosures with ease.
- Audio Performance: Engineered for rich, dynamic bass that enhances every listening experience.
Specification:
- Subwoofer Size: 12 (Inches)
- Voice Coil Configuration: Single 4-ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 87 dB
- Frequency Response: 20 Hz - 300 Hz
- Voice Coil Diameter: 2 (Inches)
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Foam Surround
- Magnet Information: 40 Oz Ferrite
- Dimensions (L x W x H): 14.5" x 7.5" x 14.5" (368.3 x 190.5 x 368.3mm)
- Mounting Depth: 122mm / 4.80 (Inches)
- Overall Depth: 142mm / 5.59
- Cutout Diameter: 300mm / 11.81 (Inches)
- Overall Diameter: 313mm / 12.32 (Inches)
- UPC: 818550014138
- Weight: 14
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
