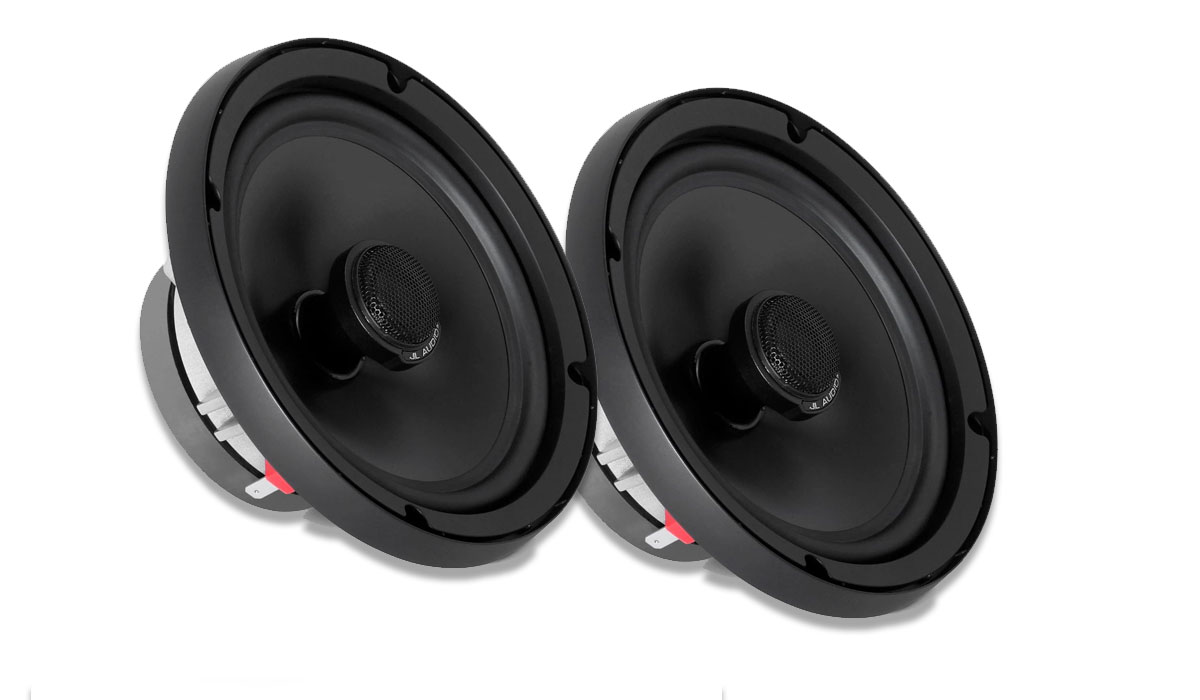

The smoothness and transparency of a high-end silk dome tweeter combines with top-flight woofer performance to create a coaxial loudspeaker system with exceptional refinement and dynamic capability.
The C5-650x system features 6.5-inch (165 mm) woofers with Kurt Müller cones and suspensions and die-cast alloy baskets. The woofer benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C5 tweeter minimizes tweeter protrusion, allowing C5 coaxials to easily fit behind most factory speaker grilles.
C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

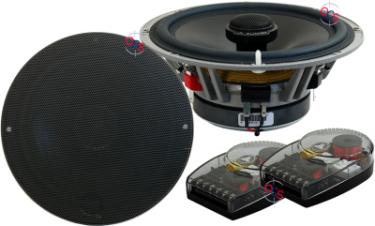

Speaker grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Smooth and balanced
Made in Germany, Sold as a pair.
Diameter : 6.5 Inch
Sensitivity : 89.5 dB
Impedance : 4 Ohm
Frequency Response : 48-25000 Hz
RMS Power Range : 75 Watts
Peak Power Handling : 225 Watts
Design : 2 Way
Top Mount Depth : 2-5/8 Inches
RMS Power Handling : 75 Watts
Continuous Power Handling (RMS): 75 W
Peak Music Power: 225 W
Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 ohms
System Frequency Response: 48 Hz - 25 KHz ± 3 dB
Coaxial Physical Specifications:
Frame Outer Diameter*: 6.52 in / 166 mm
Grille Tray Outer Diameter: 6.76 in / 172 mm
Motor Outer Diameter**: 3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion***: 0.50 in / 13 mm
Frontal Grille Protrusion: 0.98 in / 25 mm
Mounting Hole Diameter: 5.56 in / 141 mm
Mounting Depth**: 2.59 in / 66 mm
*Does not take into account mounting tabs
**Does not take into account logo badge
***Frontal coaxial tweeter protrusion measured from mounting surface
****Frontal grille protrusion measured from mounting surface
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
This where the best component set I have ever bought.!!!
best delivery and installation so far
