JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500 W of power.

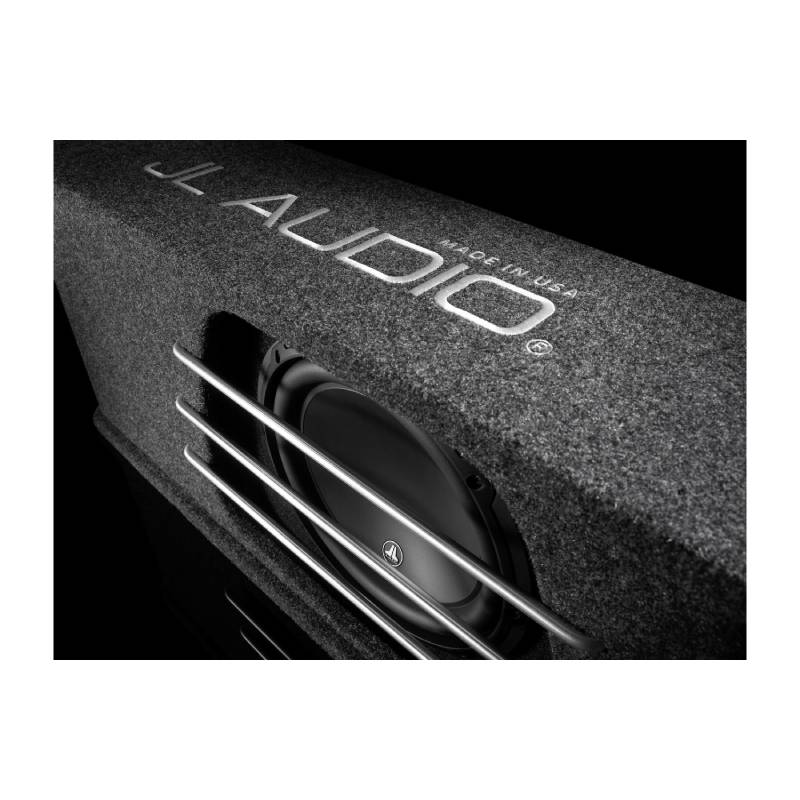

This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500W
Nominal Impedance: 2Ω
Diameter : 12 Inch
Low Frequency response : 22 Hz
High Frequency Response : 200 Hz
Sensitivity : 84 dB
Impedance : 2 Ohm
Frequency Response : 22-200 Hz
RMS Power Range : 500 Watts
Peak Power Handling : 1000 Watts
Number Of Subwoofers : 1
Enclosure Type : PORTED
Color : Slate
Amplified : No

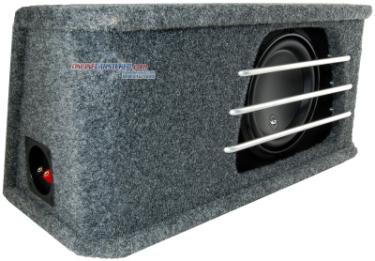

12" subwoofer in ported enclosure
12" 12W3v3 speaker with dual 4-ohm voice coils
5/8" medium density fiberboard sealed enclosure with carpet covering
patented chamber-coupled port design maximizes bass performance
maximum power handling: 500 watts RMS
2-ohm total impedance
assembled in the U.S.A.
dimensions: 32-1/4"W x 15-1/4" H x 13-1/2"D1 x 7-1/2" D2
weight: 45-15/16 lbs.
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
MAN I GOT 3 UV THESE AND THE TOP UV MY CAR BE SUKIN IN AND OUT
I can't believe how much bass could come from 1 12! But being built by jl audio I'm not surprised and it confirmed all my faith in jl products! The bass that comes out of this thing could give you cpr hits so hard. I have it hooked up to a jl audio jx500 watt amp and it's the perfect setup for anyone that wants awesome pounding bass in a box that doesn't take up much space. So for the price of a couple cheap 12s and a box that will fill your trunk up just get this thing and know that your getting a quality sub in a little box that was designed by the best in the biz! You won't be disappointed!!
