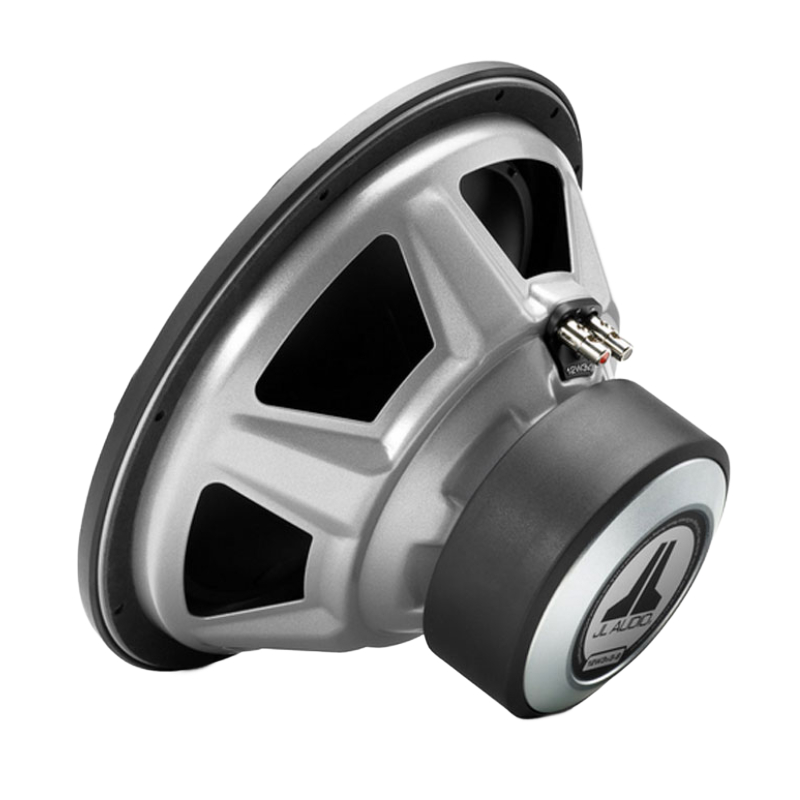

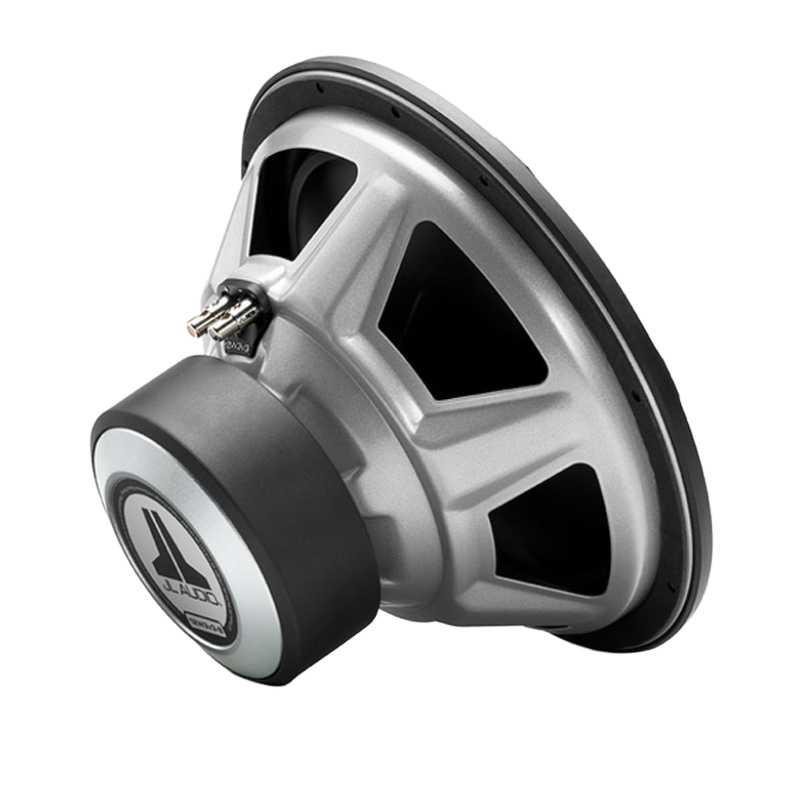

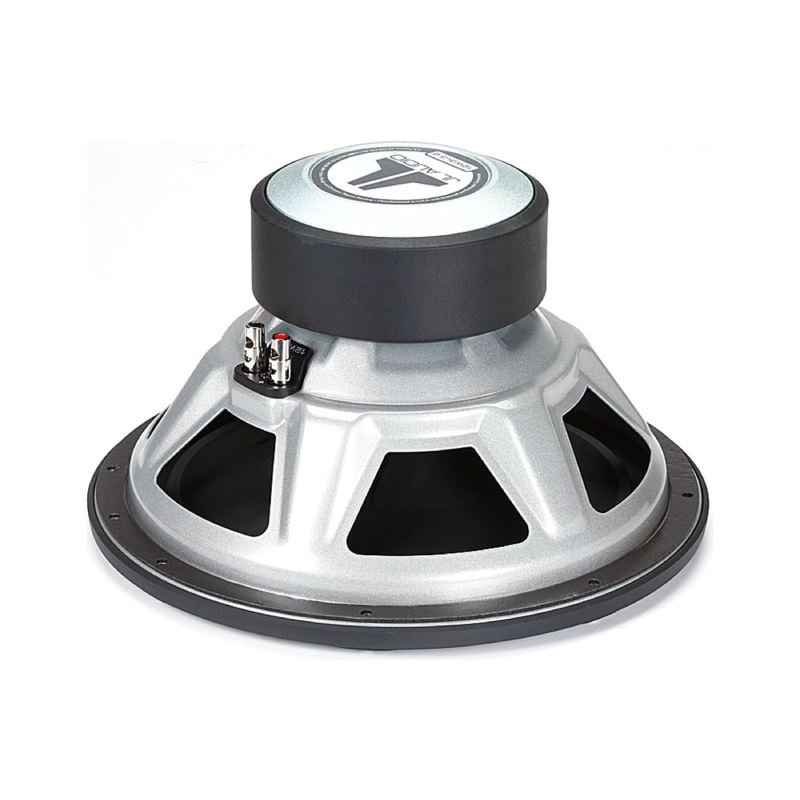

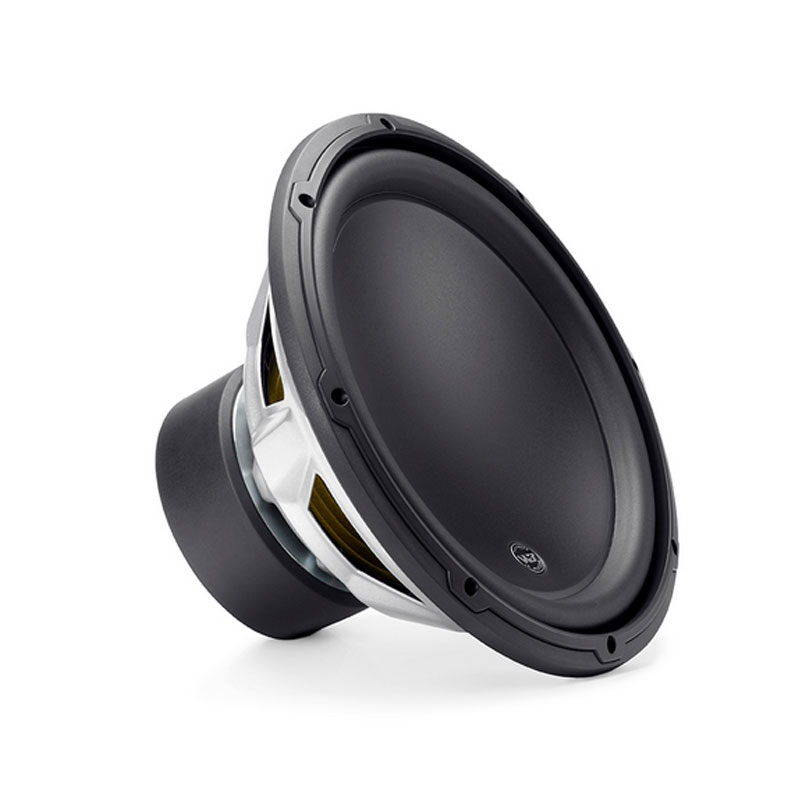

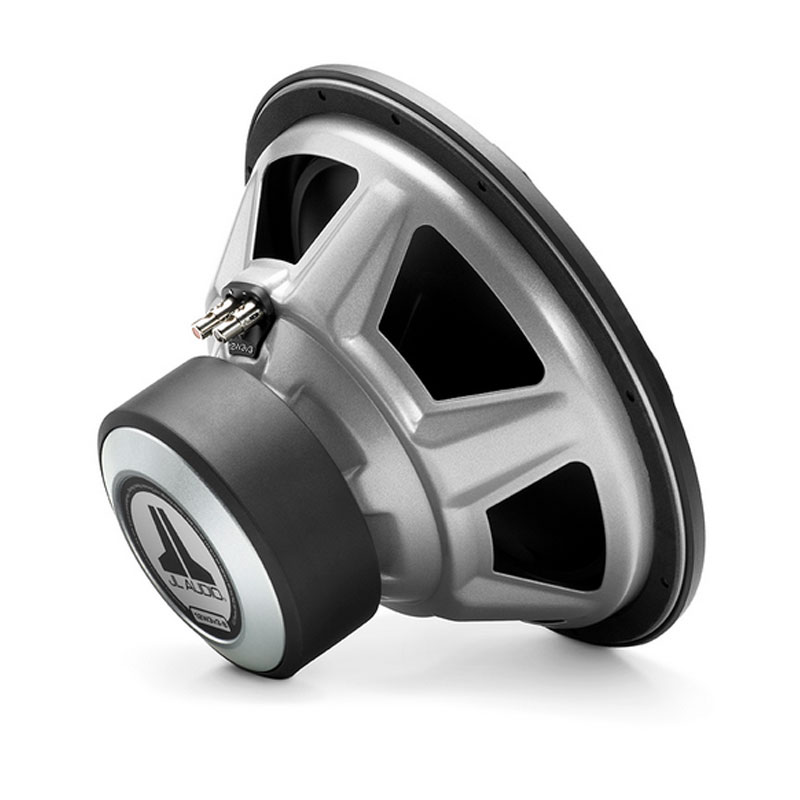

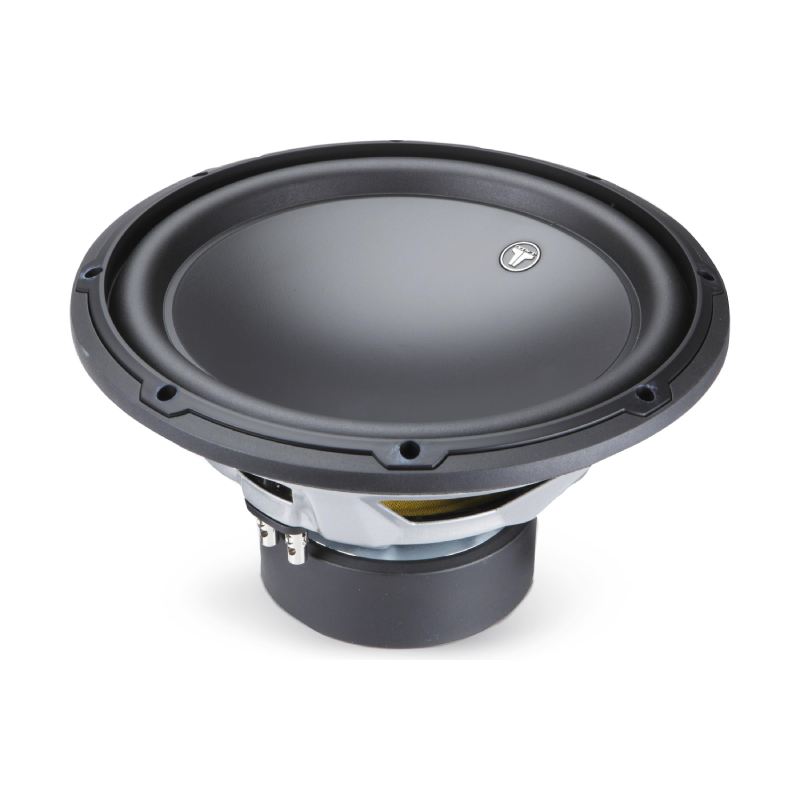

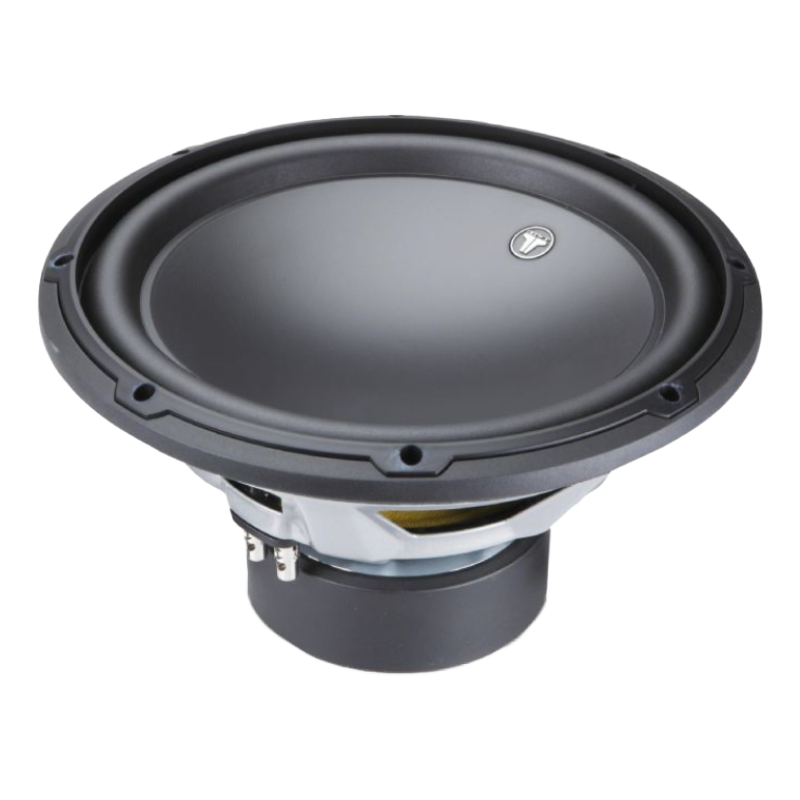

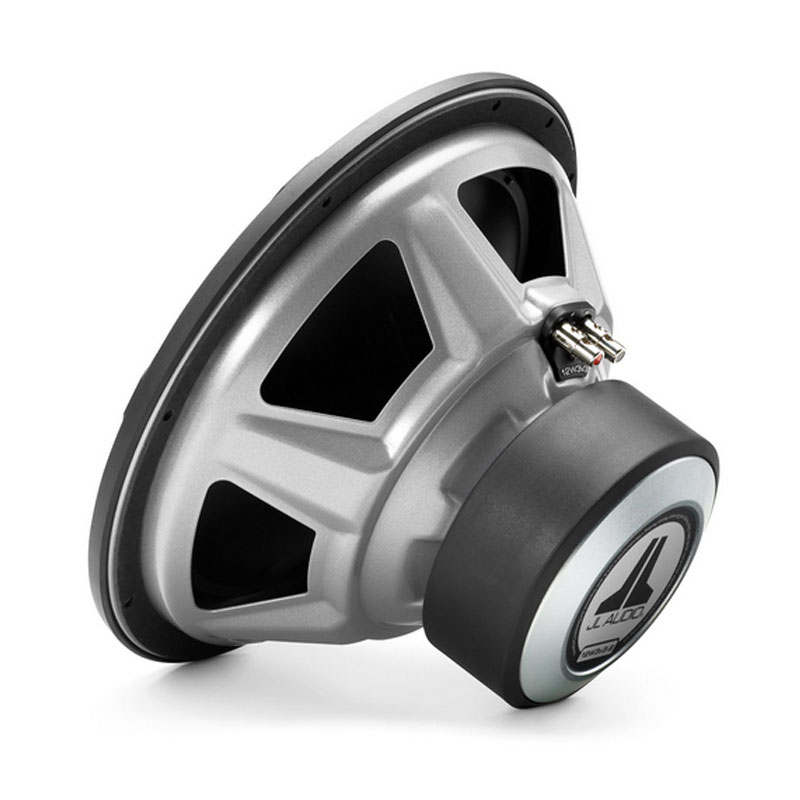

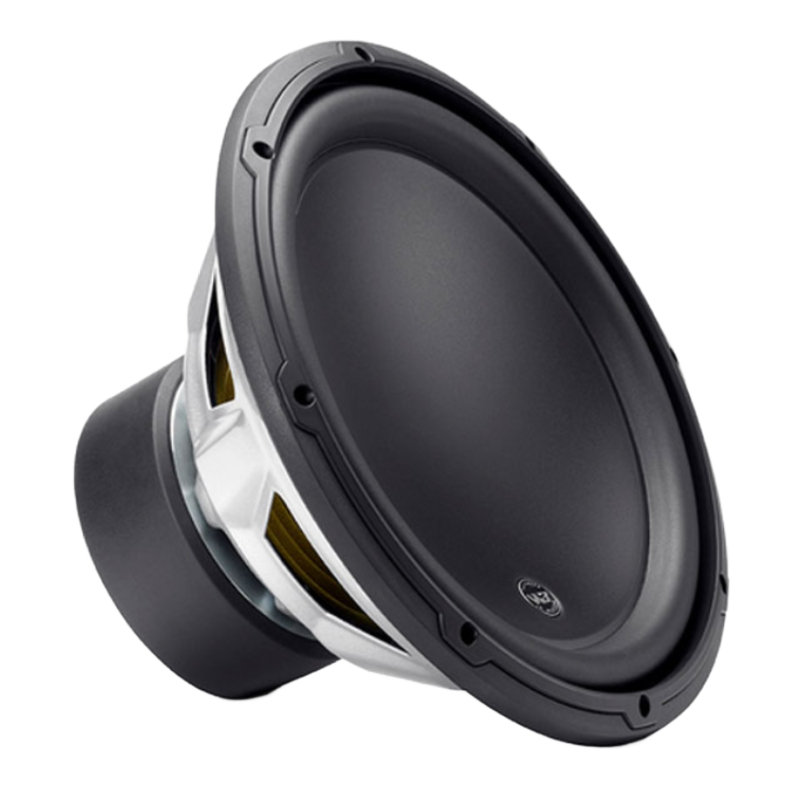

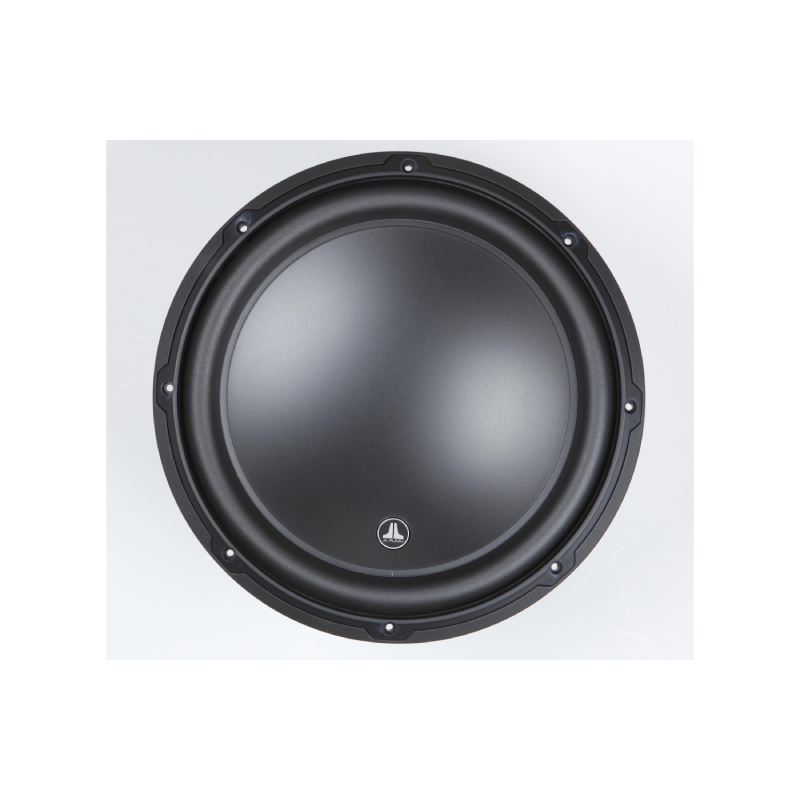

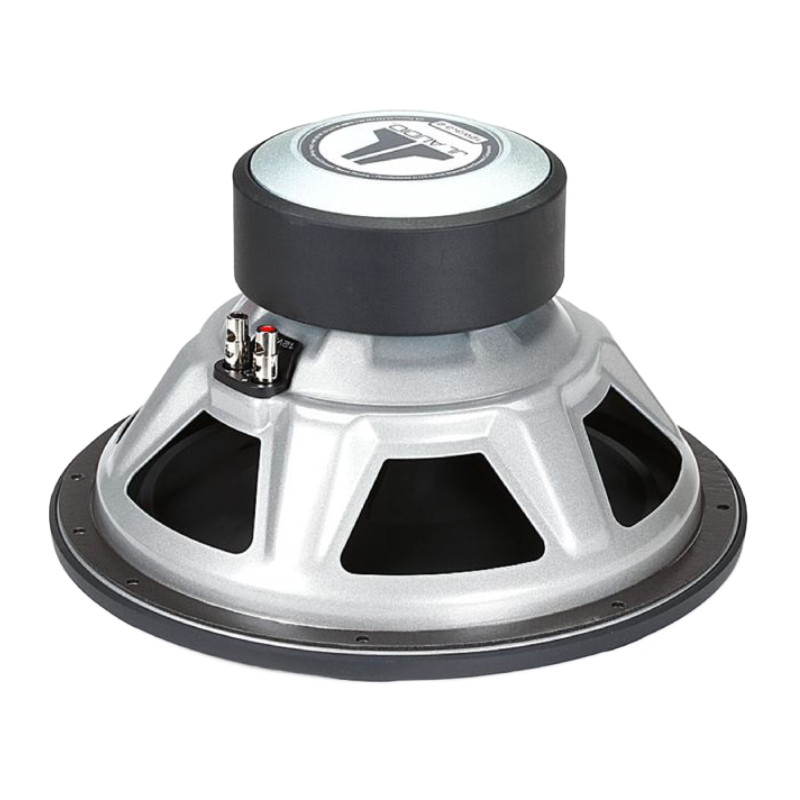

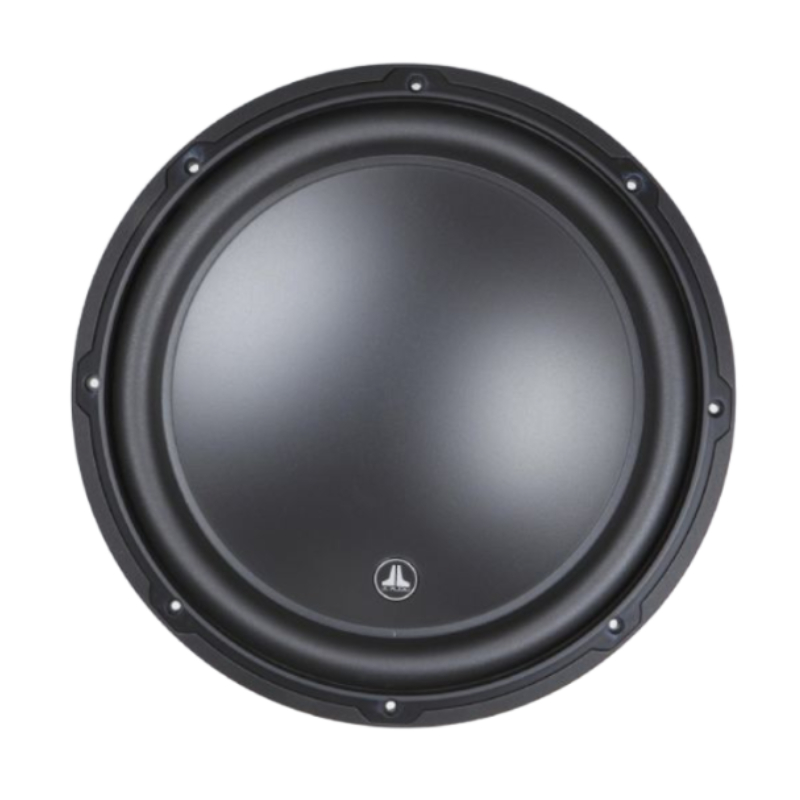

JL Audio 12W3v3-2 W3v3 Series 12" 1000W Peak Power Handling at 2 Ohms, Single Voice Coil Component Car Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Why Choose JL Audio 12W3v3-2 Component Car Subwoofer?
Compact, Accurate Bass
The W3v3 delivers tight, clean, and articulate bass in space-saving sealed or ported enclosures. DMA-optimized motor and suspension ensure minimal distortion, while the mineral-filled polypropylene cone with rubber surround provides durable, powerful lows. A metallic JL Audio medallion adds a premium finish.
Bigger Bass, Customizable Style
The 13.5" W3v3 moves 54% more air than the 12" model for punchier, more efficient bass. The removable trim ring can be painted to match your vehicle, and optional grille inserts add protection and style. Power handling ranges from 150W RMS (6.5") up to 600W RMS (13.5"), making it adaptable to a wide range of amplifiers and vehicles.
Realistic, Reliable Bass
Engineered for smooth, precise cone movement with exclusive cooling for reduced distortion and enhanced durability. Patented design minimizes surround stress for consistent performance. Delivers high-quality JL Audio sound at moderate power levels, perfect for medium-power setups.
JL Audio 12W7AE-3 vs 12W6v3-D4 vs 12W3v3 (2Ω/4Ω) vs 12W1v3 (2Ω/4Ω) vs 12W0v3-4 | Which 12" JL Audio Subwoofer Is Best?
| JL Audio 12" Subwoofer Performance Battle |
12W7AE-3 12" W7AE Series Single 3-Ohm Flagship Subwoofer
BEST PERFORMANCE
- • 1000 Watts RMS
- • Single 3-Ohm Voice Coil
- • Massive Long Excursion
- • Reference-Level Sound Quality
- • Deepest Bass Extension
- • Highest Output
- • Ultimate SQL Performance
- • JL Audio Flagship Subwoofer
|
12W6v3-D4 12" W6v3 Dual 4-Ohm Premium SQL Subwoofer
BEST SQL
- • 600 Watts RMS
- • Dual 4-Ohm Voice Coil
- • Outstanding Sound Quality
- • High Excursion Design
- • Deep, Accurate Bass
- • Flexible Wiring Options
- • Premium Daily Performance
- • Audiophile Favorite
|
12W3v3-2 / 12W3v3-4 12" W3v3 Series High-Performance Subwoofer
BEST VALUE SQL
- • 500 Watts RMS
- • Available in 2Ω or 4Ω
- • DMA Optimized Motor
- • Excellent Sound Quality
- • Strong Low-End Output
- • Compact Box Friendly
- • Outstanding Price-to-Performance
- • Ideal Daily Driver
|
12W1v3-2 / 12W1v3-4 12" W1v3 Series Sound Quality Subwoofer
BEST VALUE
- • 300 Watts RMS
- • Available in 2Ω or 4Ω
- • Compact Enclosure Friendly
- • Excellent Musical Bass
- • Easy to Drive
- • Great Factory Upgrade
- • Tight & Accurate Response
- • Excellent Everyday Performance
|
12W0v3-4 12" W0v3 Series Entry-Level Subwoofer
BUDGET PICK
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Affordable JL Audio Option
- • Smooth Musical Bass
- • Small Sealed Box Friendly
- • Easy Installation
- • Great for Factory Systems
- • Best Entry-Level Choice
|
Series Breakdown
ENTRY LEVEL
12W0v3-4
Best For:
Budget systems, factory audio upgrades, and first-time JL Audio installations.
Pros
- Affordable JL Audio 12" subwoofer
- 300 Watts RMS handling
- Smooth, musical bass
- Works in compact enclosures
- Easy amplifier matching
Cons
- Lowest output capability
- Limited excursion
- Basic feature set
VALUE PICK
12W1v3-2 / 12W1v3-4
Best For:
Daily drivers wanting clean, accurate bass with excellent value.
Pros
- Excellent sound quality
- 300 Watts RMS handling
- Available in 2Ω or 4Ω
- Easy to drive
- Compact enclosure friendly
Cons
- Less output than W3/W6/W7
- Moderate excursion
BEST VALUE SQL
12W3v3-2 / 12W3v3-4
Best For:
Daily SQL systems needing strong output and outstanding sound quality.
Pros
- 500 Watts RMS handling
- Excellent SQL balance
- Deep, punchy bass
- DMA optimized motor
- Outstanding value
Cons
- Requires a stronger amplifier
- Higher cost than W1
PREMIUM SQL
12W6v3-D4
Best For:
Audiophiles seeking exceptional sound quality and deep, accurate bass.
Pros
- 600 Watts RMS handling
- Outstanding sound quality
- High excursion design
- Dual 4Ω voice coil
- Excellent low-frequency extension
Cons
- Premium price
- Larger enclosure recommended
FLAGSHIP
12W7AE-3
Best For:
Serious enthusiasts wanting the deepest bass, highest output, and ultimate JL Audio performance.
Pros
- 1000 Watts RMS handling
- Reference-level sound quality
- Massive long excursion
- Deepest bass extension
- Industry-leading SQL performance
Cons
- Most expensive model
- Requires a powerful amplifier
- Needs a larger enclosure
Which One Should You Buy?
| If You Want... | Recommended Model |
| Best Budget 12" JL Audio Subwoofer |
12W0v3-4 |
| Best Value for Everyday Use |
12W1v3-2 / 12W1v3-4 |
| Best Overall Value (SQL) |
12W3v3-2 / 12W3v3-4 |
| Best Sound Quality |
12W6v3-D4 |
| Best Sound Quality + SPL |
12W7AE-3 |
| Deepest Bass |
12W7AE-3 |
| Highest Output |
12W7AE-3 |
| Best Factory System Upgrade |
12W1v3-2 / 12W1v3-4 |
| Best Daily Driver |
12W3v3-2 / 12W3v3-4 |
| Best Audiophile Choice |
12W6v3-D4 |
Overall Ranking
ENTRY LEVEL
12W0v3-4
The most affordable way to enjoy genuine JL Audio 12-inch bass with smooth, musical performance and reliable everyday output.
VALUE PICK
12W1v3
A perfect factory-system upgrade with clean bass, excellent efficiency, and outstanding everyday sound quality.
BEST VALUE SQL
12W3v3
The sweet spot of the lineup, delivering exceptional output, deep bass, and premium sound quality at an excellent value.
PREMIUM SQL
12W6v3-D4
Built for audiophiles, combining exceptional clarity, deep low-frequency extension, and powerful SQL performance.
FLAGSHIP
12W7AE-3
JL Audio's ultimate 12-inch subwoofer, delivering 1000 Watts RMS, reference-level sound quality, massive excursion, and uncompromising bass performance.
Frequently Asked Questions (FAQ)
- • Why does my 12W3v3-2 make a sharp popping sound when the bass thumps?
The voice coil is physically bottoming out against the back of the magnet structure. This occurs when the subwoofer is over-powered or over-extended in an oversized box. Set your amplifier's subsonic filter to match the enclosure tuning to stop it.
- • Can I wire a single 12W3v3-2 down to a 1-ohm load to get more power from my amp?
No. This model is a Single Voice Coil (SVC) 2-ohm driver. Its physical impedance cannot be changed or reconfigured. To get a 1-ohm load at your amplifier, you must wire a matching pair of 12W3v3-2 subwoofers together in parallel.
- • Why am I getting a direct reading of only 1.6 Ohms on my multimeter?
This is normal. The 2-Ohm specification is nominal AC impedance. A standard handheld multimeter measures direct current resistance (Re). For a healthy 12W3v3-2, the native DC resistance naturally rests at exactly **1.66 Ohms**.
- • My subwoofer stopped working completely and has no reading on a meter. Is it blown?
Yes. An infinity/open loop reading means the internal voice coil wire melted or snapped from a heavily clipped signal or massive over-powering. The circuit is open, meaning the voice coil is permanently blown.
- • Is a 700-watt RMS amplifier safe to use with a single 12W3v3-2?
It is risky. The optimized thermal power limit for this driver is exactly **500 watts RMS**. To prevent overheating, you must use a digital multimeter to carefully back down the amplifier's gain control so that output never exceeds 31.6V.
- • Why does the bass sound muddy and boomy with an aggressive peak around 50 Hz?
The speaker is likely starved for back-pressure in an incorrect box size, or the input phase is mismatched. The 12W3v3-2 requires a compact net internal volume of exactly **1.25 cubic feet for sealed boxes** or **1.75 cubic feet for ported boxes**.
- • Why do I hear a loose rattling or scratching noise at low volume levels?
The voice coil has likely warped from high heat and is scraping the magnet walls, or the glue line securing the progressive-roll spider to the frame has separated. The driver will require a professional rebuild or replacement.
- • Can I mount this driver out in the open on a rear deck panel without an enclosure?
No. This driver has compliance parameters (Qts of 0.50) tuned exclusively for enclosed spaces. Running it free-air removes necessary air suspension, causing the cone to easily overshoot its **13.0mm linear excursion limit** and tear itself apart.
Learn how to wire subwoofers

- Diameter : 12 Inch
- Sensitivity : 87.15 dB
- Impedance : 2 Ohm
- Frequency Response : 22-200 Hz
- Peak Power Handling : 1000 Watts
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 1.25 Cubic ft.
- Suggested Ported Box Volume : 1.75 Cubic ft.
- Mounting Depth : 6.65 Inches
- RMS Power Handling : 500 Watts
- Free Air : No
Features:
- Engineered for Performance: The W3v3 subwoofer delivers impressive output, accuracy, and sound quality at moderate power levels, fitting comfortably in space-saving sealed or ported enclosures.
- Dynamic Motor Analysis (DMA) Optimized Speakers: Proprietary DMA technology ensures linear motor force across a wide range of cone excursions and power levels, producing tight, clean, and articulate bass with minimal distortion.
- Polypropylene Cone Technology: Mineral-filled, injection-molded polypropylene cone with durable rubber surround provides crisp, strong bass while withstanding extended high-volume play. A distinctive metallic JL Audio medallion adds a premium finishing accent.
- No Replacement for Displacement: The 13.5-inch W3v3 moves 54% more air than a 12-inch 12W3v3, offering greater efficiency and output for bigger, punchier bass.
- Custom Accents: The removable, customizable mounting flange trim ring allows you to match your vehicle’s color scheme, and optional steel-mesh grille inserts (sold separately) can be installed easily for protection and style.
- Powerfully Adaptable: Supports a wide range of amplifiers and vehicles, with the most compact 6.5-inch model handling 150 watts RMS and the largest 13.5-inch driver handling up to 600 watts RMS.
- Remarkably Realistic Bass: Engineered for smooth, precise cone movement at any power level, with exclusive cooling features that reduce distortion and improve durability.
- Well-Rounded Performance: Patented design eases surround stress during cone movement for consistent, reliable bass output.
- Affordable and Reliable: Delivers high-quality JL Audio sound and engineering at a moderate power level, making it ideal for enthusiasts seeking professional-grade performance in medium-power setups.
Specifications:
- Size: 12-inch
- Impedance: 2 Ohms
- Cone Material: Mineral-filled polypropylene
- Surround Material: Rubber
- Basket Material: N/A
- Grille: None included
- Free-Air Capability: No
- Dual Voice Coil: No
- Sensitivity: 87.15 dB at 1 watt
- Frequency Response: 22 – 200 Hz
- Max RMS Power Handling: 500 watts
- Peak Power Handling: 1000
- Top Mount Depth: 6 5/8 inches
- Cutout Diameter: 10 7/8 inches
- Frame Width/Length: 12.5 inches
- Vas (liters): 79.47
- Fs (Hz): 27.97
- Qts: 0.5
- Xmax (mm): 13
- Ideal Sealed Box Volume: 1.25 cubic feet
- Ideal Ported Box Volume: 1.75 cubic feet
- UPC: 699440921534
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
