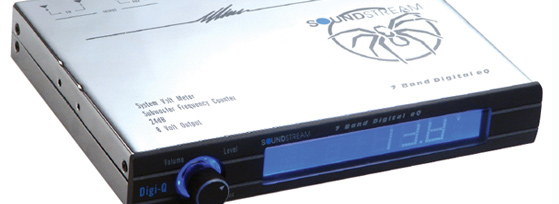

DIGI-Q (DIGItal-EQ) does more than just alter your music. It gives you 7 bands of equalization, subwoofer crossover and level controls as well as an extra audio input for a secondary source. You can control all this from the DIGI-Q with only one knob. A few clicks and turns of the knob and you can scroll through all the EQ settings, level controls, system voltage meter and even a true frequency counter for the outputs. Imagine the innovation involved in this one little half din unit. Extend your function…get DIGI-Q
- Low Frequency Response : 15 Hz
- High Frequency Response : 30000 Hz
- Number Of Bands : 7
- Output Voltage Up to 8 V
- Subwoofer Output Voltage Up to 10 V
- Frequency Response 15HZ ~ 30KHZ
- THD+n (1vrms output) = 0.002%
- Input sensitivity = 0.3 ~ 1.5 Vrms
- Channel separation (L – R) = 79db
- Source voltage range = 9.5 ~ 14.2
- Current consumption (all outputs @ max.) 2 amperes
- B/C control range = 20 db (+10 to -10db)
- Sub woofer output frequency range = 180 ~ 550 (LP)
- Frequency bands: #1 57HZ, #2 134HZ, #3 400HZ, #4 1KHZ, #5 2.2 KHZ, #6 6.3KHZ and #7 16KHZ
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
THIS EQ ROCKS I HEAR THE MUSIC WITH ALL THE DETAIL ITS GOT A SENSITVE INPUT SO U DONT NEED THE VOLUME ON THE SOURCE ALL THE WAY UP THIS IS GOOD BETTER S/N RATIO. BUT IT IS STILL BETTER TO USE A LINE DRIVER WITH THIS EQ I DID AND IT MADE A BIG DIFFRENCE FOR ME
-
Awesome little eq. It cleaned up my stereo big time and gave me a little extra tunability. It was a little hard to get used to at first and it was a little bit of a pain to mount it since it didn't have all the mounting screws, but I liked it...up until a week ago when it died on me...getting power and everything, but wouldn't turn on and since it's discontinued, not sure if I can get it replaced under warranty. Aside from that issue, I liked it!
