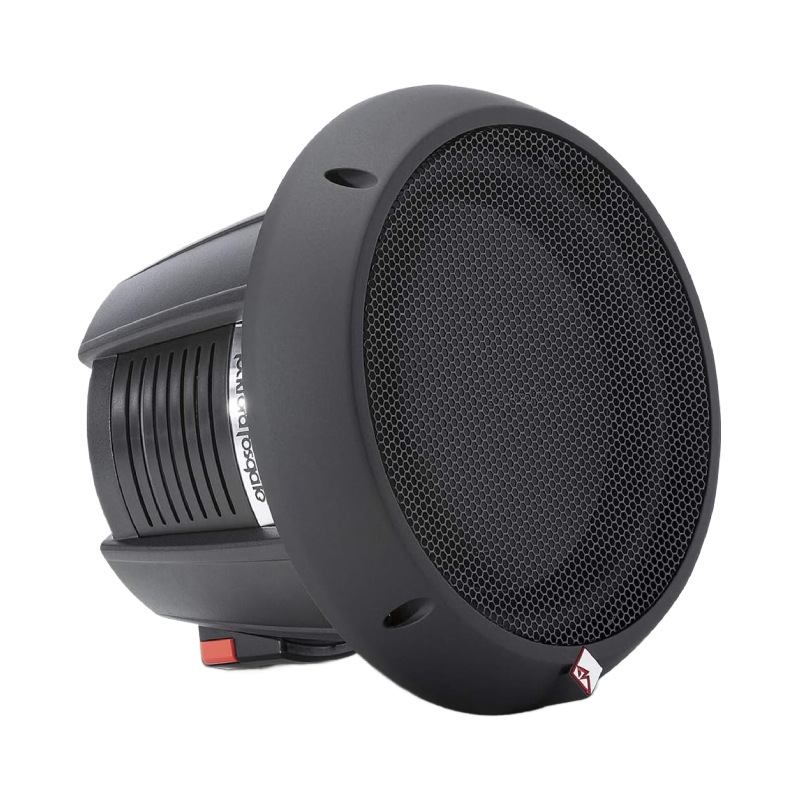

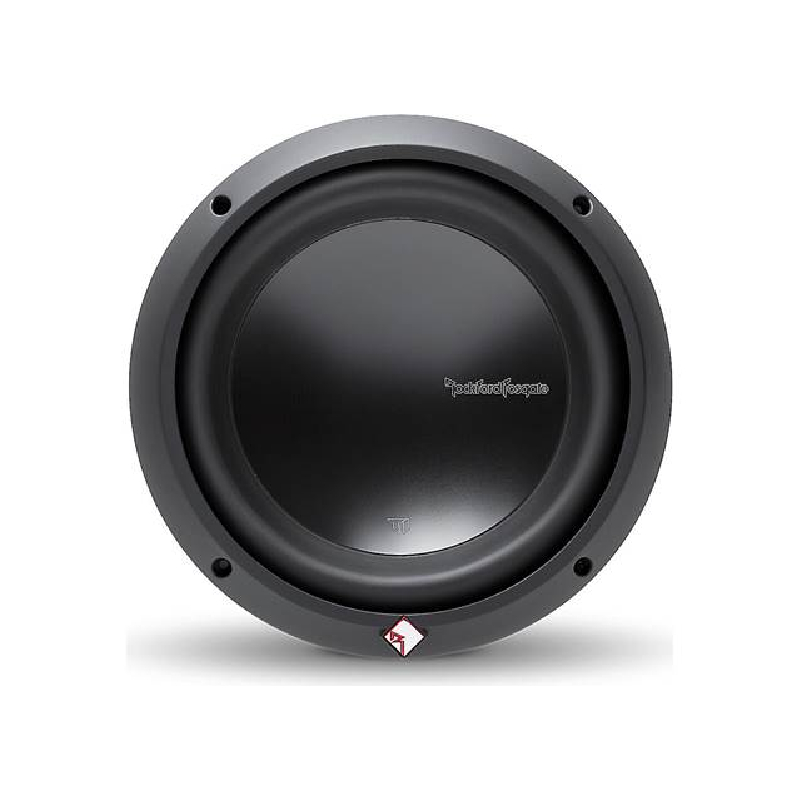

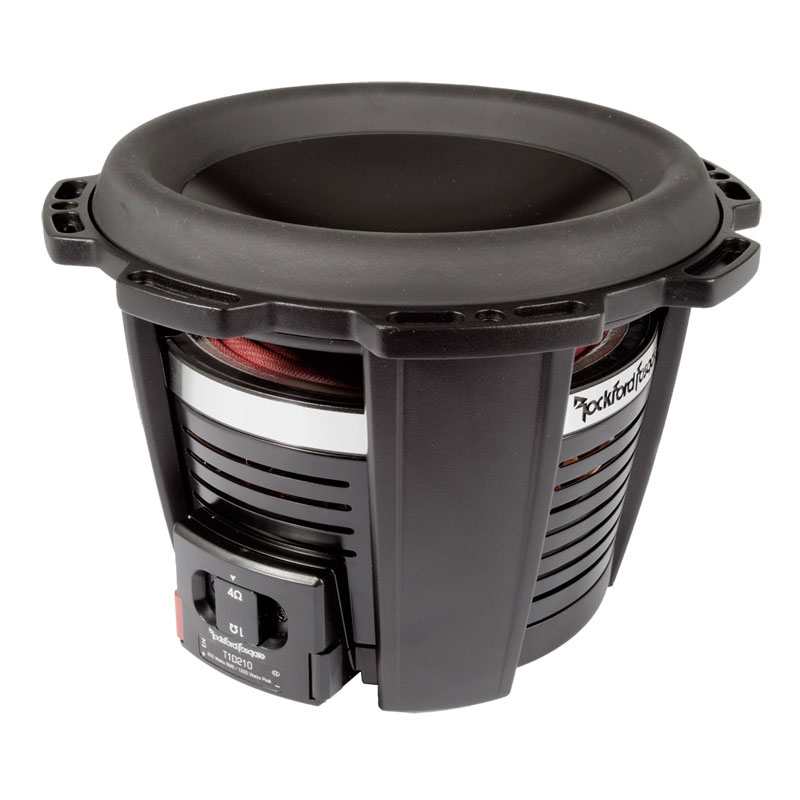

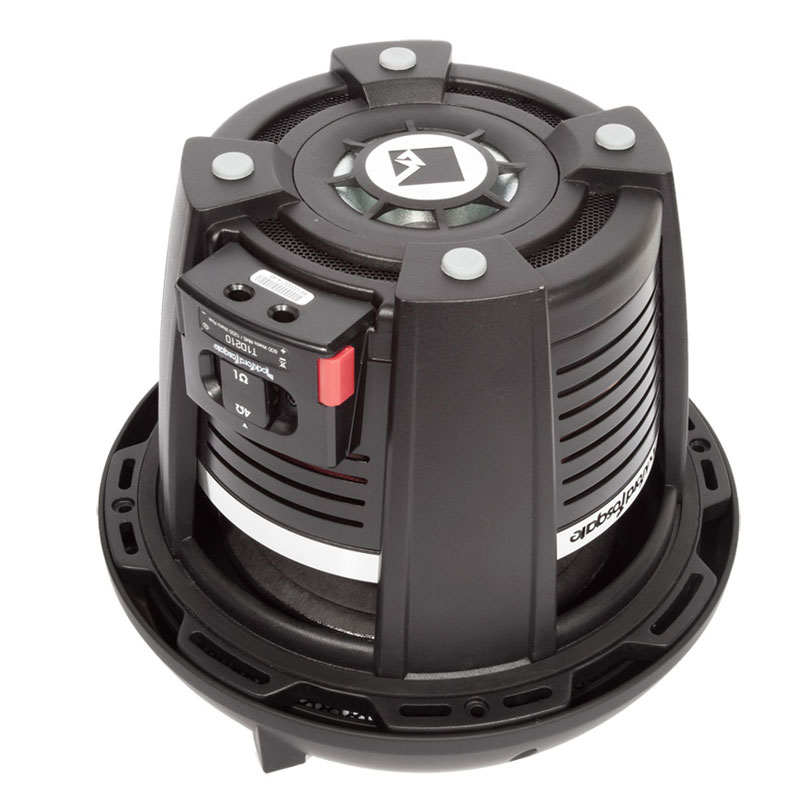

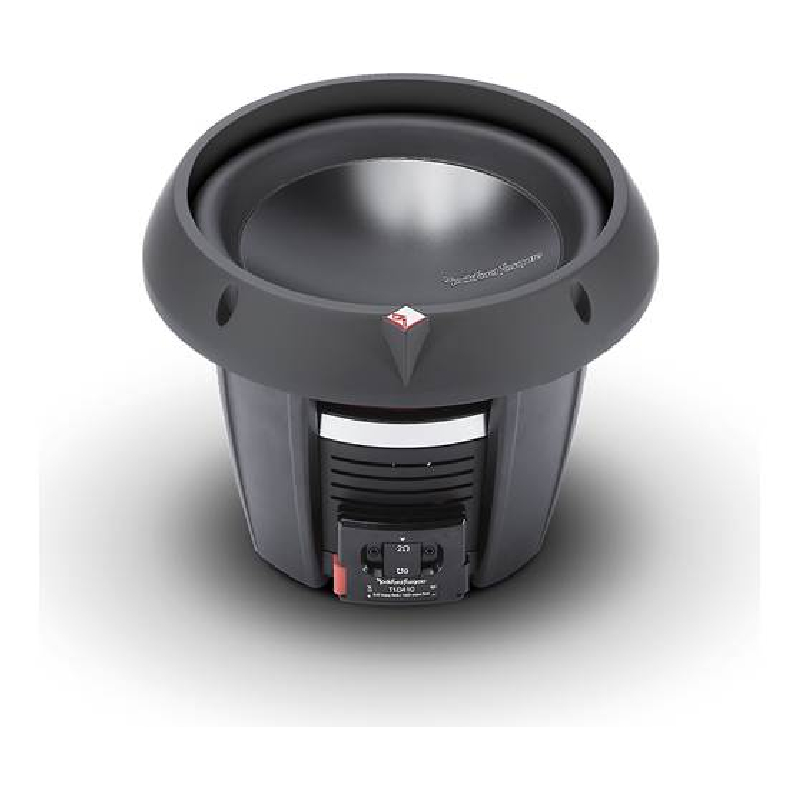

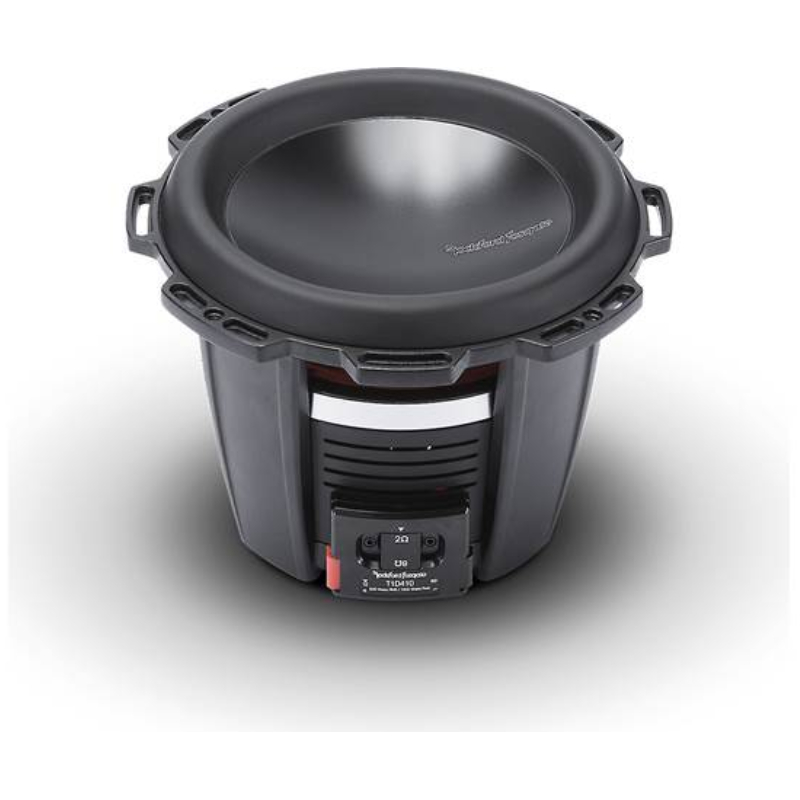

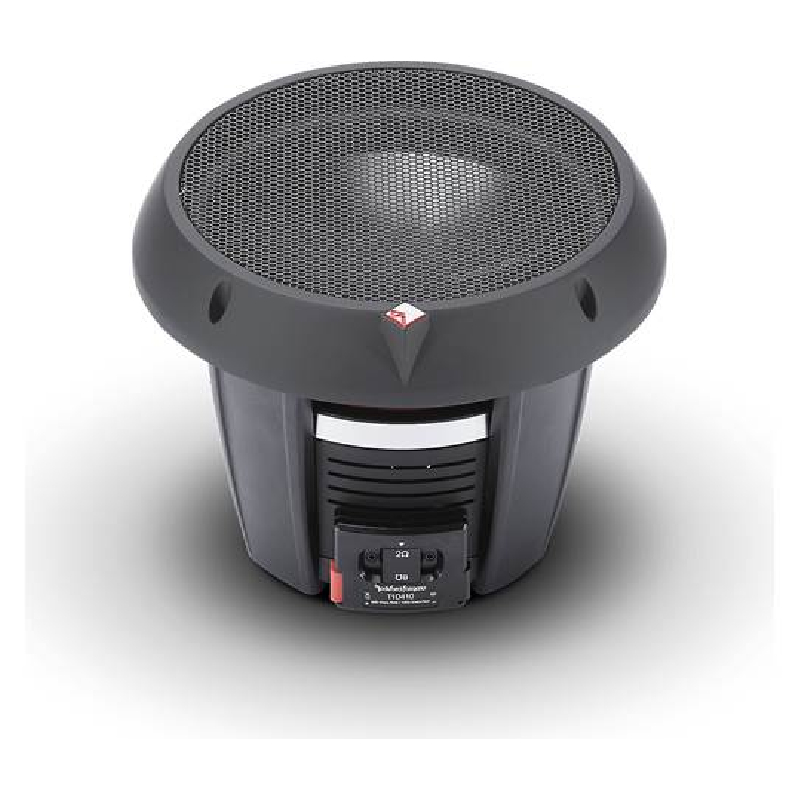

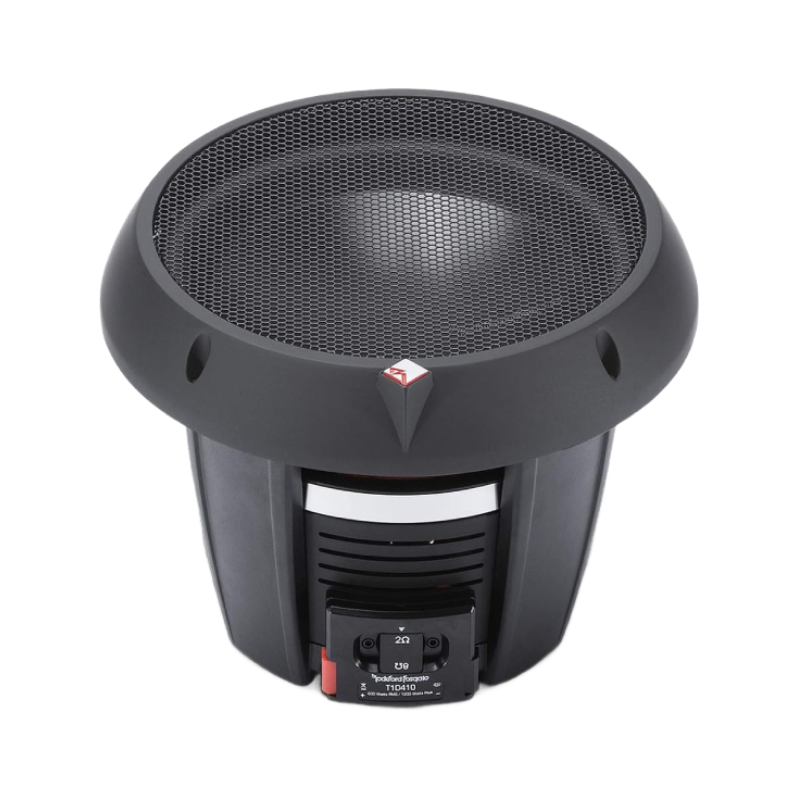

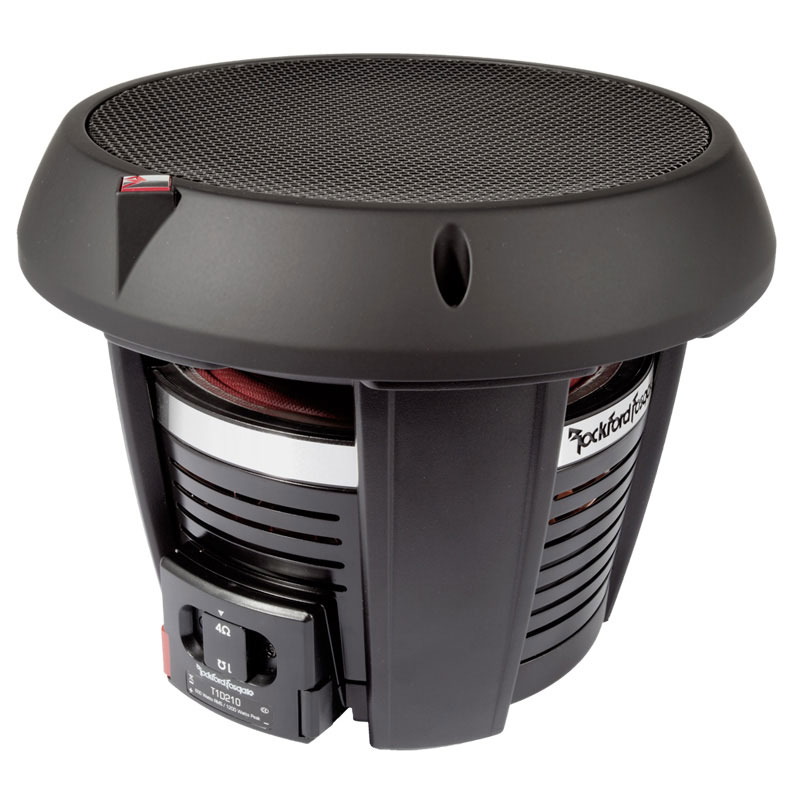

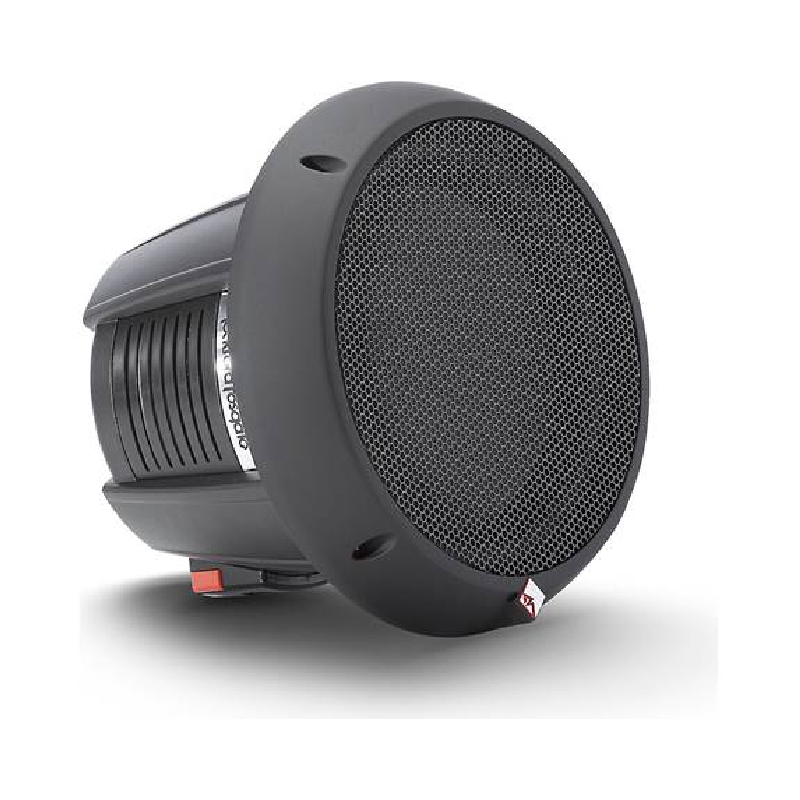

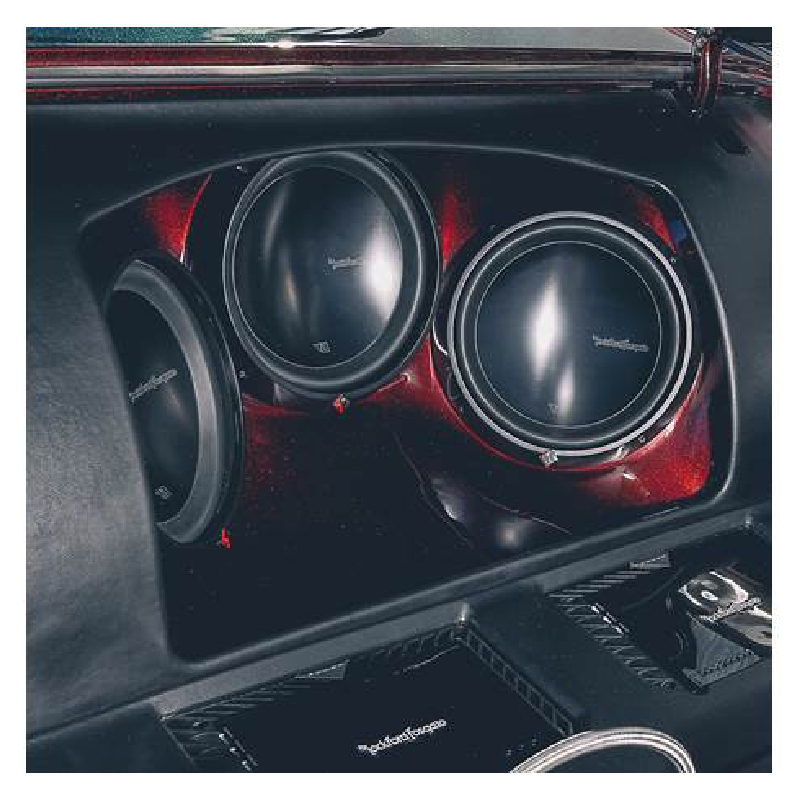

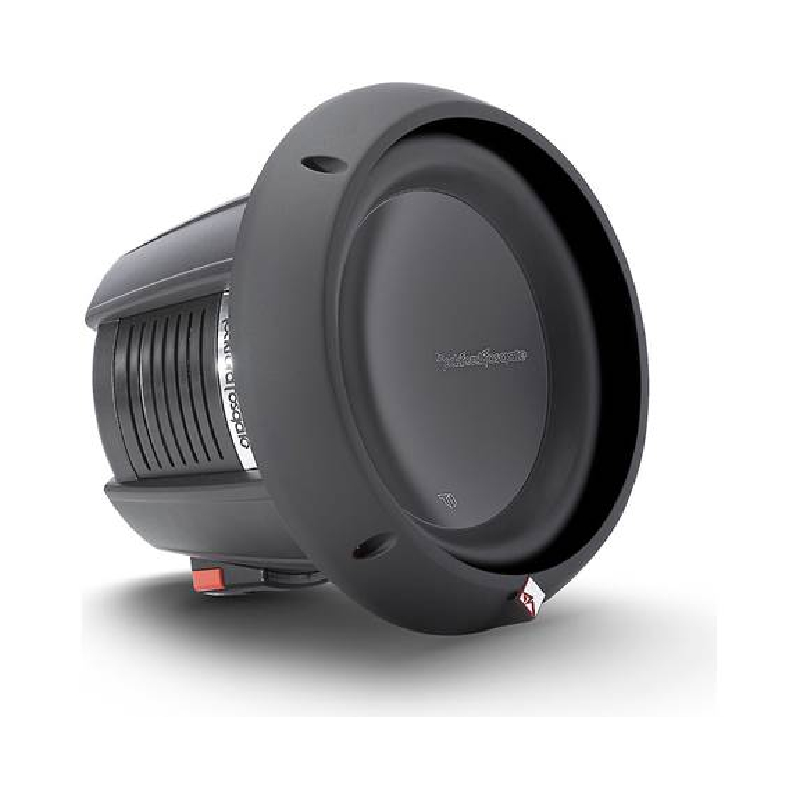

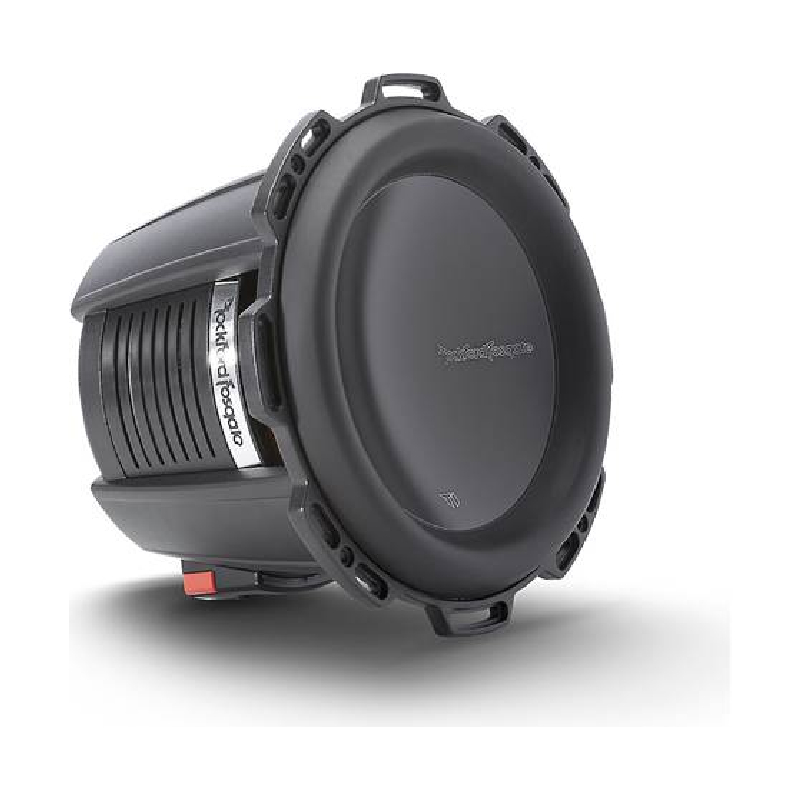

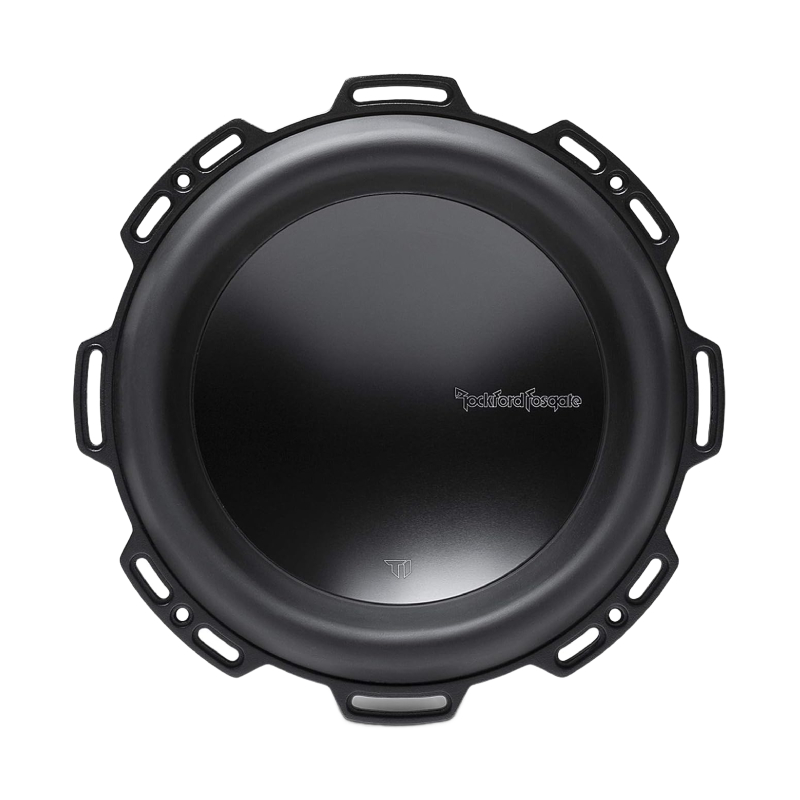

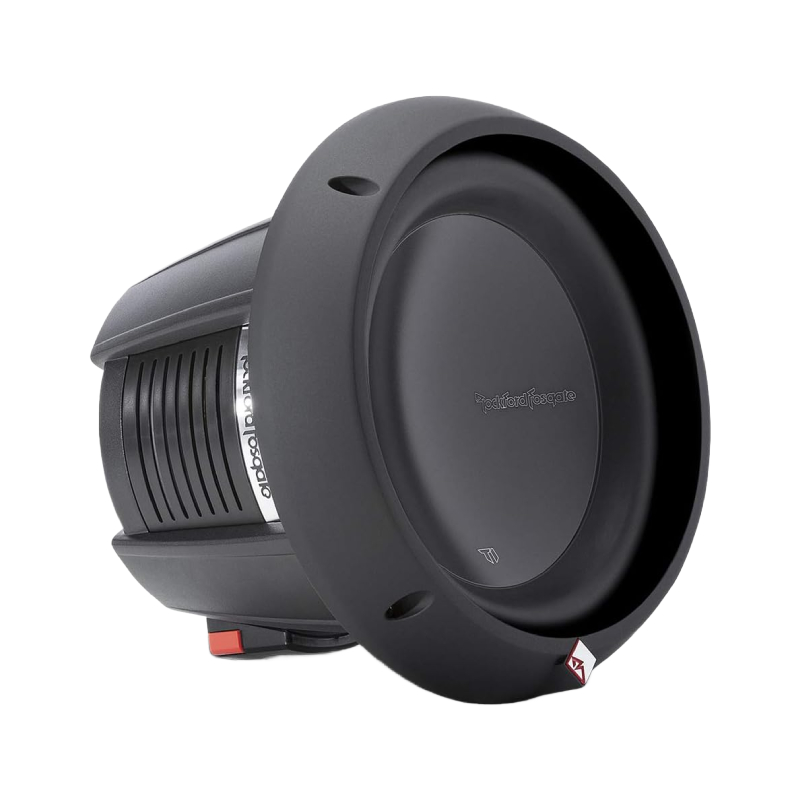

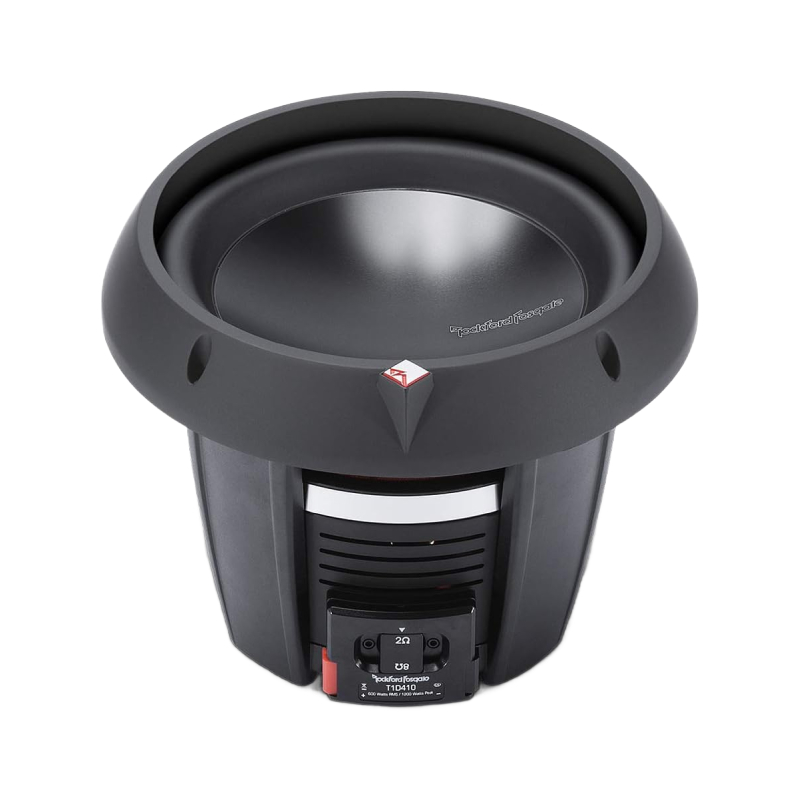

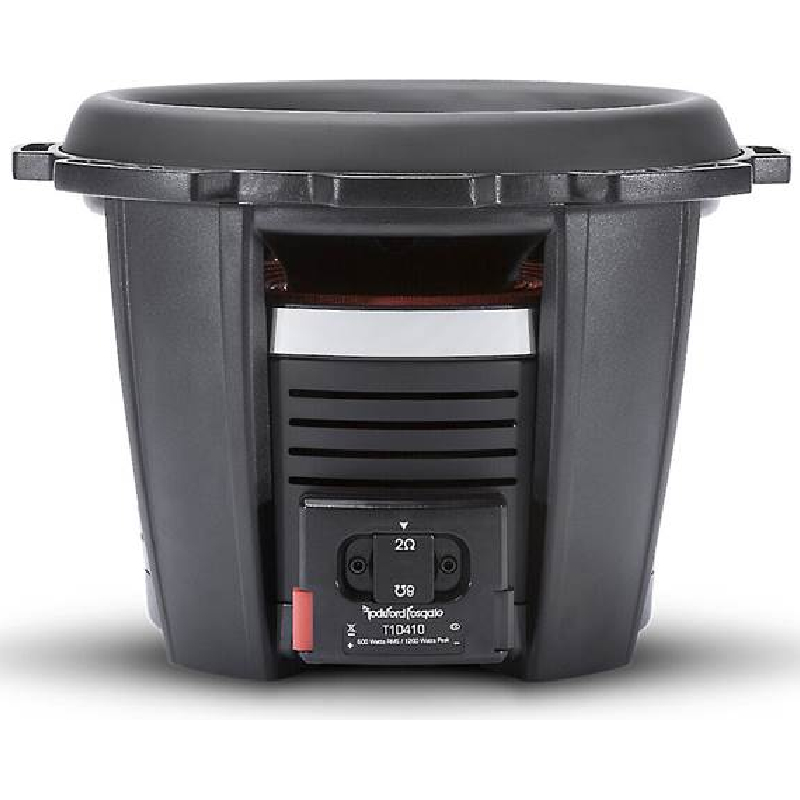

Powerful, 10-inch subwoofer that delivers deep, booming bass sound. The T1D210 is designed with a cast aluminum frame, treated paper cone, and a unique Waveguide technology, which helps disperse the bass sound evenly throughout the listening area. Its dual 2-ohm voice coils offer a wide range of wiring options and its powerful motor structure provides impressive levels of power handling. The T1D210 subwoofer is perfect for use in car audio systems and is sure to provide a powerful and dynamic bass response.

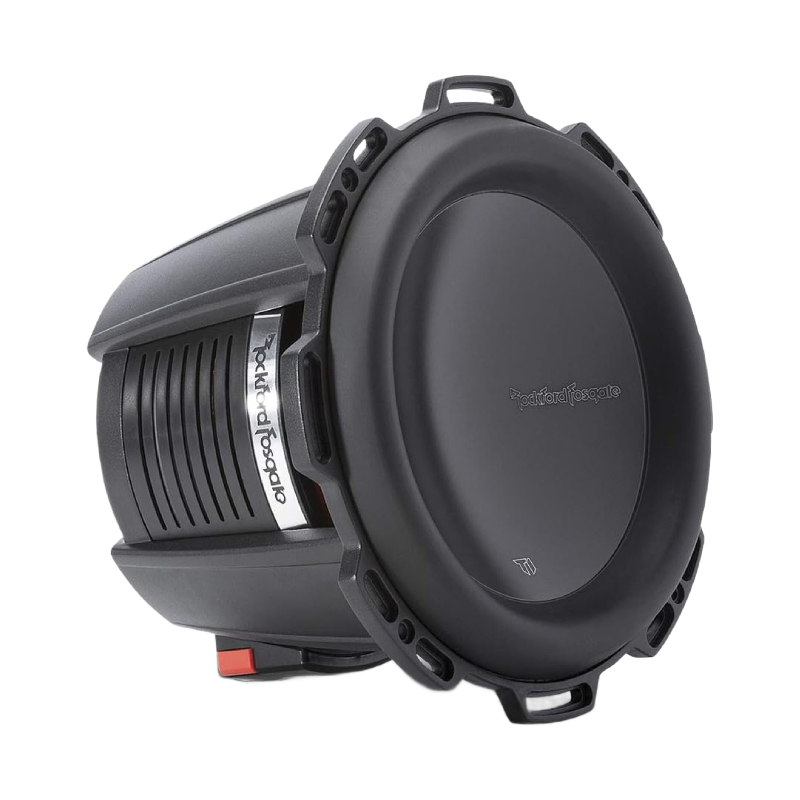

Rigid Die-Cast Aluminum Basket
It is designed to deliver deep, powerful bass with minimal distortion. The design of the die-cast aluminum basket ensures that the subwoofer is highly durable, providing long-lasting performance. The subwoofer features a 2-inch voice coil, and a frequency response of 28 Hz to 250 Hz. The subwoofer is also equipped with a ventilated motor structure which helps to keep the subwoofer cool during long periods of playing. In addition, the subwoofer is compatible with both sealed and ported enclosures.

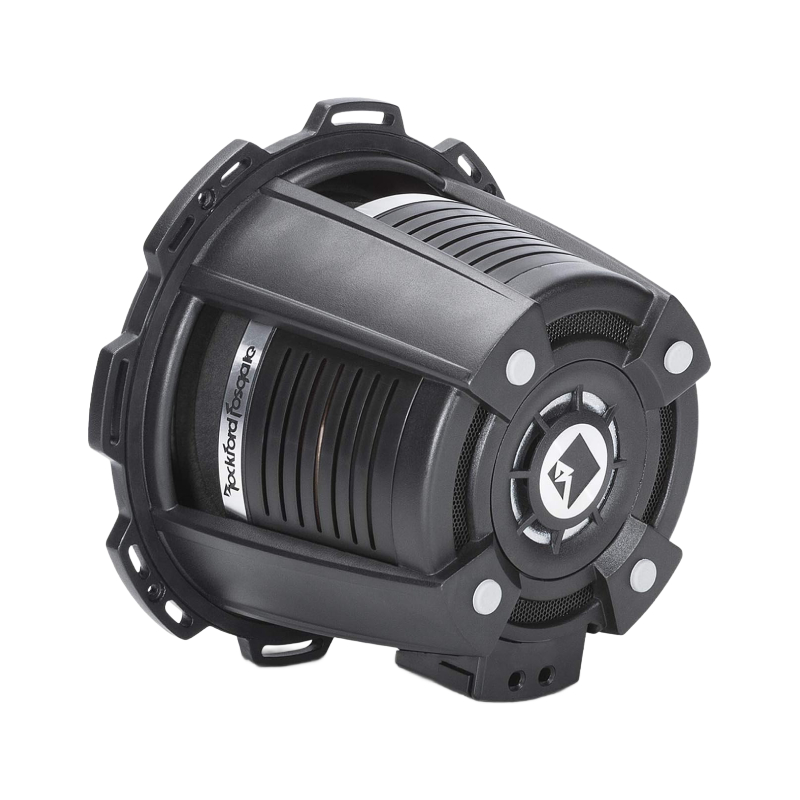

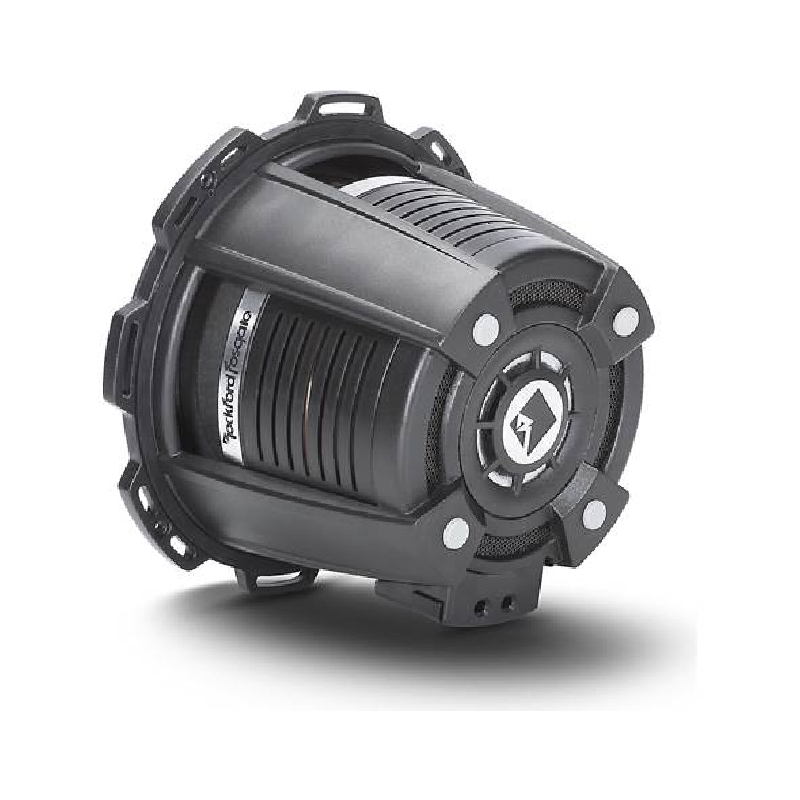

Ventilated Motor Structure
This is designed to provide maximum airflow to the voice coil while maintaining a rigid structure, allowing for improved power handling and thermal efficiency. The vented motor structure utilizes a unique, symmetrical layout that increases the size of the motor structure, allowing for more power handling. Additionally, the vented design helps to keep the voice coil cool, which increases the speaker's power-handling capabilities, as well as its overall lifespan. The T1D210 is a high-performance subwoofer, and its ventilated motor structure is designed to help it deliver superior audio performance with reduced distortion.
Has Aluminum Voice Coil Former
It is designed to provide powerful, low-end bass response in an efficient, lightweight design. It features a high-temp polyimide former and a high-temp Nomex spider for increased power handling. The T1D210 also utilizes a large motor structure with a vented pole piece and a high-temp fiber reinforced paper cone for improved sound quality. The subwoofer is capable of handling up to 1,200 watts of power and has a frequency response range of 25-500 Hz.
Diameter : 10 Inch
Maximum Power : 1200 Watts
Sensitivity : 83 dB
Impedance : 4 Ohm
Peak Power Handling : 1200 Watts

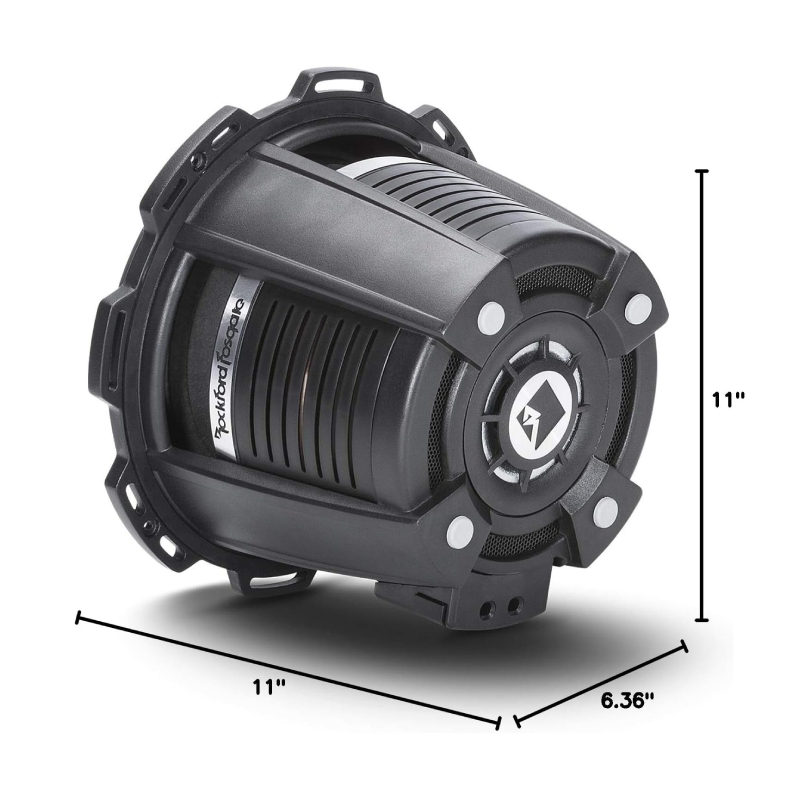

Top Mount Depth : 6-9/16 Inches
Bottom Mount Depth : 7 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : .75 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.
Mounting Depth : 6.375 Inches
RMS Power Handling : 600 Watts
Symmetrical dual progressive roll tear resistant poly-cotton spiders
Proprietary 8 AWG insulated allmetal input spring terminal connection
Optimized and matched magnetic and complicance geometry
Periodic-stitched fatigue resistant tinsel lead wire
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Anodized aluminum heat sinking dust cap

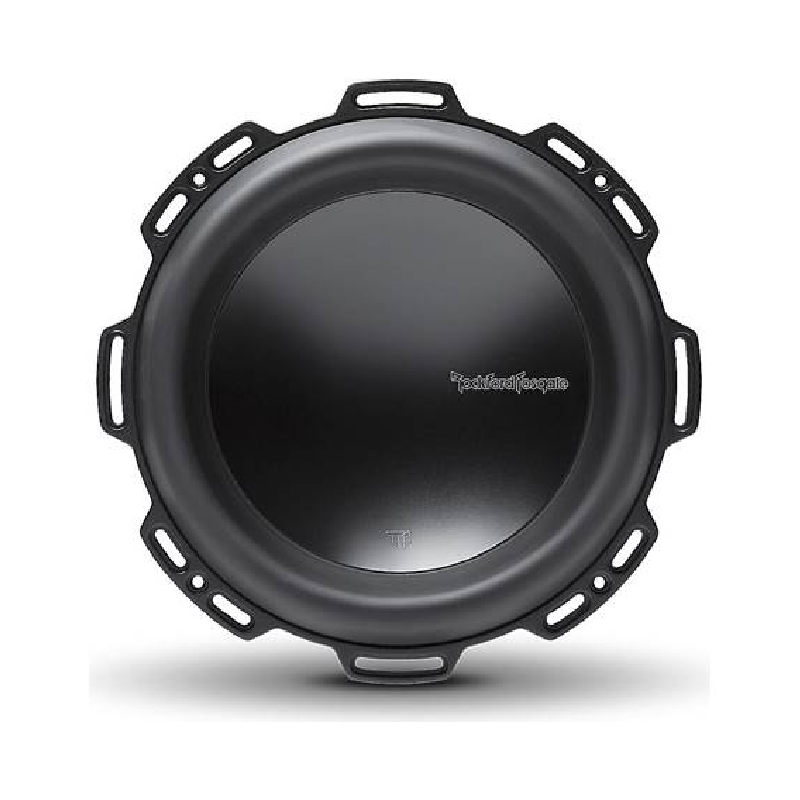

Kevlar fiber reinforced paper cone
Rigid die-cast aluminum basket
Optimized pole piece and spider venting
Anodized aluminum voice coil former / copper clad aluminum wire
1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight: 100 oz. (2.84 kg)
Voice Coil Diameter: 3" (75.4mm)
SPL (dB @ 1w/1m): 83
Fs (Hz): 36
Woofer Displacement: 0.078 cu. ft. (2.2 Liters)
Nominal Impedance: Dual 4-Ohm
Cutout Diameter: 9.0625 in. (230 mm)
Sd (cm2): 345
Speaker Connector: Compression Terminal
Mounting Depth: 6.375 in. (161.9 mm)
Shipping Weight: 25.7 Lbs. (11.65 Kg.)
Vas (Liters): 15.7
Xmax (mm): 16
Re (Ohms): 6.50
Le (mH): 2.5
CEA-2031 Compliant: CEA-2031 Guidelines
Subwoofer Type: Standard
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 0.75 cu. ft. (21.2 Liters)
Vented Box Volume (Vb): 1.5 cu. ft. (42.4 Liters)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
