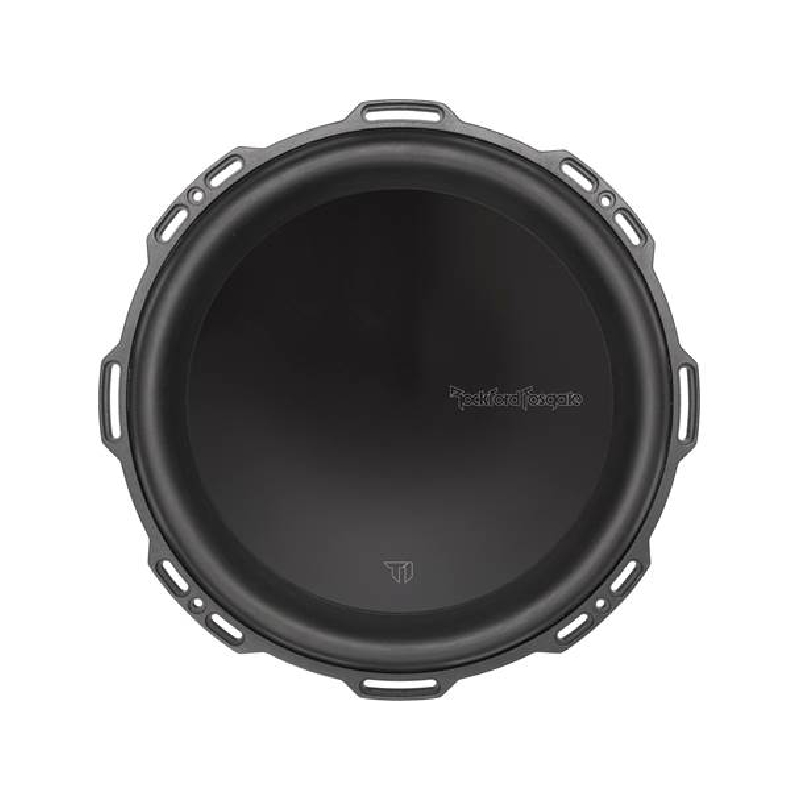

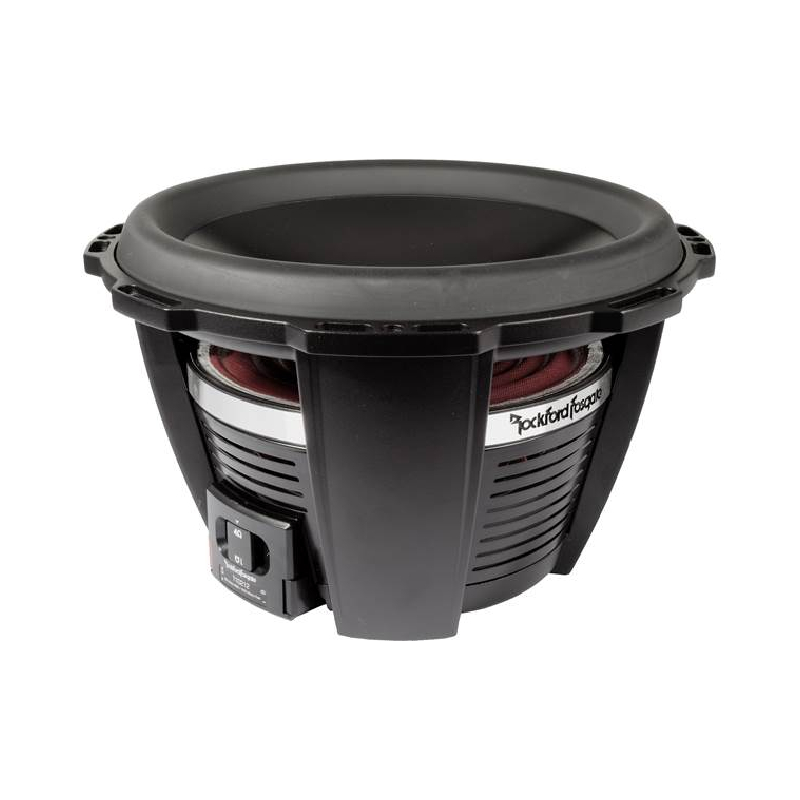

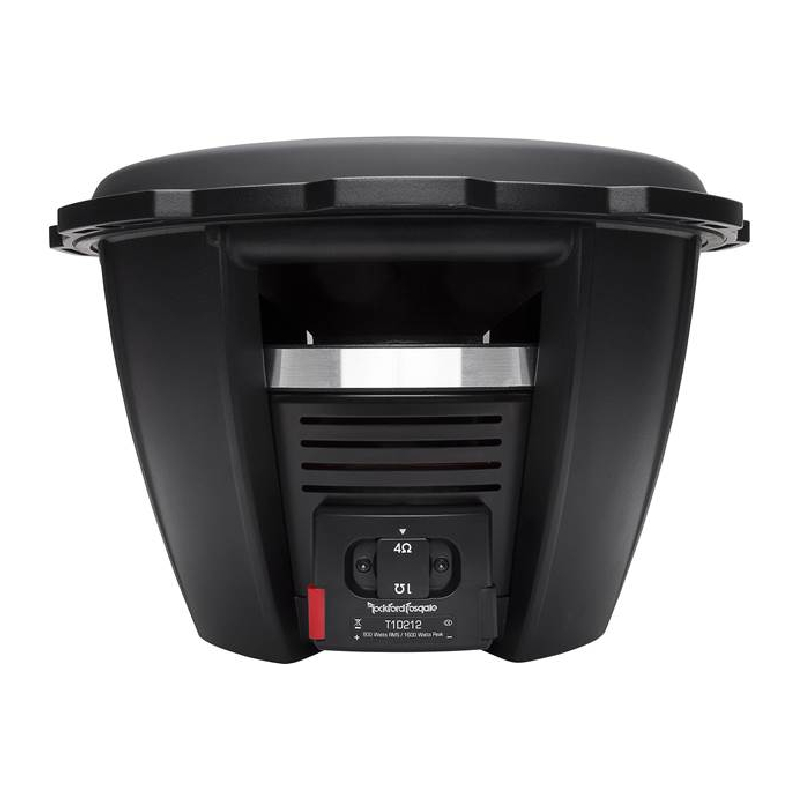

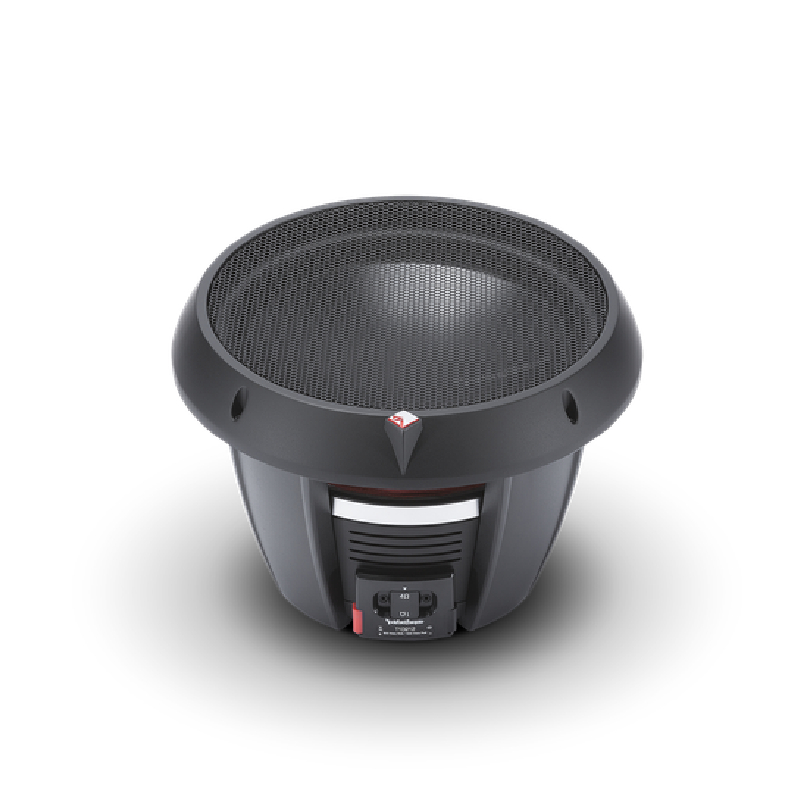

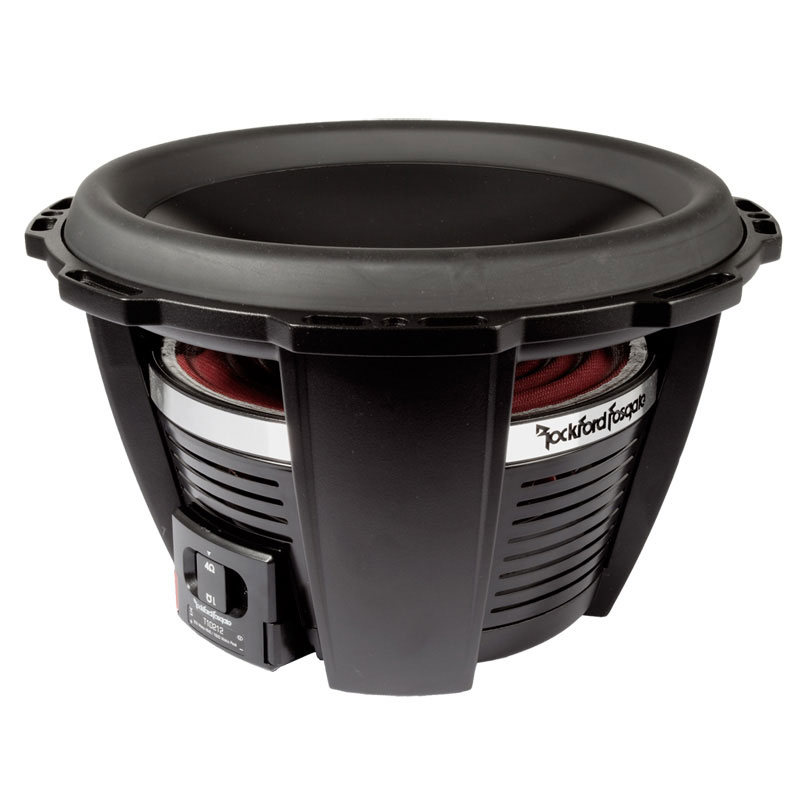

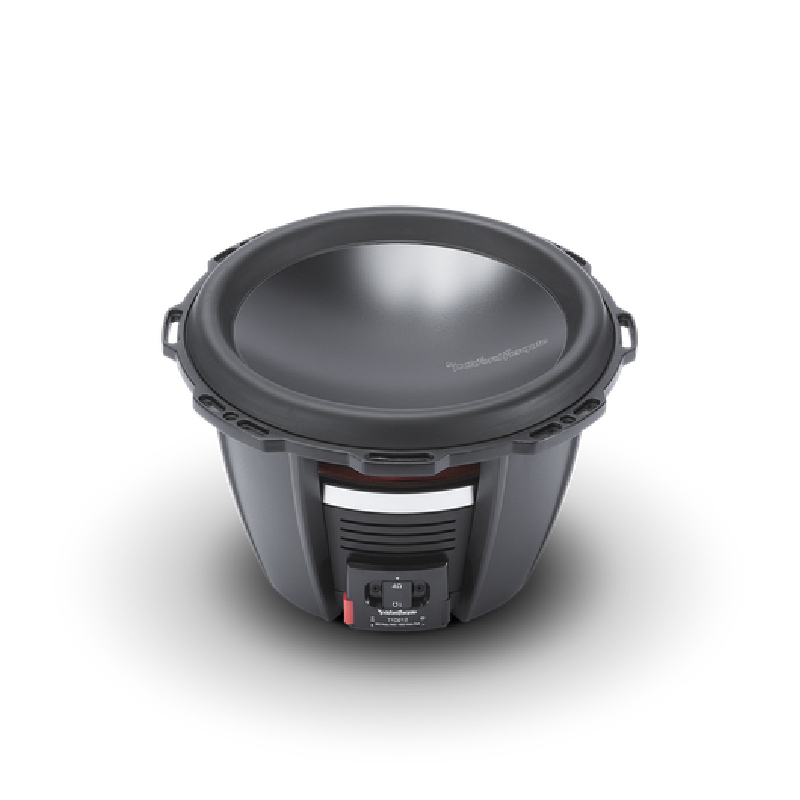

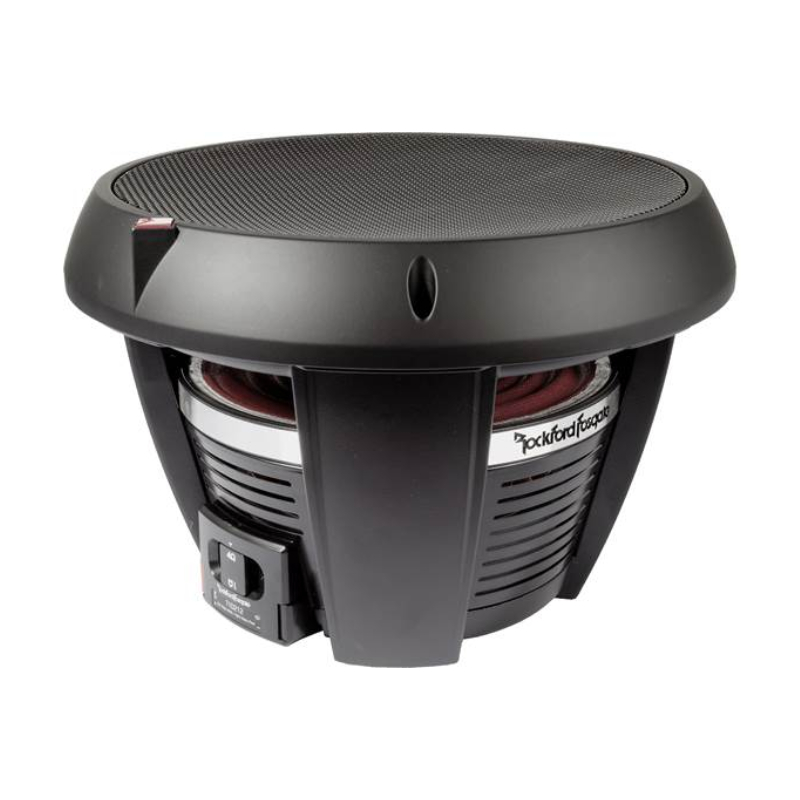

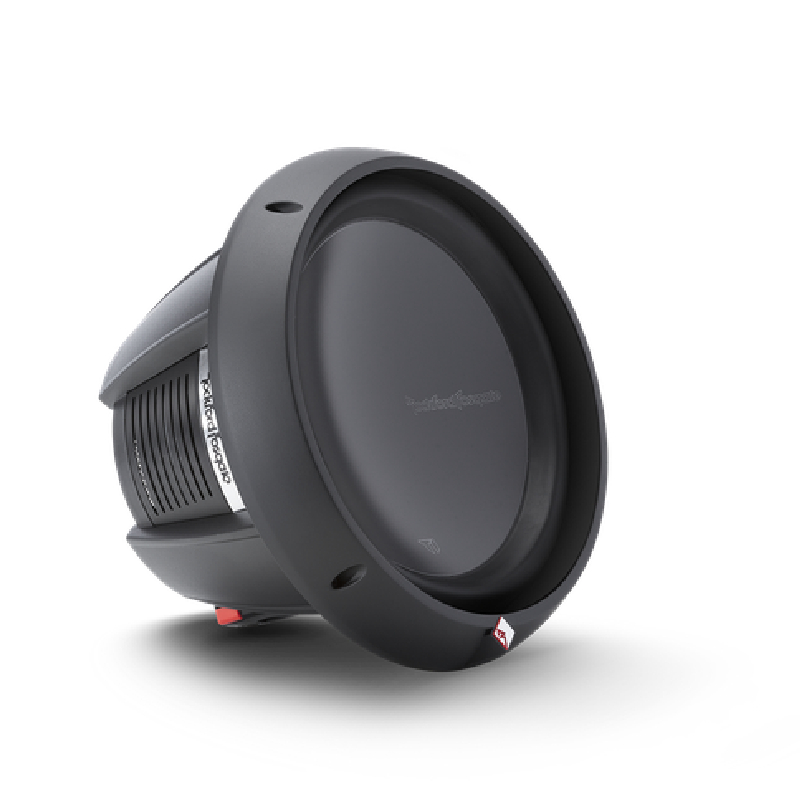

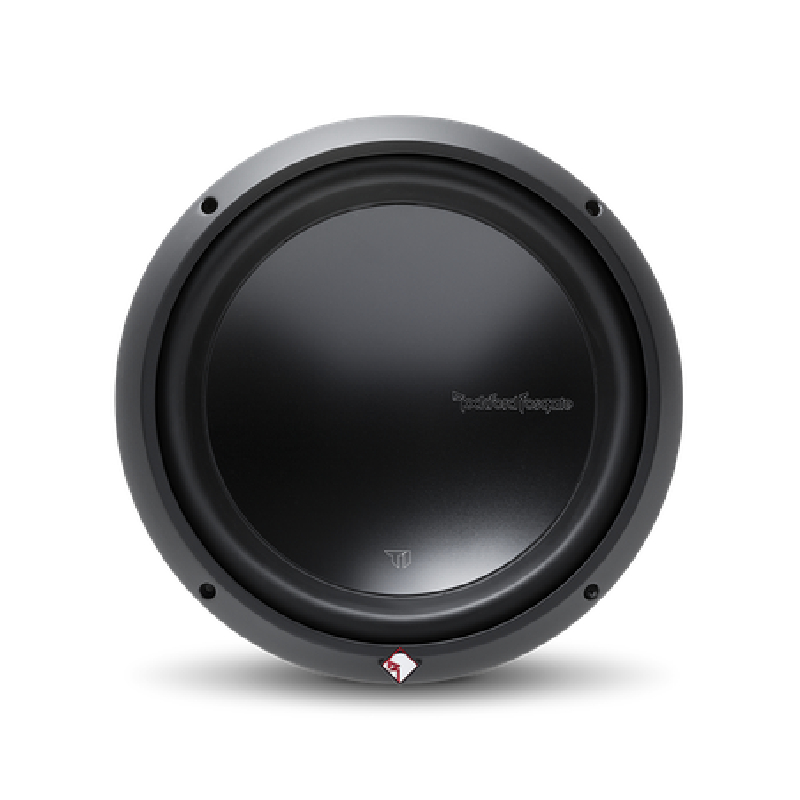

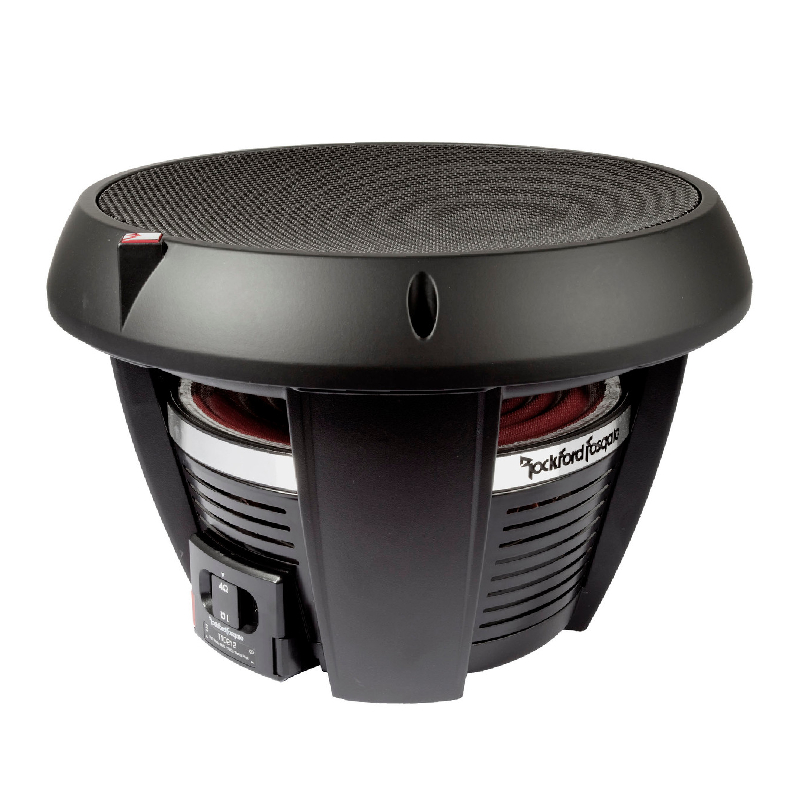

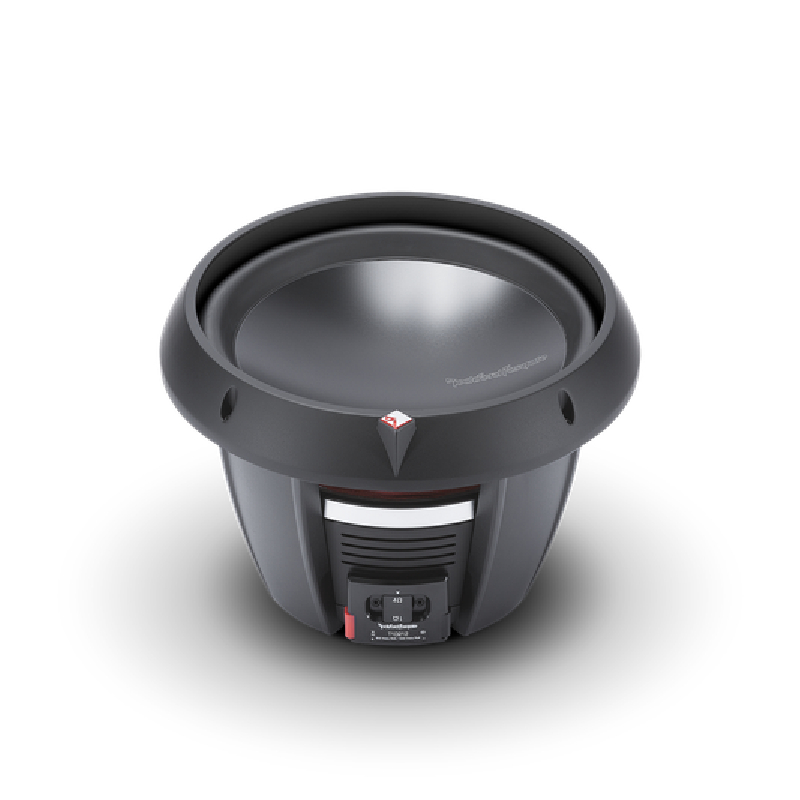

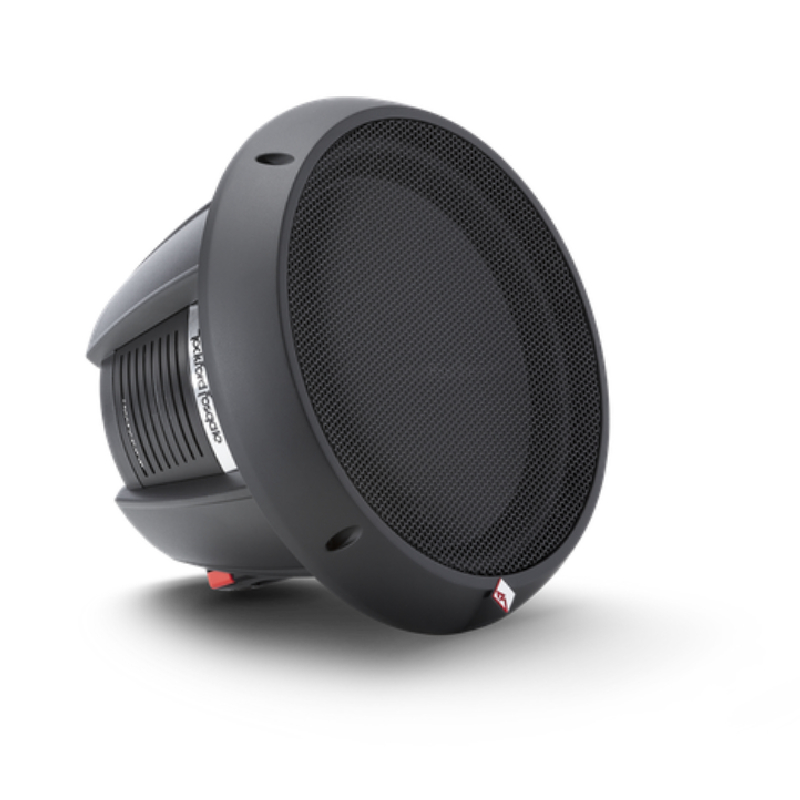

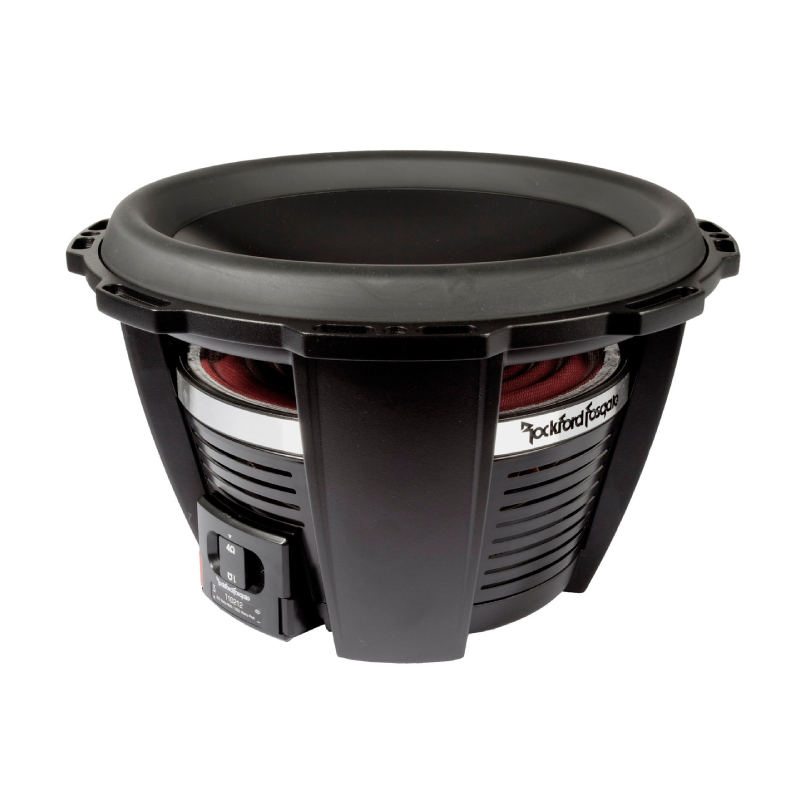

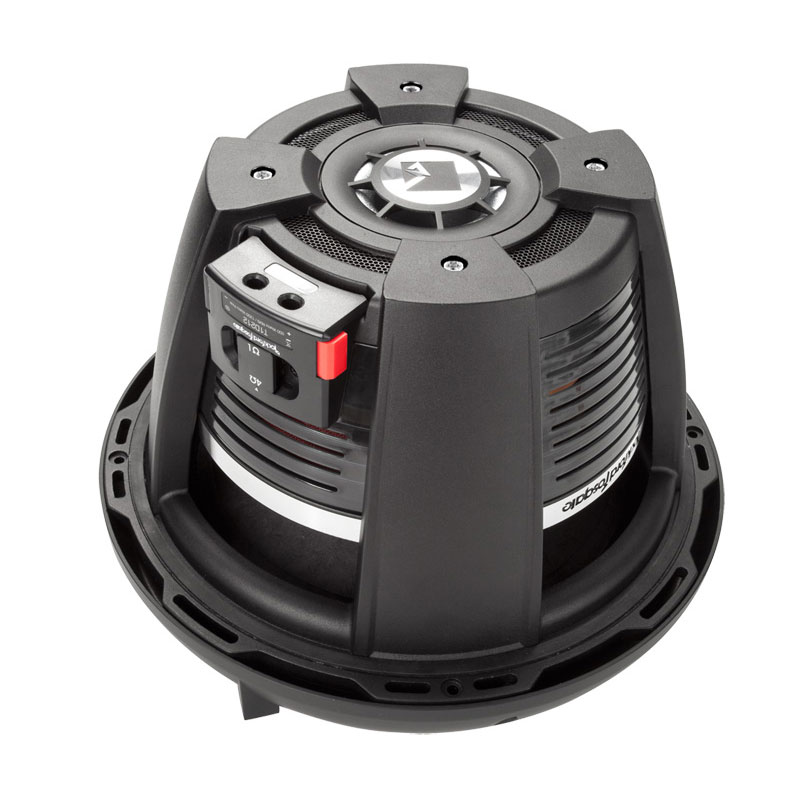

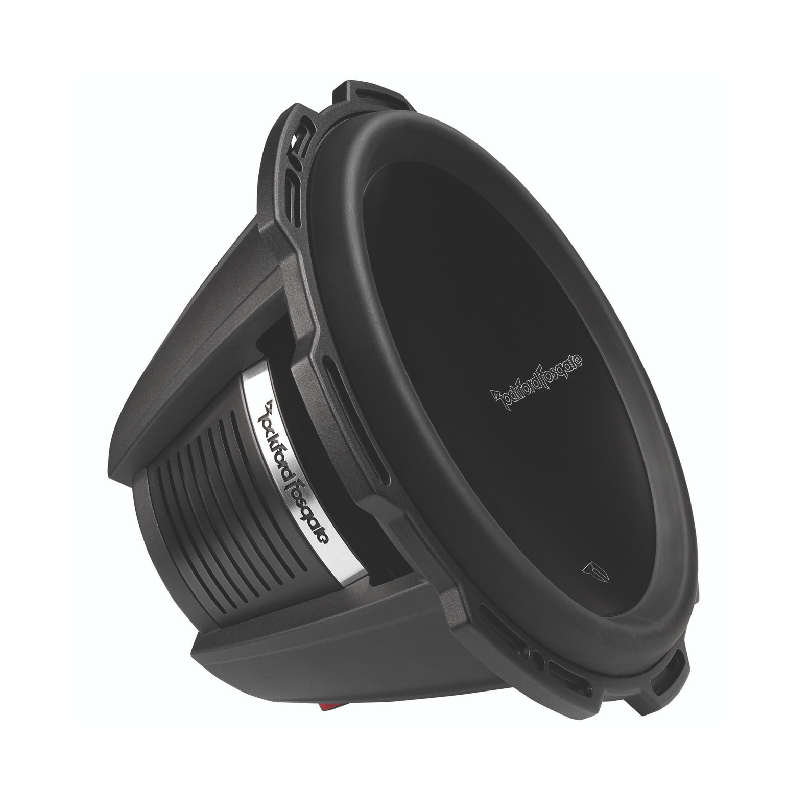

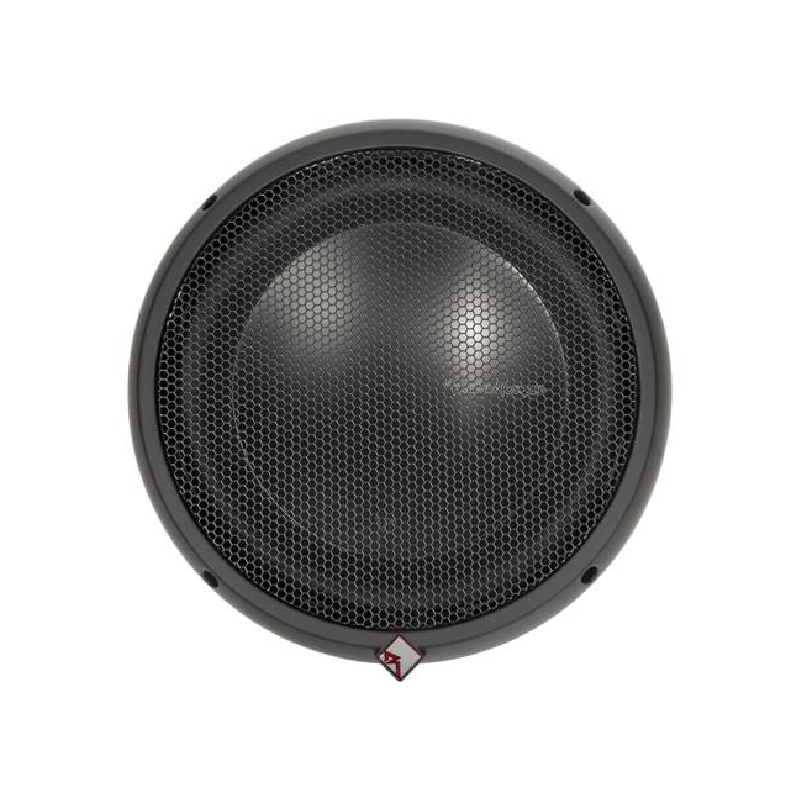

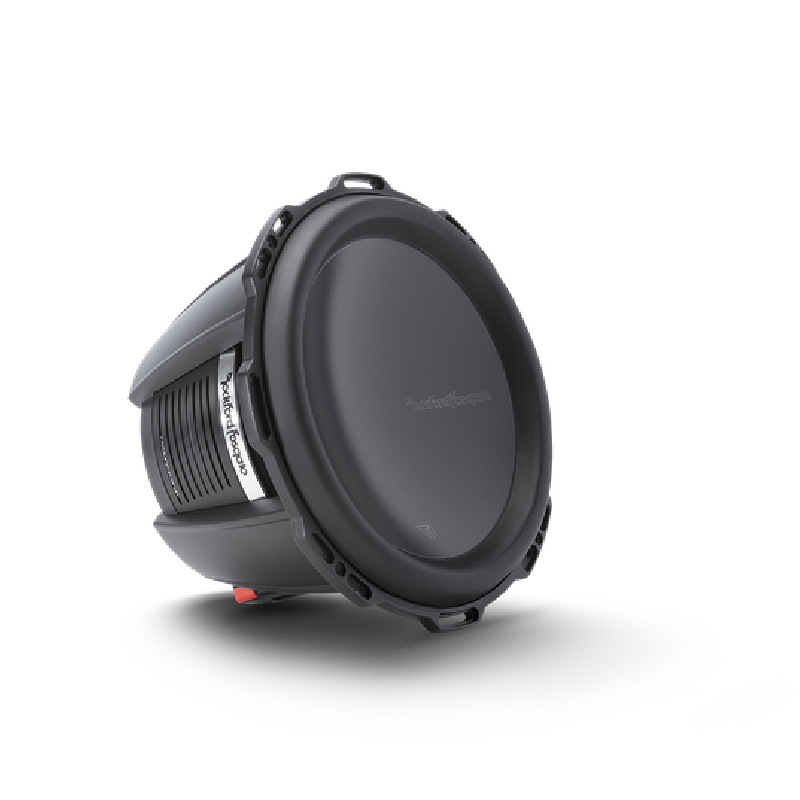

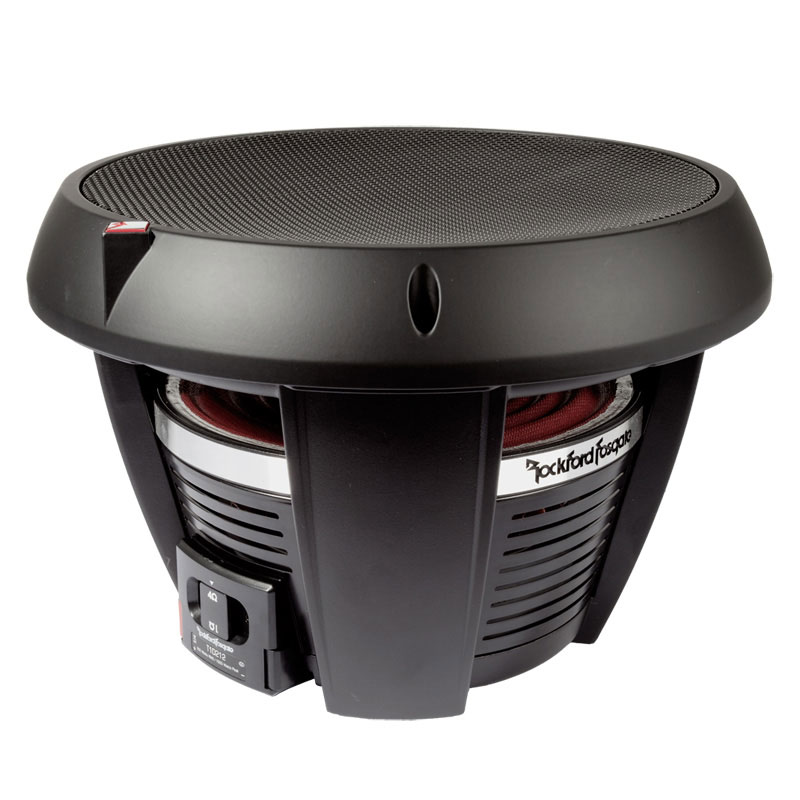

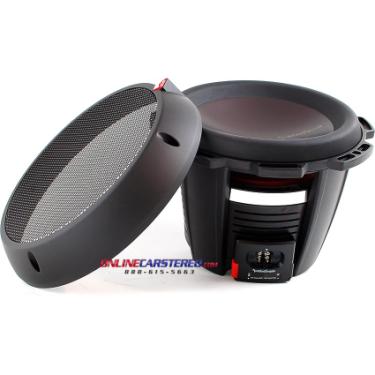

This is a 12" subwoofer designed for use in cars and other vehicles. It features a Dual 2 Ohm voice coil, a 1600 Watt peak power handling, and a OverRoll Santoprene surround. The woofer also has a aluminum heat sink basket for additional cooling, a stacked Magnet structure for increased sound quality and a flat spider for improved cone movement. This subwoofer is designed to provide powerful, deep bass response and is perfect for anyone looking to add an extra punch to their vehicle's audio system.
OverRoll Santoprene surround
Designed to deliver powerful, deep bass performance. The T1D212's 12” subwoofer utilizes a Santoprene surround for better control of the cone and improved linearity. The subwoofer also features an over-roll design for enhanced excursion and increased cone area for increased bass output. The T1D212 is capable of handling up to 1600 watts of peak power. The subwoofer is also equipped with a 4-layer voice coil that allows for greater heat dissipation and improved reliability. The T1D212 is a great choice for anyone looking to really bring the bass to their car audio system.

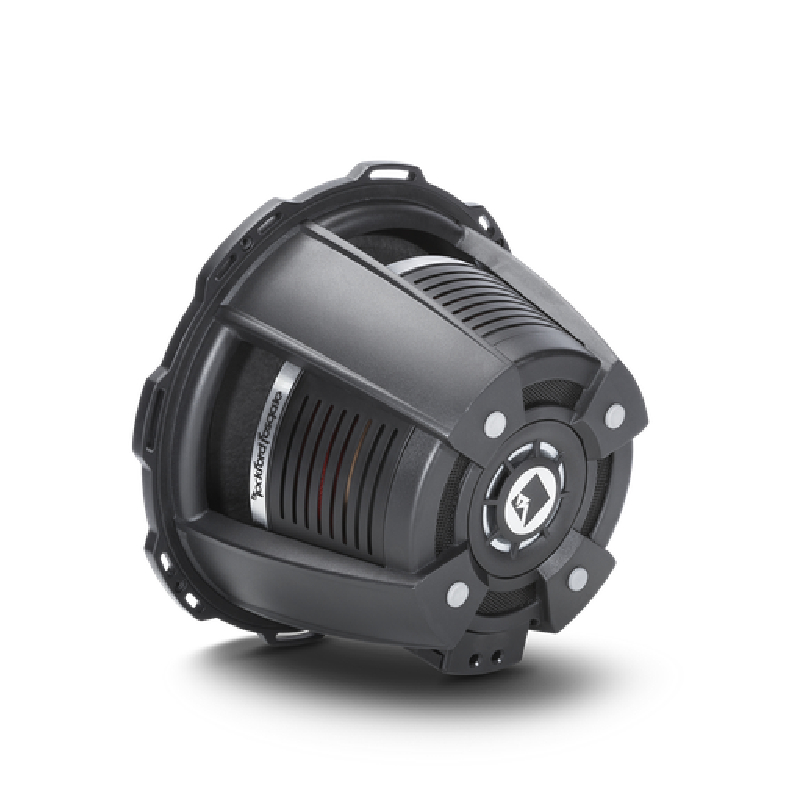

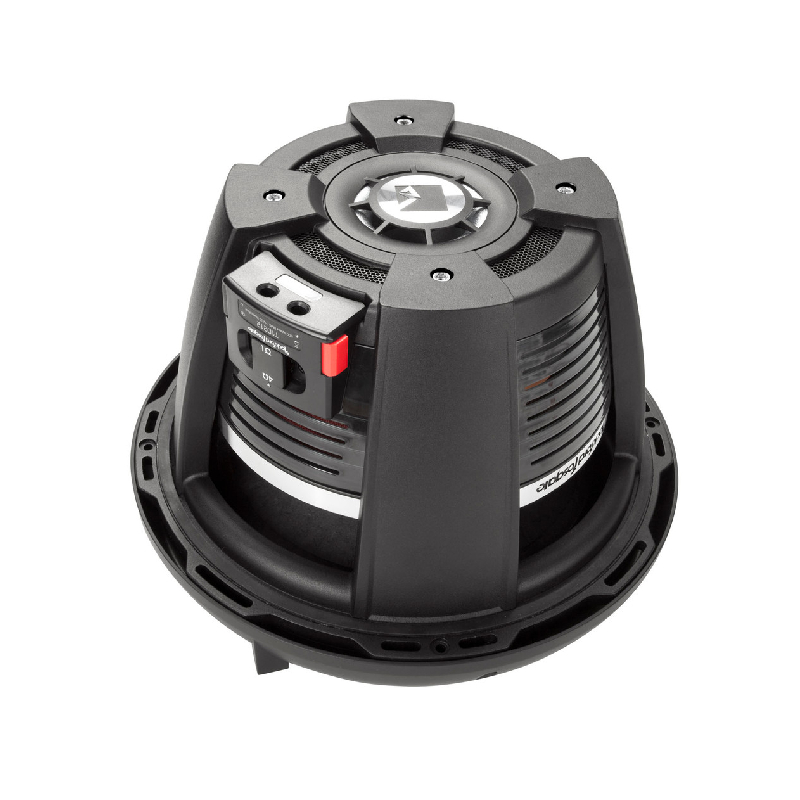

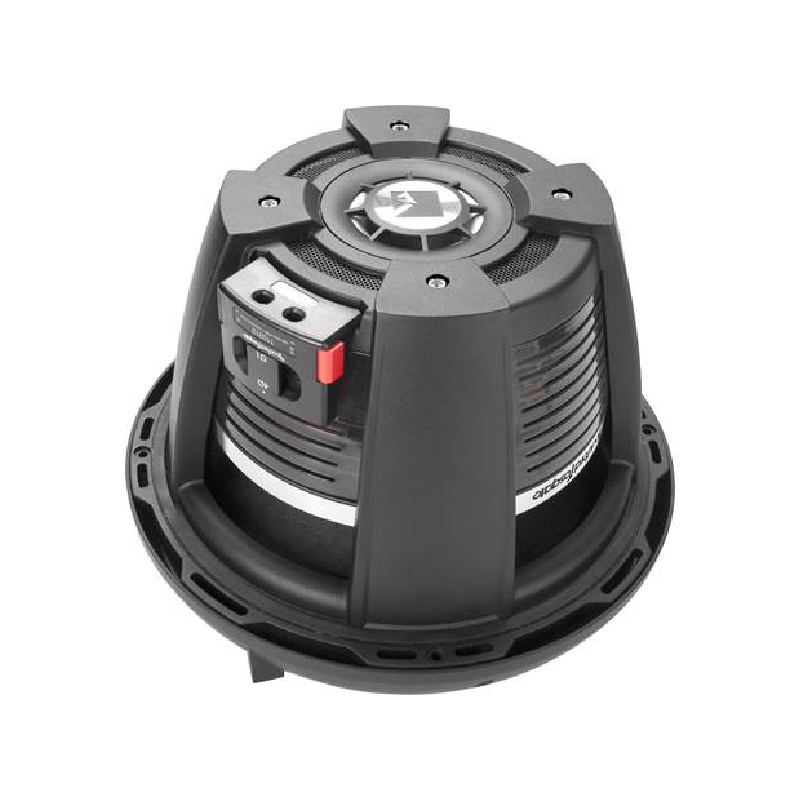

Aluminum Heatsink Basket
To provide superior thermal performance for your subwoofer. Its cast-aluminum construction is lightweight yet strong and provides optimal heat dissipation to keep your subwoofer working at its peak performance for longer. The basket also provides a sleek, stylish look to any audio system. The specially designed vents on the basket are designed to maximize air flow around the subwoofer, allowing for superior sound quality and improved thermal performance.
Stacked Magnet Structure
It consists of two separate magnets, one on top of the other, that work together to increase the magnetic field strength, resulting in greater cone control and improved linearity. This design also allows for a larger voice coil, which increases power handling and reduces distortion. The T1D212 also features a Kevlar-reinforced paper cone, a high-temperature, polyimide-coated aluminum voice coil, and an inverted dust cap.
Diameter : 12 Inch
Maximum Power : 1600 Watts
Sensitivity : 86 dB
Impedance : 2 Ohm
Peak Power Handling : 1600 Watts
Top Mount Depth : 7-7/16 Inches
Bottom Mount Depth : 6-15/16 Inches
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 1.25 Cubic ft.
Suggested Ported Box Volume : 1.75 Cubic ft.
Mounting Depth : 6.75 Inches
RMS Power Handling : 800 Watts
Symmetrical dual progressive roll tear resistant poly-cotton spiders
Proprietary 8 AWG insulated allmetal input spring terminal connection
Optimized and matched magnetic and complicance geometry
Periodic-stitched fatigue resistant tinsel lead wire
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Anodized aluminum heat sinking dust cap
Kevlar fiber reinforced paper cone
Rigid die-cast aluminum basket
Optimized pole piece and spider venting
Anodized aluminum voice coil former / copper clad aluminum wire
1 Year Warranty
Voice Coil Diameter: 3" (75.5 mm)
Speaker Connector: Compression Terminal
Nominal Impedance: Dual 2-Ohm
Mounting Depth: 6.75 in. (171 mm)
Shipping Weight: 33.3 Lbs. (15.10 Kg.)
SPL (dB @ 1w/1m): 85
CEA-2031 Compliant: CEA-2031 Guidelines
Xmax (mm): 16
Vas (Liters): 55.8
Le (mH): 1.8
Fs (Hz): 28
Magnet Weight: 123 oz. (3.48 kg)
Power Handling (Watts RMS)
800 Watts RMS
1600 Watts Peak
Cutout Diameter: 11.25 in. (285 mm)
Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
Sd (cm2): 548
Re (Ohms): 3.25
Subwoofer Type: Standard
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)
Vented Box Volume (Vb): 1.75 cu. ft. (49.5 Liters)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Had to build a custom box for the sub but all totally worth it when you hear how good and loud it sounds. My heart was really pumpin with it. Might have got over the budget but still worth every penny of it
