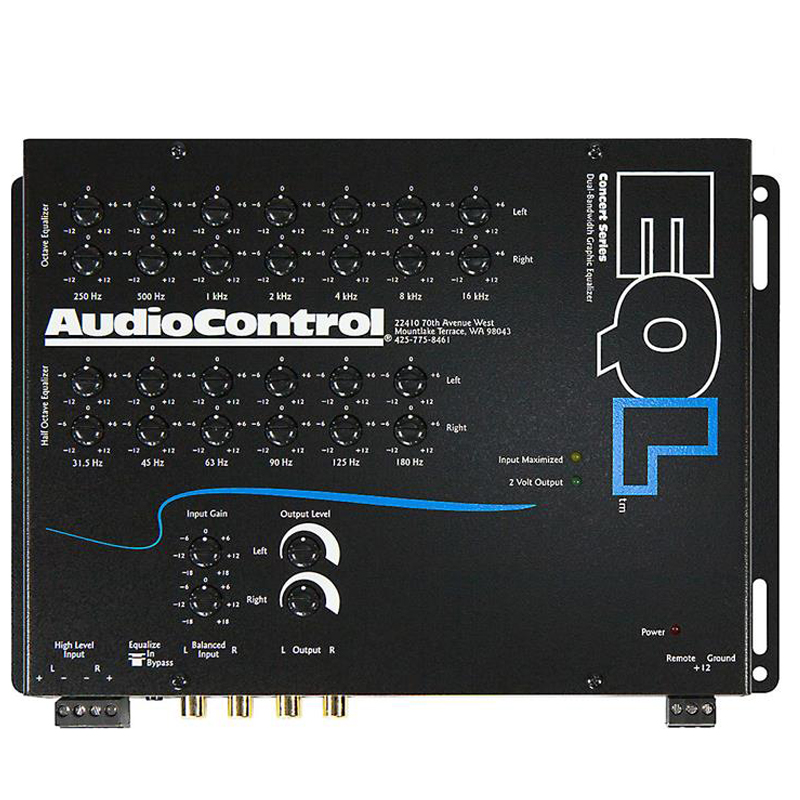

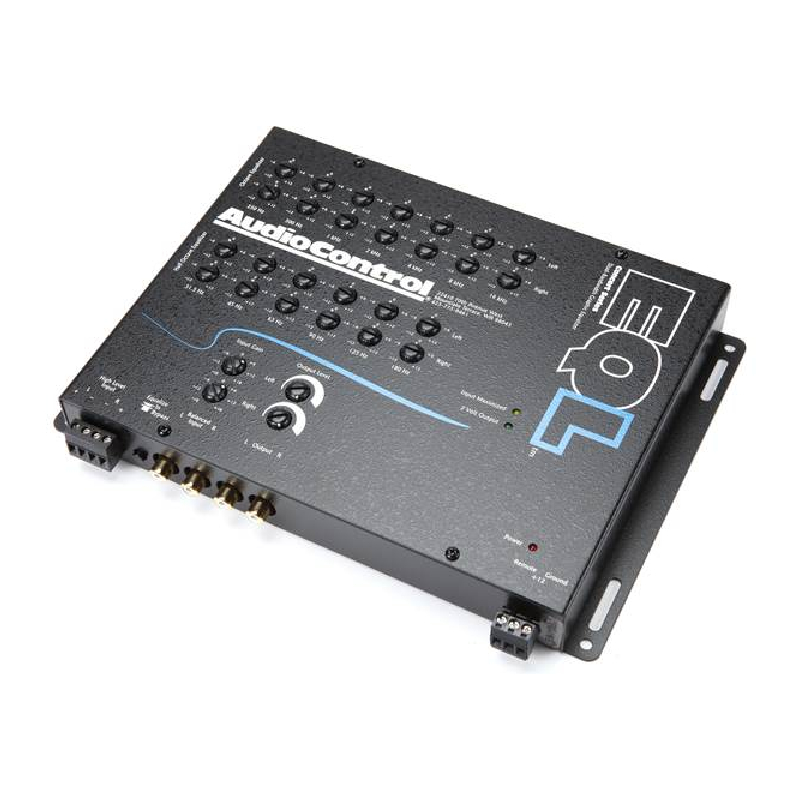

AudioControl 2-Channel Dual Bandwidth Trunk-Mount Pre-Amp Equalizer
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • EQL
- • Power and Speaker Connector
- • Manual
- • Warranty
Works with Any 2-Channel Audio System
The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.
EQL's Features
The EQL is a 2 channel trunk-mount equalizer. The Dual bandwidth equalizer comes built into the equalizer. Six bands of 1/2 octave bass equalization provide a smooth performance. Also standard is a 7 band octave equalizer. The EQL comes with a 13 volt line driver. The equalizer also has high pass, low pass and full range outputs plus mono/invert sub output. A Programmable Frequency Match (PFM) Subsonic Filter is built into the amplifier. The two channel dual bandwidth equalizer includes switchable ground isolation. The equalizer includes Line level/Speaker level inputs. The 2 channel trunk-mount equalizer also has Input/output level matching. Balanced differential inputs are built into the equalizer. There is 1 Preamp Input Channel built into the equalizer. The input gain registers 18dB. It has a Maximum Input Level of 7.5 Vrms. There is 1 Speaker Level input built in. The EQL has 1 Speaker Level Input. The EQL has 1 Preamp Output. It has a Maximum Output Level of 7.5 Vrms. The Total Harmonic Distortion is 0.003%. The Frequency Response registers 10 Hz - 100kHz. It has a Signal to Noise ratio of 110dB. The recommended Fuse Rating is 2A.
- Low Frequency Response : 31.5 Hz
- High Frequency Response : 16000 Hz
- Number Of Bands : 6
- Number of Channels : 2
- Output Voltage : 7.5 Volts
Features:
- Stereo Equalization
- 6 Band 1/2 Octave Bass EQ
- 7 Band 1 Octave Equalizer
- Input and Output Level Matching Controls
- Programmable Frequency Match (PFM) Subsonic Filter
- Preamp and Speaker Level Inputs
- Balanced Inputs
Specifications:
- Preamp Inputs: 1 (2 channels)
- Input Gain: ±18dB
- Speaker Level Inputs: 1 (2 channels)
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 7.5Vrms
- Total Harmonic Distortion: 0.003%
- Frequency Response: 10Hz-100kHz
- Signal to Noise: 110dB
- Remote In
- Power Supply: Variable isolation transformer switching supply
- Recommended Fuse Rating: 2A
- Dimensions: 8.9″W x 6.9″D x 1.25″H
- UPC: 855814005815
- Weight: 6
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
