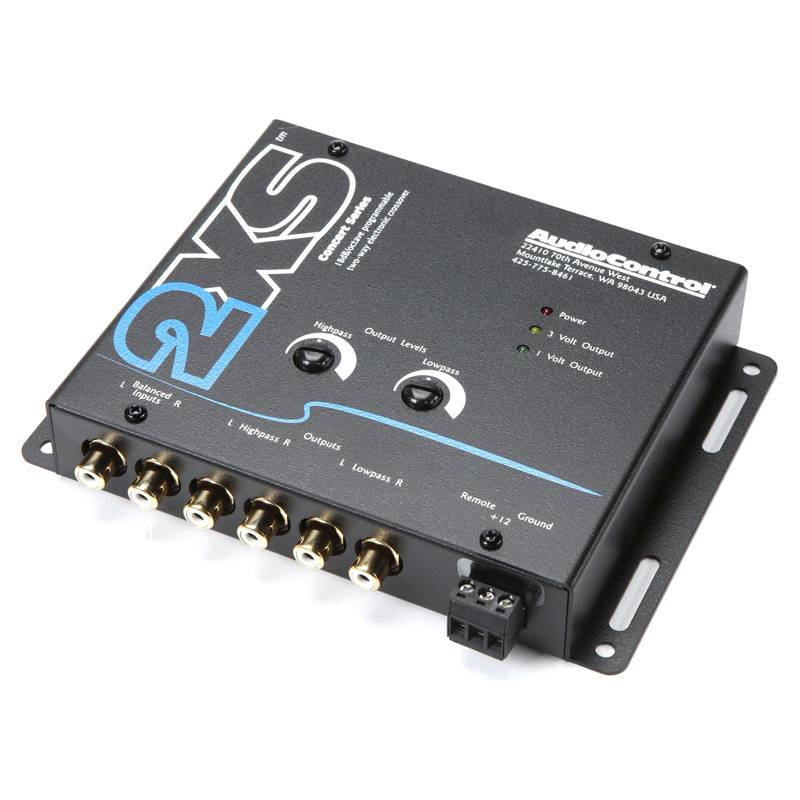

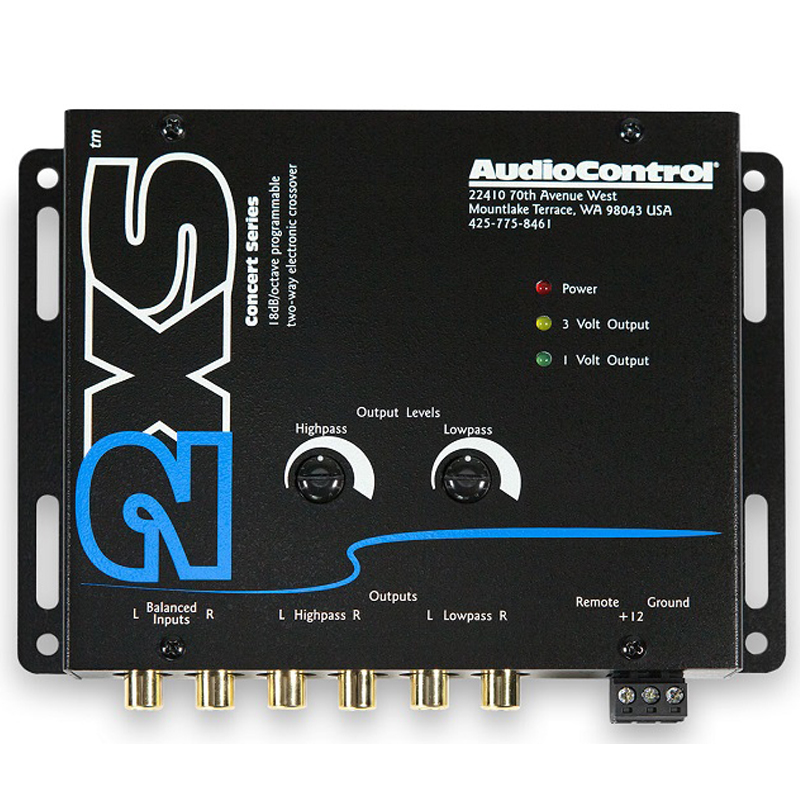

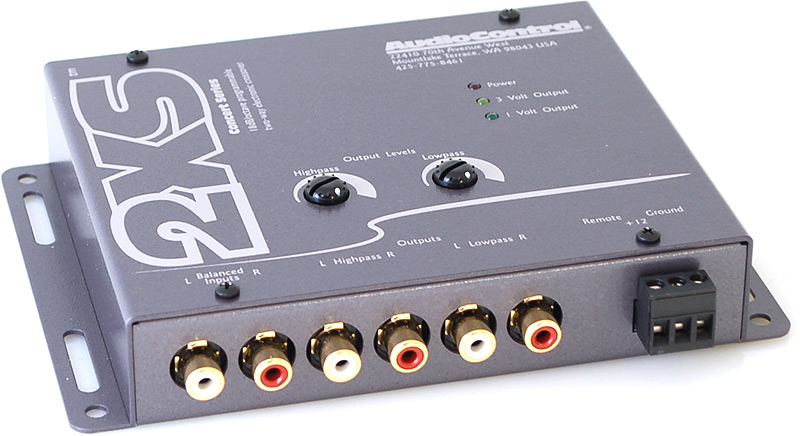

AudioControl Concert Series Programmable Electronic Crossover
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• Power Connector
Design and Engineering Excellence Award
A state-variable, 18dB/octave, 2-way electronic crossover designed with a flexible and accurate module-programmable crossover frequency. Our exclusive Programmable Frequency Match (PFM) subsonic filter provides exceptional bass control. Winner of the coveted CES “Design and Engineering Excellence Award.”
2-Channel Electronic Crossover's Features
The 2-Channel Electronic Crossover includes a state variable 18 dB/octave electronic crossover. It has a 2-channel 2-way module programmable function. The Crossover also includes balanced inputs. It also includes output level controls for more adjustability. A 13 volt peak preamp line driver provides a smooth performance. The 2-Channel Electronic Crossover features a switchable isolation PWM power supply. The Selectable ground isolation makes the 2 channel crossover very adjustable. It also has Optimum signal output indicator LEDs that constantly keep the user informed of its status. The Crossover also includes an adjustable Subsonic Filter for speaker control and amplifier protection. The Crossover has 1 Preamp Input. The Crossover has 1 Preamp Output. It has a Maximum Input Level of 9.5 Vrms. It has a Maximum Output Level of 7.5 Vrms. The Total Harmonic Distortion is 0.005%. The Frequency Response registers 15 Hz - 20k Hz. It has a Signal to Noise ratio of 115dB at full output. The Crossover has a Current Draw of 150mA. The recommended Fuse Rating is 1A. The dimensions are as follows: 5.5″W x 4.65″D x 1.15″H It has a weight of 2.0 lbs.
Low Frequency Response : 15 Hz
High Frequency Response : 20000 Hz
Frequency Response : 15-20000 Hz
Crossover Type : linkwitz-riley
Two channel operation
Precise 2-way 18dB/octave, programmable electronic crossover with a plug-in module
Programmable Frequency Match (PFM) subsonic filter
On-board line driver for signal gain
Output level controls
Selectable ground isolation
Optimum signal output indicator LEDs
The finest quality – designed and built in America
Preamp Inputs: 1 (2 channels)
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms
Total Harmonic Distortion: 0.005%
Frequency Response: 15Hz-20kHz ±1dB
Signal to Noise: 115dB at full output
Crossover Type: 18dB/octave
Crossover Frequency: 90Hz from factory (user programmable)
Power Supply: Transformer Isolated PWM
Current Draw: 150mA
Recommended Fuse Rating: 1A
Dimensions: 5.5″W x 4.65″D x 1.15″H
