Orion XTR-X4R XTR Series 4-Way Electronic Crossover Network with Remote Bass Boost and Level Control
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Way Electronic Crossover Network

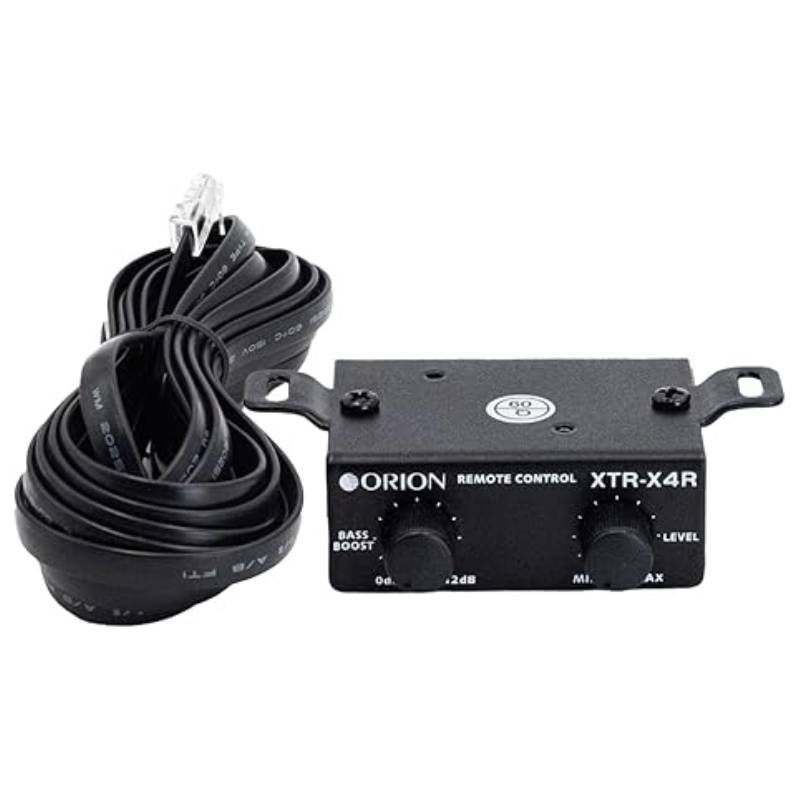

- • Remote Bass Boost
- • Level Control
- • Owner's Manual
Precision Control and Pure Sound
Experience ultimate sound precision with the 4-Way Electronic Crossover, delivering perfectly separated frequencies for crystal-clear audio. Tailor your sound with fully adjustable crossover points and enjoy deep, controlled bass with the remote subwoofer control. With a high signal-to-noise ratio over 90dB, you’ll get clean, distortion-free performance every time you play your music.
Seamless Sound and Lasting Performance
Achieve perfect sound harmony with adjustable phase control that enhances clarity and sound staging. Its compact design fits effortlessly into any setup, while the illuminated control panel makes tuning fast and easy. Built tough for lasting performance, this crossover ensures reliability and precision in every listening experience.
Frequently Asked Questions (FAQ)
- • Why Is There Distortion at Low Volume?
Could incorrect output levels, crossover settings, or a shorted speaker connection be causing distortion even at lower volume?
- • Why Do I Hear Engine Whine?
Could poor grounding or an improperly connected power wire create a whining sound that changes with engine speed?
- • What Causes a High-Pitched Squeal?
Could a poorly grounded RCA cable be responsible for a sharp squealing noise through the speakers?
- • Why Does the System Make a Motorboating Sound?
Could weak grounding or an incorrect power connection cause pulsing or unstable audio when the engine is running?
- • Why Won't One Channel Stay Turned Off?
Some users have reported sticky channel buttons. Could a faulty switch or control-panel issue prevent normal operation?
- • Can the XTR-X4R Use the Same Crossover for Front and Rear?
Why might the available crossover routing make it difficult to use identical frequency settings for both front and rear channels?
- • Why Doesn't the Remote Bass Control Fully Mute the Subwoofer?
Could the remote level control reduce the bass without completely shutting off the subwoofer signal?
- • Why Does the Bass Sound Thin After Changing Settings?
Could incorrect phase, subsonic filtering, or low-pass adjustment affect how the subwoofer blends with the rest of the system?
- • Why Is the Audio Unbalanced Between Channels?
Could individual output-level controls or incorrectly adjusted crossover frequencies cause noticeable differences between speaker groups?
- • Why Does the System Sound Better After Adding the Crossover?
Can separating frequencies for dedicated speakers and amplifiers improve clarity and overall system balance?
- Low Frequency Response : 96-1300 Hz
- High Frequency Response : 1200-14000 Hz
- Frequency Response : 96-14000 Hz
- Crossover Type : Electronic
Features:
- 4-Way Electronic Crossover: Separates subwoofer, midbass, midrange, and high frequencies for precise sound reproduction.
- Adjustable Frequency Points: Customize crossover frequencies for each channel to suit your setup.
- Remote Subwoofer Control: Features bass boost and level adjustments for powerful, controlled bass.
- High Signal-to-Noise Ratio: >90dB for clear, distortion-free sound quality.
- Phase Alignment: Adjustable phase control for seamless speaker integration and enhanced sound staging.
- Compact Design: Easy to install without taking up excessive space in your setup.

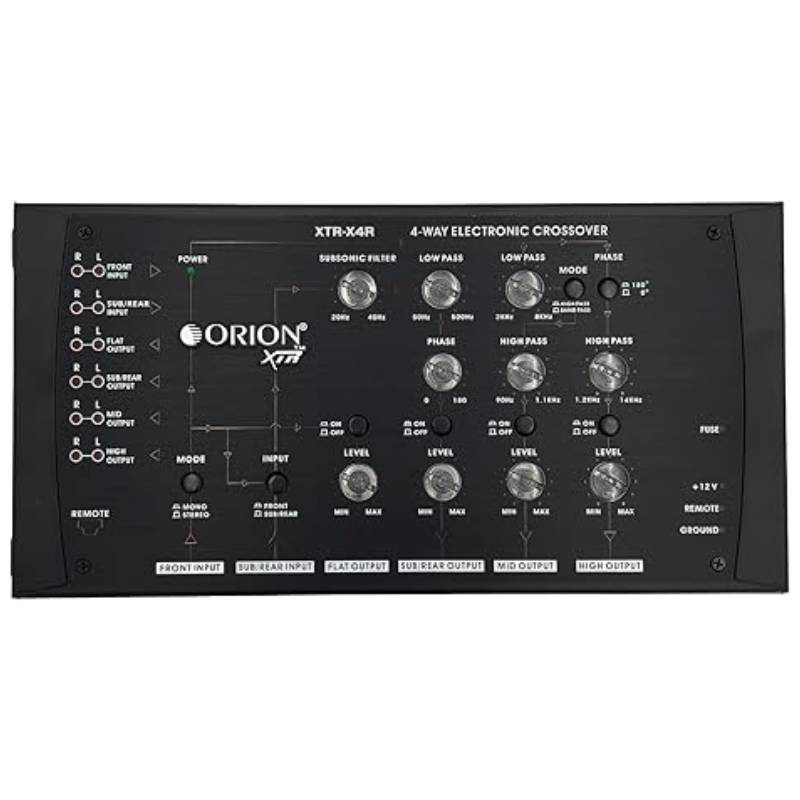

- Light Illuminated Control Panel: Easy-to-read illuminated panel for quick and precise adjustments.
- Durable Construction: Built for long-lasting performance and reliability in demanding environments.
Specifications:
- Adjustable Bass Boost: 0 - 18dB
- Selectable Crossover Frequency
- High Pass: 1.2kHz - 8kHz
- Mid High Pass: 90Hz - 1.1kHz
- Mid Low Pass: 2kHz - 8kHz
- Subwoofer (LowPass): 50Hz - 500Hz
- Subsonic Filter: 20Hz - 40Hz
- Power Supply: 10-16V DC, negative ground
- Input Impedance: 10K Ohm
- S/N ratio: >90dB
- Slope Rate: 12dB/Octave
- Max Output Signal Level: 11V
- Channel Separation: 60dB
- Distortion: less than 0.05%
- Dimensions (L x W x H): 16" x 3" x 7" (406.4 x 76.2 x 177.8mm)
- UPC: 818550013483
- Weight: 3.89
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
