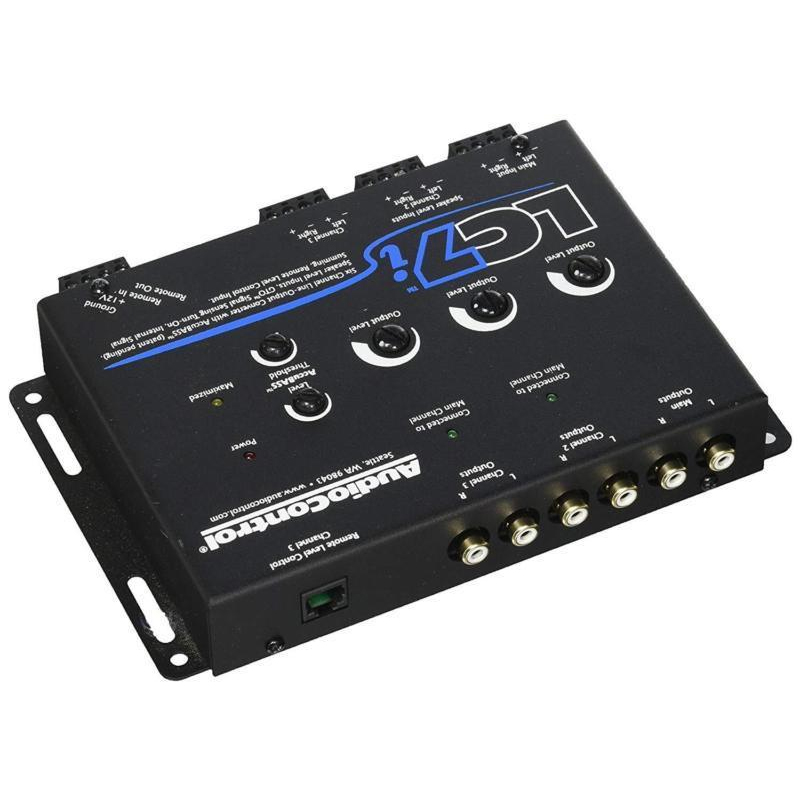

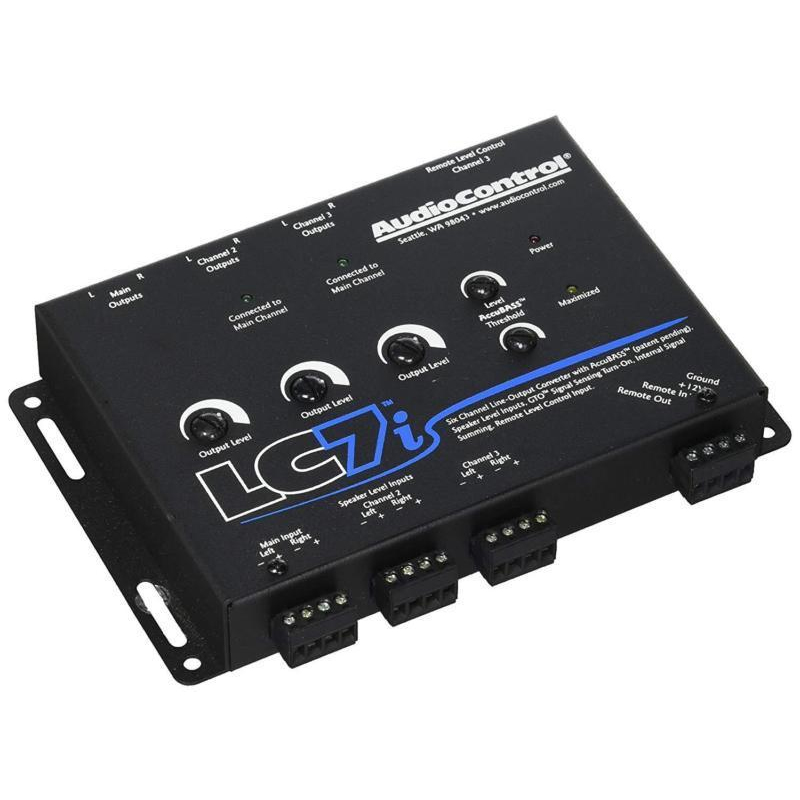

AudioControl Concert Series 6-Channel Line Output Converter
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • LC7i
- • Speaker and Power connectors
- • Manual
- • Warranty
The AudioControl AccuBASSTM (patent pending) circuit
Factory sound systems have weak speakers and amplifiers contributing to poor bass response. To protect speakers from distorting or being destroyed, car makers often limit the bass response that is produced at higher volumes. This robs you of the bass that was supposed to be in the music. AudioControl has developed the patent pending AccuBASS™ circuit to fix the limitation. AccuBASS™ automatically engages at a preset volume level and reverses the factory roll-off to give you the bass the music was designed to have. You get rock solid bass at all volume levels. Crank it up!
Making Good Sound Great!
AudioControl looks at the process of line output conversion a little differently. Passive LOCs have been used for years yet they add distortion, reduce signal and roll off bass. In short…they sound bad! AudioControl’s Active, High Impedance Input stage results in ruler-flat frequency response so you get rock solid bass without the signal roll-off you get with passive LOCs. The AudioControl LC7i is also a low distortion 8.5-volt line driver as well as a line converter. You will have sound quality every bit as good as an aftermarket head unit while keeping the convenience and features of the factory installed source unit. In short, the LC7i gives you the brilliant sound quality that AudioControl has been providing for over 35 years.
Features:
- Optional ACR-1 Remote allows for user control of the subwoofer level
- Six channels of active speaker level inputs – accepts up to 400 watts per channel
- Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
- Patent Pending AccuBASS circuitry
- GTO (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
- Output level control
- Compact chassis allowing for ease of installation
Specifications:
- Maximum Output Level:: 8.5Vrms
- Output Gain:: 12dB
- Dimensions: 7.5”W x 4.7”D x 1.2”H
- Speaker Level Inputs: 3 (6 channels)
- Total Harmonic Distortion: 0.01%
- Power Supply: High Headroom PWM Switching
- Current Draw: 350mA
- Preamp Outputs: 3 (6 channels)
- Output Impedance: 150
- Weight: 1.5 lbs (0.7 kg)
- Recommended Fuse Rating: 2A
- Remote In 12VDC Remote Out (always active when unit is on)
- Maximum Input (speaker level): 400W per channel at 4
- Input Impedance: 20k
- Frequency Response: 10Hz-22kHz
- UPC: 855814005938
- Weight: 3.01
