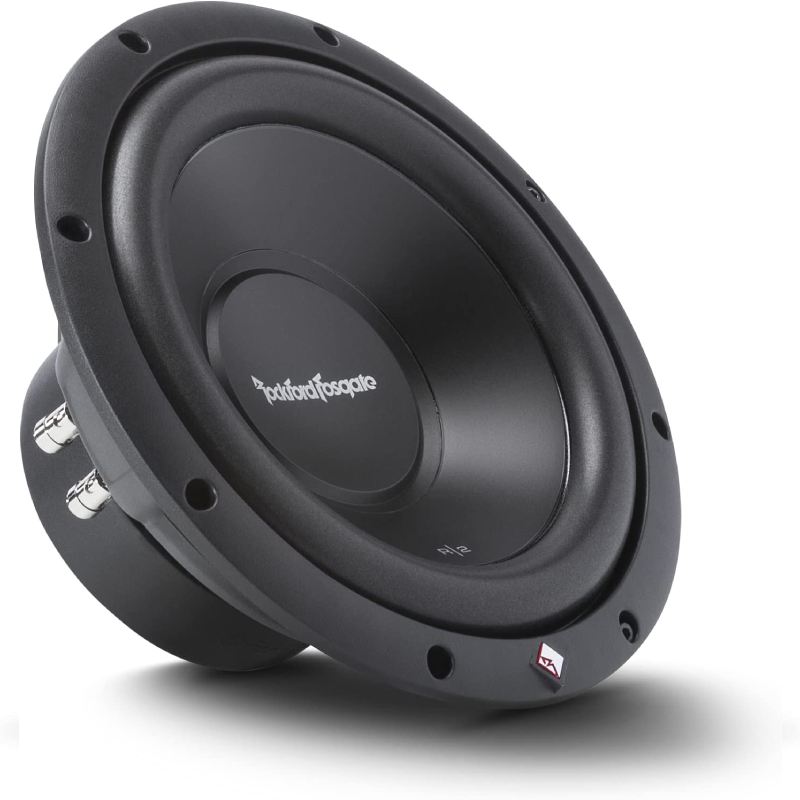

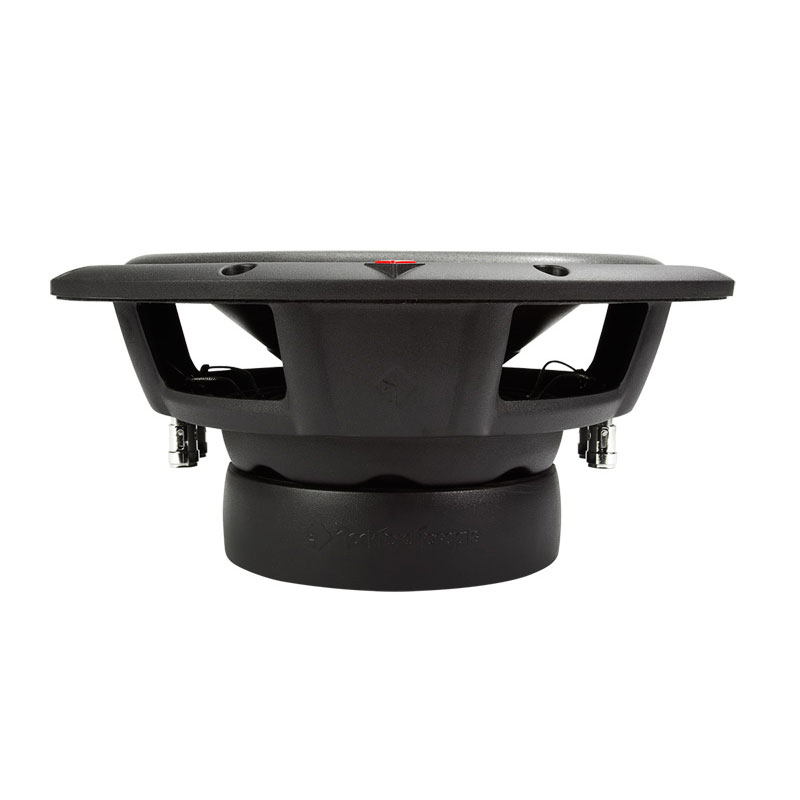

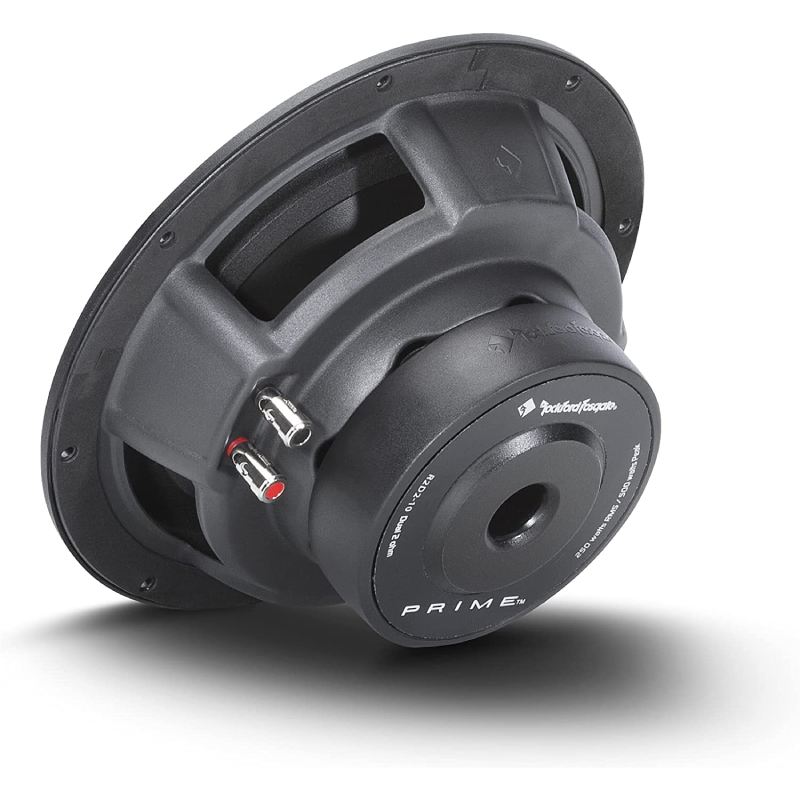

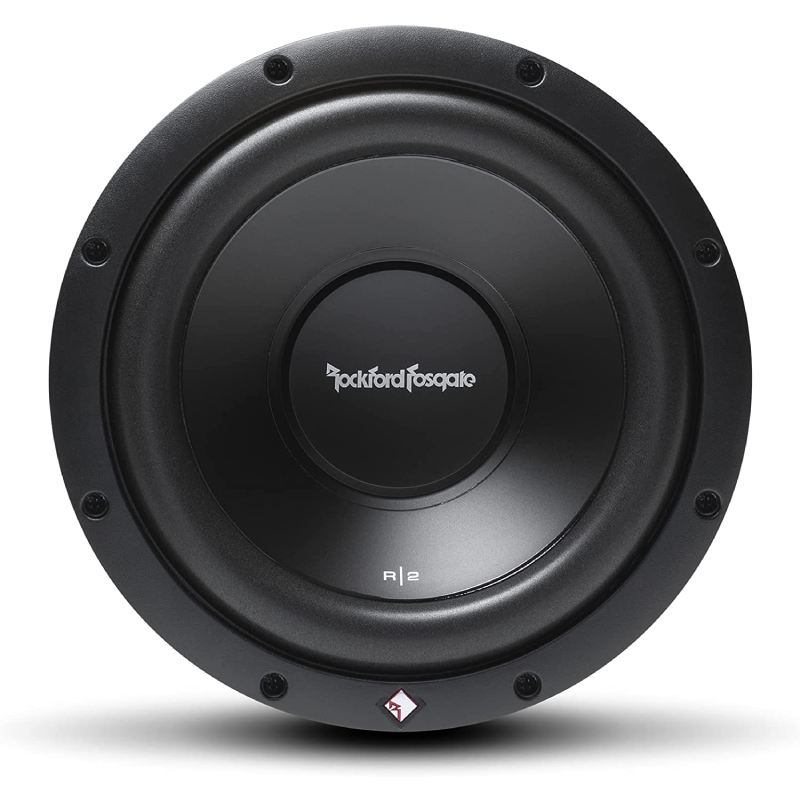

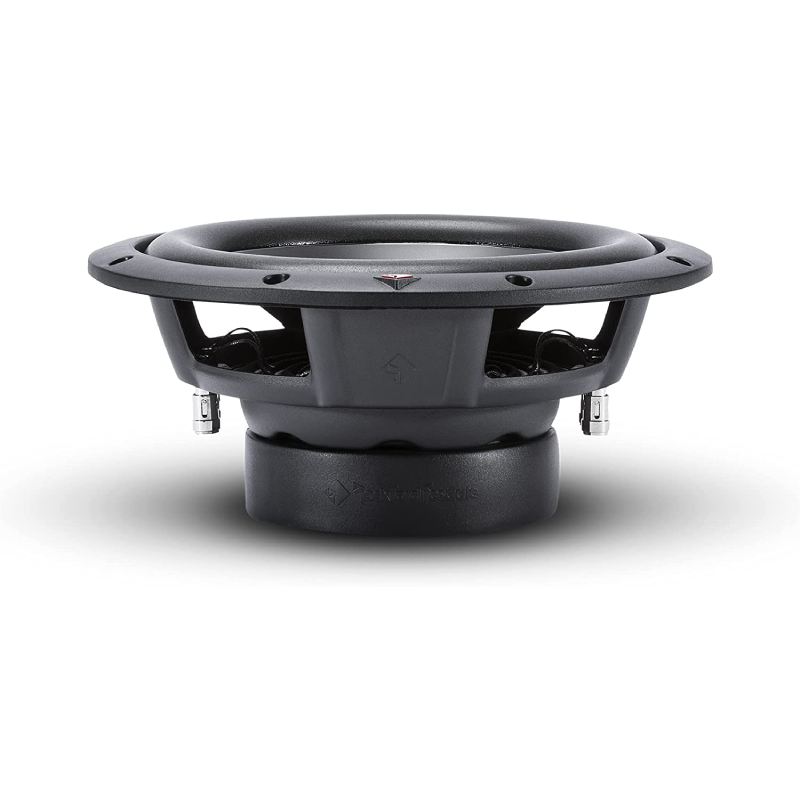

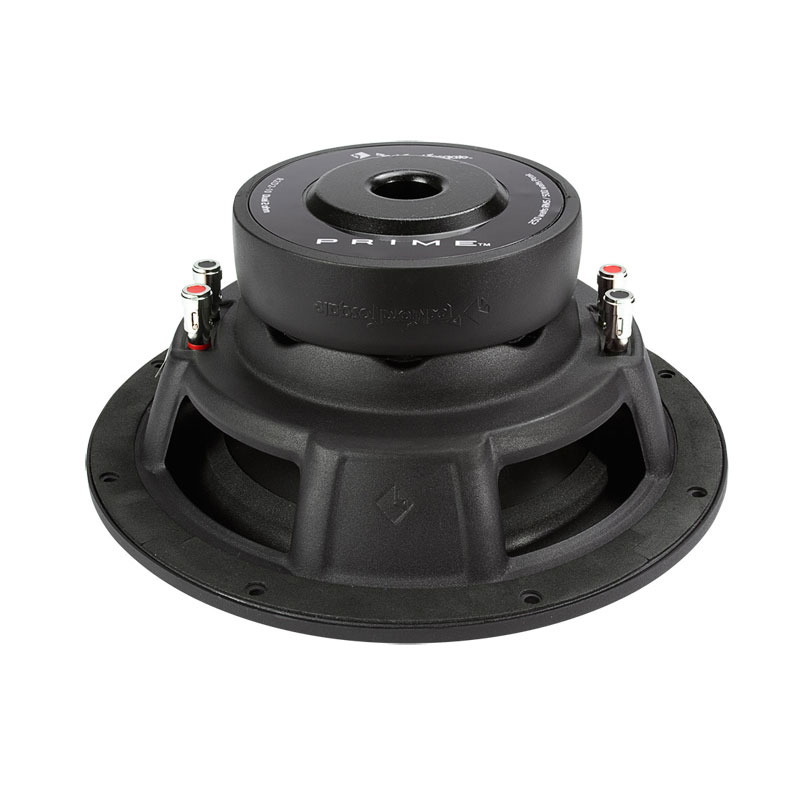

Rockford Fosgate R2D2-10 Punch Series 10" Dual 2 Ohms Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (1) 10" Dual 2-ohm voice coil subwoofer
• Trim ring
• (8) 1-1/8" Allen head screws
•4mm Allen head bit
Optimized for Sealed and Vented Enclosures
Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.
Deliver Strong Bass in Your Car
Rockford Fosgate's Prime R2 subs deliver strong bass in your car, and they are definitely built to last. The R2D2-10 sub features a 10" mica-injected polypropylene cone that works with a high-density poly-foam surround to punch out fat, deep notes. Rockford Fosgate stitches the tinsel leads that carry the signal to the voice coils directly into the cone — they'll hang tough through heavy use so you get consistent, reliable performance. The stamped solid-steel frame offers venting usually found in high-end subs that keeps this sub running cool.
Diameter : 10 Inch
Sensitivity : 85 dB
Impedance : 2 Ohm
Frequency Response : 45-250 Hz
Peak Power Handling : 500 Watts
Top Mount Depth : 4-7/16 Inches
Shallow Mount : Yes
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.59 Cubic ft.
Suggested Ported Box Volume : 1.4 Cubic ft.
RMS Power Handling : 250 Watts
12 AWG compression terminals
Anodized aluminum voice coil former
Integrated PVC trim ring
Linear spider with embedded 16 AWG tinsel leads
Mica injected polypropylene cone
Optimized for both sealed and vented enclosures
StampCast basket with integrated spider venting
10" subwoofer with dual 2-ohm voice coils
mica-injected polypropylene cone with poly-foam surround
stamped solid-steel frame
power range: 50-250 watts RMS (500 watts peak power)
frequency response: 45-250
sensitivity: 87 dB
top-mount depth: 4-7/16"
sealed box volume: 0.59 cubic feet
ported box volume: 1.4 cubic feet
grille not included
warranty: 1 year
Size: 10 -inch
Impedance (Ohms): 1, 4
Cone Material: Mica injected poly
Surround Material: Poly-foam
Ideal Sealed Box Volume (cubic feet): 0.59
Ideal Ported Box Volume (cubic feet): 1.4
Port diameter (inches): 4
Port length (inches): 13
Dual Voice Coil: Yes
Sensitivity: 87 dB at 1 watt
Frequency Response: 45 - 250 Hz
Max RMS Power Handling: 250
Peak Power Handling (Watts): 500
Top Mount Depth (inches): 4 7/16
Bottom Mount Depth (inches): N/A
Cutout Diameter or Length (inches): 9 1/16
Vas (liters): 39
Fs (Hz): 35
Xmax (millimeters): 6.5
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
this sub hits pretty well concidering its fosgates entry levelthis and the 5.25 components to put in my daughters car.all prime of course with prime 6x9's in the back.jvc kd-r530 to run front and rear speaks and a (old school,made in usa)punch 250.2 amp to push the sub.sounds really good daughter was totally blown away at the difference in sound.yes, her friends say i'm the cool dad.
Was skeptical at first but they sound amazing. Like I paid $150 per speaker. I took out 2 10 inch BMF Crossfires wired to a 1500 watt planet audio amp. Put 3 of these babies in there hooked up to a 2000 watt Cedarslink amp in my 93' GMC Sierra Stepside. Sounds like 4 12's.
