Rockford Fosgate  P3D2-10

• Diameter : 10 Inch
• Sensitivity : 82 dB
• Impedance : 2 Ohm
• Frequency Response : 27-250 Hz
• Peak Power Handling : 1000 Watts
• Top Mount Depth : 6-3/16 Inches
• Shallow Mount : No
• Number of Voice Coils : Dual
• Suggested Sealed Box Volume : .59 Cubic ft.
• Suggested Ported Box Volume : 1.40 Cubic ft.
• Mounting Depth : 6.18 Inches
• RMS Power Handling : 500 Watts

Features:

• Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 0.59 cubic feet (from 0.5 to 0.75 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music
• Ported Box: Rockford recommends a ported enclosure with an internal volume of 1.4 cubic feet using one 4" diameter x 14" long port; this yields a tuning frequency of 40 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 31 Hz).

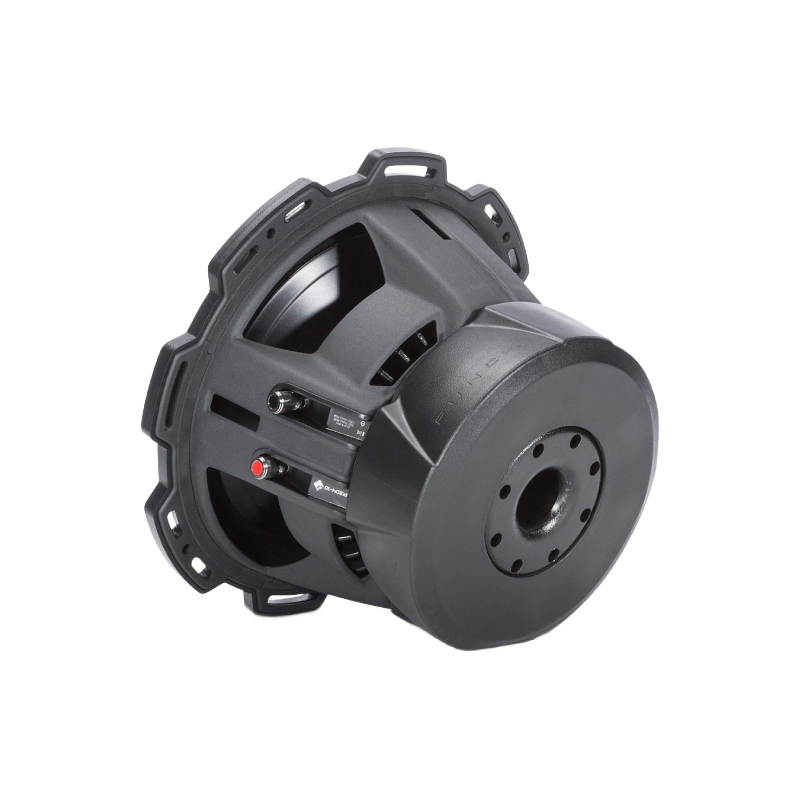

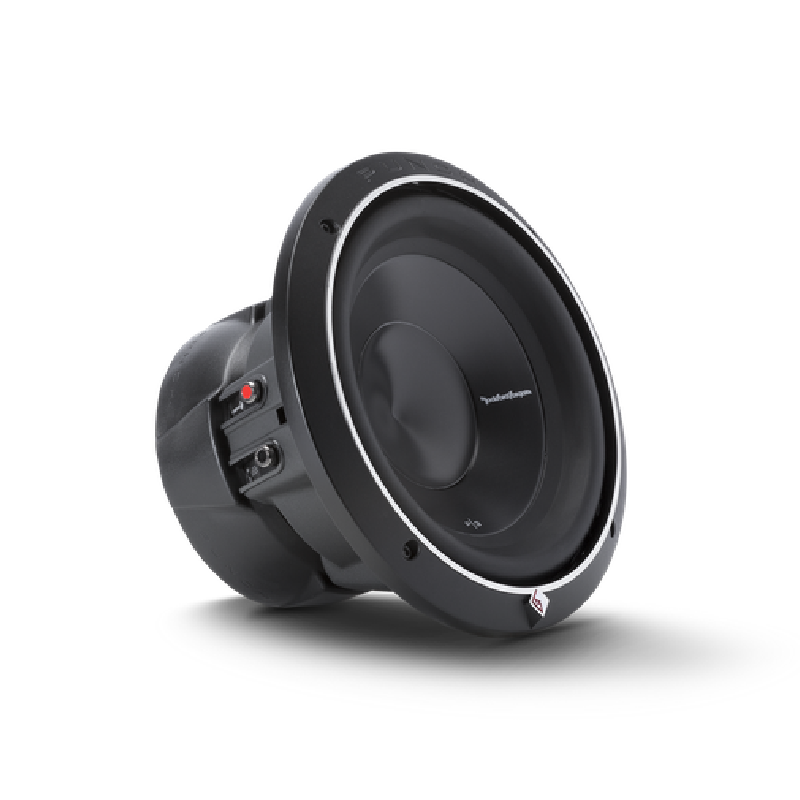

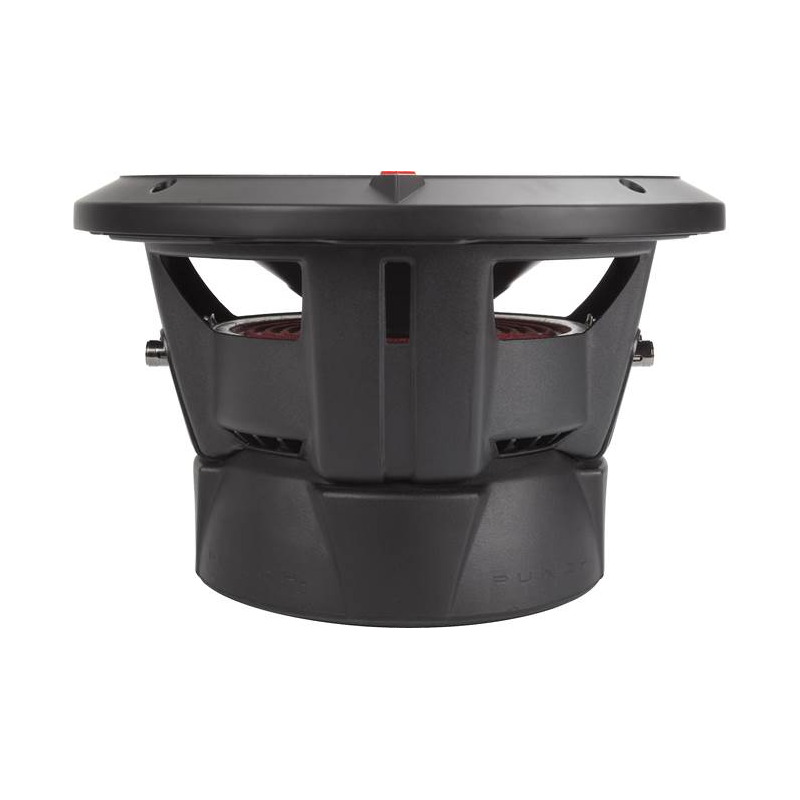

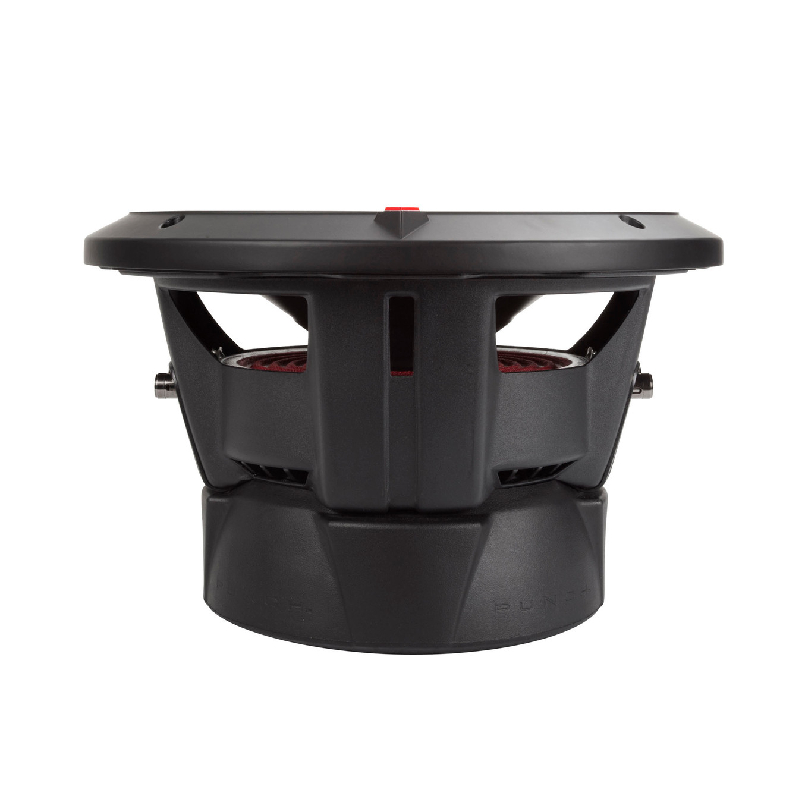

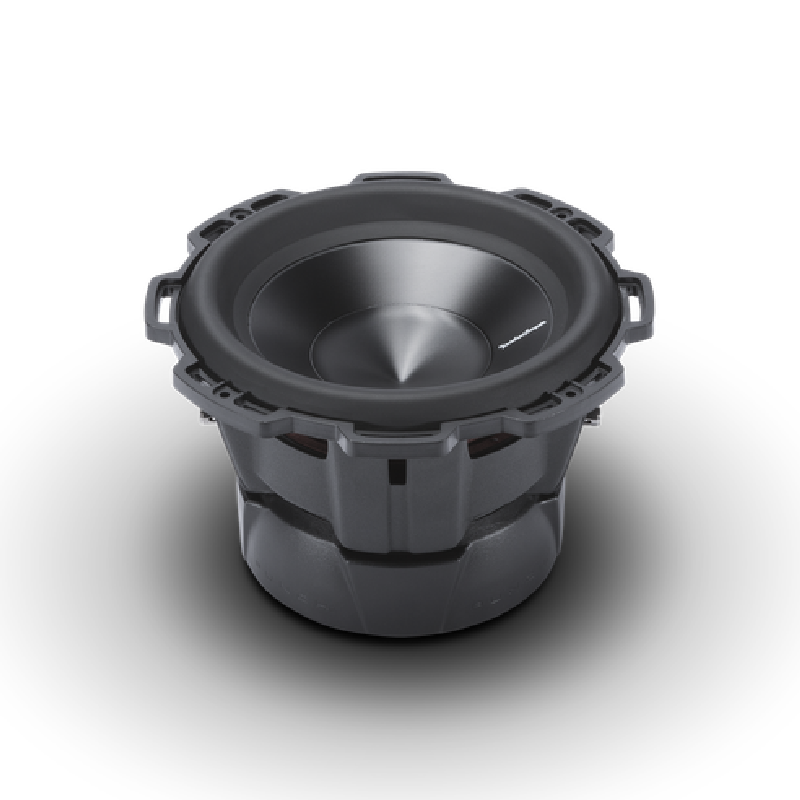

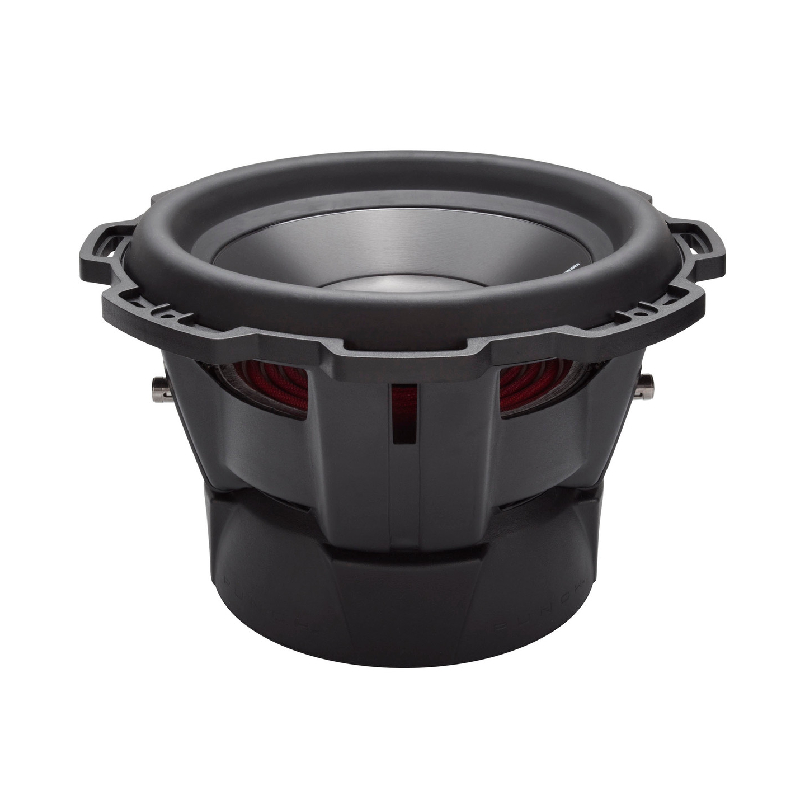

• Overview: The Rockford Fosgate Punch P3D2-10 is a 10-inch subwoofer with dual 2Ω voice coils. The sub features a hybrid StampCast basket, quick-release compression terminals, anodized aluminum cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
• Dual 2Ω Voice Coils: The dual 2Ω voice coils offer wiring flexibility; when wired in parallel the woofer presents a 1Ω load, when wired in series the woofer presents a 4Ω load.

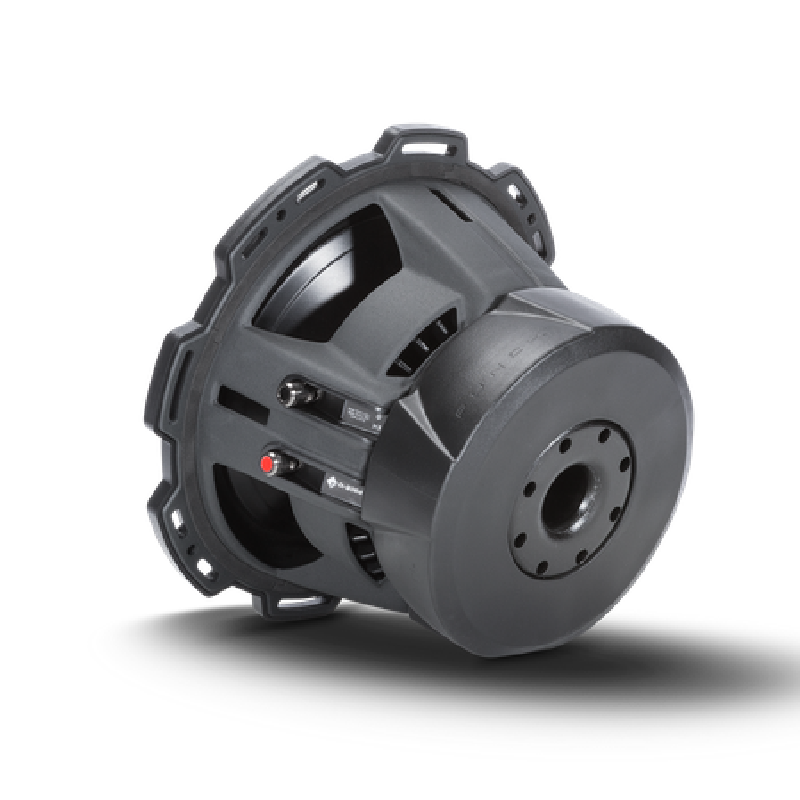

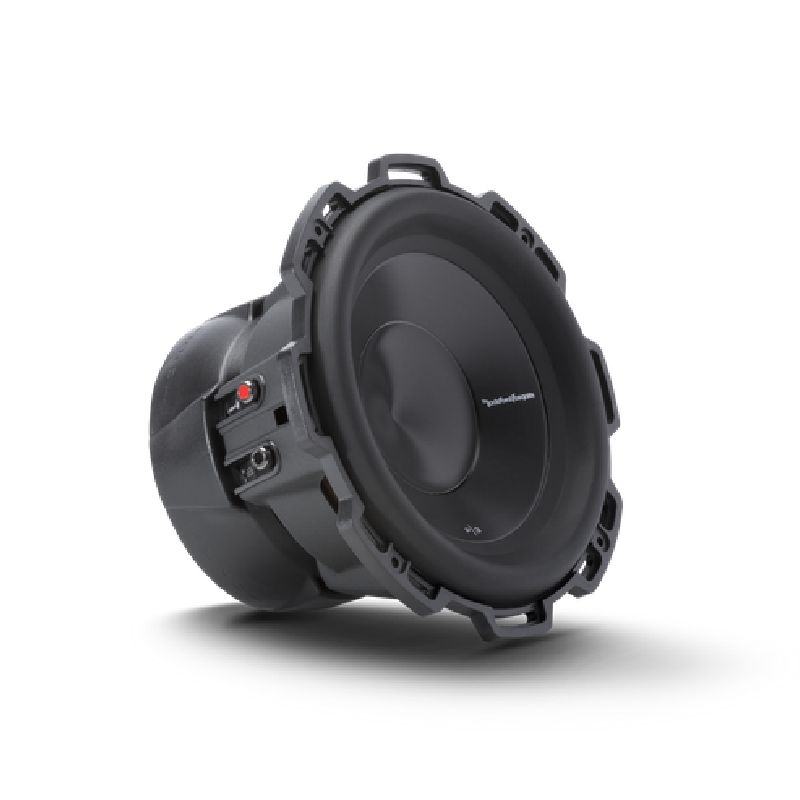

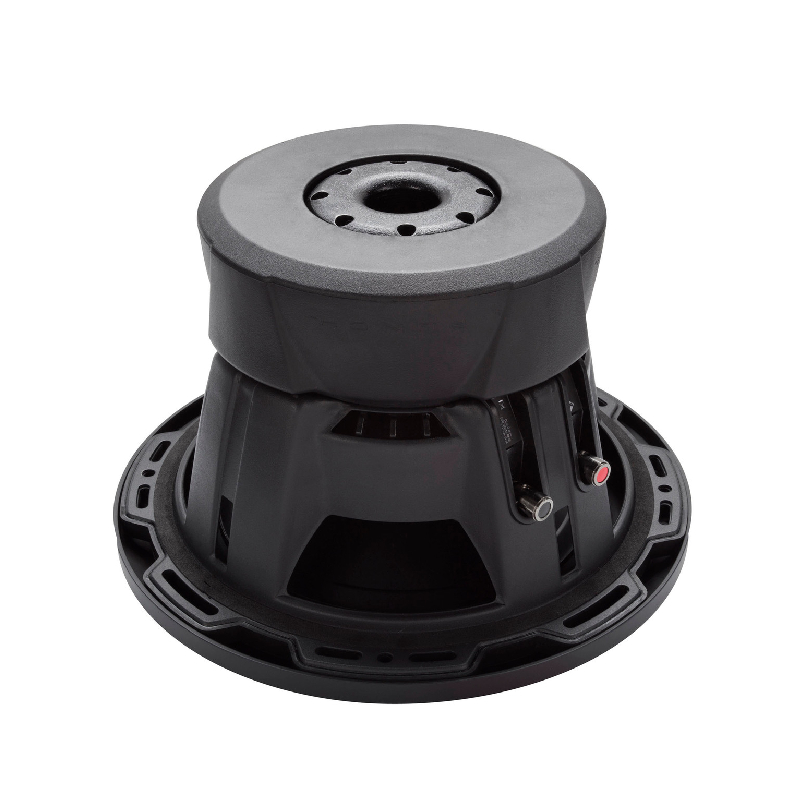

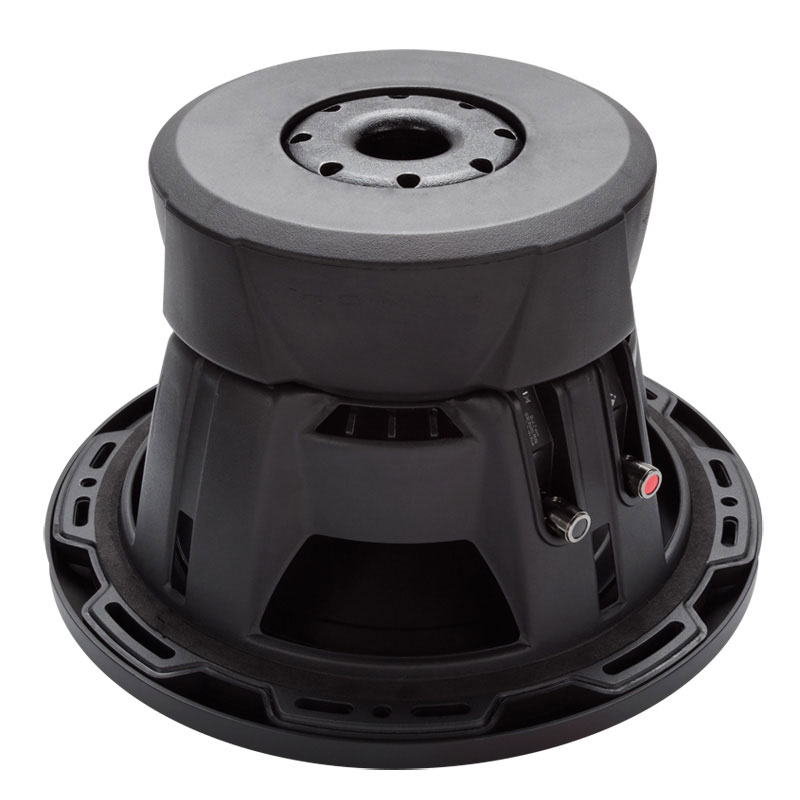

• Compression Terminals: The P3D2-10 features spring post terminals which accommodate pin connectors, single banana plugs, or bare speaker wire up to 10 gauge.
• CEA-2031 Compliant: Power handling on the P3D2-10 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

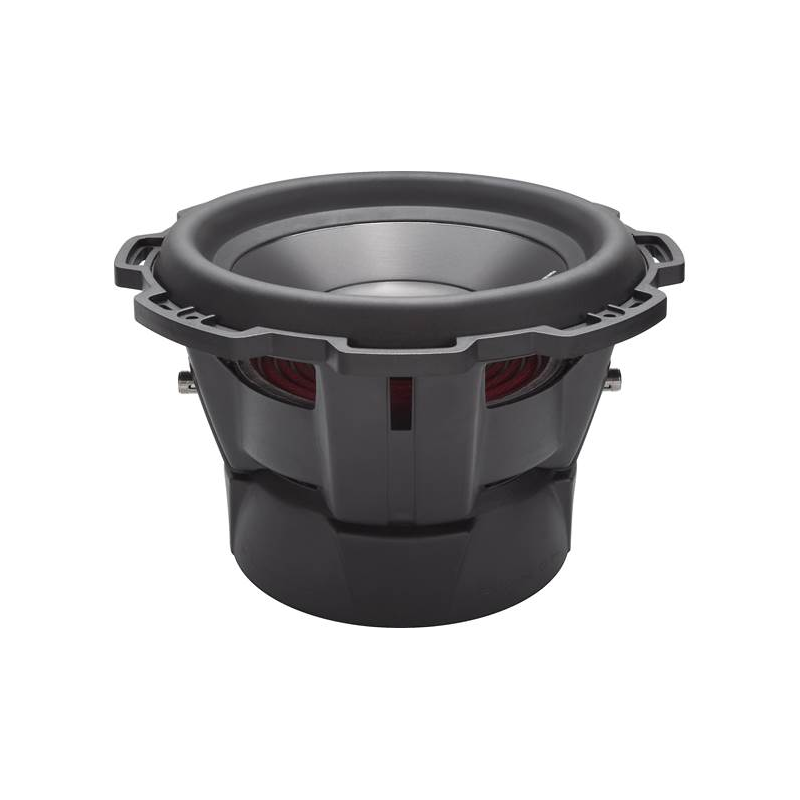

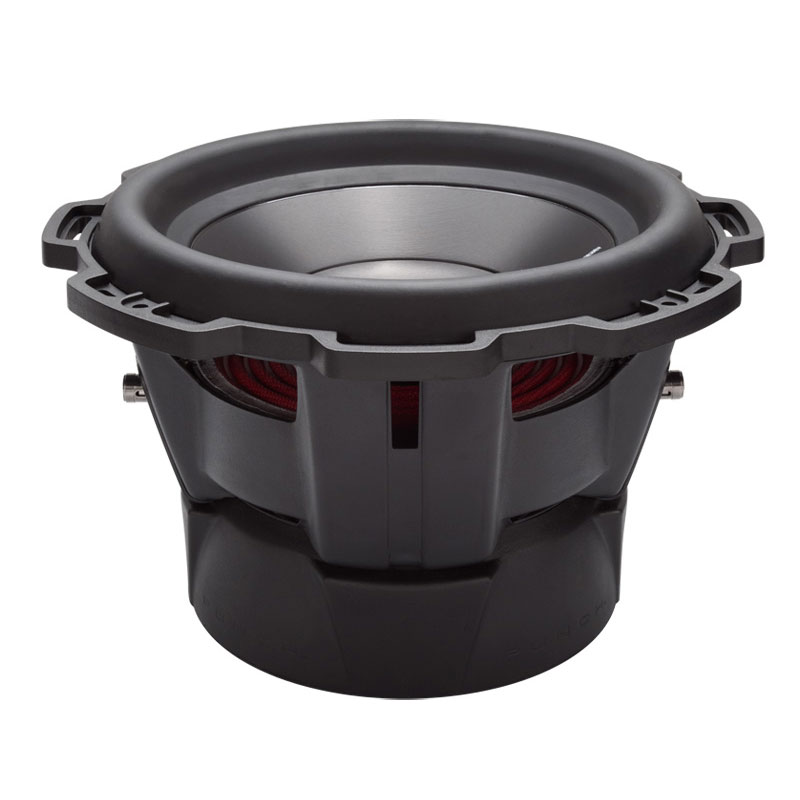

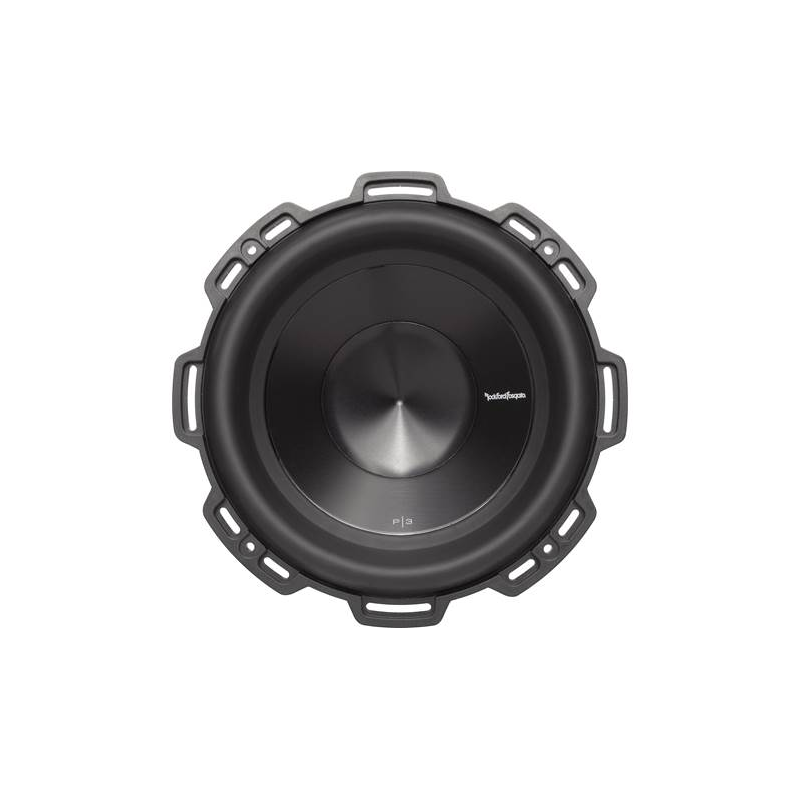

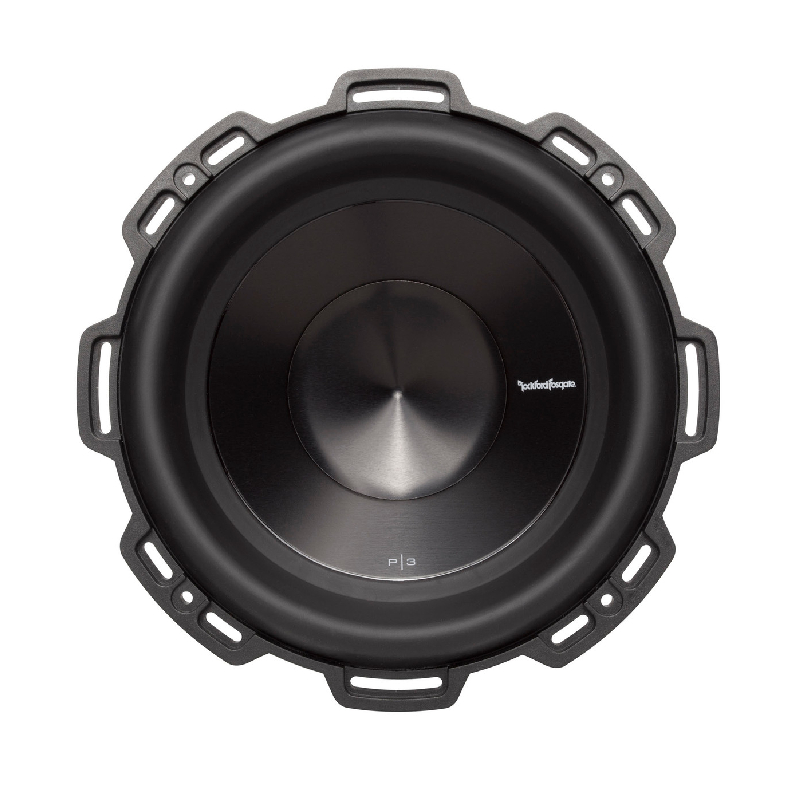

• FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.

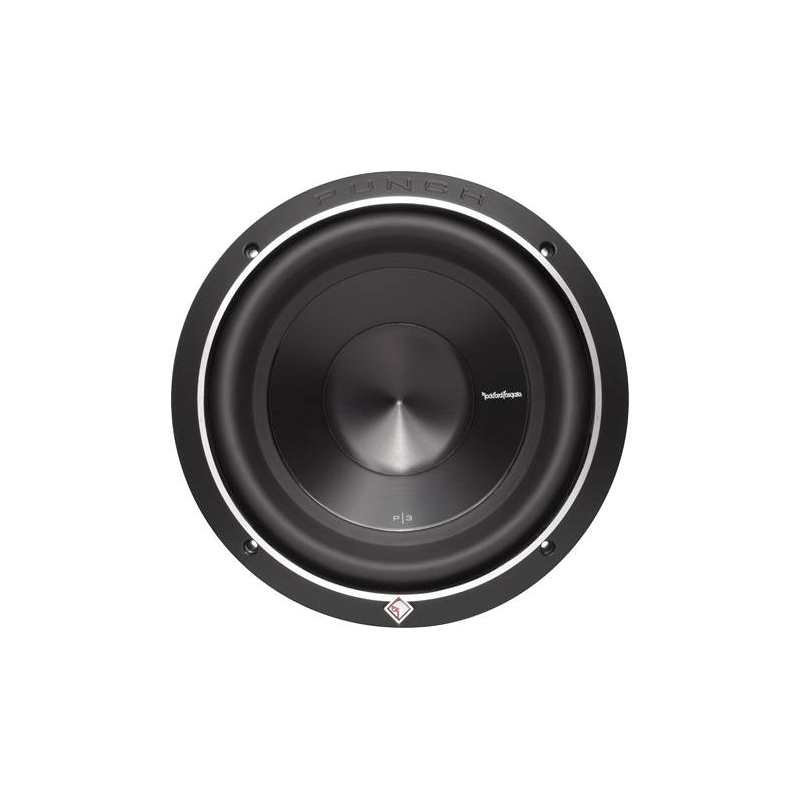

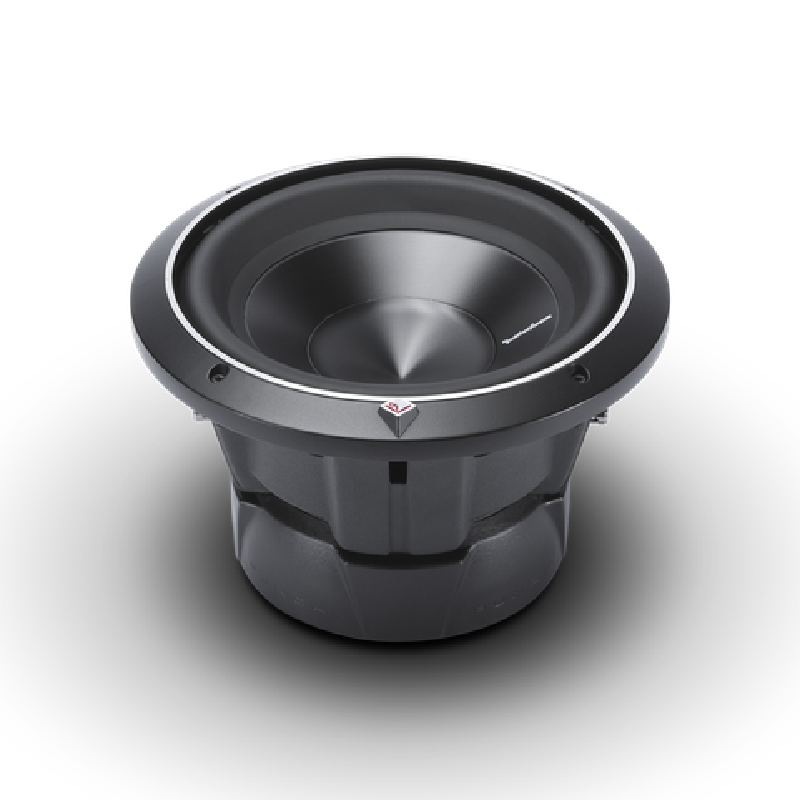

• Trim Ring: To improve the cosmetic look, a decorative trim ring is included that mounts over the flange of the woofer. When using the cast aluminum trim ring the woofer is first mounted with four screws, then the ring is placed on top of the woofer, aligning the final four holes of the woofer with ring. The other four screws are used for these holes to mount the ring and woofer to the enclosure. Without the trim ring the mounting height of the woofer is just under an inch, with the trim ring it's approximately 1-1/16 inches. The diameter of the trim ring is approximately 11-1/4 inches.

Specifications:

• Power Handling (Watts RMS)
  • Watts RMS
  • 1000 Watts Max
• Nominal Impedance: Dual 2-Ohm
• Mounting Depth: 6.18 in. (156.8 mm)
• Voice Coil Diameter: 2.5" (65.5 mm)
• Fs (Hz): 26.6
• Woofer Displacement: 0.070 cu. ft. (2.0 Liters)
• Qes: 0.54
• Qms: 6.00
• Vas (Liters): 27.0
• Size: 10"
• Sd (cm2): 360
• Speaker Connector: Dual 10 AWG compression
• Shipping Weight: 17.3 Lbs. (7.8 kg)
• SPL (dB @ 1w/1m): 82
• Qts: 0.49
• Cutout Diameter: 9.13 in. (232 mm)
• Magnet Weight: 81 oz. (2.30 kg.)
• Le (mH): 4.5
• Re (Ohms): 3.20
• CEA-2031 Compliant: CEA-2031 Guidelines
• Xmax (mm): 15.2
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
• Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)

• UPC: 780687332730
• Weight: 25
