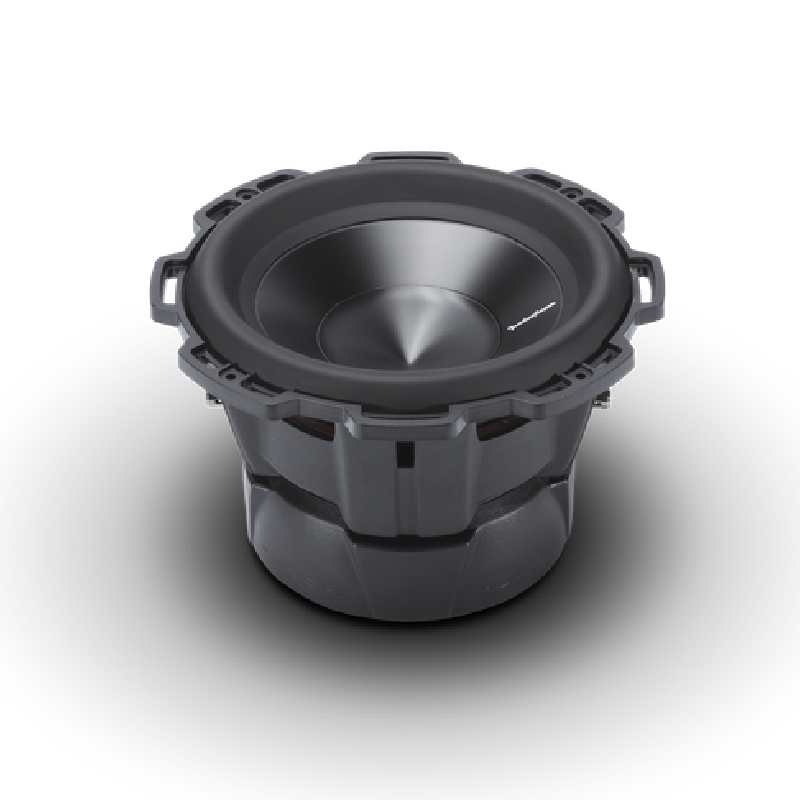

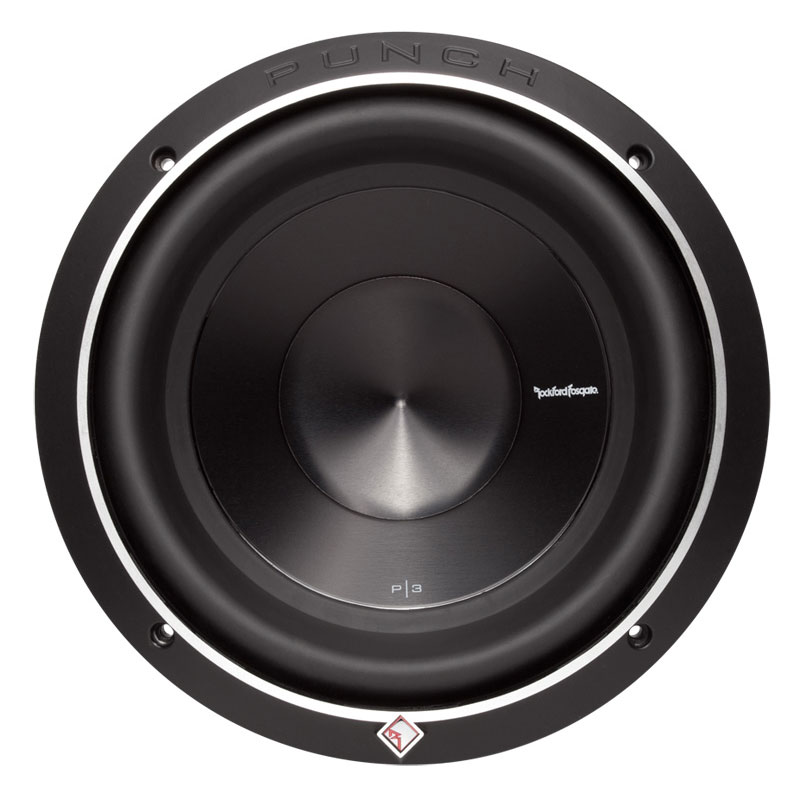

The Rockford Fosgate P3D4-10 is a 10-inch subwoofer that delivers powerful, high-quality bass in-car audio systems. It is part of Rockford Fosgate's Punch P3 series, known for its exceptional performance and durability.
Featuring a dual 4-ohm voice coil configuration, the P3D4-10 allows for flexible wiring options, including series or parallel connections, to match your amplifier's impedance requirements. This versatility enables you to maximize the subwoofer's output and optimize your system's overall performance.
Santoprene Rubber Surround Material
The P3D4-10 is built with a high-quality anodized aluminum cone that provides rigidity and minimal distortion, ensuring accurate and impactful bass reproduction. Its FlexFit basket design allows easy installation and ensures optimal alignment and stability.
Equipped with a VAST (Vertical Attach Surround Technique) rubber surround, the P3D4-10 maximizes the cone area and excursion, increasing output and enhancing low-frequency response. Additionally, its dual linear spider design and stitched tinsel leads contribute to improved cone control and durability.
Kevlar Reinforced Paper Cone
Whether you're a bass enthusiast or seeking to upgrade your car audio system, the Rockford Fosgate P3D4-10 delivers impressive low-end performance, robust construction, and versatile installation options. It is reliable for those seeking deep, impactful bass in their vehicle's sound system.
Diameter : 10 Inch
Sensitivity : 82 dB
Impedance : 4 Ohm
Frequency Response : 29-250 Hz
Peak Power Handling : 1000 Watts
Top Mount Depth : 6-3/16 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : .59 Cubic ft.
Suggested Ported Box Volume : 1.40 Cubic ft.
RMS Power Handling : 500 Watts
The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer

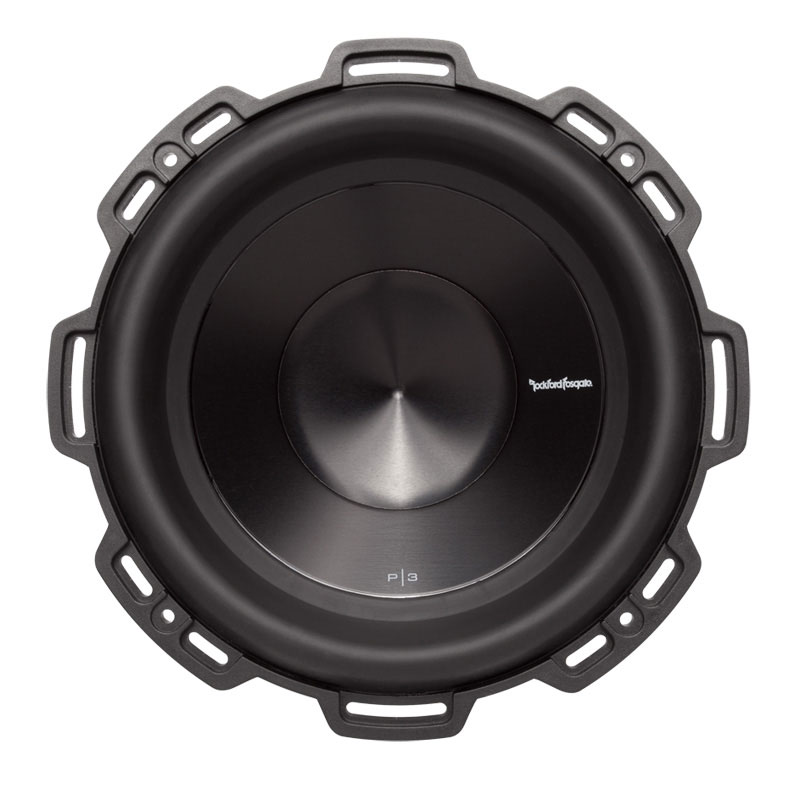

Anodized aluminum cone and dustcap
Custom 10-AWG nickel plated push terminals

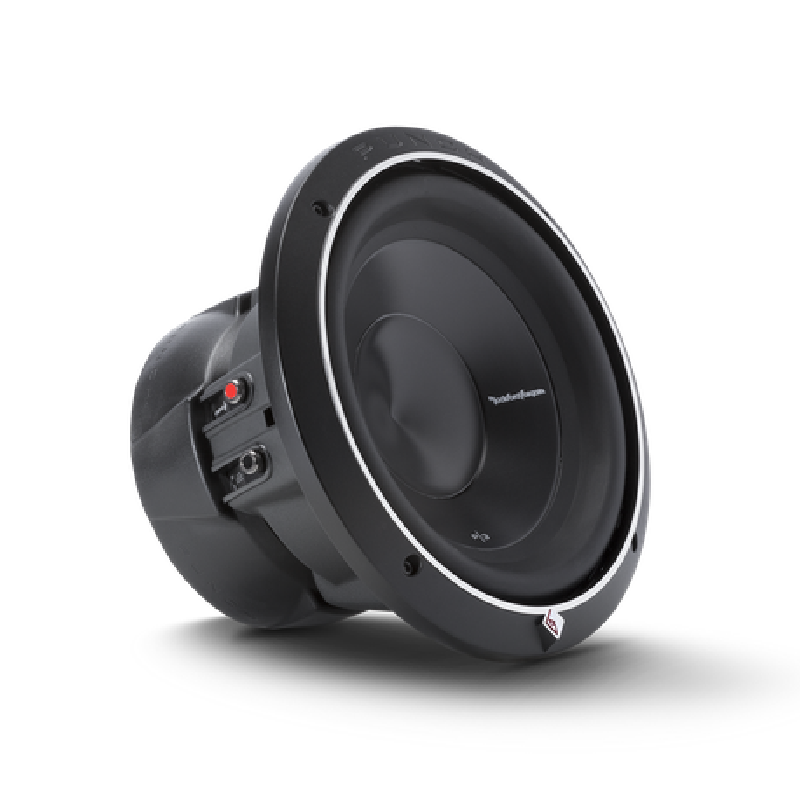

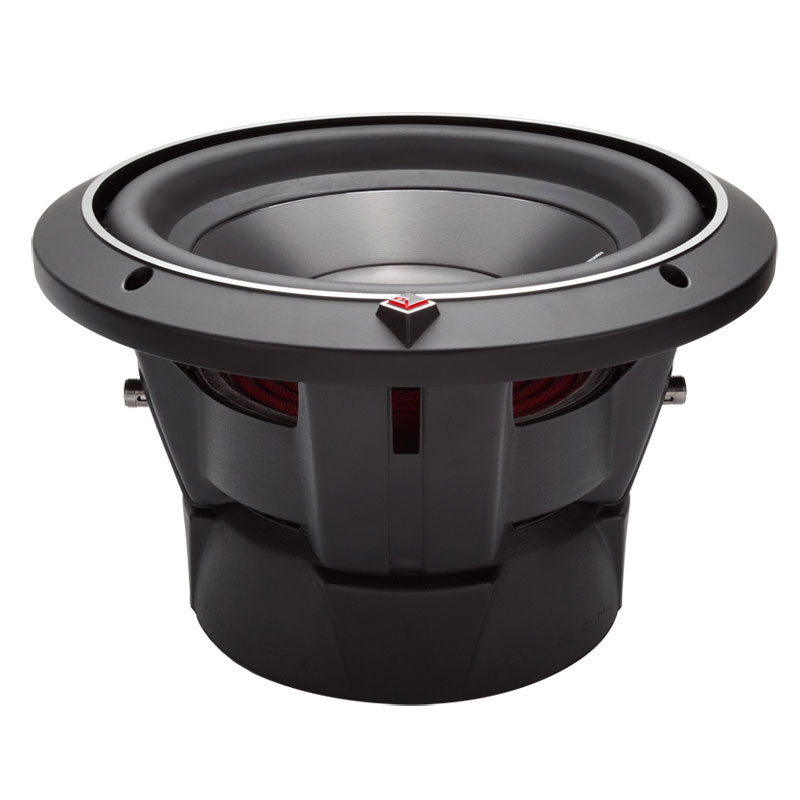

Diamond cut cast aluminum trim ring with optional grille

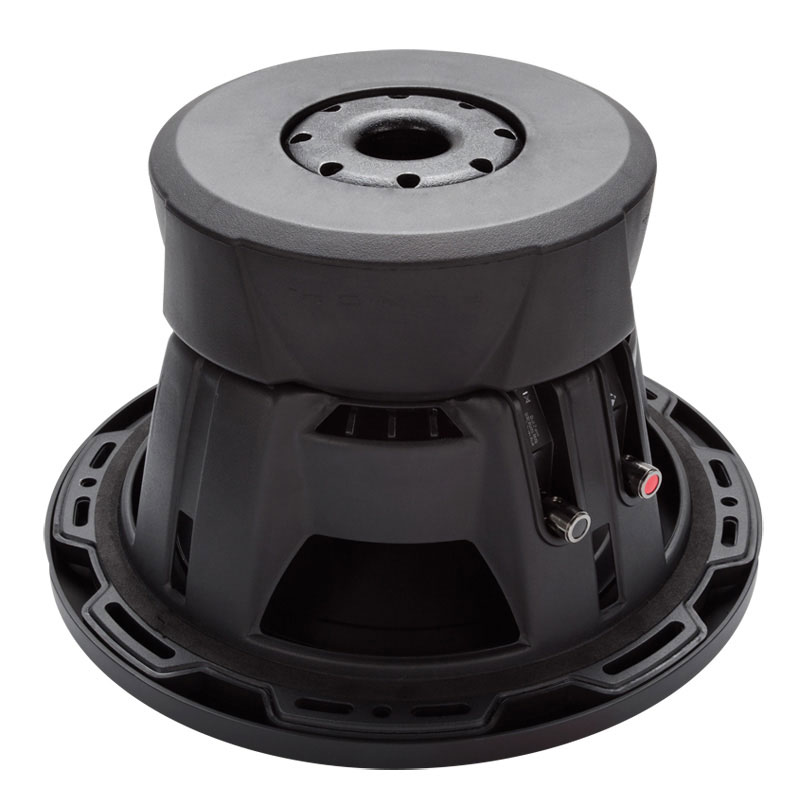

Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar

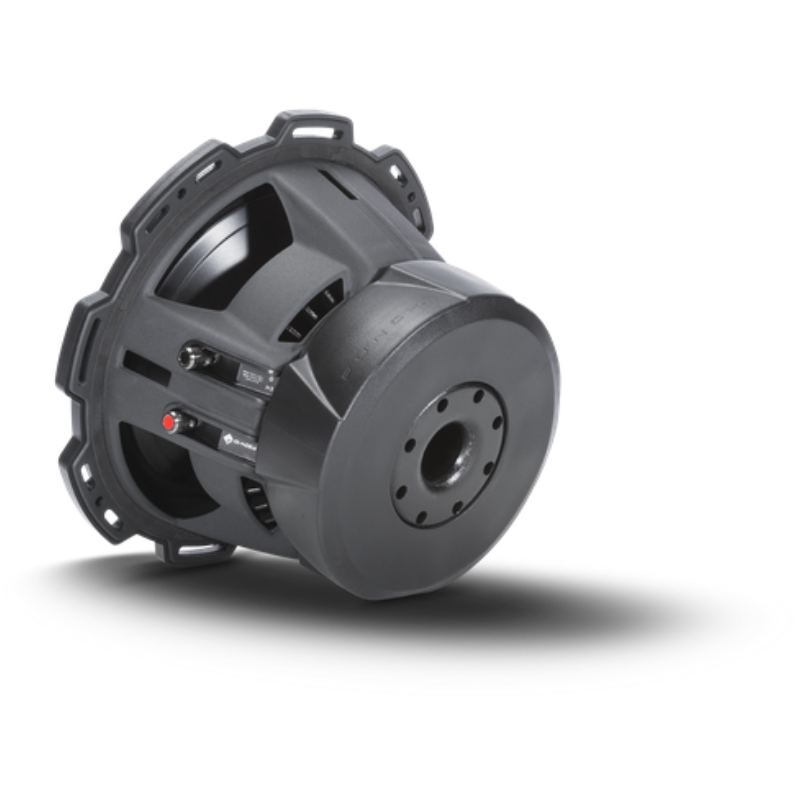

Protective PVC textured magnet cover
Soft touch rubber over-mold for greater grip
StampCast basket with integrated spider venting
Voice Coil Diameter: 2.5"
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 28
Vas (Liters): 27
SPL (dB @ 1w/1m): 81.7
Xmax (mm): 13.9
Woofer Displacement: 0.074 cu.ft.
Cutout Diameter: 9.125"
Mounting Depth: 6.18"
Fs (Hz): 28
Vas (Liters): 27.0
Re (Ohms): 6.40
Woofer Displacement: 0.070 cu. ft. (2.0 Liters)
CEA-2031 Compliant: CEA-2031 Guidelines
Sd (cm2): 360
Subwoofer Type: Standard
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Bought these to replace a pair of cvr kickers first got the p2s and was very unhappy my boxes did not match sounded like crap I have the Qlogic boxes for dodge ram quad cab so they are sealed I then upgraded to the p3s and had to remove the magnet cover so they would fit but according to specs of my box and sub this shouldn't of worked and again the 10" box specs are the same for p1 2 and p3...these things pounded!!! When I first installed they sounded like crap for the first day but after a little suspension break-in my windshield started to flex lol people think I have 12s they shake other people's cars lol u want quality bass buy these and you will be happy with these by the way I fried the tensile wire off my old subs and these are only 200 more rms for both..people get these and have crapy amps and complain about the sub..lol its not the sub its your sorry cheap amp!!! I also live in the desert and have had no problems with the adhesive
These babies get low. The sound quality is on point, I'm hittin harder than most 12's out there and the bass is clean and clear. Definitely worth the money
These babies get low. The sound quality is on point, I'm hittin harder than most 12's out there and the bass is clean and clear. Definitely worth the money. I got'em to replace 2 power acoustics that my Zeus 1200 amp fried within the first few days. I've been bumping these for about a year now, so far so great!
