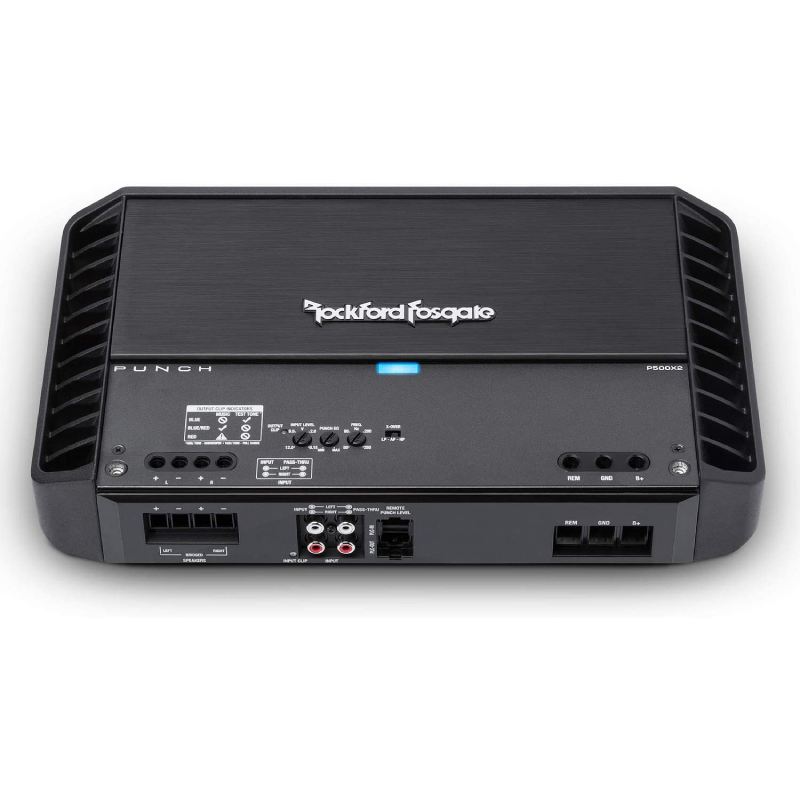

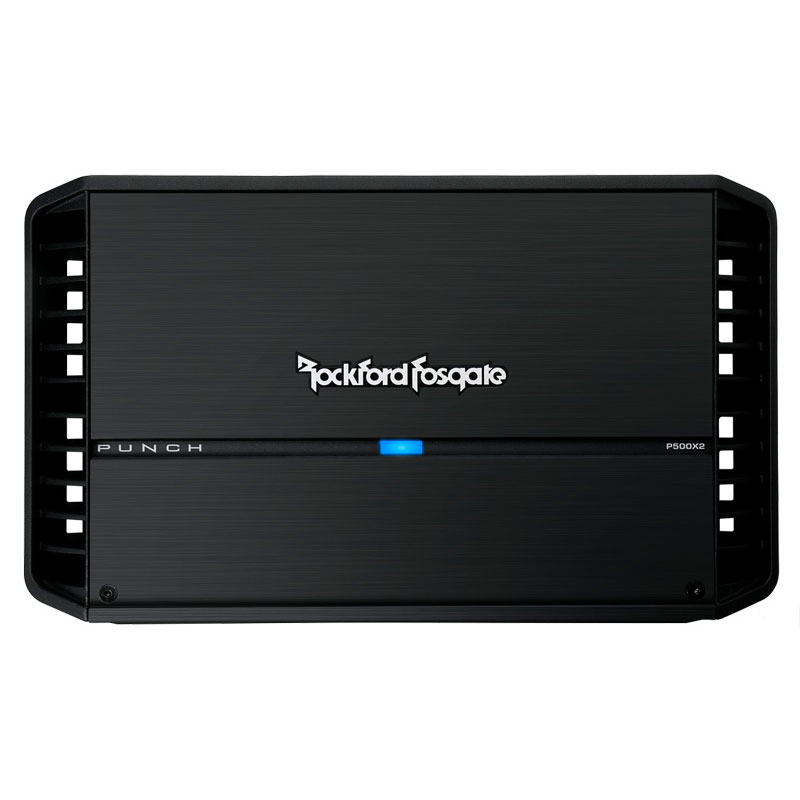

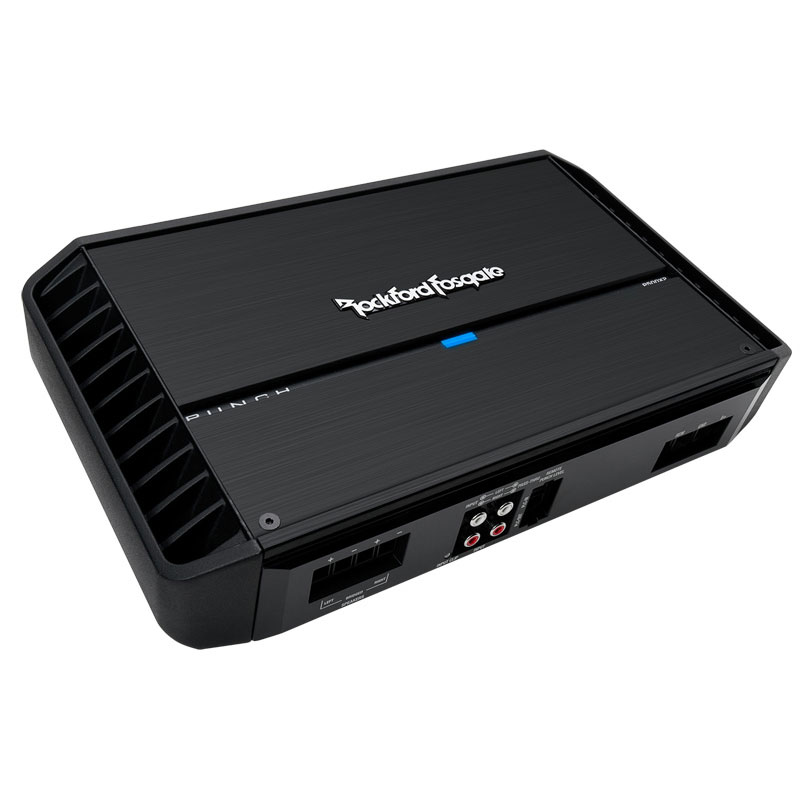

Rockford Fosgate P500X2 Punch Series 2-channel Class A/B Car Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(4) 1-3/8" Self-tapping screws
•2.5mm Allen wrench
•Quick setup instructions
•Certificate of Performance
Deliver High-quality Sound
The Rockford Fosgate P500X2 is a 2-channel amplifier designed to deliver high-quality sound performance and versatility in-car audio systems. Its robust construction and powerful output make it an excellent choice for those seeking a premium audio experience.
Features High-level Inputs
The P500X2 boasts a maximum power output of 500 watts, with 250 watts RMS per channel. This provides ample power to drive a wide range of speakers, from component systems to full-range speakers, ensuring crisp and dynamic sound reproduction. It features high-level inputs and RCA inputs, making it compatible with various audio sources.
Allows Precise Control Over the Bass Response
One of the notable features of the P500X2 is its built-in Punch EQ, which allows precise control over the bass response. This EQ feature lets you adjust the bass level and frequency to match your preferences, ensuring optimal sound customization. Additionally, the amplifier incorporates protection circuits for thermal, overcurrent, and short-circuit situations, safeguarding both the amplifier and your vehicle.
Sleek and Compact Design
The P500X2 features a sleek and compact design, making it easy to install and integrate into your car's audio system. Its high-quality components and advanced engineering deliver exceptional sound quality and reliability.
Performance and Versatility
The Rockford Fosgate P500X2 is a powerful, feature-packed 2-channel amplifier that delivers impressive sound performance and versatility. Whether upgrading your existing car audio system or building a new one, this amplifier is a reliable choice that elevates your listening experience.
Maximum Power : 500 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
Channel Separation : Yes
Amplifier Class : A/B
Fuse Rating : 80 A
CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured with 1% or less Total Harmonic Distortion plus noise (THD+N) over a frequency range of 20 Hz to 20 kHz (for full range amplifiers). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4Ω. CEA-2006 allows consumers to compare car amplifiers and receivers on an equal basis.
Cast Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% cooling improvement over conventional extrusion heatsink designs.
Dynamic Thermal Management (DTM): DTM evenly distributes excess heat across the amplifier's entire heatsink.
MEHSA³ (Maximum Efficiency Heat Sink Application-3rd Generation): MEHSA is a Rockford Fosgate proprietary process that increases the heat transfer from the MOSFET devices to the heatsink. The multi-layer insulated metal MEHSA substrate operates with minimal thermal resistance, spreading heat both downward and outward to quickly dissipate heat from each device across the heatsink. This allows greater power output, enhanced thermal stability, and maximum reliability.
Trans-ANA (TRANSconductance Active Nodal Amplifier): Trans-ANA is a circuit that allows the audio signal to pass through the amplifier at low voltage. The signal is directly level-shifted to the fixed high voltage rails via a pair of drive transistors. Signal linearity is assured by an active node formed by the drive transistors at ultrasonic frequencies. The result is crystal clear sound quality.
NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent protection circuit that uses an analog computer to make real time decisions regarding temperature, voltage, current and impedance. The amplifier is protected without limiting sound output unless needed.
DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches it's clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.

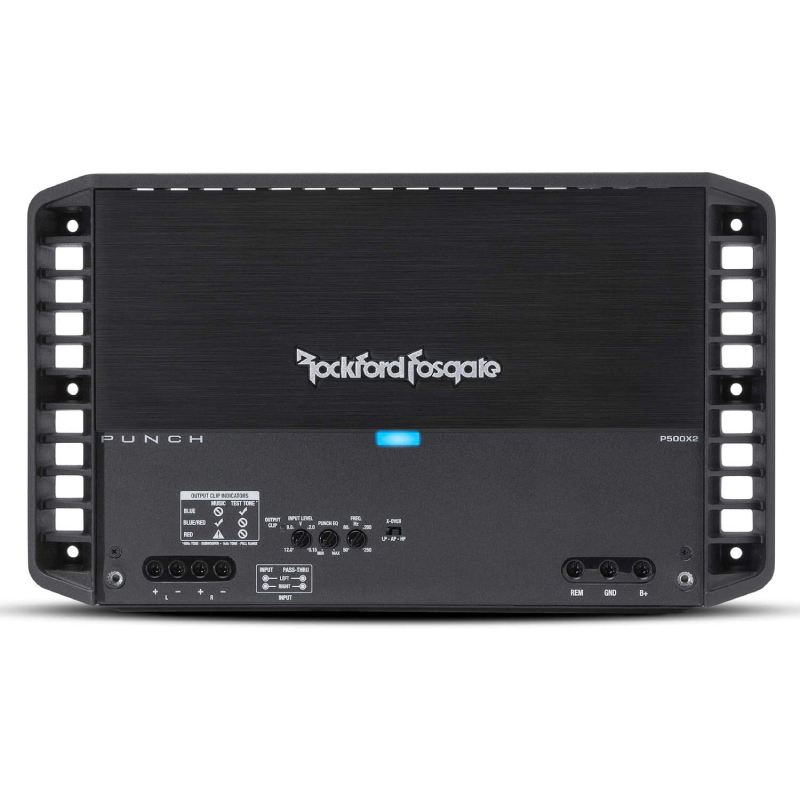

Power and Protection LEDs: The LEDs are located on top of the amplifier. A blue Power LED illuminates when the amplifier is turned on. A red Thermal LED illuminates if the amplifier overheats. The yellow Protect LED illuminates if a short circuit or too low an impedance is detected at the speaker connections. When any of the protection circuits engage, the amp automatically shuts down until the problem is corrected.
Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables by measuring the voltage of both the (+) and (-) input signal, then subtracting the voltage common to both conductors (noise), resulting in only the clean signal entering the amplifier.
Input Level: To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input level is adjustable from 150mV to 12V.
Crossover: The amplifier's internal crossover has a 12 dB/octave slope. It can be set to high-pass, all-pass (full range), or low-pass operation and the crossover point is variable from 50 Hz to 250 Hz.
Punch EQ: Punch EQ works along with the crossover switch. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0-18 dB at 45 Hz. When the crossover is set to high-pass, the Punch EQ acts as variable treble boost, 0-14 dB at 12.5 kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active.

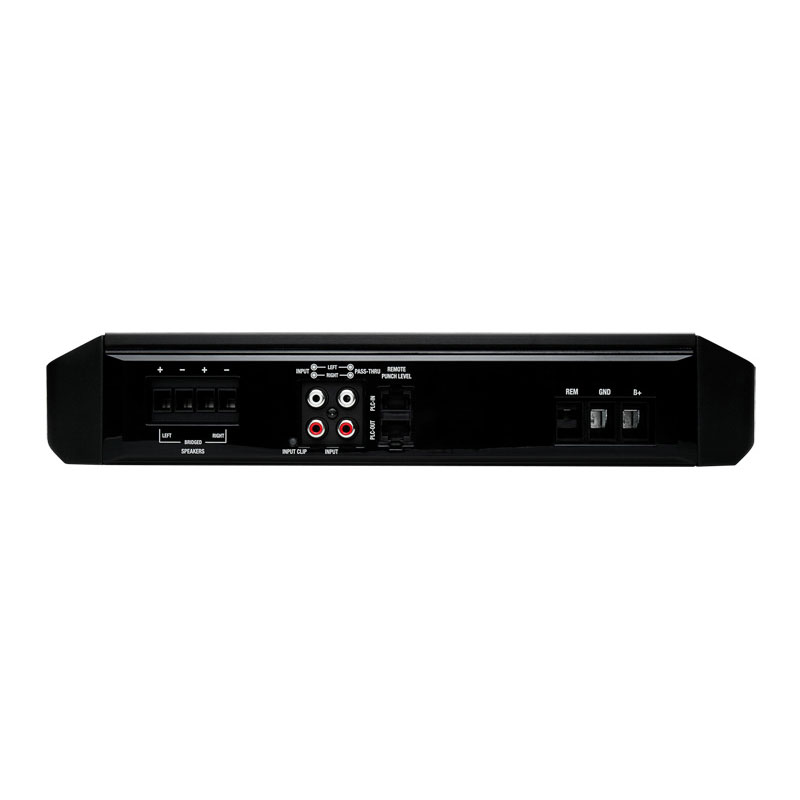

Power Connections: The power and ground terminals are nickel-plated captive c-clamp wire connectors and will accommodate up to 4-gauge wire. An external 80-amp fuse (not included) must be installed on the power wire. The remote turn-on terminal will accept up to 12-gauge wire. A Phillips or flat-head screwdriver (not supplied) is required to tighten/loosen the terminals.
Speaker Connections: The two pair of speaker output terminals are also nickel-plated captive c-clamps and will accept up to 8-gauge wire. A Phillips or flat-head screwdriver (not supplied) is required to tighten/loosen the terminals.
Signal Input: The RCA inputs will accept either a line-level or speaker-level input. A speaker-level signal can be connected using a Speaker Wire to RCA adapter (sold separately). When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output to turn on/off up to two additional amplifiers or other components.
Line Level Output: The amplifier has a pair of RCA line level pass-thru outputs to feed another amplifier. The pass-thru output is passive (the same signal present at the amp's input) and the amp's crossover has no effect on the signal.
Punch Level Control (PLC): An RJ-45 jack is provided for connecting an optional wired remote PLC2 (item number 575PLC2, sold separately), allowing remote control of the output level of the amplifier. A second RJ-45 jack is the PLC output, used to daisy-chain additional amplifiers controlled by a single remote.
RMS Power Output (Watts x Channels): 150 x 2
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 250 x 2
Bridged Power (Watts x Channels): 500 x 1
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Minimum Impedance: 2
Best Frequency Response: 20-20k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 85 dB
Input Voltage: 14.4v
Amplifier Class: AB
Low-Pass Crossover Frequency: 50-250 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 50-250 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: 0-18 dB
Bass Boost Frequency: 45 Hz
Fan Cooled: No
Fuse Rating: 80
Speaker Level Inputs: Yes
Preamp Outputs: 2
Width (inches): 13-3/8
Height (inches): 2-7/16
Depth (inches): 8-13/16
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
First I'd like to say that this is the most expensive amp I've owned. I'm not saying it's pricey. But what I'm saying is that my previous amps were shit.(Hifonics HFi 1000.1d/Kenwood KAC - ####) So with that said you can say my experience with good quality amps isn't very high. The amps built with good quality material. Looks great Easily adjustable to tune the bass to how you like I've only had the amp overheat on me once when I was in Las Vegas attending EDC blasting Work - ASAP Ferg . Amp didn't take long to cool down.( maybe 10mins) This amp can hit really hard with the right subs. I'm running two 12inch Rockford P3 shallows sealed. Which is a terrible set up in my Sentra but it's what I was given so I can't complain. This amp does the job I'd recommend this amp to anyone who just wants bass in the trunk. Not to you King Kong in the trunk guys p
