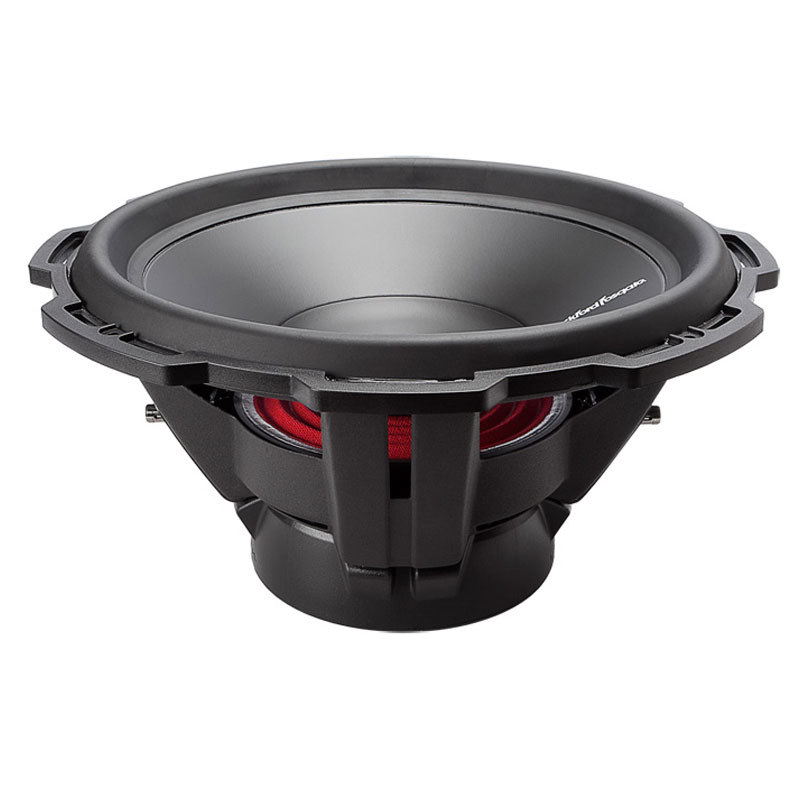

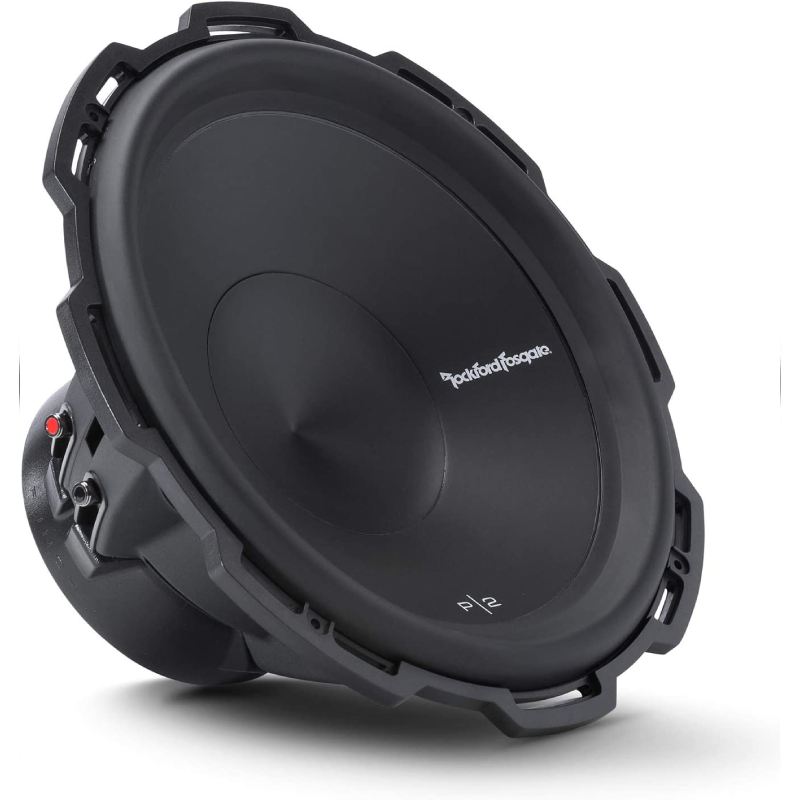

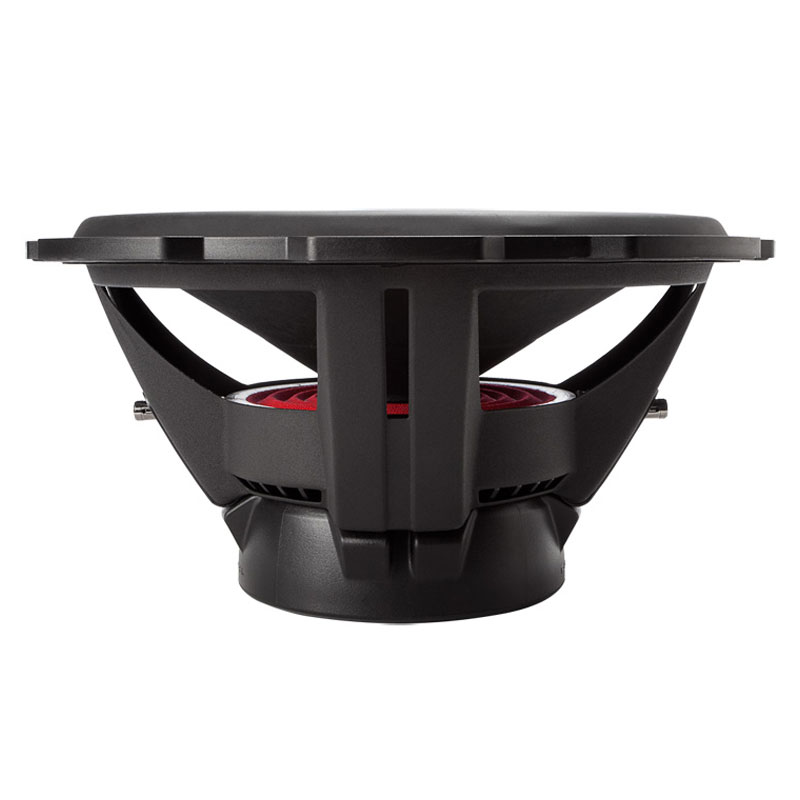

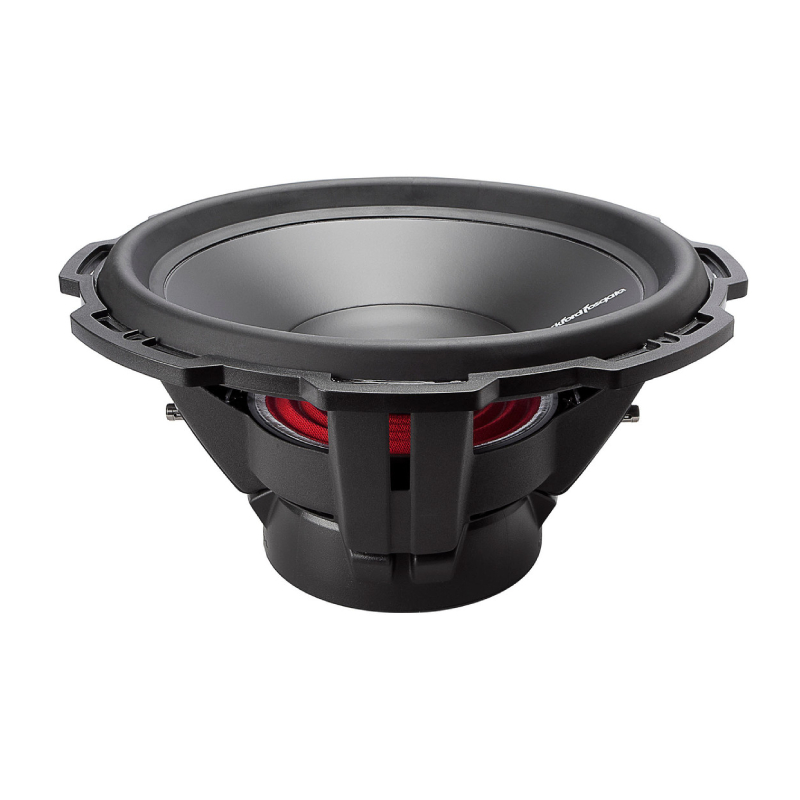

Rockford Fosgate P2D2-15 Punch Series 15" Dual 2 Ohms Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(1) 15" Dual 2-ohm voice coil subwoofer
- •Trim ring
- • (8) 1-1/8" Allen head screws
- •4mm Allen head bit
- •Owner's manual
High-quality Construction
The Rockford Fosgate P2D2-15 is a powerful 15-inch subwoofer that delivers deep and impactful bass in-car audio systems. This subwoofer's high-quality construction and advanced technologies provide an immersive listening experience. Featuring a dual 2-ohm voice coil configuration, the P2D2-15 allows for versatile wiring options, enabling users to customize their setup based on their specific needs and amplifier capabilities.
Improve Power Handling
The dual voice coils also improve power handling and efficient thermal management. Equipped with a Flex Fit basket, the P2D2-15 offers flexibility during installation, accommodating various mounting options and providing a secure fit. The subwoofer boasts a Kevlar-reinforced paper cone that ensures durability and reduces distortion, allowing for the accurate reproduction of low-frequency sounds
Santoprene Rubber Surround
. Its surround is made of a Santoprene rubber surround, enhancing the subwoofer's performance and longevity. With a peak power handling capability of up to 800 watts, the P2D2-15 can deliver thunderous bass that shakes the foundations. Whether you enjoy hip-hop, rock, or electronic music, this subwoofer is designed to enhance your audio system and bring your music to life with its impressive low-frequency response and powerful output.
- Diameter : 15 Inch
- Sensitivity : 86 dB
- Impedance : 2 Ohm
- Frequency Response : 20-250 Hz
- Peak Power Handling : 800 Watts
- Top Mount Depth : 7-7/16 Inches
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.58 Cubic ft.
- Suggested Ported Box Volume : 2.66 Cubic ft.
- RMS Power Handling : 400 Watts
Features
- Overview: The Rockford Fosgate Punch P2D2-15 is a 15-inch subwoofer with dual 2Ω voice coils. The sub features a StampCast steel frame, quick-release compression terminals, a Kevlar fiber reinforced paper cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
- Dual 2Ω Voice Coils: The dual 2Ω voice coils offer wiring flexibility; when wired in parallel the woofer presents a 1Ω load, when wired in series the woofer presents a 4Ω load.
- Steel Basket: The P2D2-15 subwoofer features a StampCast steel basket for added rigidity.

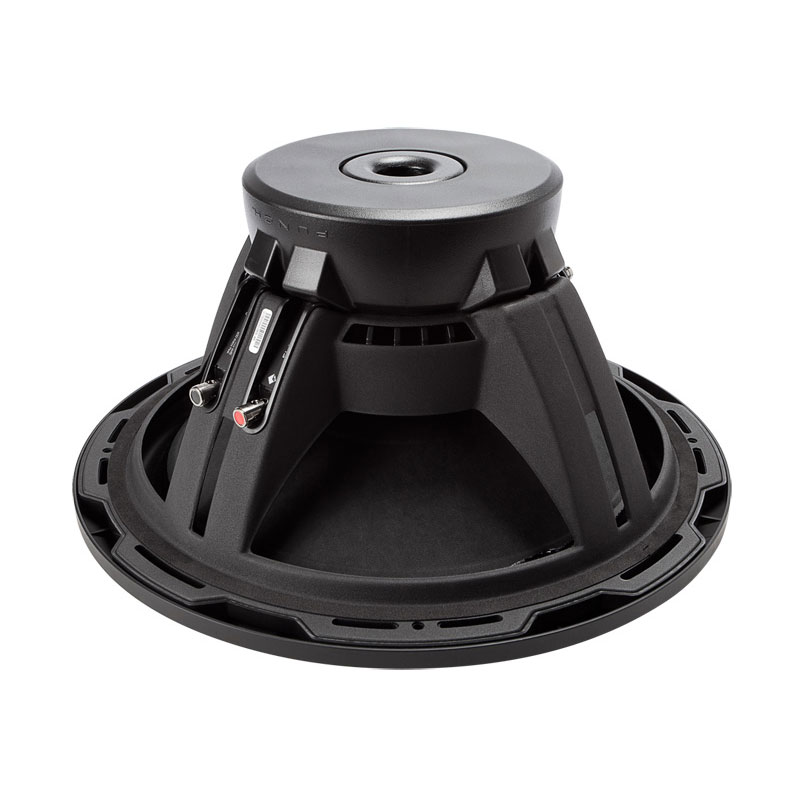

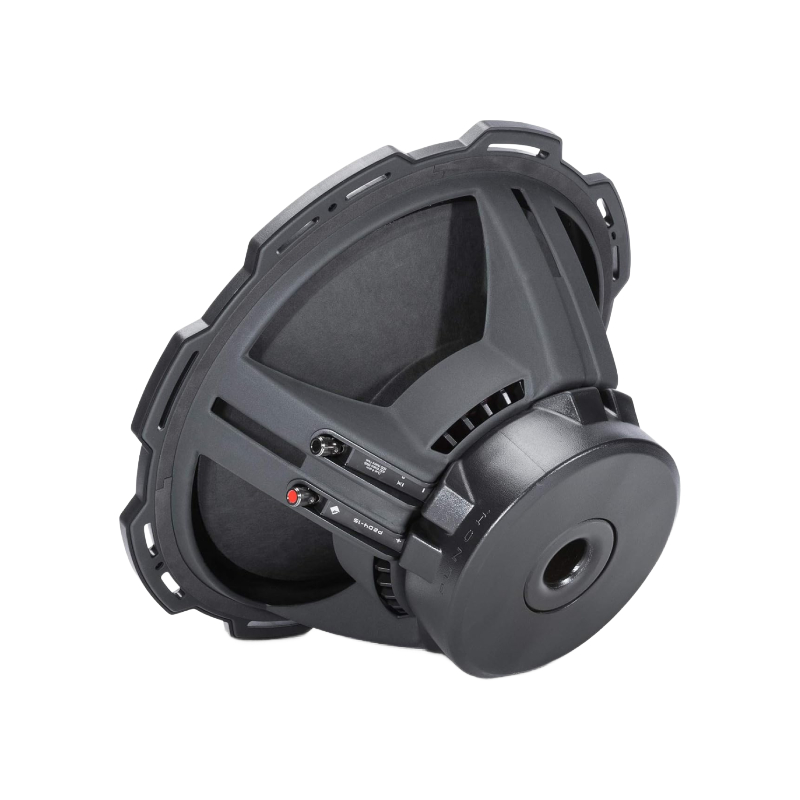

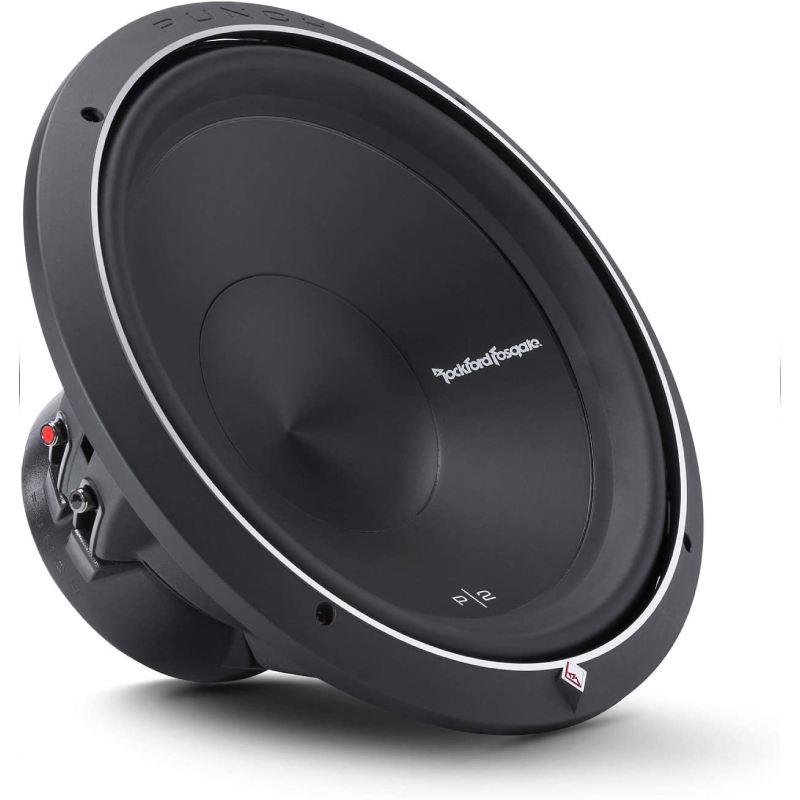

- Compression Terminals: The P2D2-15 features spring post terminals which accommodate speaker wire up to 10 gauge.
- CEA-2031 Compliant: Power handling on the P2D2-15 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

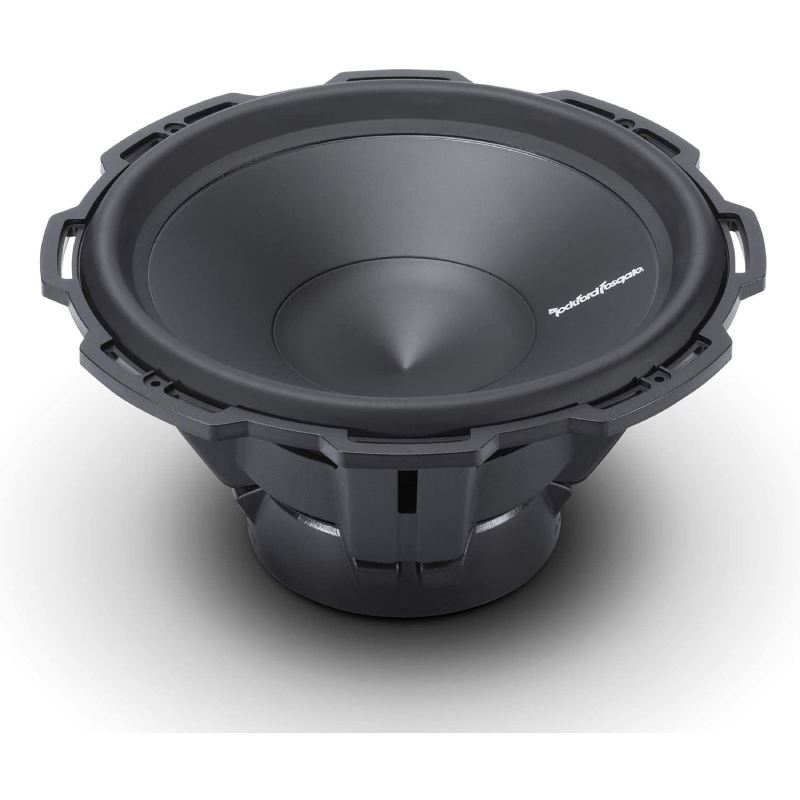

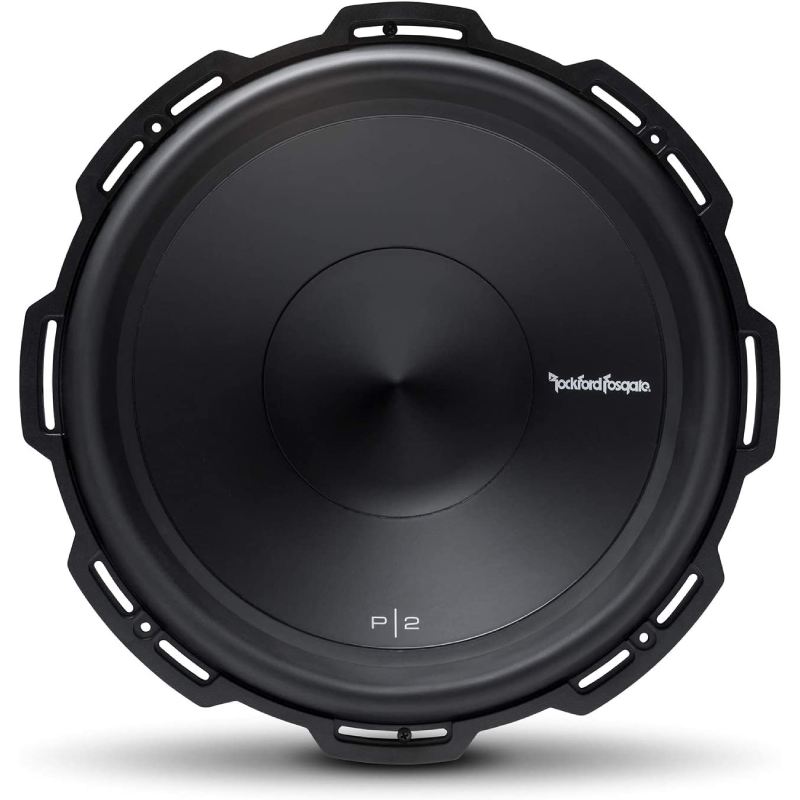

- FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.

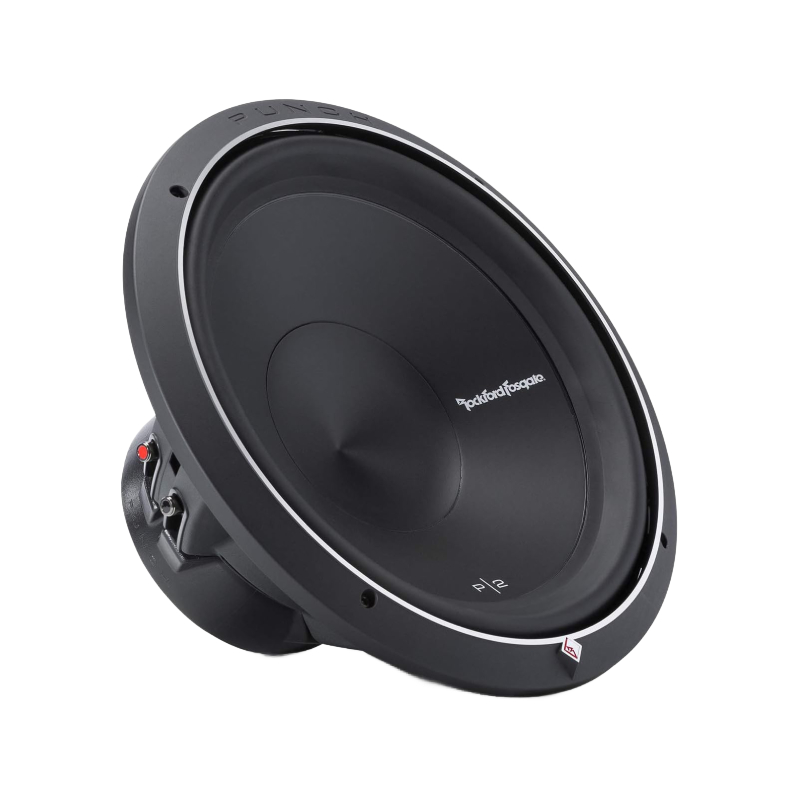

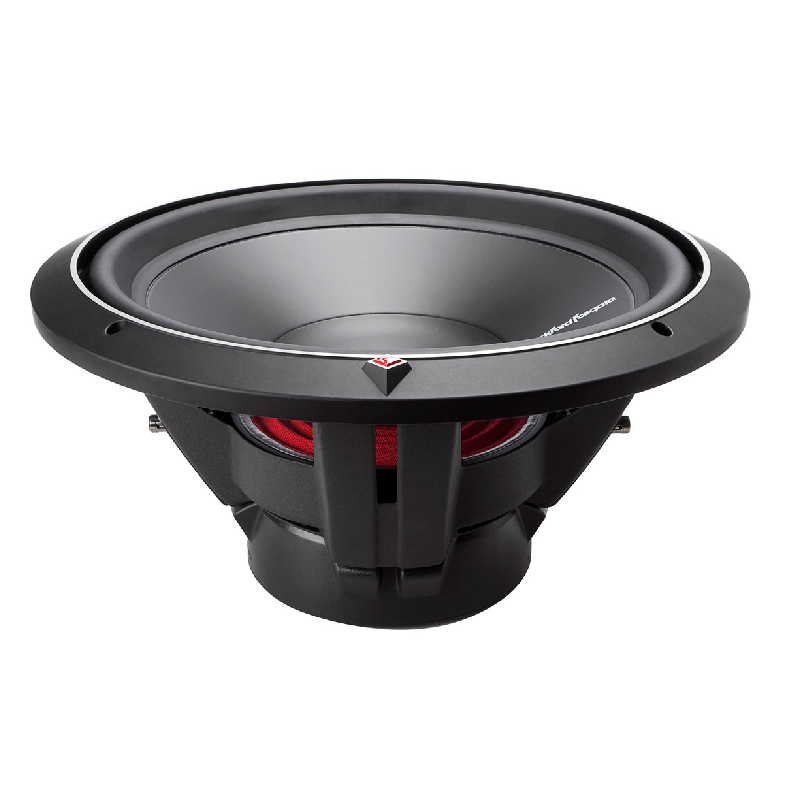

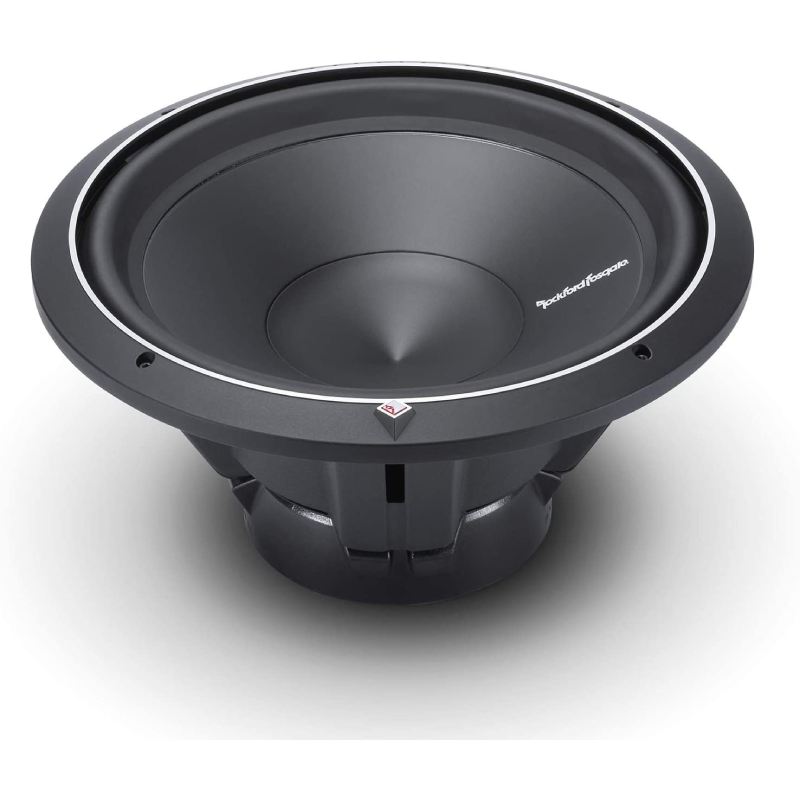

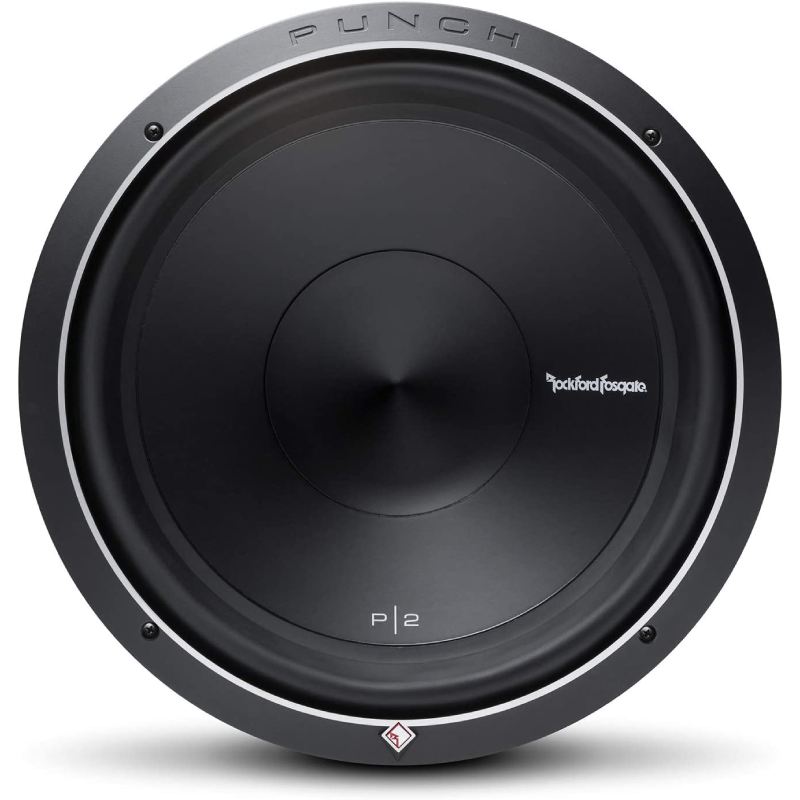

- Trim Ring: To improve the cosmetic look, a decorative trim ring is included that mounts over the flange of the woofer. When using the cast aluminum trim ring the woofer is first mounted with four screws, then the ring is placed on top of the woofer, aligning the final four holes of the woofer with ring. The other four screws are used for these holes to mount the ring and woofer to the enclosure. Without the trim ring the mounting height of the woofer is just under 15/16 of an inch, with the trim ring it's approximately 1-1/16 inches. The diameter of the trim ring is approximately 16-3/8 inches.
- Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 1.58 cubic feet (from 1.3 to 3.5 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
- Ported Box: Rockford recommends a ported enclosure with an internal volume of 2.66 cubic feet using one 4" diameter x 10" long port; this yields a tuning frequency of 32 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 32 Hz).
Specifications:
- Size: 15 -inch
- Impedance (Ohms): 1, 4
- Cone Material: Kevlar reinforced paper
- Surround Material: Santoprene
- Ideal Sealed Box Volume (cubic feet): 1.58
- Ideal Ported Box Volume (cubic feet): 2.66
- Port diameter (inches): 4
- Port length (inches): 10
- Free-Air: No
- Dual Voice Coil: Yes
- Sensitivity: 86 dB at 1 watt
- Frequency Response: 20 - 250 Hz
- Max RMS Power Handling: 400
- Peak Power Handling (Watts): 800
- Top Mount Depth (inches): 7 7/16
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 13 11/16
- Vas (liters): 219.6
- Fs (Hz): 20
- Qts: 0.62
- Xmax (millimeters): 10
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- UPC: 780687332716
- Weight: 25
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
