JL Audio C1 Series 0.75" 50W RMS Aluminum Dome Tweeters
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (2) Tweeters (with 6" wires attached)
• (2) Crossovers
• (2) Flush mount housings (tweeters installed)
• (2) Surface mount housings
• (2) Metal spring clips (for flush mounting)
• (4) 5/8" Flat head screws
• (2) 25mm Stud bolts
• (2) 10mm Stud bolts
• (2) M5 Nuts

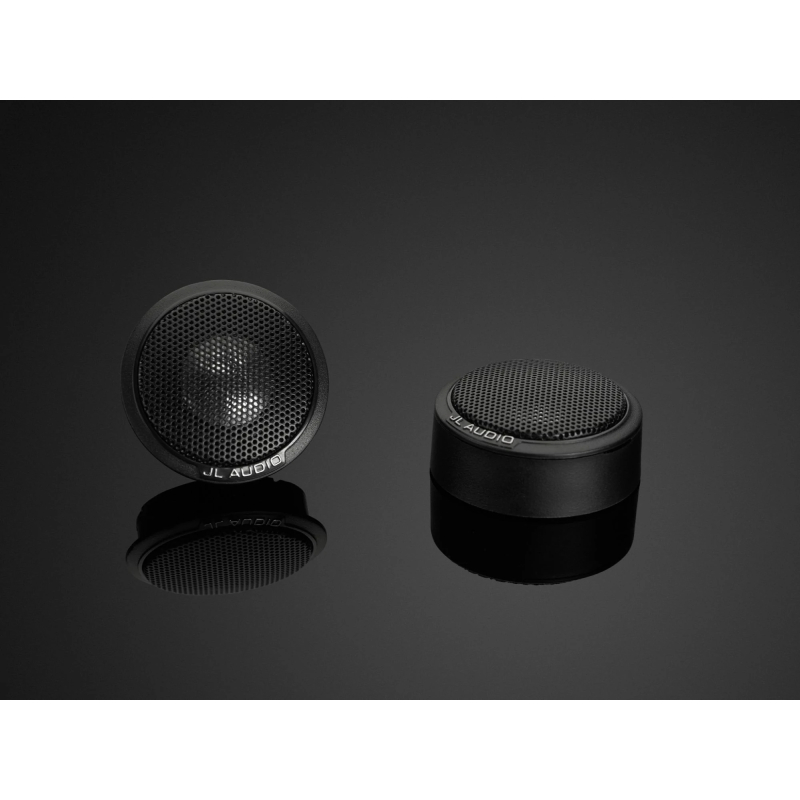

C1 Component Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.
Smooth Response and Reliability

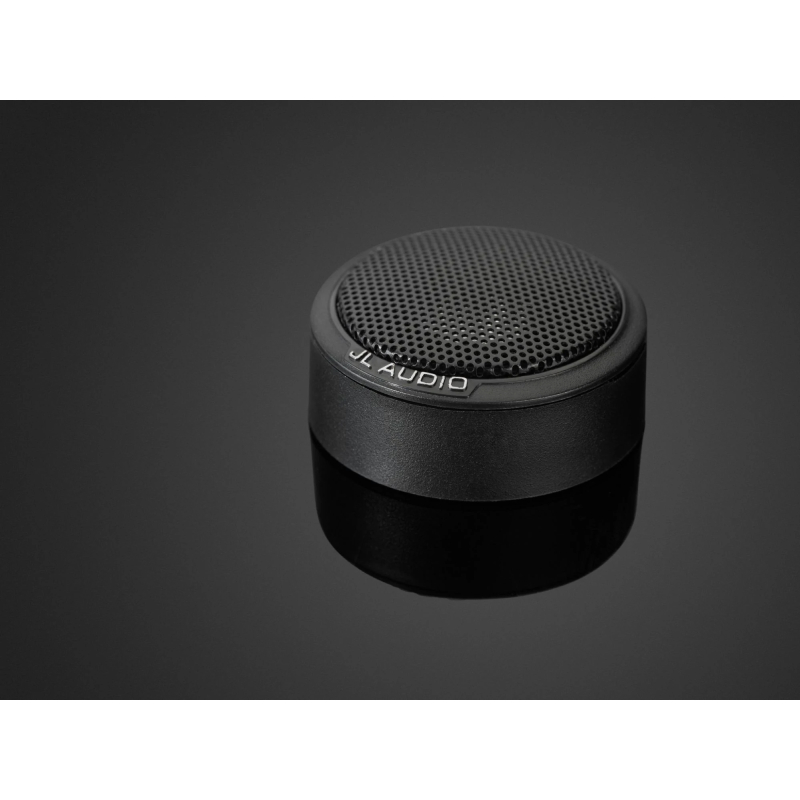

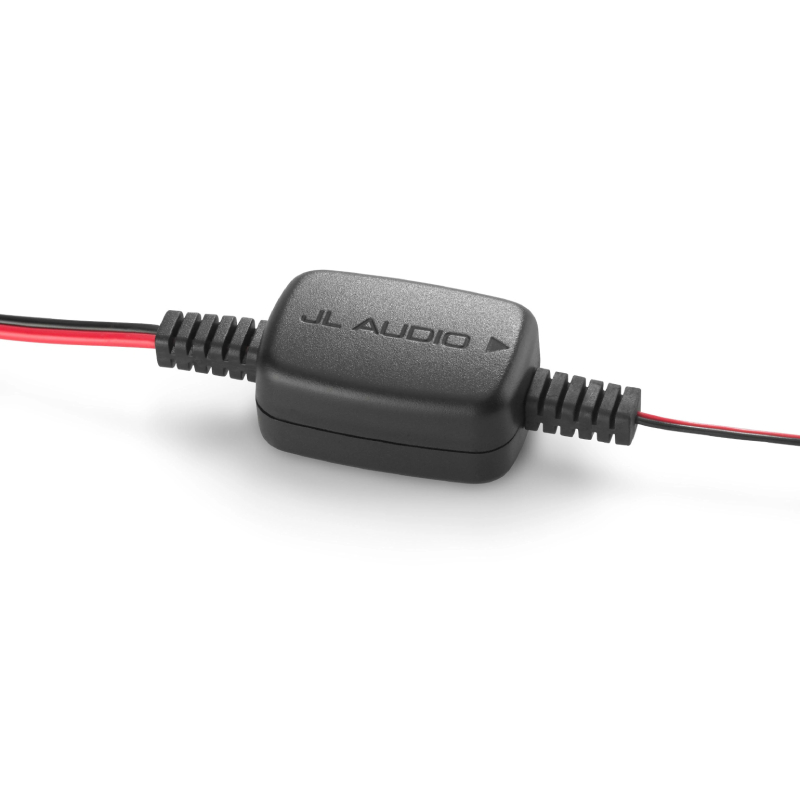

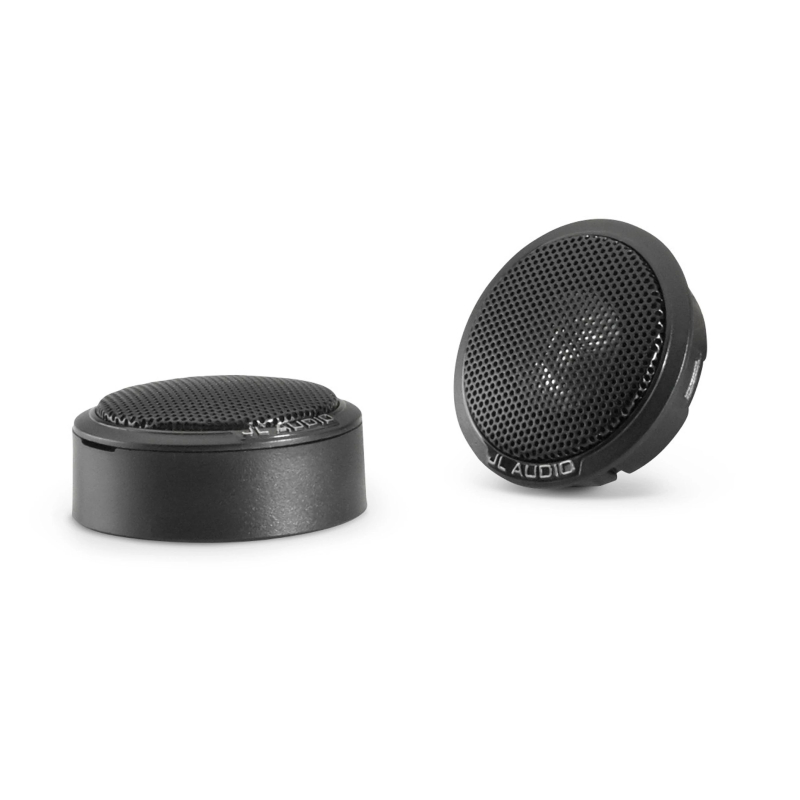

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.

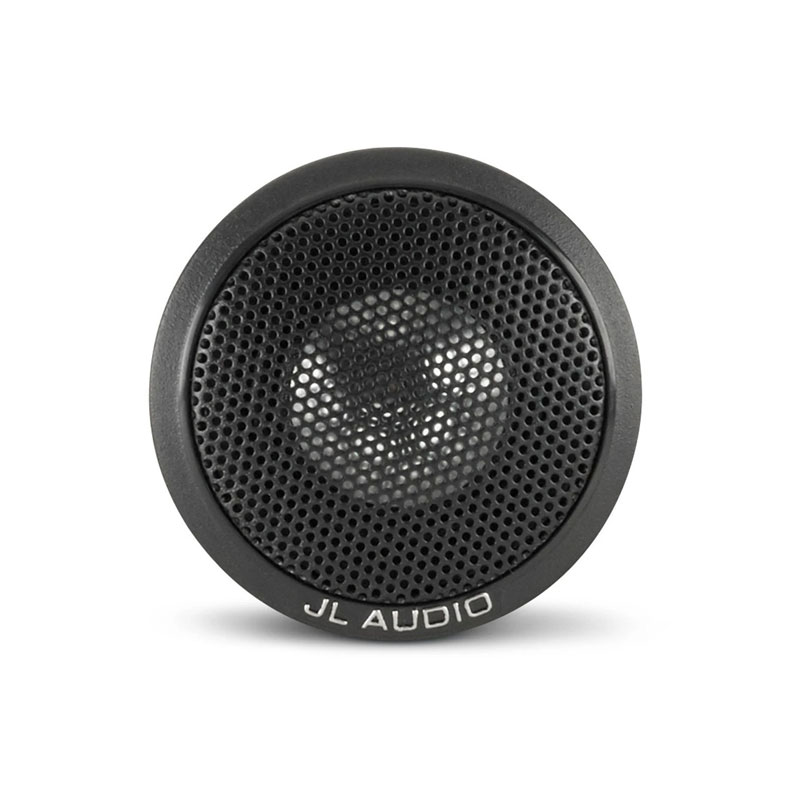

Aluminum Dome Tweeter
Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio’s aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm. This additional damping reduces ringing and improves the tweeter’s smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.
Diameter : .75 Inch
Sensitivity : 91 dB
Frequency Response : 4-24000 Hz
Peak Power Handling : 150 Watts
RMS Power Handling : 50 Watts
Continuous Power Handling (RMS): 50 W
Recommended Amplifier Power (RMS): 20 - 50 W / Ch.
System Efficiency: 91.0 dB @ 1 W / 1 m
System Nominal Impedance: 6 Ω
System Frequency Response: 4 kHz - 24 KHz ± 3 dB
Flush Mount Fixture Diameter (A1): 1.67 in / 42 mm
Surface Mount Fixture Diameter (A2): 1.71 in / 43 mm
Flush Mount Mounting Hole Diameter (B): 1.46 in / 37 mm
Flush Mount Mounting Depth (C): 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion (D1): 0.23 in / 6 mm
Surface Mount Tweeter Frontal Protrusion (D2): 0.76 in / 19 mm
Width (W): 1.96 in / 50 mm
Depth (D): 1.34 in / 34 mm
Height (H): 0.90 in / 23 mm
When it comes to value, C1 is the real deal!
Sold as a pair.
Surface-mount and flush-mount fixtures and grilles are included.
