Alpine Active View Rear Camera System
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

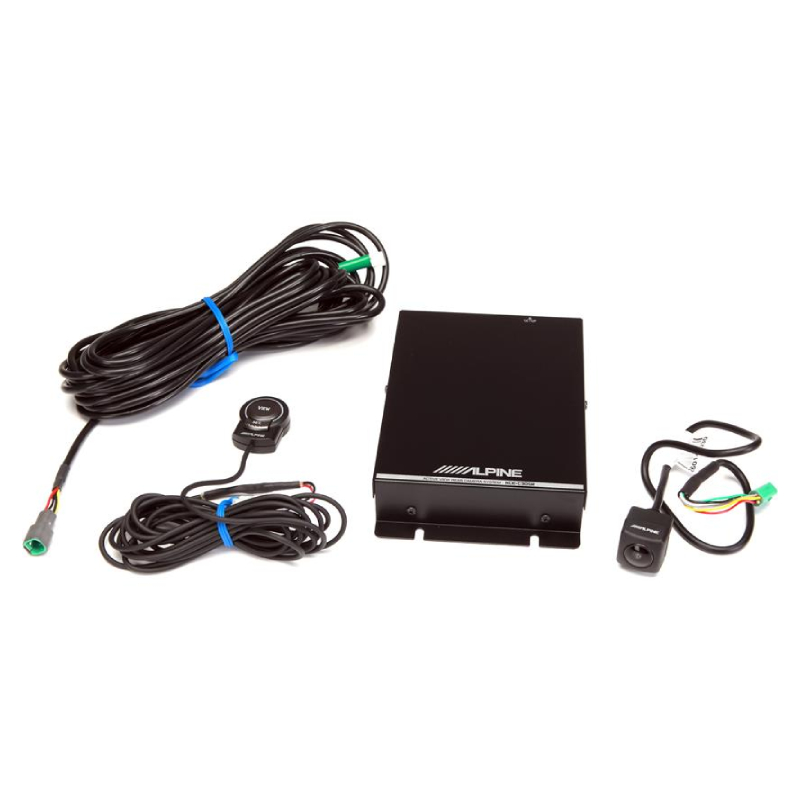

What's Inside?

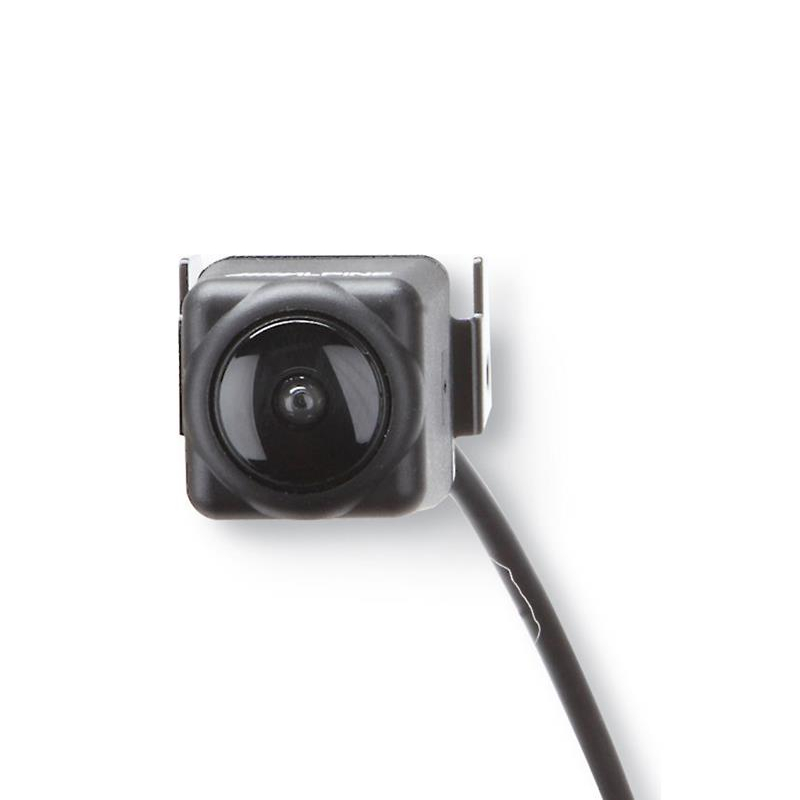

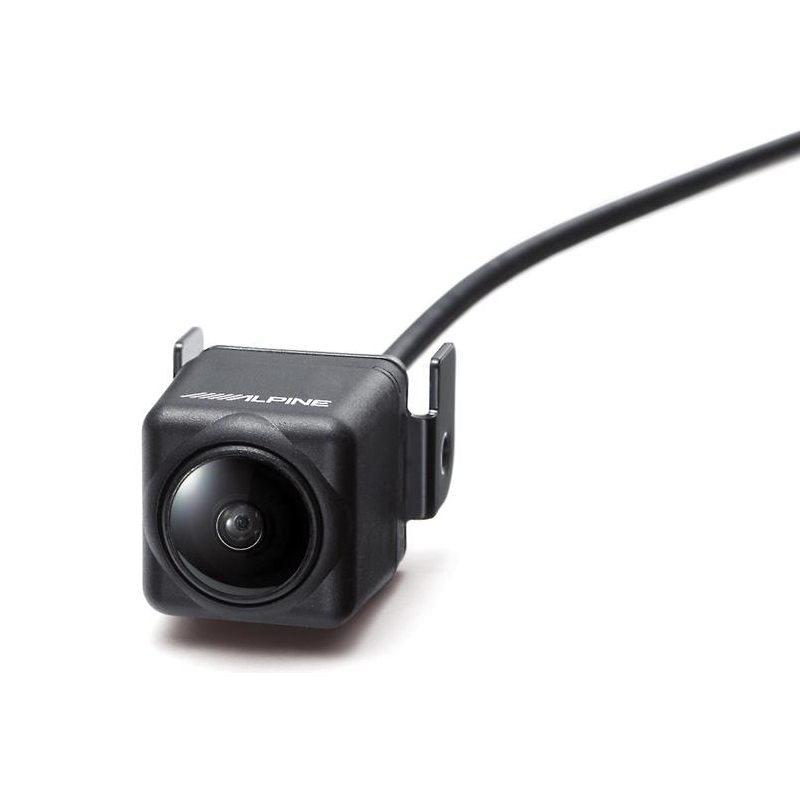

- • Rear-view camera (with attached 19" cable terminated by a 7-pin connector)

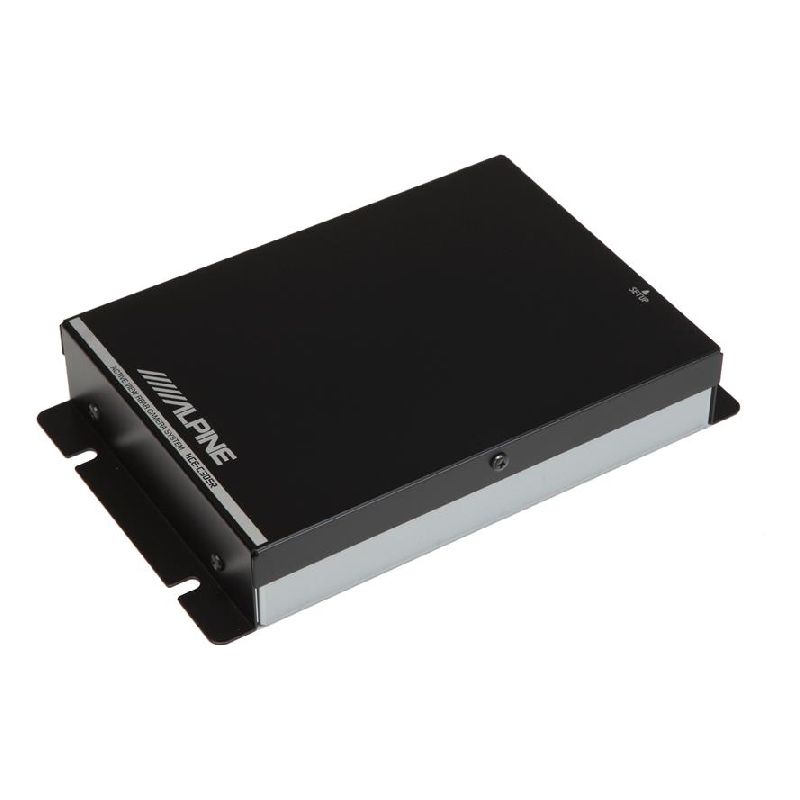

- • Active alert module
- • Tone generator (with attached 4" cable terminated by a 2-pin connector)
- • Mode switch (with attached 9.75' cable terminated by a 4-pin connector)
- • 10" System harness
- • 26.5' Camera extension cable (terminated by 4-pin connectors)
- • 9.75' Tone generator cable (terminated by 2-pin connectors)
- • 9.75' Composite video cable
- • Mounting bracket
- • L-bracket
- • (4) Self-tapping screws
- • M6x10mm screw
- • (4) M4x7mm machine screws
- • (2) Machine screws (with a lock- / flat-washer attached)
- • (7) Large cable clamps
- • (3) Small cable clamps
- • Rubber wedge
- • Large section of two-sided tape
- • Adhesive pad
- • Small section of two-sided tape
- • (2) Sections of velcro
- • Red splicer
- • Hex key
- • Owner's Manual
Why Choose Alpine HCE-C305R Universal Backup Camera?
The Most Versatile Cameras on the Market
Camera Systems expand and extend your view of the area around your vehicle. The most versatile cameras on the market, they give you more capabilities for better maneuverability and greater safety. This advanced camera not only gives you a clear view to the rear of the vehicle, it alerts you to moving objects. Using ALERT (ALpine External Recognition Technology), the camera monitors a wide, deep zone in rear of the vehicle. When a moving person or car is detected, it highlights the object on the screen and also outputs a warning sound.
The Guides Can Be Adjusted
Standard reversing situation: colored distance guides indicate the distance to any object behind your car. The guides can be adjusted to match your vehicle. Red arrows and a warning sound indicate an approaching vehicle, bicycle or pedestrian and the direction.
Multi-View
Multi-View allows you to see left and right behind your car when backing out of tight parking spots. A red warning box and sound indicate approaching vehicles and pedestrians to avoid an accident.
See What You’re Getting
Frequently Asked Questions (FAQ)
- • Will this backup camera work with my aftermarket stereo?
It is compatible with many aftermarket receivers that have a composite rear camera input. Always confirm your head unit supports an external camera before installation.
- • What does the active alert module do?
The active alert module provides audible warnings to help you detect nearby obstacles while reversing. It adds an extra layer of awareness beyond the camera's video feed.
- • Why doesn't the camera display when I shift into reverse?
This is usually caused by an incorrect reverse trigger connection, wiring issue, or incompatible receiver settings. Checking the power, ground, and reverse signal wiring typically resolves the problem.
- • Can I adjust the warning tones from the alert module?
Yes, the included mode switch allows you to configure supported alert settings and operating modes. Refer to the owner's manual for the available adjustment options.
- • Why is the camera image blurry or difficult to see?
A dirty lens, improper mounting angle, or glare can reduce image quality. Cleaning the lens and repositioning the camera usually improves visibility.
- • Is the included extension cable long enough for larger vehicles?
The included extension cable is designed to accommodate many cars, SUVs, and trucks. Measure your vehicle beforehand if you're installing it on an extra-long vehicle.
- • Can I install this system myself?
Yes, experienced DIY installers can complete the installation using the included wiring, brackets, and mounting hardware. Professional installation is recommended if you're unfamiliar with automotive electrical systems.
- • Is the camera durable enough for everyday weather conditions?
Yes, it is built to withstand rain, road spray, and typical outdoor driving conditions. Proper installation and sealed wiring connections help maximize long-term reliability.
- • Is this system worth upgrading to over a basic backup camera?
Many drivers appreciate having both a live camera view and audible obstacle alerts while reversing. The added warning system can improve confidence and safety when parking in tight spaces.
- Color : Black
- Wide Angle : Yes
Features:
- Advanced Active View Camera System: Uses motion sensors and visual indicators to detect and highlight approaching objects for enhanced safety.
- Multi-View Capability: Offers four selectable viewing modes — Standard, Panorama, Ground, and Split Left/Right — for complete rear visibility.
- Dynamic Motion Detection: Detects moving objects and highlights them in yellow, switching to red as they approach for visual awareness.
- Audible Proximity Alerts: Emits warning tones that increase in frequency as objects move closer, aiding in precise maneuvering.
- Automatic Ground View Activation: Automatically switches to the downward “ground view” when objects are very near, ideal for parking and trailer hookups.
- High-Resolution Imaging: Provides crisp, detailed visuals to ensure safer reversing in all conditions.

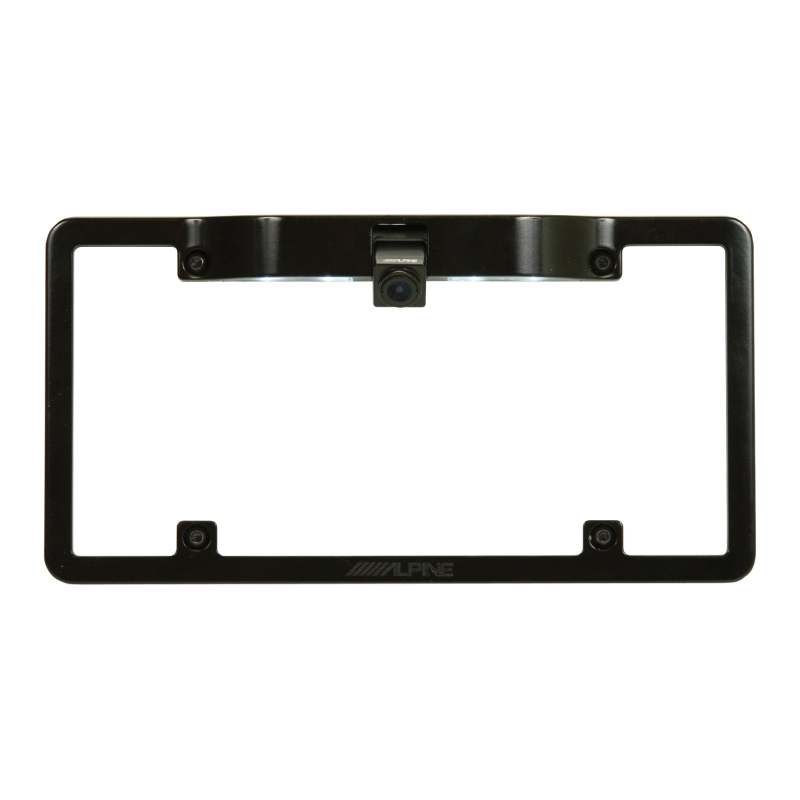

- Flexible Mounting Options: Includes a universal mounting bracket and supports the Alpine KTX-C10LP license plate mounting kit (sold separately).
Specifications:
- Camera Type: Rear
- Resolution: 307,200 pixels
- Parking Guidelines: Yes
- Lux Rating: 1.5 (minimum)
- Selectable Views: Rear / Panorama / Corner / Ground
- Reversed Image: Mirror
- Horizontal Viewing Angle: 190°
- Vertical Viewing Angle: 150°
- Wireless: No
- Plug Type: Composite video
- UPC: 793276011978
- Weight: 5.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
