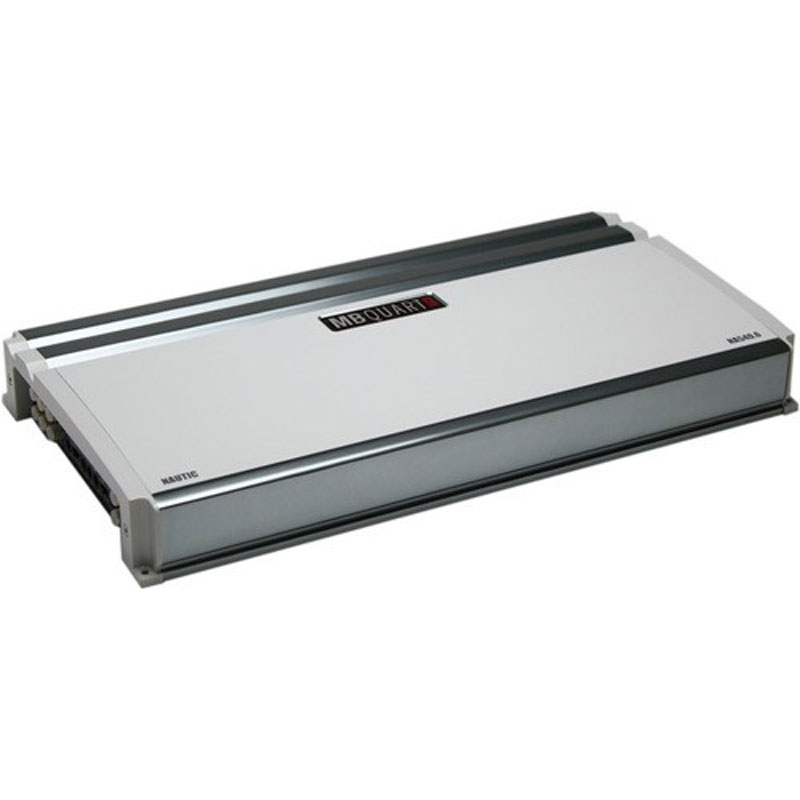

Six channel Nautic Marine audio amplifier with onboard electronic crossover, bass boost and adjustable input sensitivity. All six channels are full range.
General Features:
- CIRCUIT TOPOLOGY Class A/B
- VOLTAGE GAIN 0.2V~6.0V
- SIGNAL TO NOISE >93dB
- FREQUENCY RESPONSE 10Hz-45kHz
- CROSSOVER TYPE
- Electronic 12dB Per Octave
- CROSSOVER FREQUENCY RANGE CH1 & CH2
- Hi Pass 250Hz - 4Khz
- Low Pass 40Hz-250Hz
- CROSSOVER FREQUENCY RANGE CH3 & CH4
- Hi Pass 250Hz - 4Khz
- Low Pass 40Hz-250Hz
- TONE CONTROL
- Bass EQ [email protected]
- SUBSONIC FILTER N/A
- Maximum Power : 540 Watts
- Number of Channels : 6
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 70 A
Product Highlights:
- POWER @ 1-OHM N/A
- POWER @ 2-OHMS 6 x 90 watts
- POWER @ 4-OHMS 6 x 60 watts
- MONO BRIDGED @ 4-OHMS 3 x 180 watts
- TOTAL CHANNELS 6
- AUDIO INPUTS RCA
- AUDIO OUTPUTS Full Range RCA
- WIRE GAUGE 12V/GND 4-GA
- WIRE GAUGE SPEAKERS 10-GA
- FUSING 70 Amps
- WEIGHT 11.1 lbs (5.03 kilos)
- DIMENSIONS 17.01" x 9.4" x 2.2" (43.4 23.8 x 5.58cm)
- UPC: 806576221906
- Weight: 12
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
