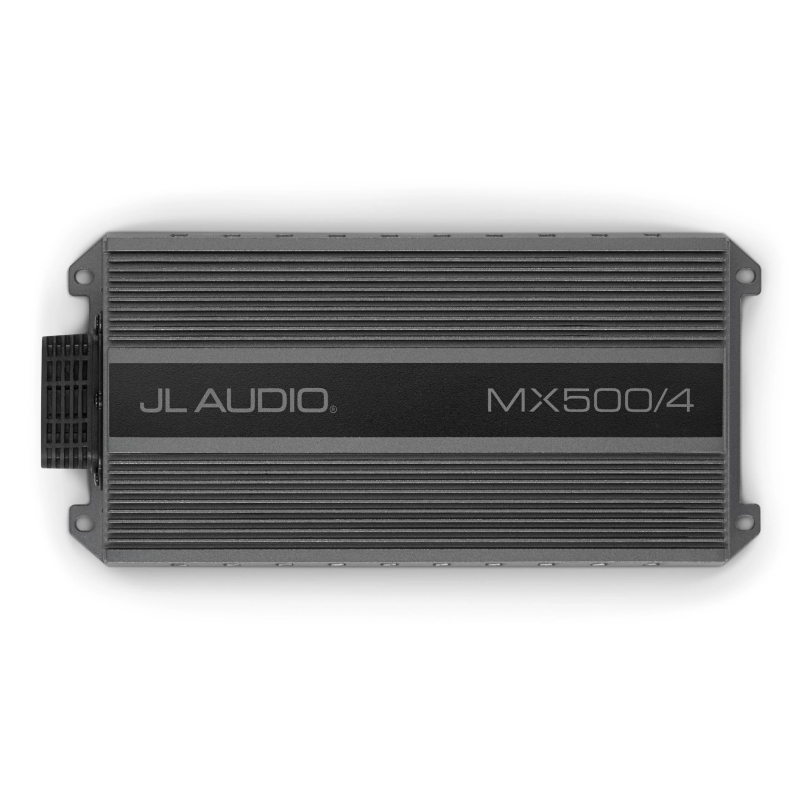

JL Audio MX500/4 500 W 4 Ch. Class D Full-Range Amplifier

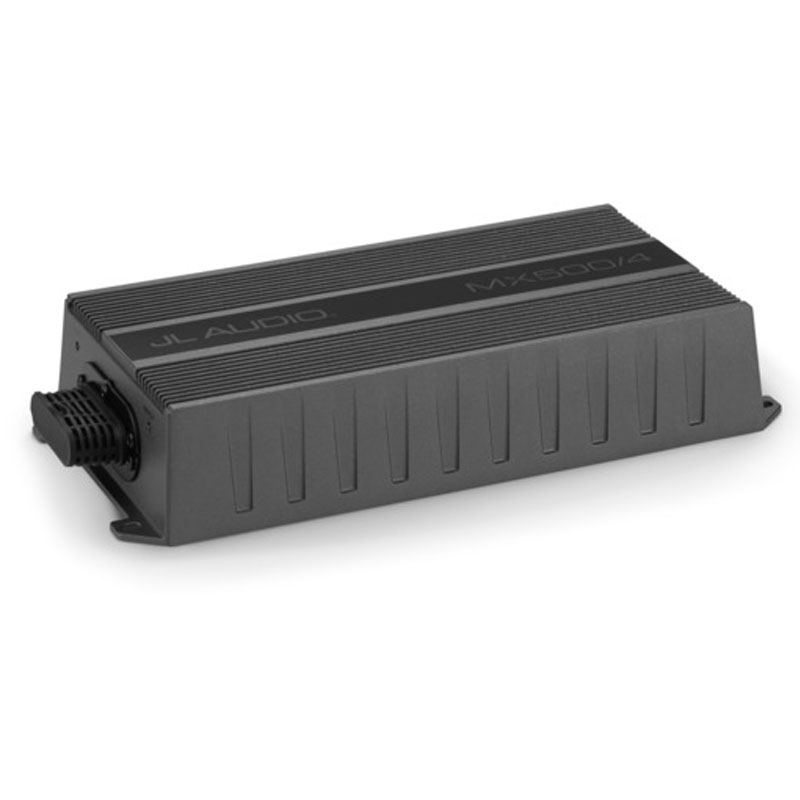

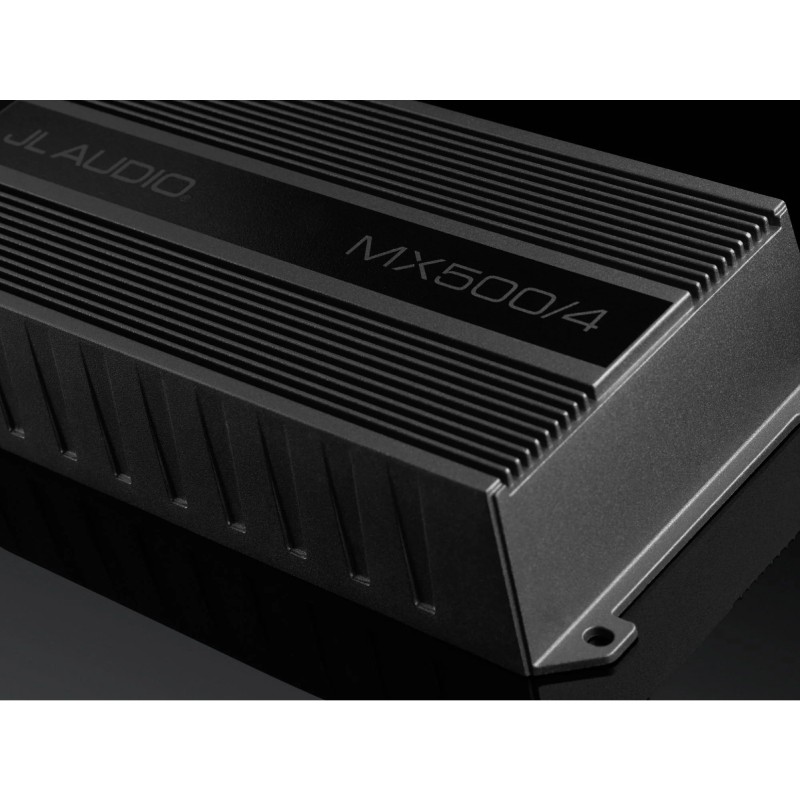

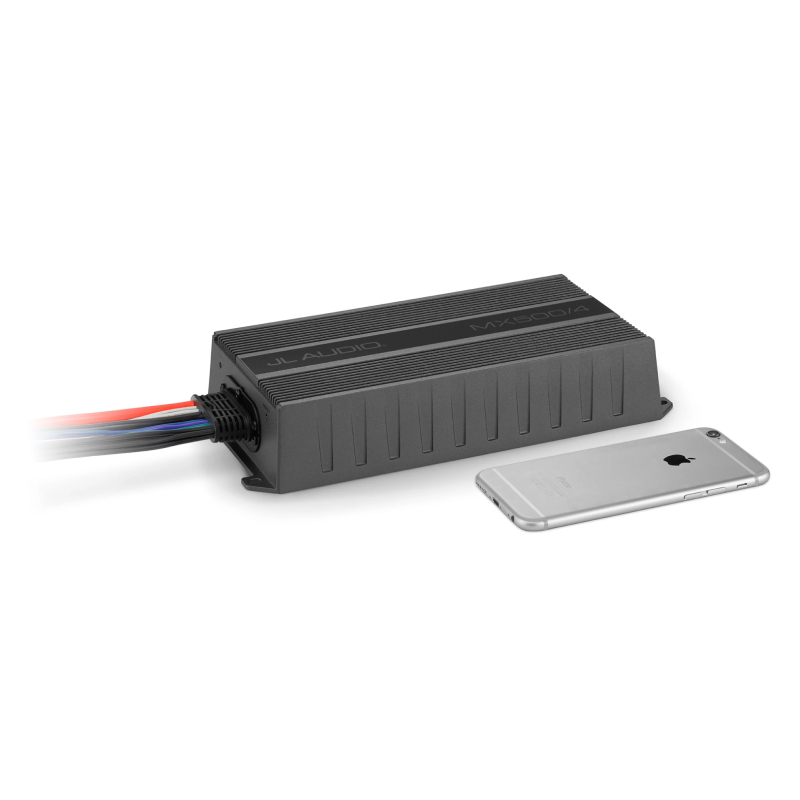

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs JL Audio's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

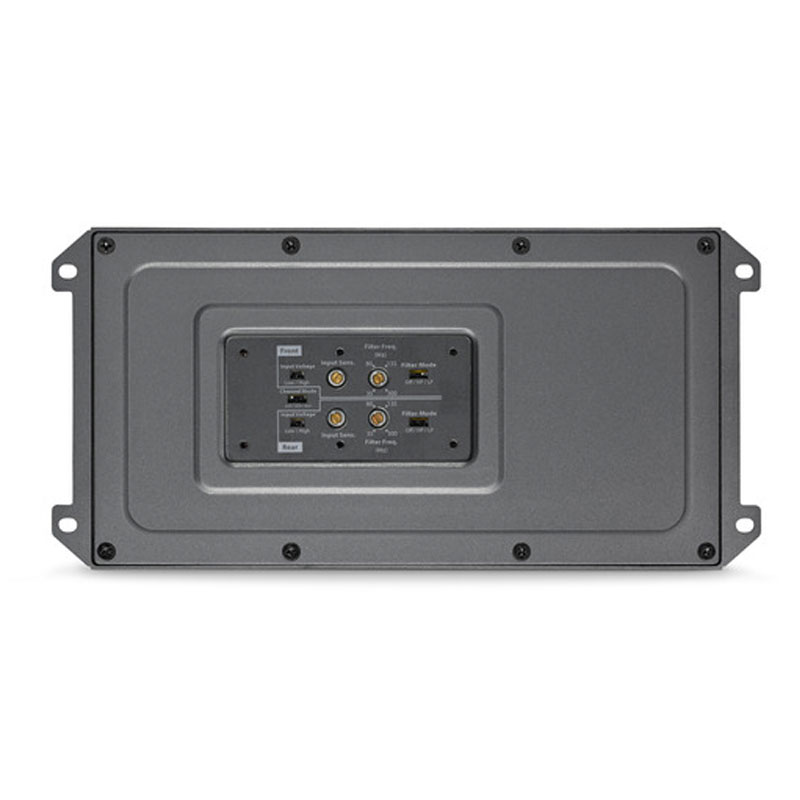

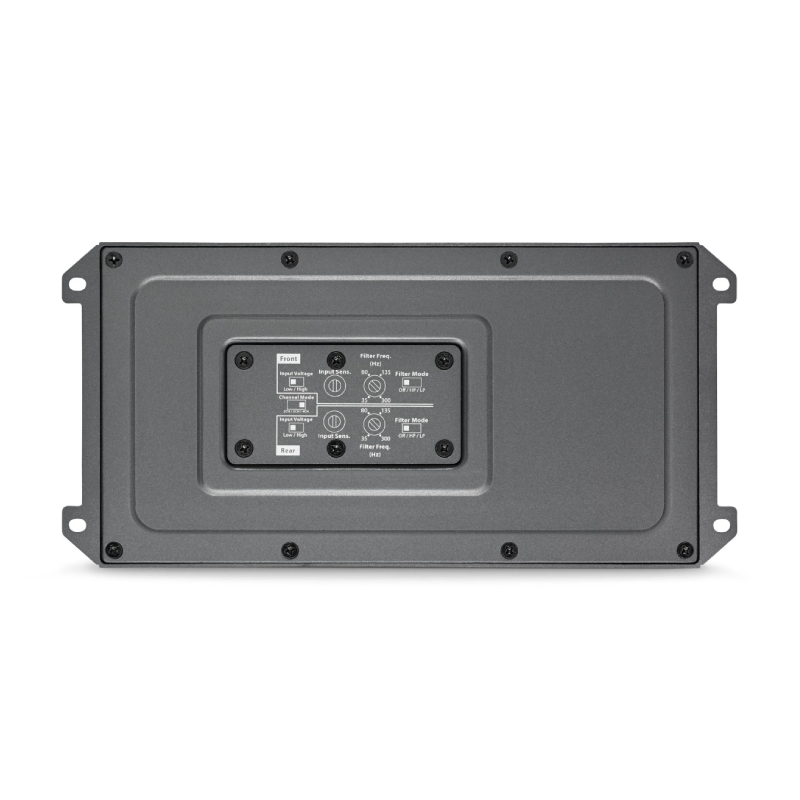

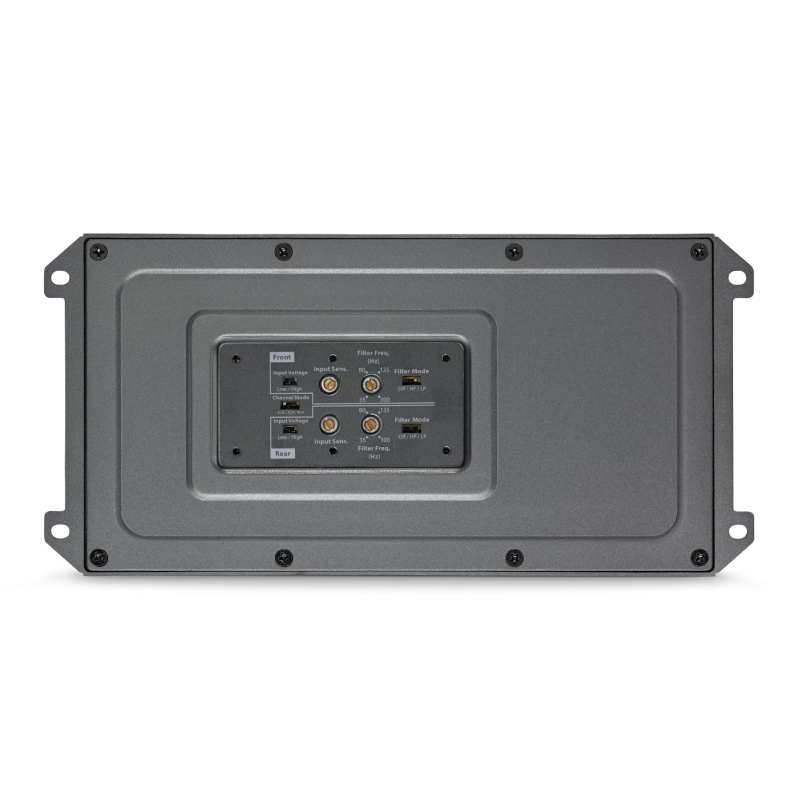

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms. Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

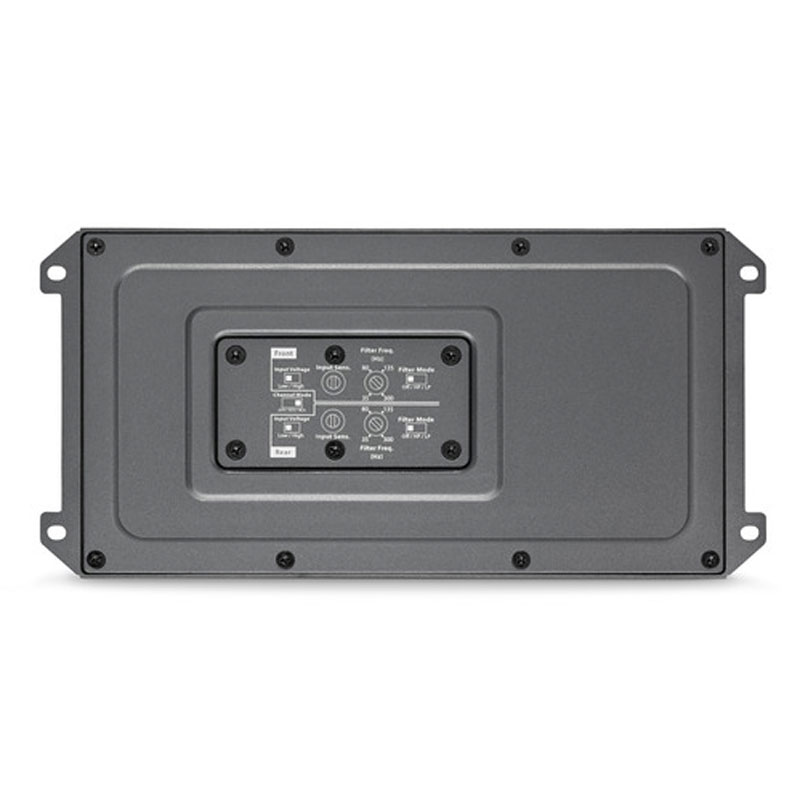

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Low Frequency response : 35-300 Hz
High Frequency Response : 35-300 Hz
Number of Channels : 4
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 70x4 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 50x1 A
Amplifier Class: D
RMS Power Output (Watts x Channels): 70 x 4
Bass Boost Frequency: N/A
Width (inches): 9-3/8
Input Voltage: 14.4v
Minimum Impedance Bridged: 4
Preamp Outputs: No
Height (inches): 1-13/16
Power at 2 Ohms (Watts x Channels): 125 x 4
Frequency Response at Rated RMS Power: 20-20k Hz
Peak Power Output (Watts x Channels): N/A
Fuse Rating: 50
THD at Rated RMS Power: 1%
Bridged Power (Watts x Channels): 250 x 2
Signal to Noise Ratio: 88 dB
Minimum Impedance Unbridged: 2
Low-Pass Crossover Frequency: 35-300 Hz
Low-Pass Slope (dB/octave): 12 dB/oct
High-Pass Crossover Frequency: 35-300 Hz
High-Pass Slope (dB/octave): 12 dB/oct
Bass Boost: No
Fan Cooled: No
Speaker Level Inputs: Yes
Depth (inches): 4-9/16
