Rockford Fosgate PP4-T Punch PRO Series 1.5" 100W Peak Power Handling at 4-Ohms, Aluminum Bullet Tweeter with Compression Horn Design
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

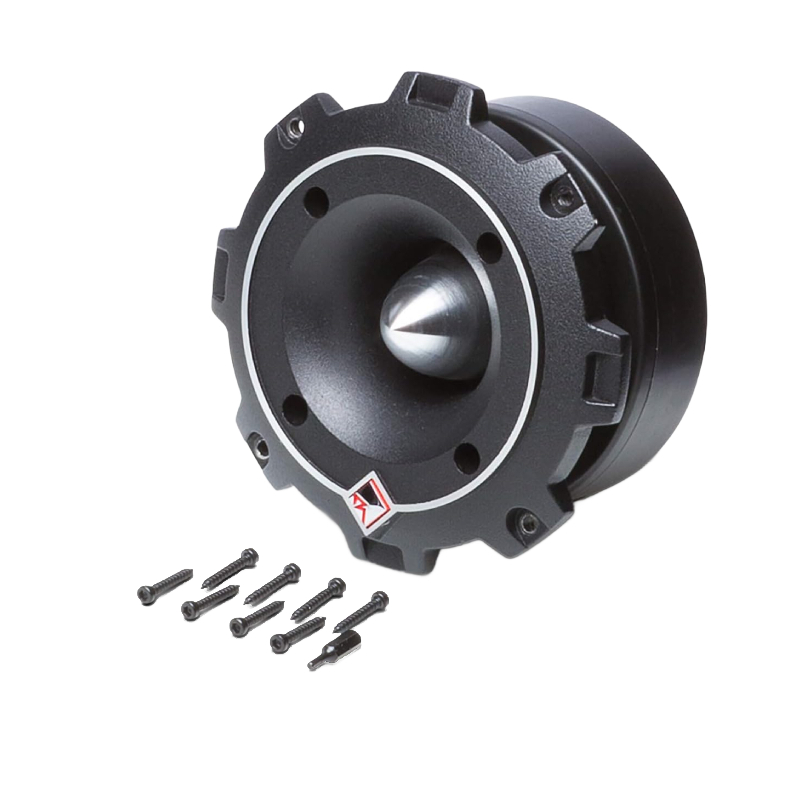

What's Inside?
- • 100W Max Power Tweeter
- • (4) 1" Self-tapping Allen head screws
- • 3mm Allen head bit
- • 3mm Allen wrench
- • Installation and Operation manual
- • Owner's Manual
Why Choose Rockford Fosgate PP4-T Car Tweeters?
High Power Diaphragm
The PP4-T Punch Pro is a 1.5" tweeter with an integral 6 dB high-pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You'll be proud, because these things are loud! Package includes mounting hardware.
Cope With High Volume Levels
Rockford Fosgate knows that you like it loud, so they built a tweeter just for you. Using technology taken from concert sound systems, they built the Punch Pro PP4-T tweeter to take your system to the same kind of sound levels that you experience in your local clubs. This tweeter features an aluminum cone and phase plug that shrug off the heat, so it'll handle up to 50 watts RMS. The oversized motor structure and high-temperature voice coil help this tweeter cope with high volume levels, while its high sensitivity rating means you'll get maximum performance from your amp.
Frequently Asked Questions (FAQ)
- • Why do the tweeters sound too bright or harsh?
Excessive treble is usually caused by incorrect crossover settings or EQ adjustments. Lowering the treble level or repositioning the tweeters can create a smoother, more balanced sound.
- • Why isn't one tweeter producing any sound?
Inspect the crossover, speaker wiring, and polarity. Loose connectors, damaged wires, or a faulty crossover are common reasons a tweeter stops working.
- • Can I connect these tweeters directly to my factory radio?
They can work with some factory systems, but using the proper crossover and adequate amplifier power will deliver significantly better clarity and protect the tweeters from low frequencies.
- • Why do they distort when I increase the volume?
Distortion is commonly caused by amplifier clipping, excessive gain, or incorrect crossover settings. Proper tuning helps maintain clean high-frequency output and protects the speakers.
- • Do I need a crossover for installation?
Yes. A crossover blocks damaging low frequencies from reaching the tweeters, improving sound quality while helping extend the life of the speakers.
- • Why does the soundstage seem uneven after installation?
Uneven imaging is often caused by incorrect mounting angles, reversed polarity, or different output levels. Verify the wiring and mount both tweeters in matching locations.
- • Can I upgrade only the tweeters without replacing my door speakers?
Yes, but pairing them with compatible midrange speakers usually provides a more balanced frequency response and noticeably better overall sound quality.
- • Why do I hear buzzing or crackling from the tweeters?
Buzzing may result from loose mounting hardware, damaged wiring, amplifier clipping, or electrical interference. Inspect the installation and confirm all connections are secure.
- • Where should I mount the tweeters for the best performance?
Factory tweeter locations or the A-pillars usually provide the best results. Proper placement improves stereo imaging, vocal clarity, and the overall listening experience.
- • Can these handle a high-powered aftermarket amplifier?
Yes, when used with the recommended crossover and properly adjusted gain settings. Correct tuning allows them to perform at high volume without unnecessary distortion or damage.
- Diameter : 1.5 Inch
- Sensitivity : 105 dB
- Frequency Response : 4000-20000 Hz
- Peak Power Handling : 100 Watts
- RMS Power Handling : 50 Watts
Features:
- Aluminum diaphragm
- All Metal Input Spring Terminal Connection
- High Temp Kapton Former Voice Coil
- Die Cast Aluminum Housing
- Billet stock machined aluminum phase plug
- Mounting hardware included
- Sold as individual units (not in pairs)
- Built-in 6dB/Octave crossover
- 1 Year Warranty
Specifications:
- Configuration: Tweeter
- Midrange Diameter (in): N/A
- Midrange Depth (in): N/A
- Tweeter Diameter (in): 1.5"
- Tweeter Depth (in): 2.59"
- (65.8mm)
- Frequency Response: 4kHz - 20kHz
- Nominal Impedance: 4-Ohm
- Power Handling (RMS): 50 Watts RMS
- 100 Watts MAX
- Crossover: 4.5kHz @ 6dB/Octave
- Sensitivity
- (dB @ 1 watt/1 meter): 105
- Grilles Included: No
- Mounting Hardware: Yes
- Shipping Weight: 4.05 Lbs. 1.83 Kg)
- Billet stock machined aluminum phase plug
- Replaceable diaphragm
- 1.5" horn design
- UPC: 780687340438
- Weight: 3.25
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
