Orion HCCA84N HCCA Pro Series 8" 500W RMS (2000W Peak Power Handling) 4 Ohm, Midrange Car Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

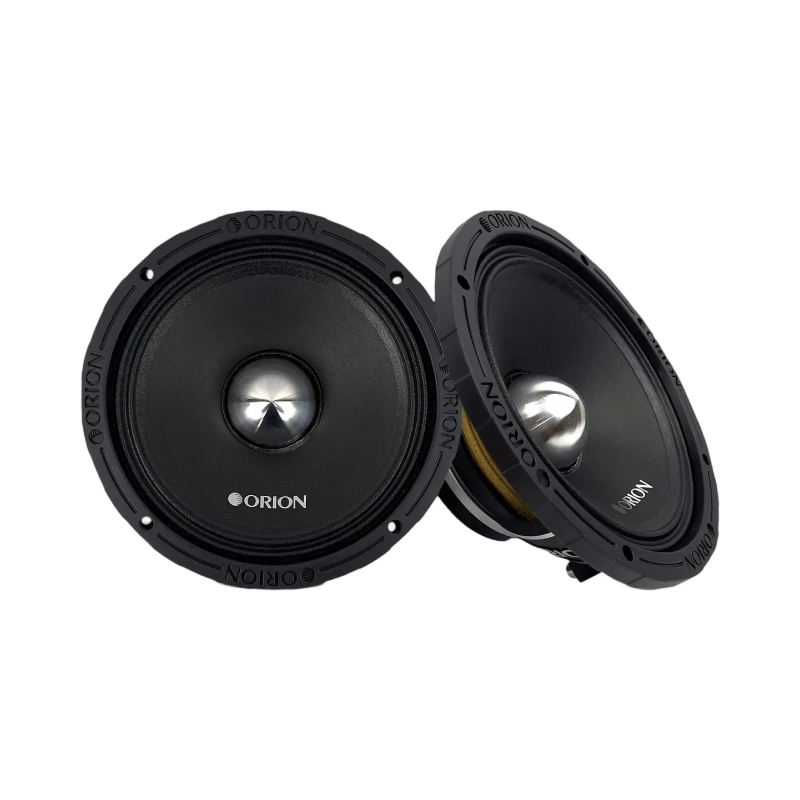

- • (2) 8" HCCA Pro Series Midrange Car Speakers
- • Owner's Manual
High-Efficiency Neodymium Midrange Speakers
Enjoy massive, crystal-clear sound with precision and power for an immersive audio experience. Equipped with a lightweight yet powerful neodymium magnet, these speakers deliver high output and exceptional clarity without adding bulk, making them perfect for any car audio setup.
Precision Midrange Speakers with Cast Aluminum Basket
Engineered for stability and clarity, these speakers feature a durable cast aluminum basket that minimizes distortion and withstands high-volume performance. The bullet phase plug enhances midrange clarity and improves sound dispersion, delivering pinpoint-accurate audio for an exceptional listening experience.
High-Performance Midrange Speakers for Audiophiles
Designed to handle extreme power without compromising sound quality, these speakers deliver clean, dynamic audio. Perfect for audiophiles, they provide bold, accurate mids and unmatched clarity, elevating your car audio system to the next level.
Frequently Asked Questions (FAQ)
- • Why Is the HCCA84N Much Louder Than My Previous 8-Inch Mids?
Its exceptionally high 99.9 dB sensitivity allows the HCCA84N to produce very strong output, and owners have specifically described the speaker as extremely loud and clear.
- • Why Does the HCCA84N Sound Weak When Connected to a Small Amplifier?
Although its high sensitivity allows efficient output, the 500W RMS power rating means a low-powered amplifier may not provide the headroom needed to reach the speaker's full potential.
- • Can the HCCA84N Play Lower Frequencies in a Sealed Enclosure?
Some owners report getting useful low-frequency punch from the HCCA84N in sealed boxes, but its published response begins around 110 Hz, so it should not be expected to replace a dedicated subwoofer.
- • Why Does the Speaker Sound Harsh When the Volume Gets Extremely High?
The HCCA84N can produce very high acoustic output, and excessive amplifier gain, clipping, or aggressive equalization can make the upper-midrange presentation become uncomfortable at extreme listening levels.
- • Why Does the HCCA84N Need a Strong Amplifier Connection?
A speaker capable of handling 500W RMS can draw substantial power from the amplifier, so undersized wiring or weak terminals can become noticeable when the system is pushed hard.
- • Why Does the HCCA84N Sound Different in a Large Box Versus a Compact Box?
The enclosure changes how the midrange driver loads and controls its cone, which can alter punch, response, and perceived output even when the same speaker and amplifier are used.
- • Why Can the HCCA84N Be Difficult to Mount in Some Custom Builds?
The speaker has a 7.17-inch cutout, 8.23-inch overall diameter, and approximately 3.19-inch mounting depth, so limited mounting space or insufficient clearance can make installation challenging.
- • Why Does the HCCA84N Sound Clear but Not Produce Deep Bass?
The driver is designed primarily as a high-output midrange, with a specified 110 Hz–12 kHz response, so deeper bass should generally be handled by a separate woofer or subwoofer.
- • Can the HCCA84N Be Used Without a Separate Tweeter?
It can reproduce a broad portion of the vocal and midrange spectrum, but its 12 kHz upper response means a dedicated high-frequency driver may be needed when the system is designed for extended treble reproduction.
- • Why Does the HCCA84N Start Sounding Distorted After Raising the Volume?
Distortion can result from amplifier clipping, excessive equalization, an unsuitable crossover point, or driving the speaker beyond its mechanical or thermal limits rather than necessarily indicating a defective driver.
- Diameter : 8 Inch
- Maximum Power : 2000 Watts
- Sensitivity : 99.9 dB
- Impedance : 4 Ohm
- Frequency Response : 110-12000 Hz
- Peak Power Handling : 2000 Watts
- RMS Power Handling : 500 Watts
Features:
- Massive, Clear Sound: Delivers powerful, precise audio for an immersive listening experience.
- High-Efficiency Neodymium Magnet: Lightweight yet powerful, producing crystal-clear output without bulk.
- Durable Cast Aluminum Basket: Ensures stability, minimizes distortion, and handles high-volume performance.
- Bullet Phase Plug: Enhances mid-range clarity and improves dispersion for pinpoint accuracy.
- Built for Performance: Handles extreme power while maintaining clean, dynamic sound.
- Perfect for Audiophiles: Elevates your car audio system with bold, accurate mids and unmatched clarity.
Specifications:
- Speaker Size: 8"
- Voice Coil Configuration: 4 Ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 110 Hz – 12 kHz
- Voice Coil Diameter: 2.5"
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grills Included: No
- Mounting Depth: 81mm / 3.19"
- Overall Depth: 90mm / 3.54"
- Cutout Diameter: 182mm / 7.17"
- Overall Diameter: 209mm / 8.23"
- UPC: 818550011090
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
