RP5-GM32 RadioPro Radio Replacement Interface for GM Vechiles
We are a PAC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

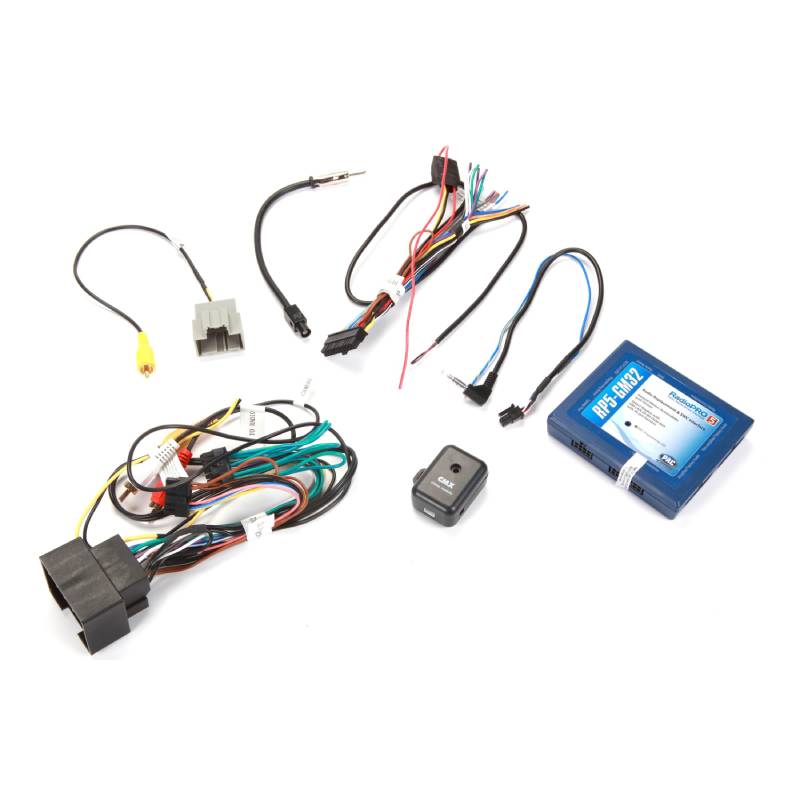

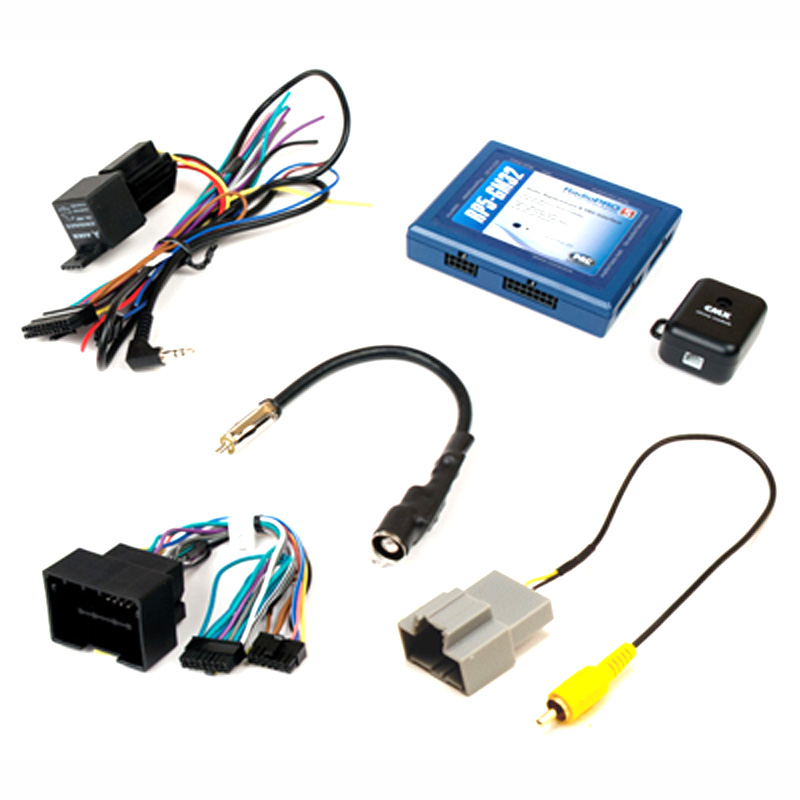

•Radio replacement/SWC interface module (for GM LAN 29-bit databus)

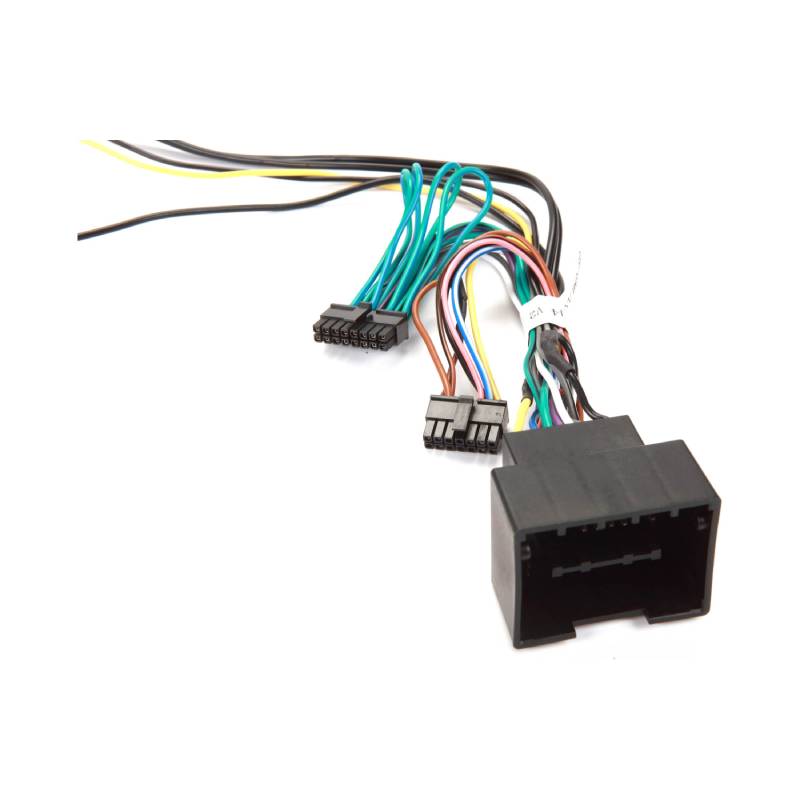

•44-Pin harness (OS-GMLAN44)

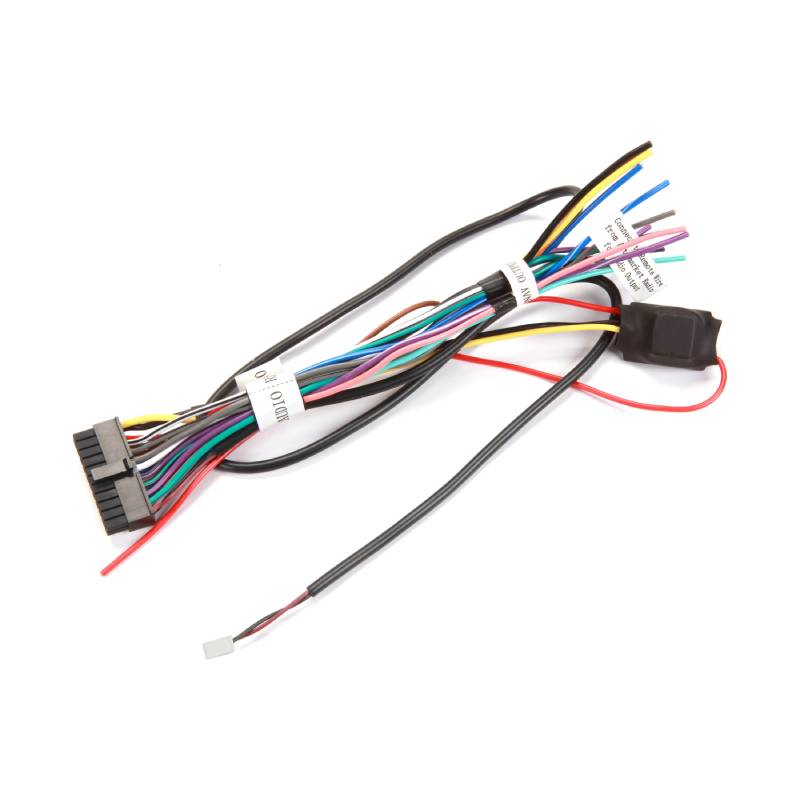

•Radio harness (RP5-RADPWRAUDIO)

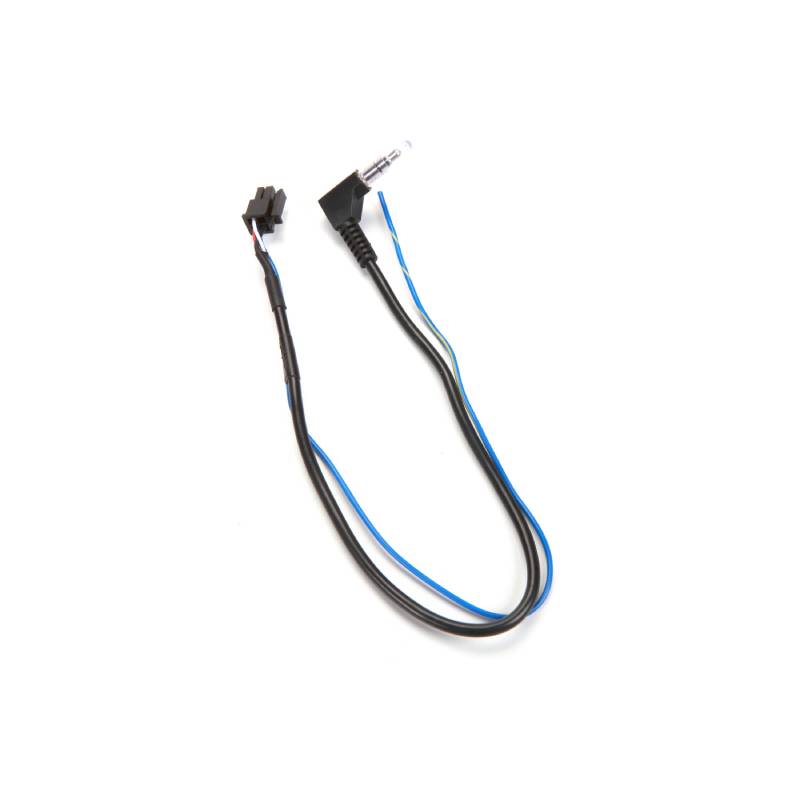

•Steering wheel control harness (4-pin connector to 3.5mm/blue wire)

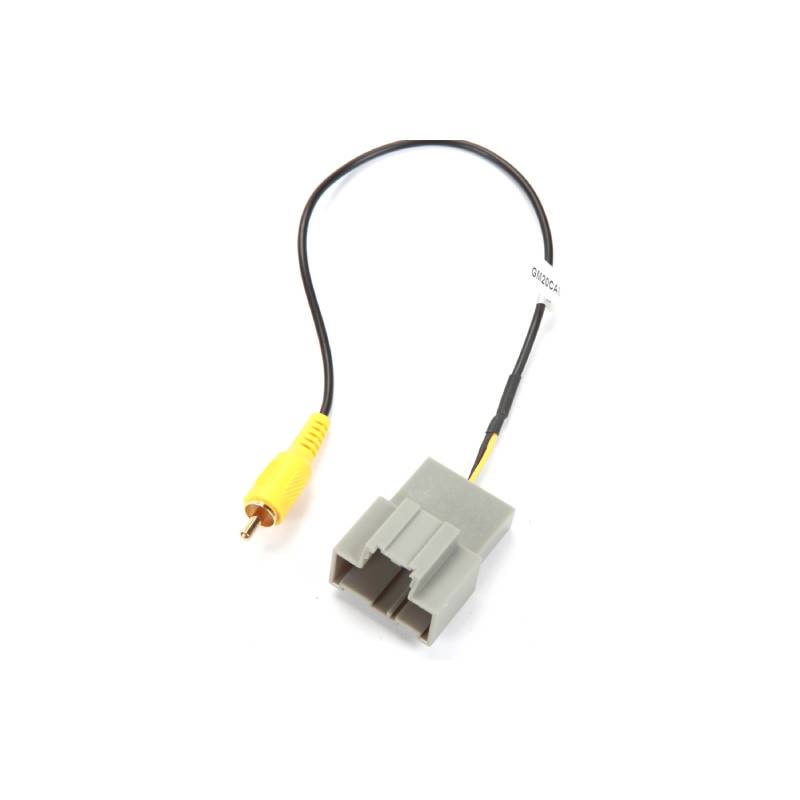

•Backup camera harness
Radio Replacement Interface with Built-In OnStar® Retention, Pre-Programmed Steering Wheel Control Retention and Navigation Outputs
An all-in-one radio replacement and SWC interface, the innovative RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation-based output signals, and other features that save time and money during installation.
Keep Your Factory Features
PAC's RadioPRO5 RP5-GM32 wiring interface enables you to install a new car stereo and retain useful factory functions in your 2012-up GM truck or SUV with factory navigation. You can upgrade to the higher sound quality of an aftermarket receiver while maintaining your factory-installed OnStar®, factory amplifier, Bluetooth®, safety warning chimes, Retained Accessory Power (RAP), and rear seat controls.
If you're installing a navigation receiver, this interface also features the Vehicle Speed Sensor (VSS), parking brake, and reverse connections you need., and reverse connections you need.
The RadioPRO5 interface retains your factory steering wheel audio controls with your new stereo. The interface comes pre-programmed with the factory control functions, or you can reassign the functions of your factory buttons, or even assign two functions to each of your factory buttons.
Vehicle Make : GM
Retains OnStar when the factory radio is replaced
Retains Factory Bluetooth (2009+ model vehicles)
Retains rear seat audio controls
Retains all warning chimes (chime module included)
Retains back-up sensors/park assist
Retains factory BOSE audio systems
Retains factory premium BOSE audio (Y91 digital. does not support fading)
Built in pre-programmed SWC retention
Retains factory reverse camera
Dual zone function
Chime volume adjustment (factory buttons)
OnStar volume adjustment
Retained accessory power output (R.A.P.)
Reverse Wire output
VSS (Vehicle Speed Sense) output
Parking brake output

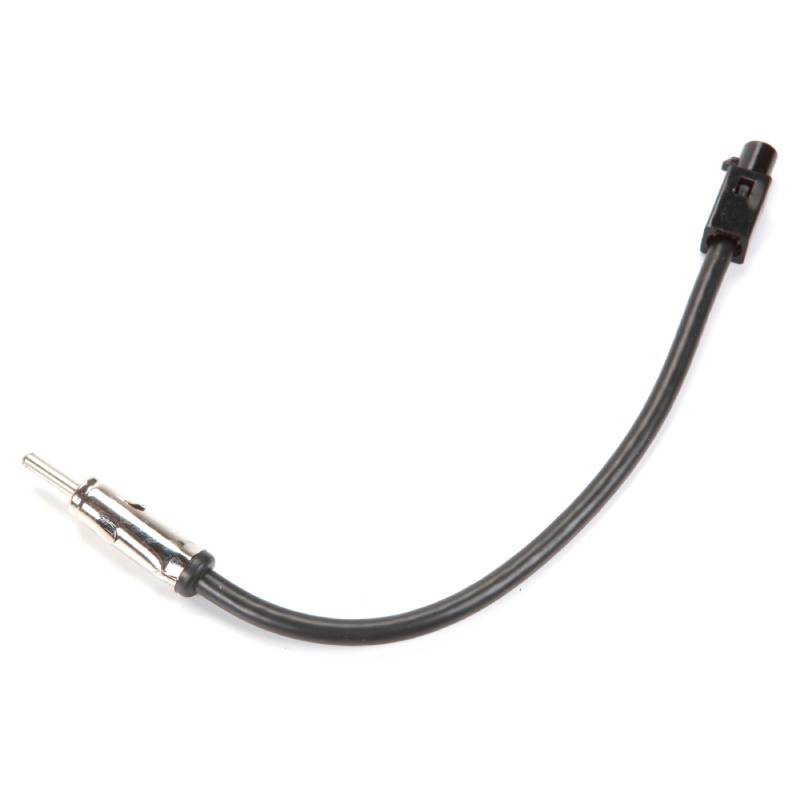

Includes antenna adaptor
Retains lane departure warning system
Retains OnStar Turn-By-Turn voice prompts
In package updatable using the PAC-UP
An all in one radio replacement and SWC interface, the innovative new RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation based output signals
(Combines OS-4 & SWI-RC Interface)
Does not retain factory satellite radio
For use in the following vehicles:
All 2012-2013 GM trucks and SUVs equipped with factory navigation radios
2012+ 2500 & 3500 trucks equipped with factory navigation radios
2012-2013 GM trucks & SUVs equipped with factory non-navigation radios must use the RP5-GM31
2012+ 2500 & 3500 trucks equipped with factory non-navigation radios must use the RP5-GM31
2014+ Silverado & Sierra 1500 series trucks must use the RP5-GM51
In Premium Amplified Systems there will be no fading capability of the aftermarket stereo
Does not retain factory XM tuner. This is built into the factory radio and is removed when the radio is removed.
Sony Bluetooth SWC commands are only supported with revision 22.214.171.124 or higher
