Crunch CS5768CX

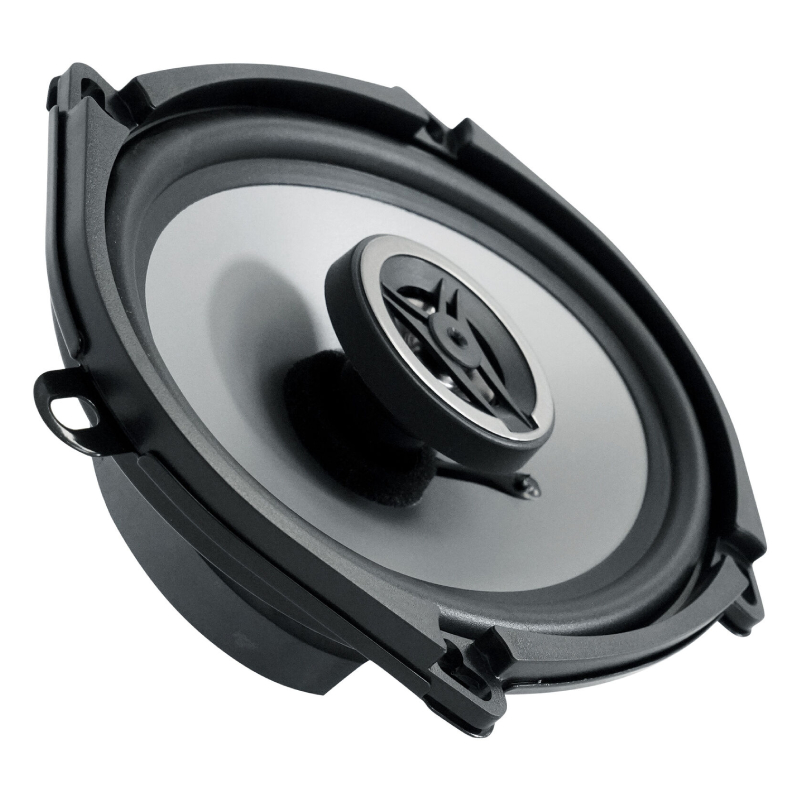

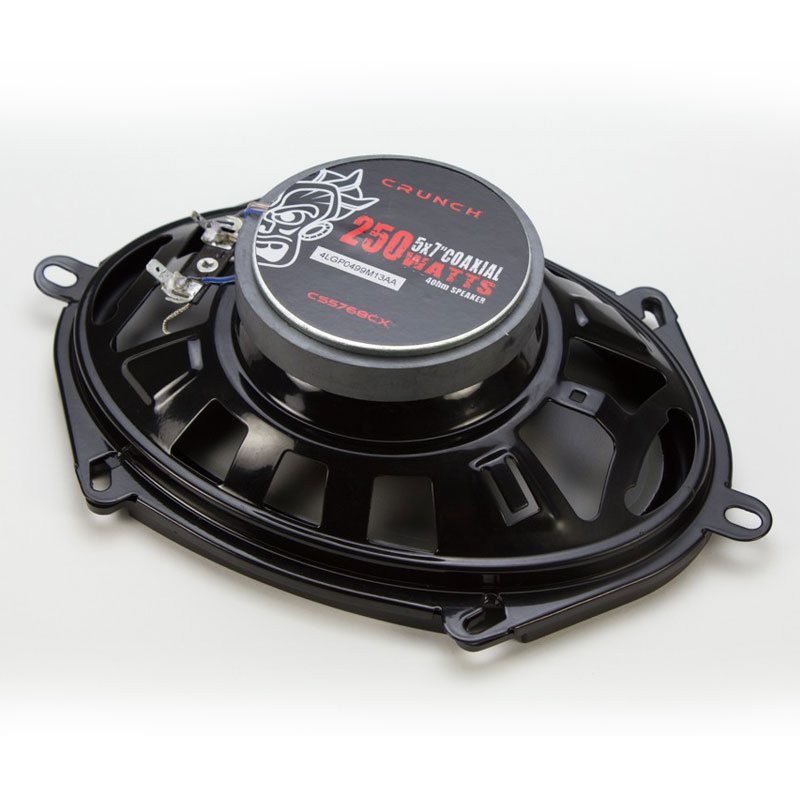

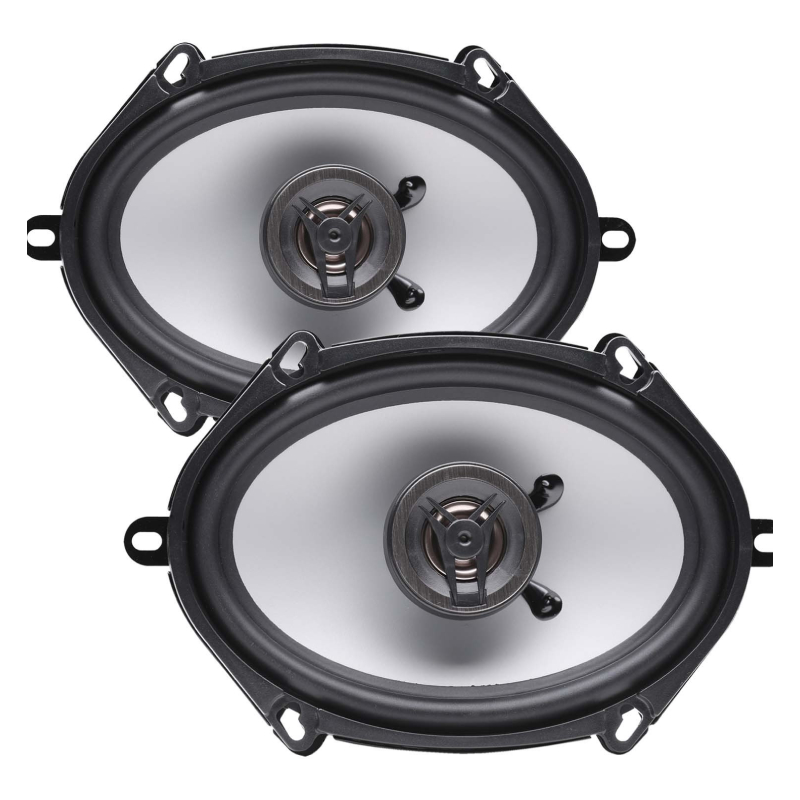

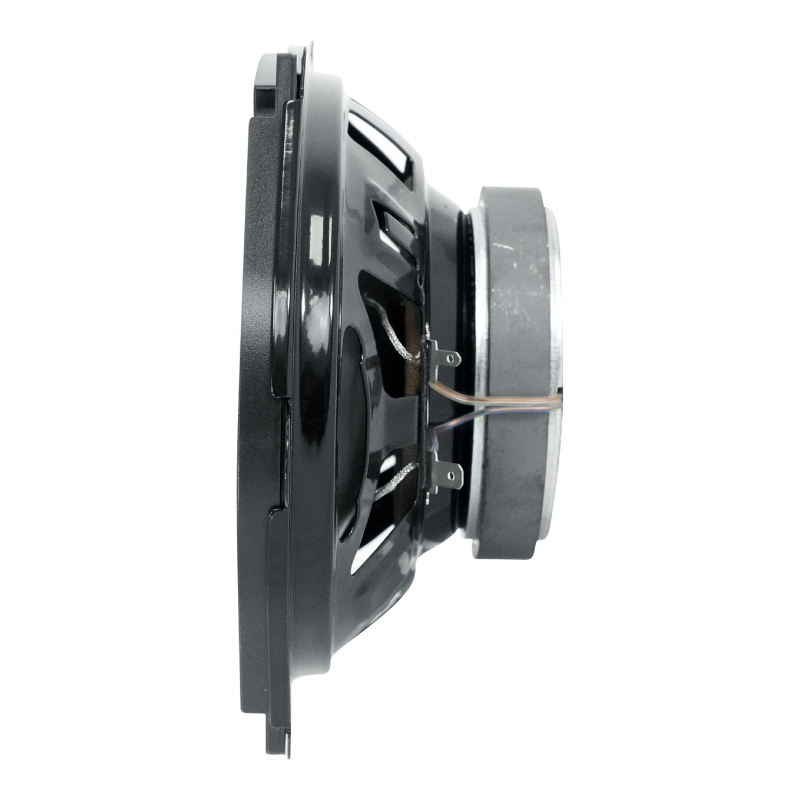

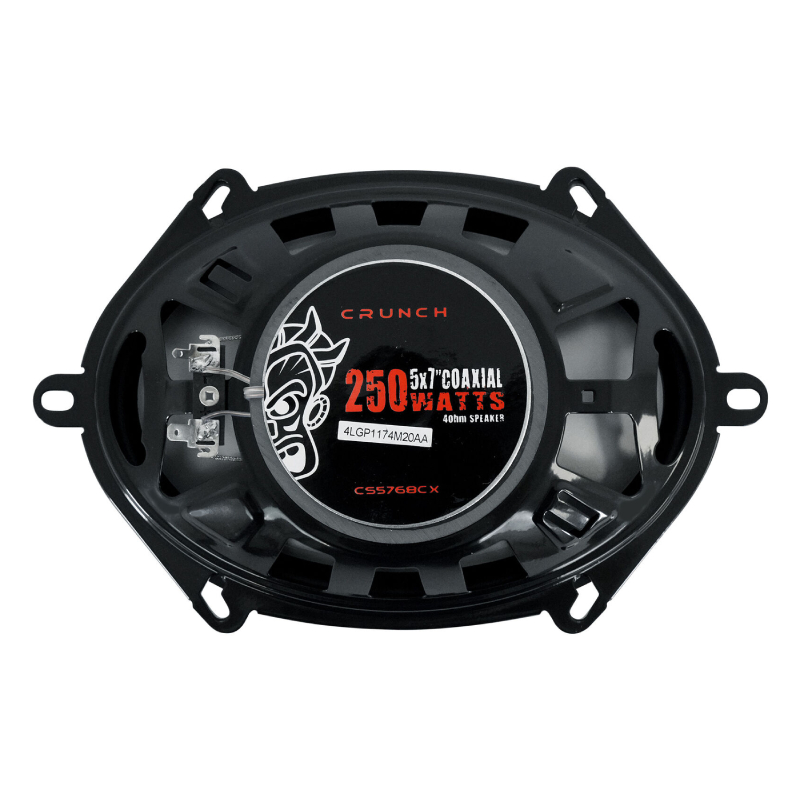

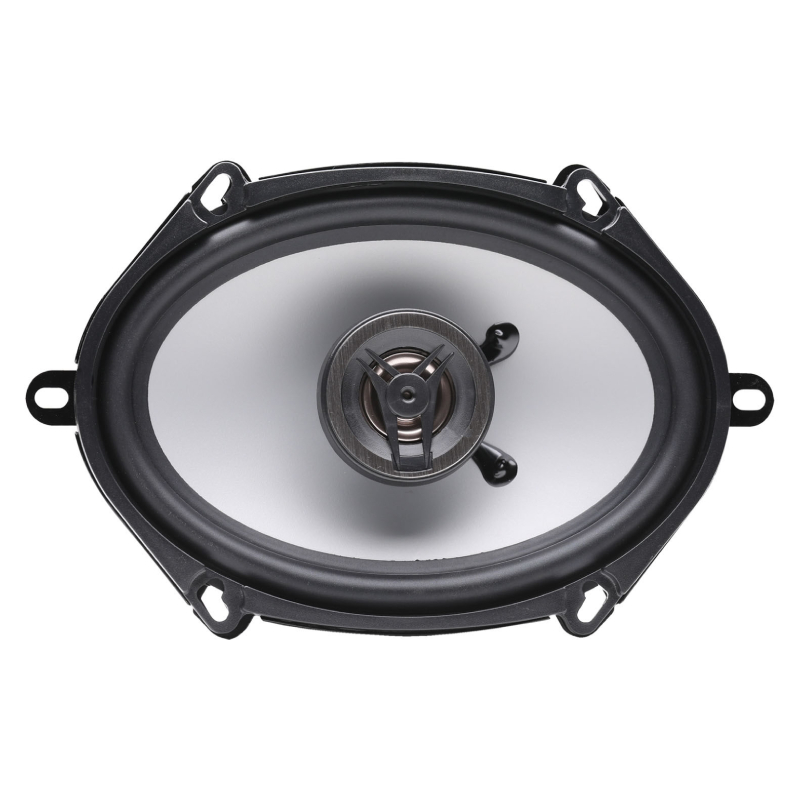

alternate product image 1alternate product image 2alternate product image 3
Item# 37013 / Condition:  Brand New    Review this product

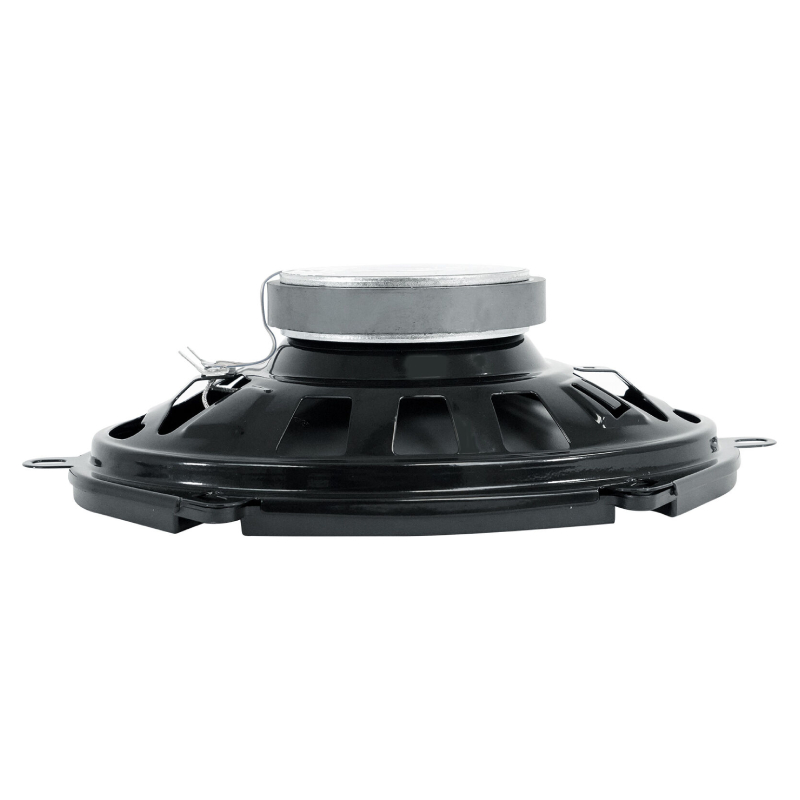

Crunch CS5768CX

CS5768CX
5x7 / 6x8" 2-way 250 Watts V-Drive Series Full Range Automotive Speakers
$31.99

FREE Shipping in US 48!

Save 1% | Reg. Price $32.46 In Stock
Add Extended Warranty
Crunch Banner

Crunch CS5768CX

Crunch 5x7/6x8 Inch 2 way 250 watt speaker utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones

Crunch CS5768CX

General Features:

  • TYPE: 5 x 7" - 6 x 8" Coaxial Full Range Speaker
  • CATEGORY: Coaxial Speakers
  • PEAK POWER HANDLING (CEA426B): 250 watts
  • SENSITIVITY (1 WATT/1 METER): 88dB
  • IMPEDANCE: 4 ?
  • RMS POWER HANDLING(CEA426B): 125 watts
Crunch CS5768CX


Specifications

  • RMS POWER HANDLING(CEA426B)
    125 watts
  • PEAK POWER HANDLING (CEA426B)
    250 watts
  • SPEAKER IMPEDANCE
    4 ?
  • FREQUENCY RESPONSE +/- 10DB
  • FREQUENCY RESPONSE +/- 3DB
    46Hz-20kHz
  • SENSITIVITY (1 WATT/1 METER)
    88dB
  • CROSSOVER POINT
    4K Hz
  • CROSSOVER SLOPE
    12dB
  • MOUNTING DIAMETER/CUT OUT
    5.67
  • OUTSIDE DIAMETER
    8.60 x 5.56 No Grill
  • MOUNTING DEPTH/CHASSIS DEPTH
    2.13
  • PRODUCT DIMENSIONS
    12.75 x 9.63 x 3.69 in
    30.96 x 24.4 x 9.3 cm
  • PRODUCT WEIGHT
    3.4 lbs (1.5 kg)

Features & Benefits

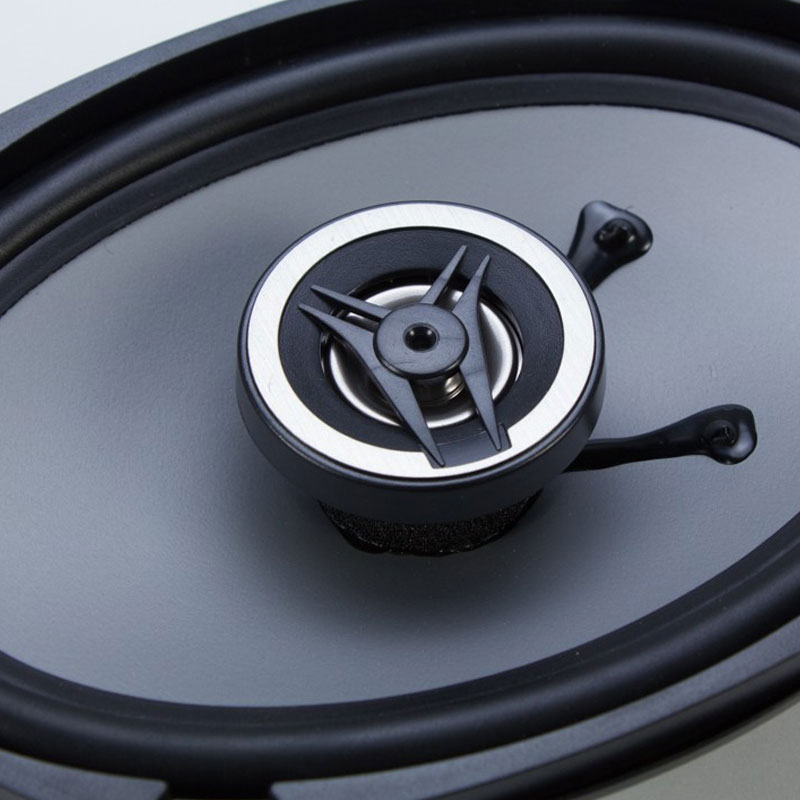

  • TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
  • SURROUND: UV Resistant Rubber Surround Moisture Resistant Rubber Surround with high Mid-Bass Impact
  • CONE: Silver Alpha-Cellulose Poly Cones Produces musical midrange and bass tones while remaining light weight
  • SURROUND / CONE COUPLING: High Temperature Adhesive The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
  • GASKET: Textured ABS Assures a ridged linear seal to the mounting surface
  • TINSEL LEADS: Braided Highly conductive while remain flexible during high power applications
  • VOICE COIL: Pure Copper Creates strong magnetic field with a very thin extrusion
  • VOICE COIL FORMER: Kapton Lightweight and efficiently dissipates heat
  • SPIDER: Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
  • COOLING SYSTEM: Over-Coil Air is exchanged over the voice coil through the spider
  • CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
  • CROSSOVER SPECIAL: 6dB Internal Integrated into the design to assure smooth midrange to tweeter frequency transitions
  • FRAME: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
  • MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
  • CONNECTORS: Spade Use spade connectors or solder direct for the best connection
  • GRILLS: No. These speakers are typically installed behind an OEM panel
  • TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
  • TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
  • TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 806576222101
  • Weight: 4
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
