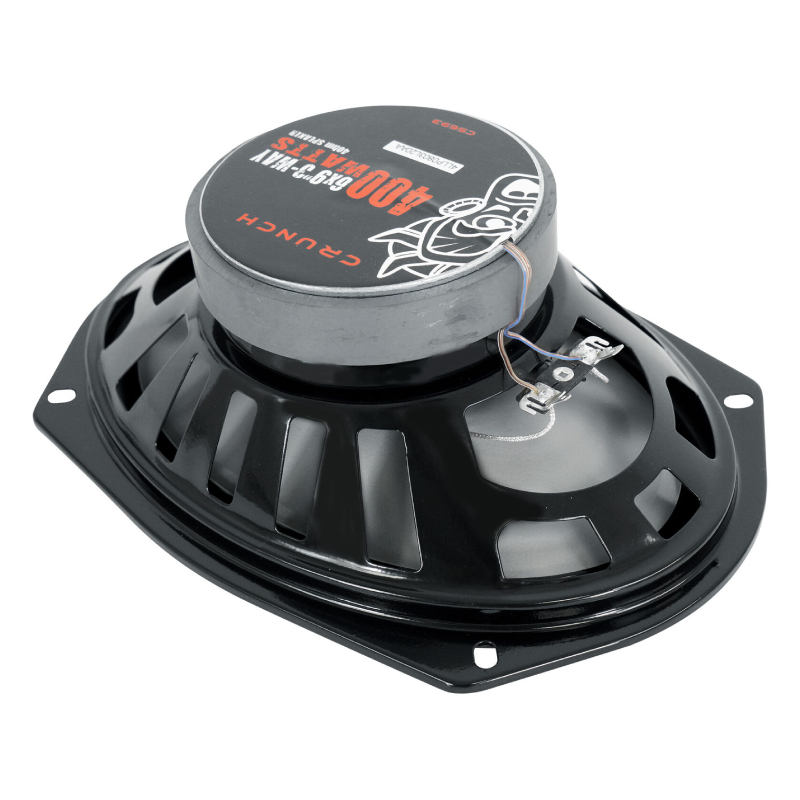

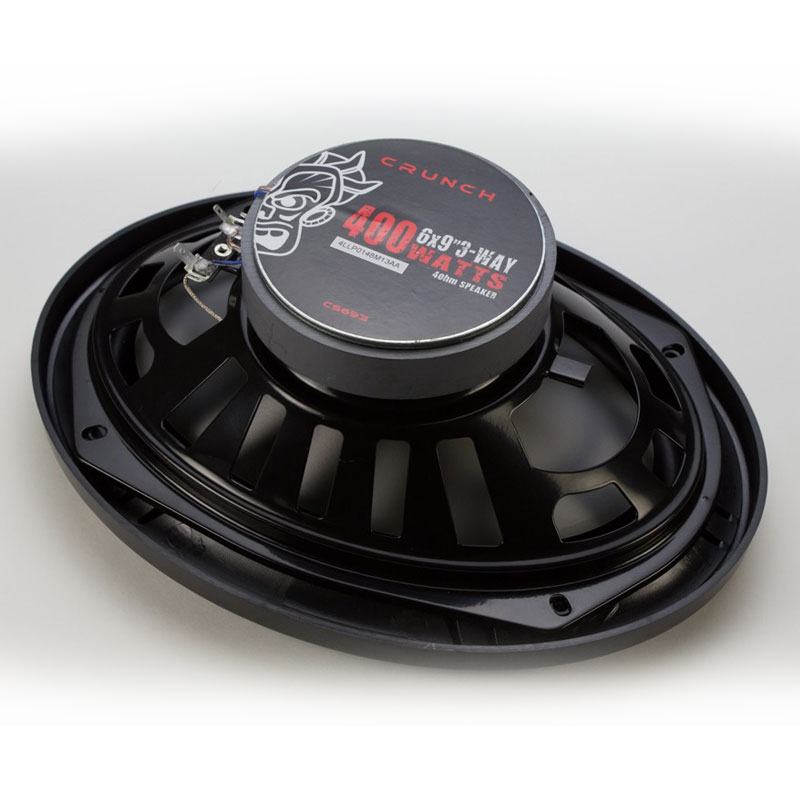

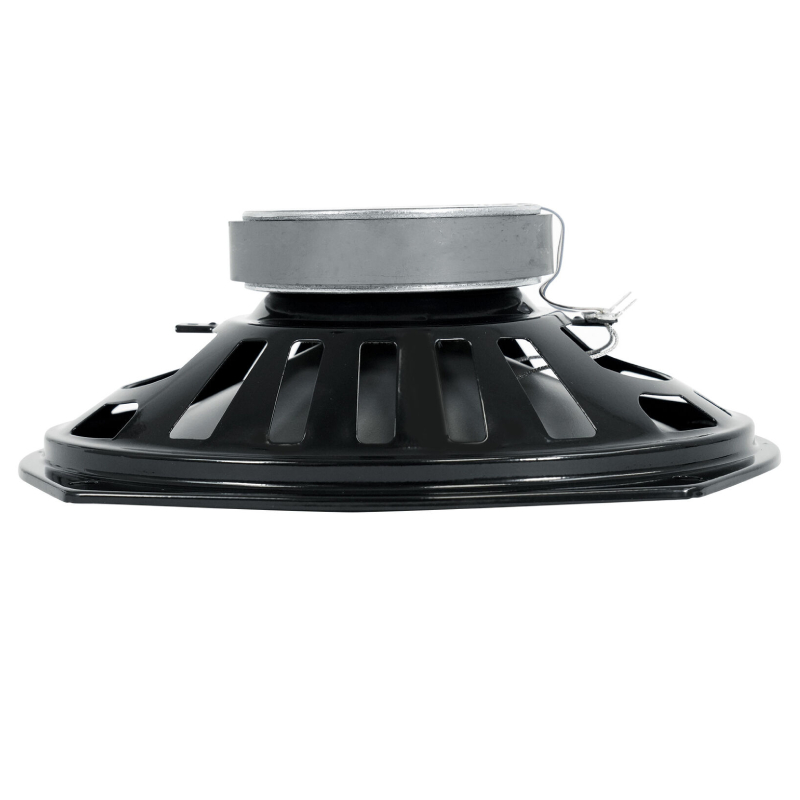

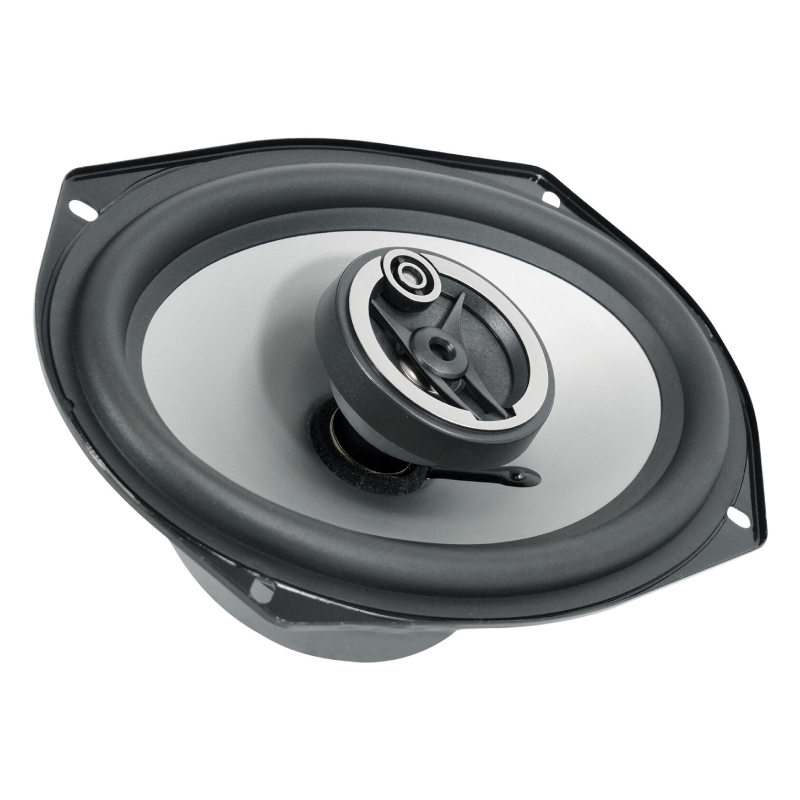

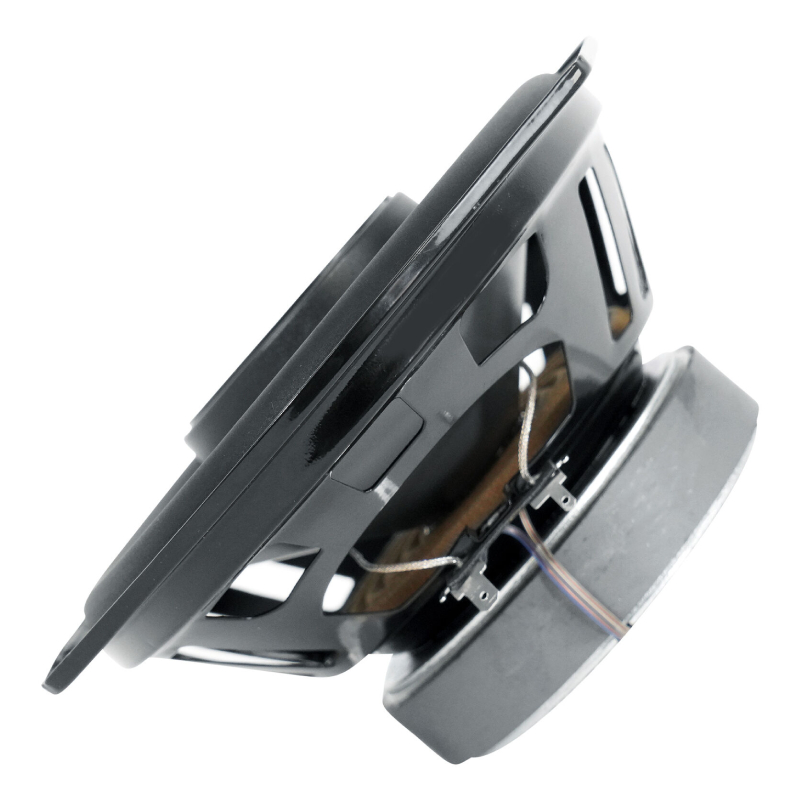

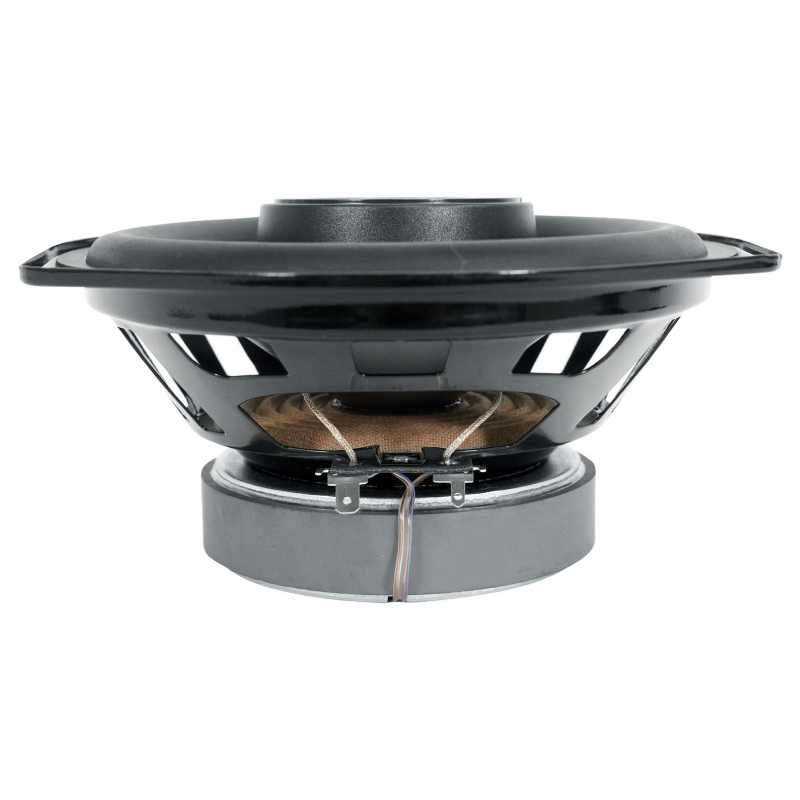

alternate product image 1alternate product image 2alternate product image 3
Item# 37016 / Condition:  Brand New    Review this product

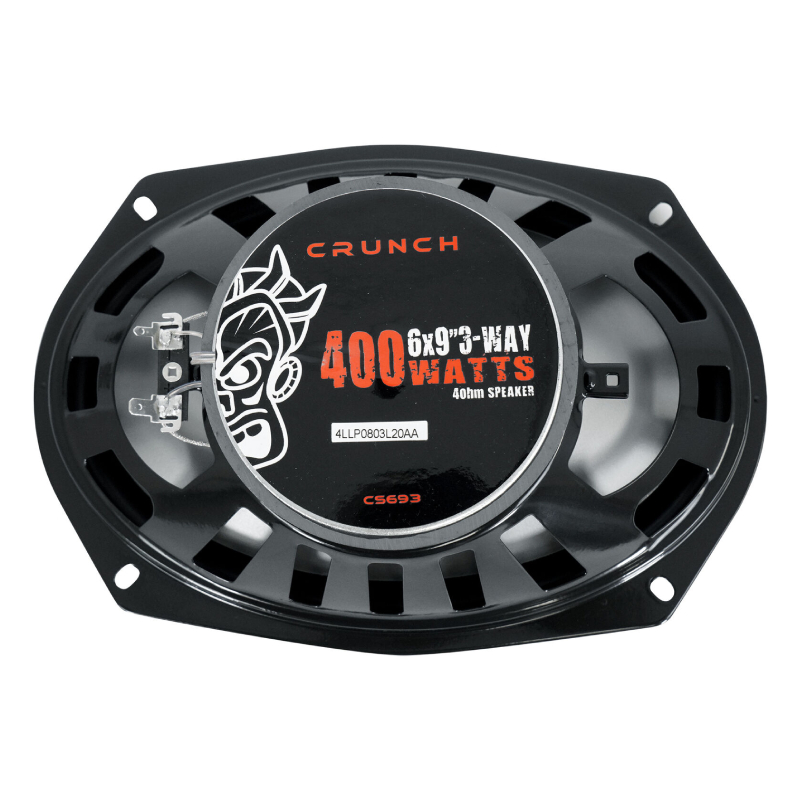

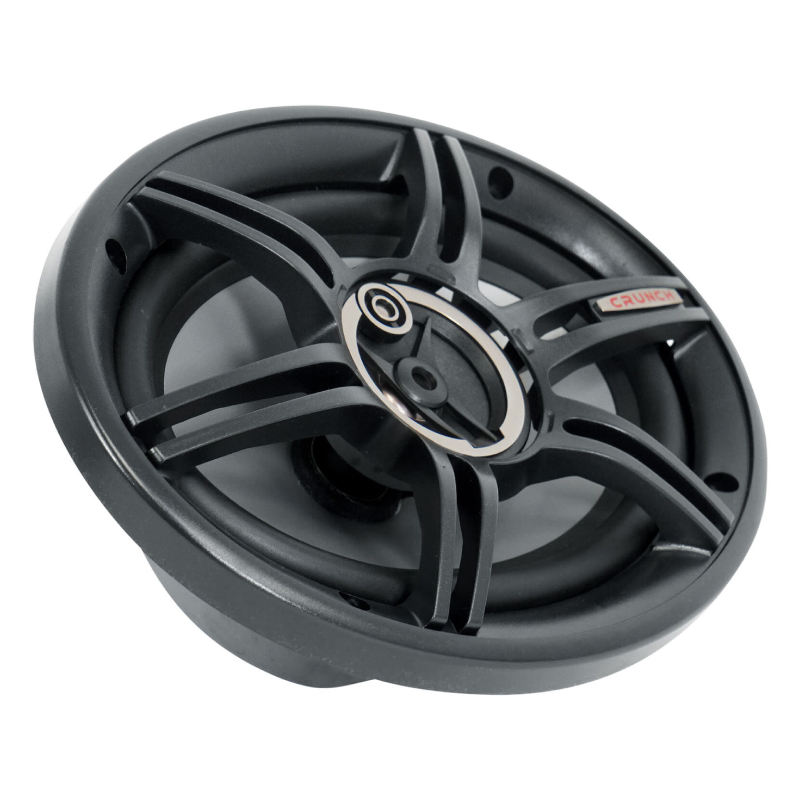

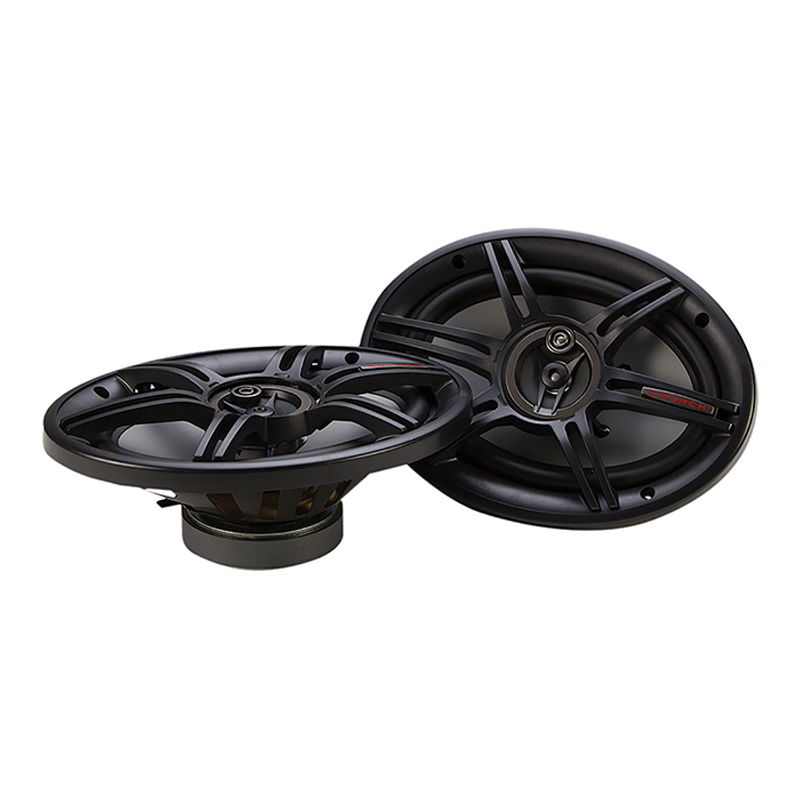

Crunch CS693

CS693
6x9" 3-way 400 Watts V-Drive Series Full Range Automotive Speakers
$42.99

FREE Shipping in US 48!

Save 9% | Reg. Price $47.29 In Stock
Add Extended Warranty
Crunch Banner

Crunch CS693

Crunch 6x9 Inch 3 way 400 watt speaker utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones

Crunch CS693

General Features:

  • TYPE: 6 x 9 3-Way Speaker Full Range Speaker
  • CATEGORY: Coaxial Speakers
  • PEAK POWER HANDLING (CEA426B): 400 watts
  • SENSITIVITY (1 WATT/1 METER): 88dB
  • IMPEDANCE: 4 ?
  • RMS POWER HANDLING(CEA426B): 200 watts
Crunch CS693


Specifications

  • RMS POWER HANDLING(CEA426B)
    200 watts
  • PEAK POWER HANDLING (CEA426B)
    400 watts
  • SPEAKER IMPEDANCE
    4 ?
  • FREQUENCY RESPONSE +/- 10DB
  • FREQUENCY RESPONSE +/- 3DB
    46Hz-20kHz
  • SENSITIVITY (1 WATT/1 METER)
    88dB
  • CROSSOVER POINT
    1K Hz + 3K
  • CROSSOVER SLOPE
    12dB
  • MOUNTING DIAMETER/CUT OUT
    8.64 x 5.98
  • OUTSIDE DIAMETER
    10.35 x 7.20
  • MOUNTING DEPTH/CHASSIS DEPTH
    3.35
  • PRODUCT DIMENSIONS
    14.25 x 11.75 x 5.5 in
    36.1 x 29.8 x 13.9 cm
  • PRODUCT WEIGHT
    6.15 lbs (2.7 kg)

Features & Benefits

  • TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
  • SURROUND: UV Resistant Rubber Surround
    Moisture Resistant Rubber Surround with high Mid-Bass Impact
  • CONE: Silver Alpha-Cellulose Poly Cones
    Produces musical midrange and bass tones while remaining light weight
  • SURROUND / CONE COUPLING: High Temperature Adhesive
    The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
  • GASKET: Textured ABS
    Assures a ridged linear seal to the mounting surface
  • TINSEL LEADS: Braided
    Highly conductive while remain flexible during high power applications
  • VOICE COIL: Pure Copper
    Creates strong magnetic field with a very thin extrusion
  • VOICE COIL FORMER: Kapton
    Lightweight and efficiently dissipates heat
  • SPIDER: Epoxy infused Natural Fiber
    Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
  • COOLING SYSTEM: Over-Coil
    Air is exchanged over the voice coil through the spider
  • CROSSOVER TYPE: Passive Butterworth
    Smooth transition of frequencies from midrange/midbass to the tweeter element
  • CROSSOVER SPECIAL: 6dB Internal
    Integrated into the design to assure smooth midrange to tweeter frequency transitions
  • FRAME: Anti-Resonant Stamped Steel Basket
    Very strong with minimal harmonics or distortions from flex or ringing
  • MOTOR: Ferrite Magnet
    Creates a strong magnetic field while remaining small enough to fit nearly every application
  • CONNECTORS: Spade
    Use spade connectors or solder direct for the best connection

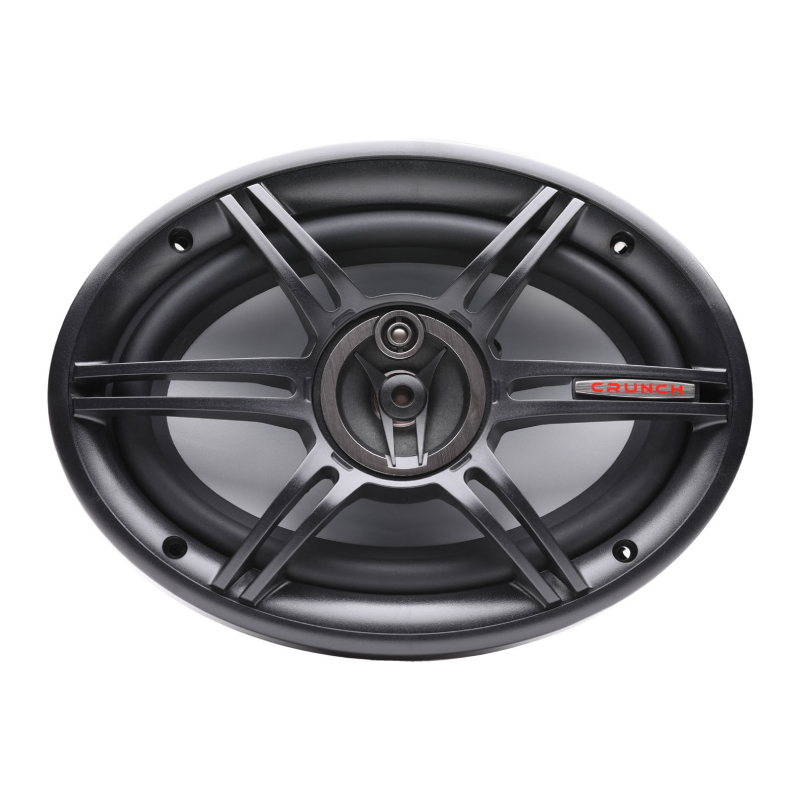

  • GRILLS: Yes
    Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel

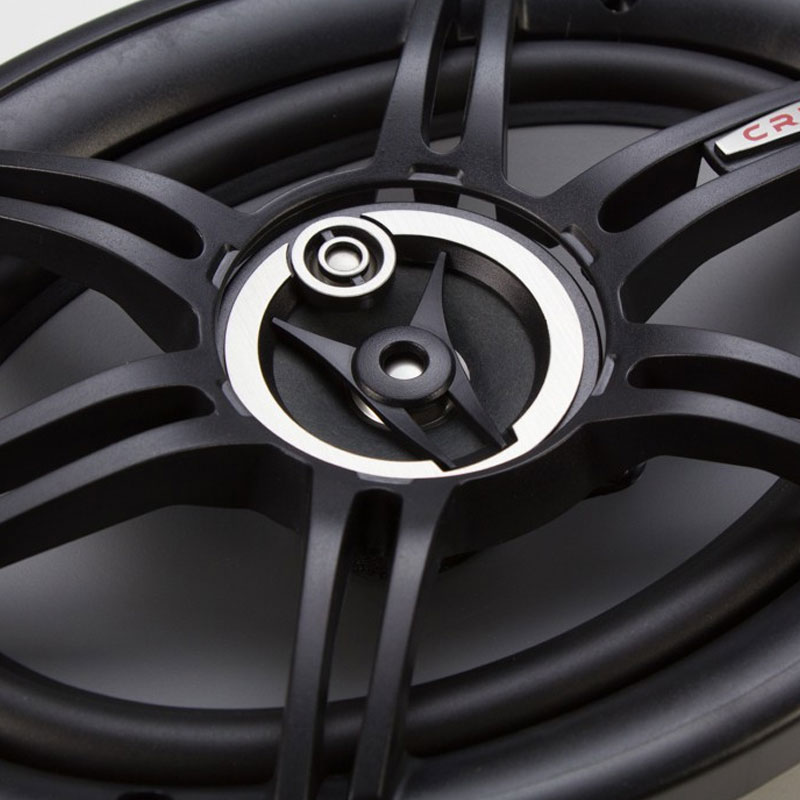

  • TWEETER MATERIAL: Neo-Mylar Soft Dome
    Great sound quality and increased reliability
  • TWEETER SIZE: 1 inch
    Clear highs while handling plenty of power without sound harsh
  • TWEETER SURROUND MATERIAL: Kapton
    Lightweight and efficiently dissipates heat
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 806576222095
  • Weight: 7.01
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
