What's Included:
- Twelve 1" Self-tapping screws
- Product Information Inside Box
- 2 Front angled tweeter rings
- 2 Long tweeter mounting nuts
- Four 7" Zip-ties

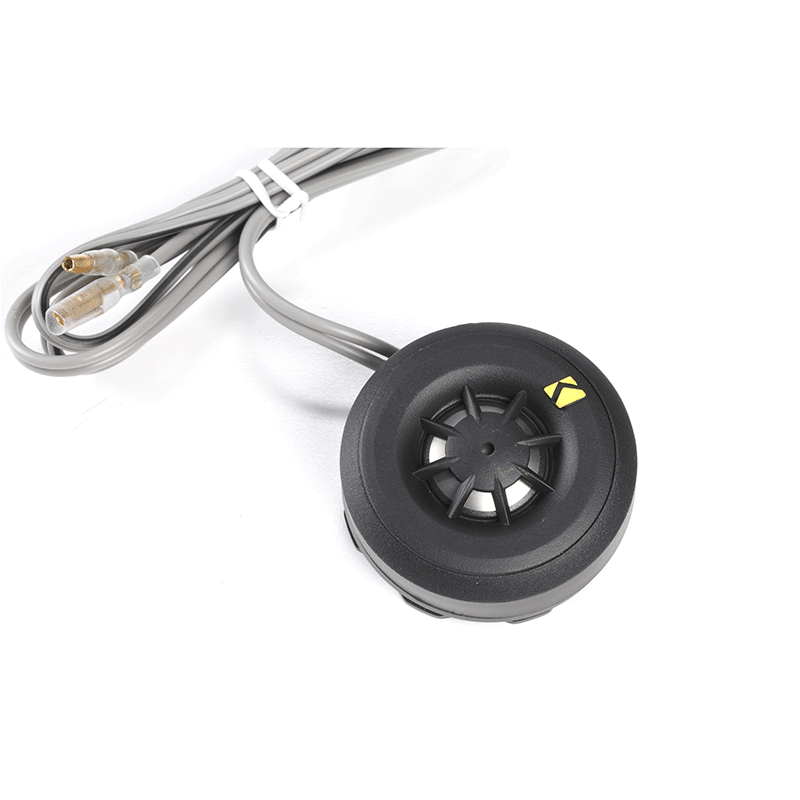

- Two tweeters (each with 35" Wire attached)
- 2 Short tweeter mounting nuts
- 2 Angled surface mount tweeter housings
- 2 Back angled tweeter rings
- Two woofers

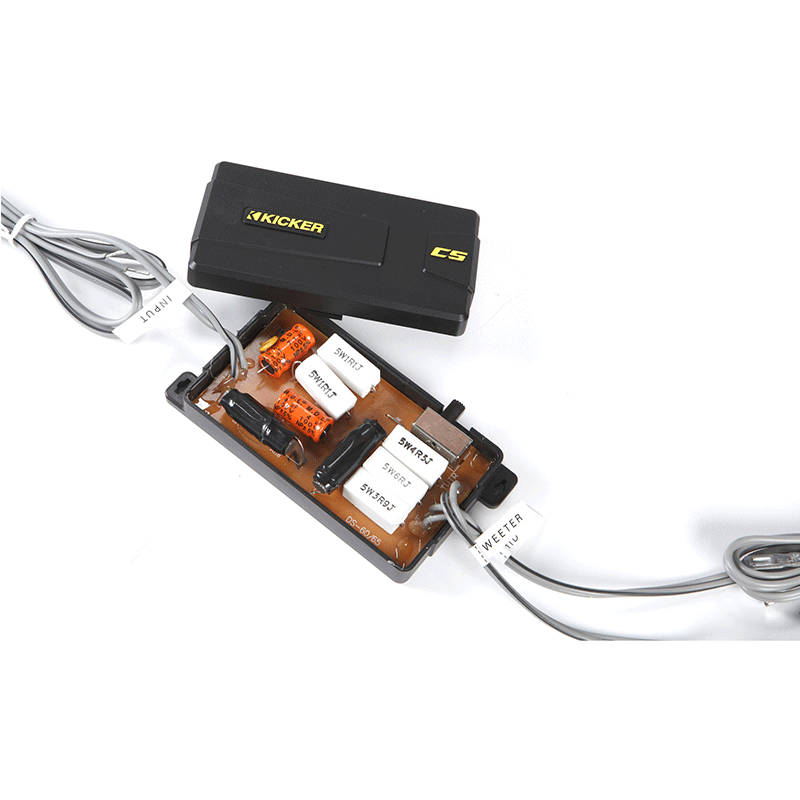

- 2 Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)
- 2 Flush mount tweeter rings
- Two 5/8" Self-tapping screws
- 8 Speed clips
- 4 Red plastic butt connectors
- Owner's manual (English/ Spanish/ German/ French)
Product Highlights:

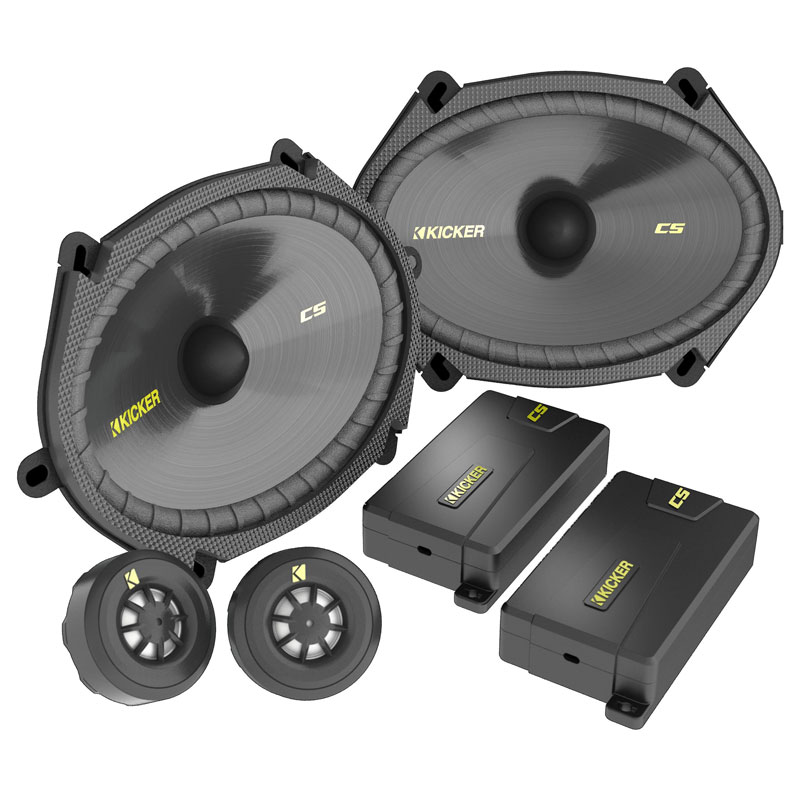

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- frequency response: 40-21,000 Hz
- 6"x8" polypropylene woofers with polyester foam surrounds
- 3/4" titanium dome tweeters
- external crossover network with 3 tweeter levels (0, +3, +6 dB)
- power range: 2-75 watts RMS (225 watts peak power)
- sensitivity: 90 dB
- top-mount depth: 2-5/16"
- Diameter : 5x7/6x8 Inch
- Sensitivity : 90 dB
- Impedance : 4 Ohm
- Frequency Response : 40-21,000 Hz
- RMS Power Range : 75 Watts
- Peak Power Handling : 225 Watts
- Bottom Mount Depth : 2-3/16" Inches
- Woofer Composition : 6"x8"
- Tweeter Composition : 3/4"
The CS 6x8-Inch Component Speakers are the perfect factory upgrade when you have a separate wooer and tweeter. CS components include separate Titanium tweeters and two-way crossovers with tweeter level control, to let you customize your sound for the best sonic quality. These CS speakers work best with 75 watts of recommended power.
Specifications |
Tweeter Design |
3/4" Dome |
Tweeter Composition |
Titanium |
Peak Power Handling (Watts) |
225 |
Woofer Surround |
Polyester Foam |
Maximum RMS Wattage |
75 |
Design |
2-way |
Woofer Composition |
Polypropylene |
Speaker Size |
6X8 |
Sensitivity |
90 dB |
Frequency Response |
40 - 21k Hz |
Minimum RMS Wattage |
2 |
Impedance (Ohms) |
4 |
Top-mount Depth (Inches) |
2 5/16 |
Bottom-mount Depth (Inches) |
2 11/16 |
- UPC: 713034064329
- Weight: 5.55
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
