MB Quart NW1-254
alternate product image 1alternate product image 2
Item# 41663 / Condition:  Brand New    Review this product

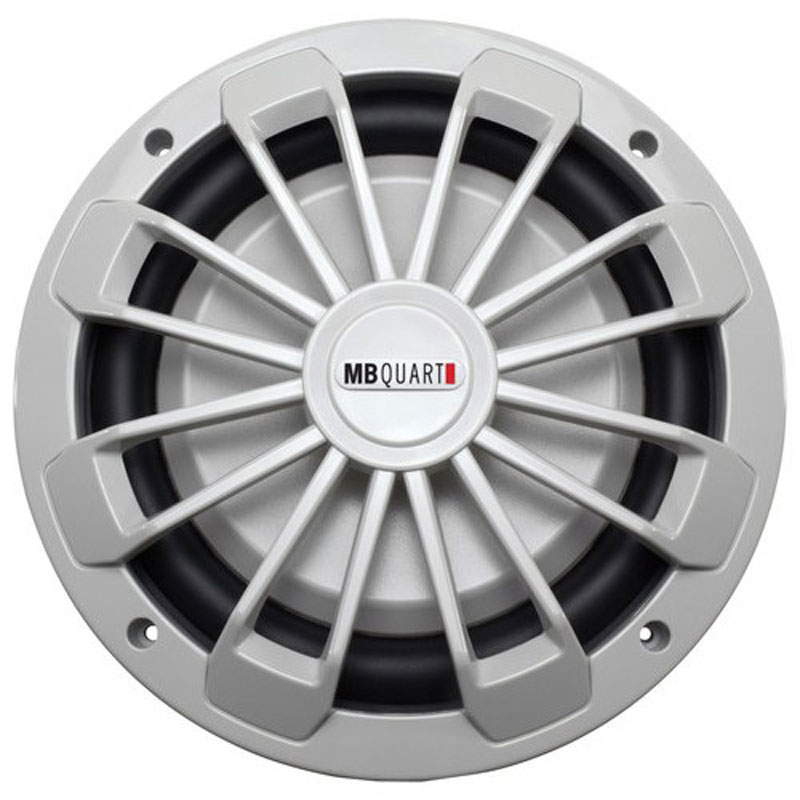

MB Quart NW1-254

10" Flat NW1 Series Single 4 ohm Marine Subwoofer 600 Watts

FREE Shipping in US 48!

Save $59.06 | Reg. Price $149.50

What other people bought after viewing this product.

The marine certified, single voice coil NW1-254 shallow subwoofer has been designed for those marine and powersports applications where space can be an issue. With only 2.83 inches of mounting depth, the NLP254S can fit in any bench seat, gunnel or shallow compartment without giving up much space at all. Designed to perform optimally in free-air applications, the NW1-254 will also perform in as small as .45 cubic feet sealed enclosure.

General Features:

  • Marine Certified
    Longer life against harsh conditions. Protected against sun fade with UVA paint coating. Conformal coated crossover components protect against fresh and salt water spray as well as dust and sand
  • IPX67
    Tested to the highest Marine and Motorsports standards for resisting the elements
  • Shallow Mount/Low Profile
    Designed to fit in less than 3" of depth. Ideal for sealed enclosures
  • Water resistant spider
    Woven red aramid fiber composite spider to stabilize the cone and voice coil in all musical situations. Armid fibers do not degrade over time and are not susceptible to temperature swings
  • 10" Composite Injection Molded Poly Cone
    UVA Protected, water resistant composite polypropylene cone with NBR rubber surround mounted on a lightweight Fiber Reinforced Composite Frame
  • High Temperature Voice Coil and Former
    Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight
  • High Energy Y30 Motor assembly
    High energy strontium ferrite magnet for higher output with minimal amplifier power
  • Terminals
    Gold Plated Push & Insert to resist corrosion and aide in easy of installation
  • Mounting Diameter
    9.05" (229.8mm)

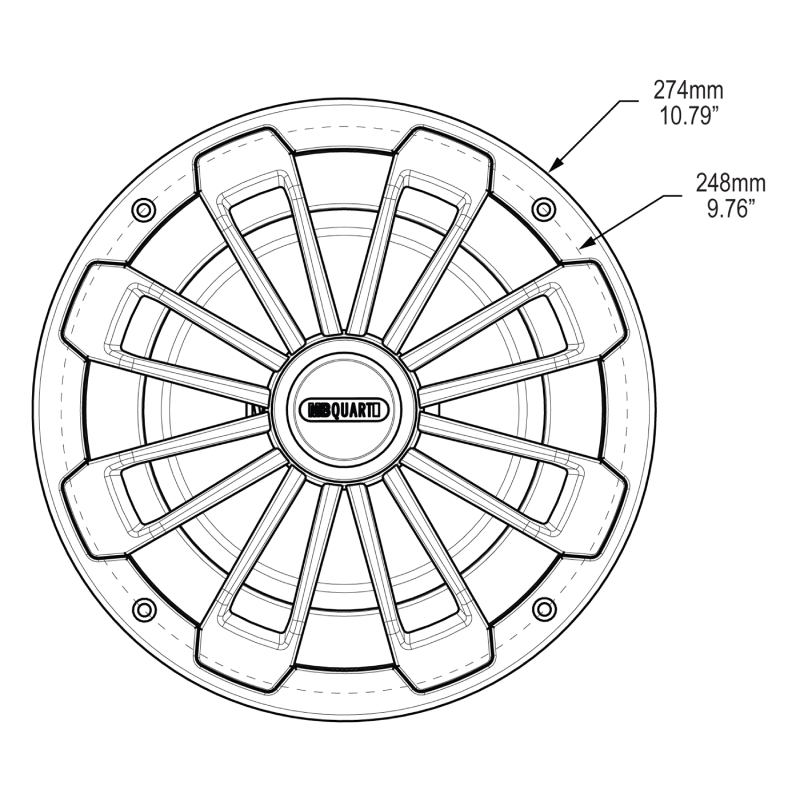

  • Outside Diameter
    10.72" (272.3mm)

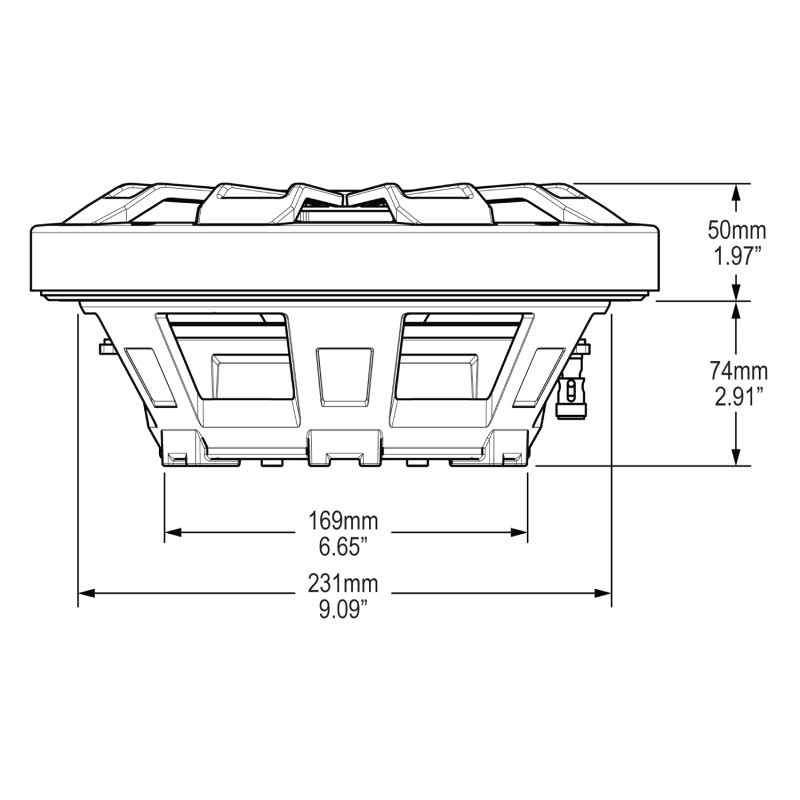

  • Mounting Depth
    2.83" (71.9mm)
  • Mounting Height with Grill & Gasket
    4.65" (118mm)
  • Weight
  • Product Highlights:
  • CERTIFICATIONS IPX67, Conformal Coated, UVA Certified, CEA426B
  • RMS POWER HANDLING (CEA426B) 300 watts
  • PEAK POWER HANDLING (CEA426B) 600 watts
  • IMPEDANCE 4 Ohm Single Coil
  • MOUNTING DIAMETER9.05" (229.8mm)
  • OUTSIDE DIAMETER 10.72" (272.3mm)
  • MOUNTING DEPTH 2.83" (71.9mm)
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • UPC: 806576223443
  • Weight: 8
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
