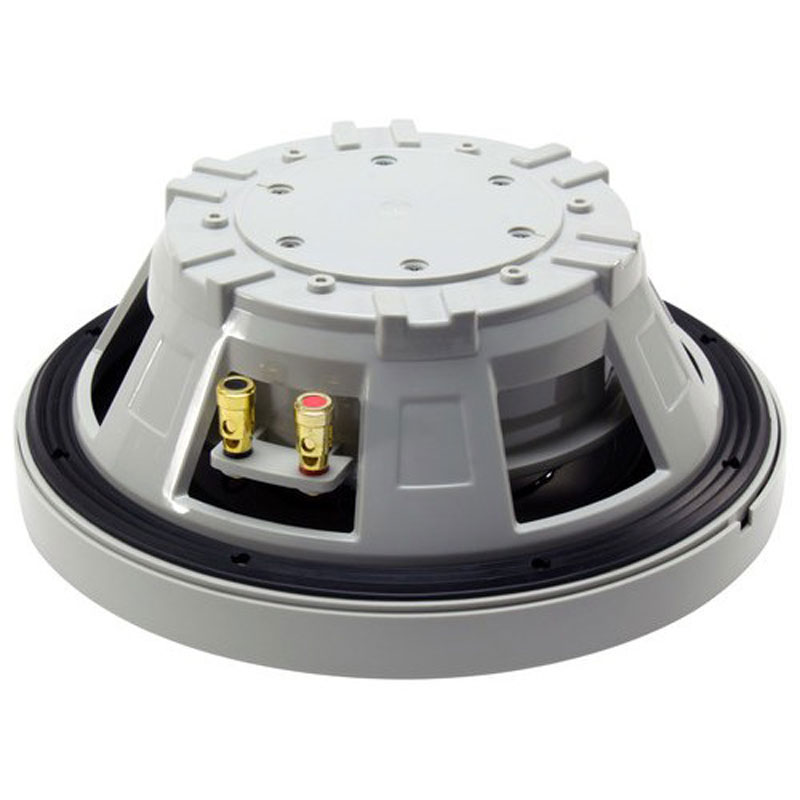

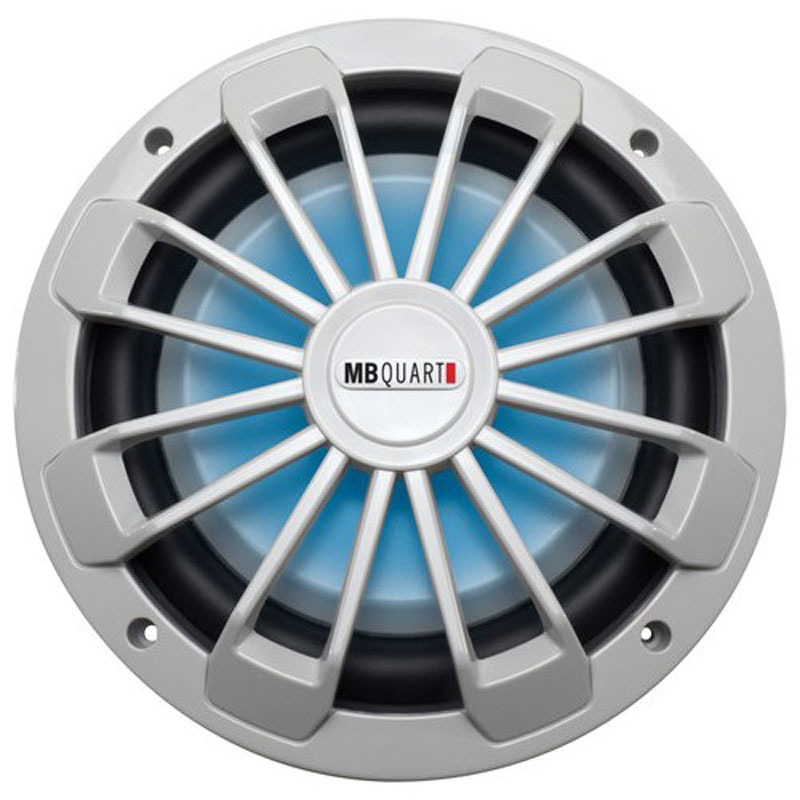

The marine certified, single voice coil NW1-254 shallow subwoofer has been designed for those marine and powersports applications where space can be an issue. With only 2.83 inches of mounting depth, the NLP254S can fit in any bench seat, gunnel or shallow compartment without giving up much space at all. Designed to perform optimally in free-air applications, the NW1-254 will also perform in as small as .45 cubic feet sealed enclosure. "L" indicates Illumination and can be controlled by the optional N1-RC Wireless RF LED light remote control. One remote will control all "L" speakers.
General Features:
- Marine Certified
Longer life against harsh conditions. Protected against sun fade with UVA paint coating. Conformal coated crossover components protect against fresh and salt water spray as well as dust and sand
- IPX67
Tested to the highest Marine and Motorsports standards for resisting the elements
- Shallow Mount/Low Profile
Designed to fit in less than 3" of depth. Ideal for sealed enclosures
- Water resistant spider
Woven red aramid fiber composite spider to stabilize the cone and voice coil in all musical situations. Armid fibers do not degrade over time and are not susceptible to temperature swings
- 10" Composite Injection Molded Poly Cone
UVA Protected, water resistant composite polypropylene cone with NBR rubber surround mounted on a lightweight Fiber Reinforced Composite Frame
- High Temperature Voice Coil and Former
Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight
- High Energy Y30 Motor assembly
High energy strontium ferrite magnet for higher output with minimal amplifier power
- Terminals
Gold Plated Push & Insert to resist corrosion and aide in easy of installation
- Illumination

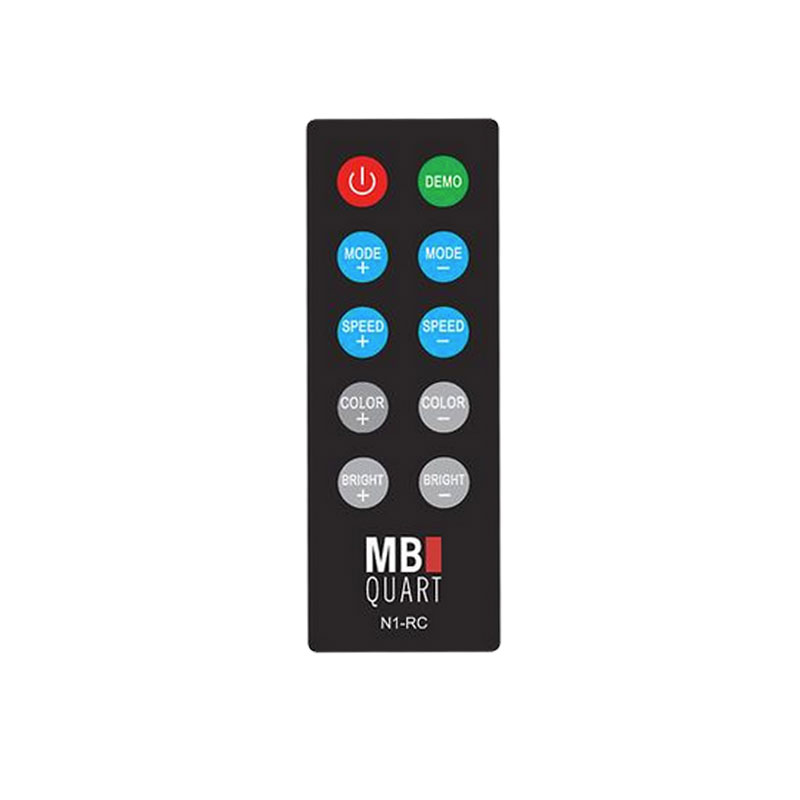

Limitless color choices with color on, off, strobe and programmed “light shows” possible. Optional N1-RC required for control of lighting systems and to sync multiple illuminated speakers. Pre-programmed demo mode included on all lighted systems
- Mounting Diameter
9.05" (229.8mm)
- Outside Diameter
10.72" (272.3mm)
- Mounting Depth
2.83" (71.9mm)
- Mounting Height with Grill & Gasket
4.65" (118mm)
- Weight
Product Highlights:
- CERTIFICATIONS IPX67, Conformal Coated, UVA Certified, CEA426B
- RMS POWER HANDLING (CEA426B) 300 watts
- PEAK POWER HANDLING (CEA426B) 600 watts
- IMPEDANCE 4 Ohm Single Coil
- SENSITIVITY (1 WATT/1 METER) 82dB
- MOUNTING DIAMETER 9.05" (229.8mm)
- OUTSIDE DIAMETER 10.72" (272.3mm)
- MOUNTING DEPTH 2.83" (71.9mm)
- MOUNTING HEIGHT WITH GRILL & GASKET 4.65" (118mm)
- Subwoofers are usually sold as a single unit unless otherwise noted.
- UPC: 806576223450
- Weight: 9
