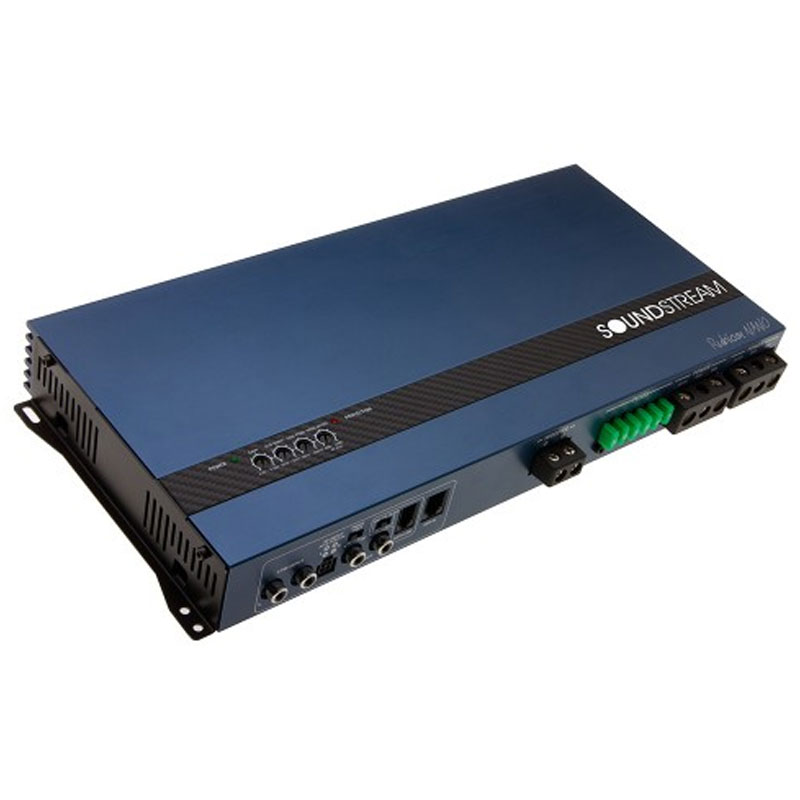

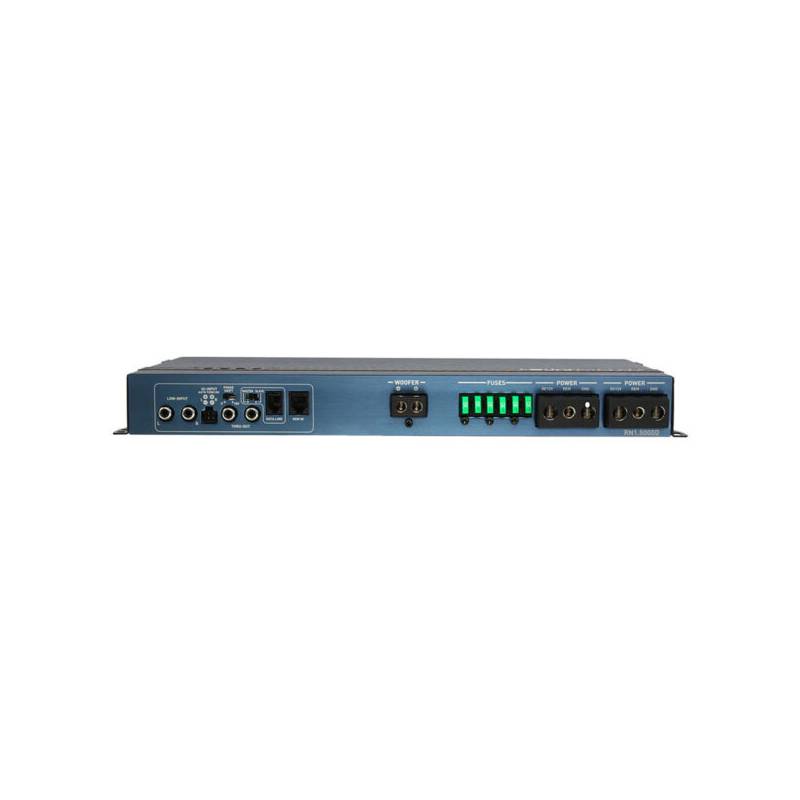

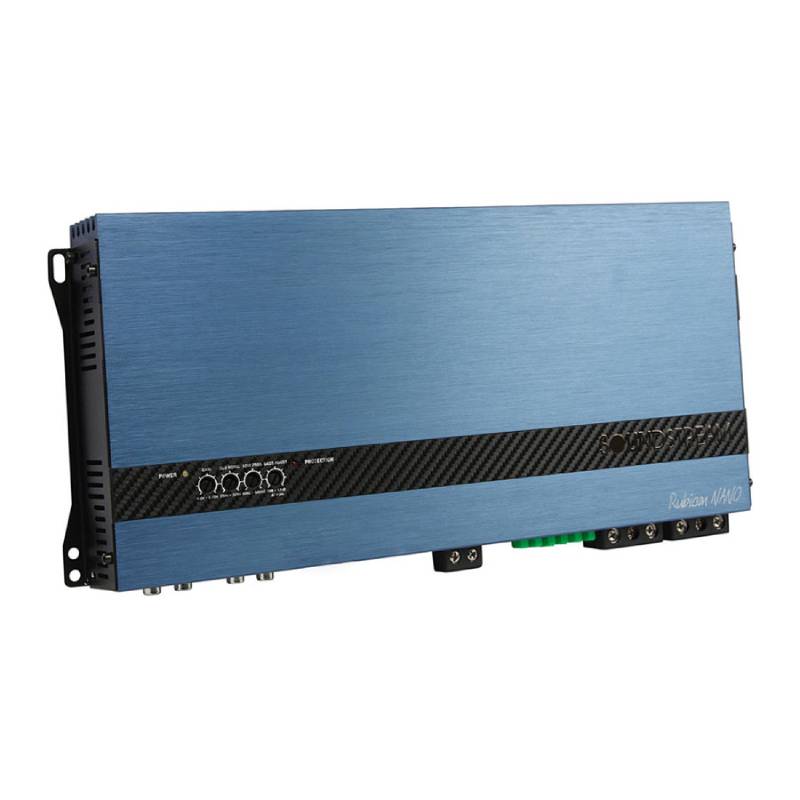

For 2015, Rubicon amplifiers are all new. We adopted the optimum class D performance, reliability, and footprint of the Picasso Nano platform and present to you Rubicon Nano. At first glance, you’ll notice several key improvements. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all re-located to the leading edge of the chassis, for an easier, more appealing install. All pre-amp & crossover options are conveiently located on the top surface, making adjustment after installation possible. What you might not notice are additions to the circuit board, including increased power supply & output stage components, & monoblock bridging capability. 2015 Rubicon Nano models include a 4ch, 1-ohm stable 5ch, & class D monoblocks up to 2,500 watts.
Maximum Power : 5000 Watts
Low Frequency Response : 50-500 Hz
Number of Channels : 1
Frequency Response : 20-500 Hz
Built In Crossovers : Yes
RMS Power Output : 1500x1 Watts
Channel Separation : No
Amplifier Class : D
Fuse Rating : 30x6 A
Max Power5,000 Watts
RMS Power @ 4Ω1,000W x 1
RMS Power @ 2Ω1,500W x 1
RMS Power @ 1Ω2,500W x 1
Remote Gain ControlIncluded
Low Pass Filter50Hz-500Hz
High Pass FilterN/A
Bass Boost Frequency45Hz
Operation Voltage9V-16V DC
Fuse Rating30A x 6
(8.25″W x 2.75″H)17.75″ L
High Efficiency Class D Full Range Amplifiers
Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
1-ohm Minimum Impedance Monoblock Operation
Monoblock Bridging Capability for Double Amplifier Application
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
Direct Short, Thermal, & Overload Circuits Protect Ampllifier
200mV-6V Low Level RCA or High Level Signal Input
Quick Disconnect High Level Wire Harness Included
Easy DIY Install Single Sided Terminals & Controls
4g Power Inout Terminals & 12g Speaker Output Terminals
Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
12dB Bass Boost Increases Low Octave Harmonics

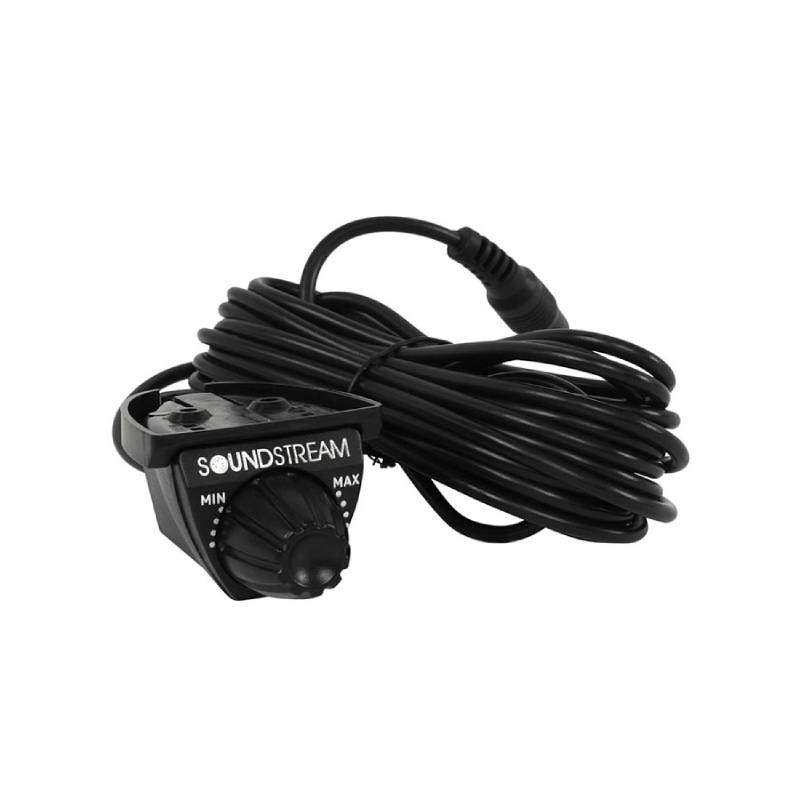

Dash Mount Gain Control Module Included
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
