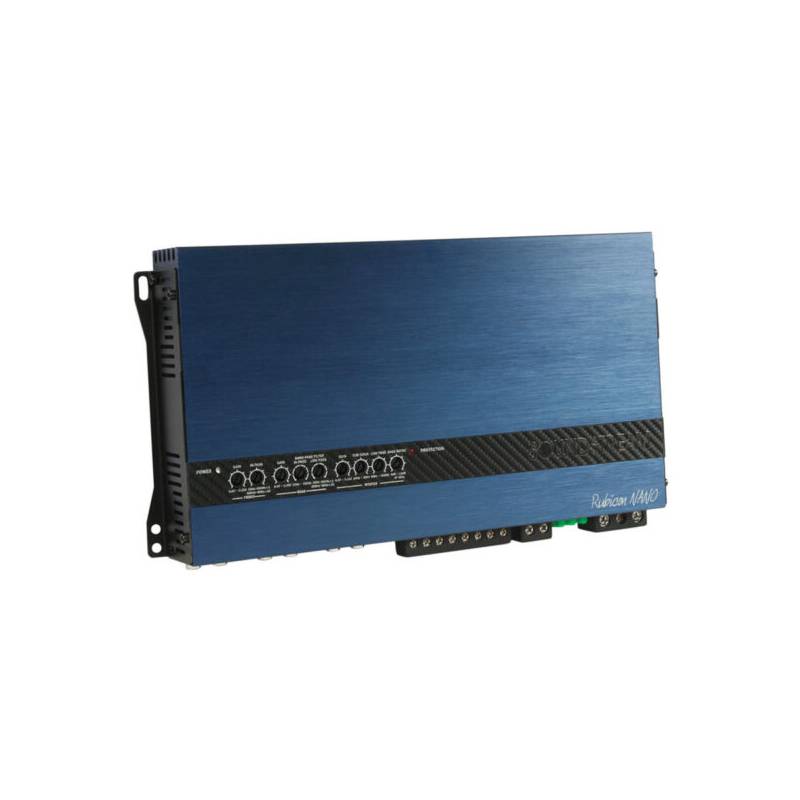

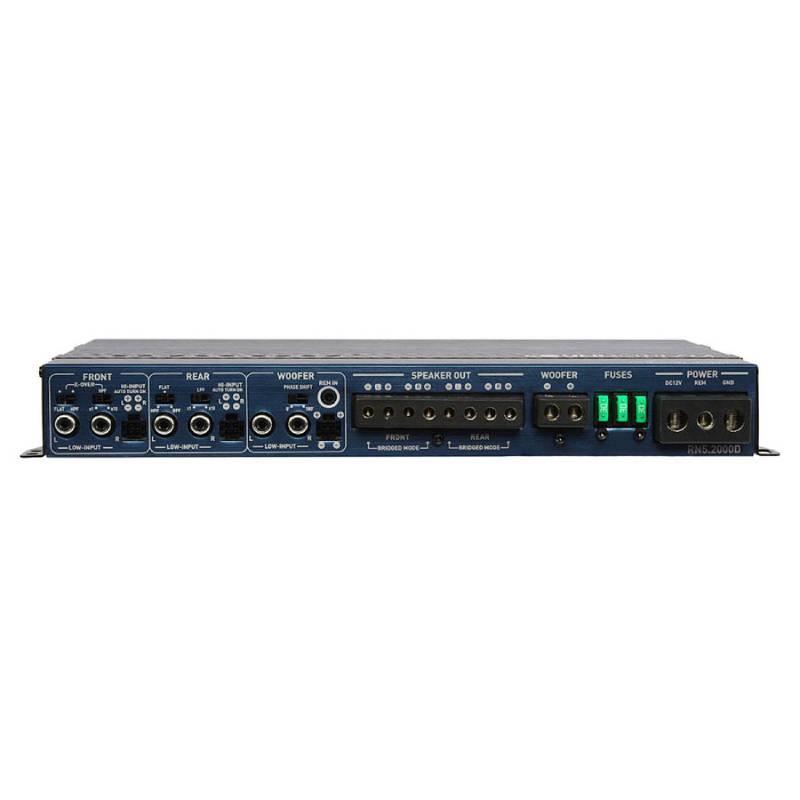

For 2015, Rubicon amplifiers are all new. We adopted the optimum class D performance, reliability, and footprint of the Picasso Nano platform and present to you Rubicon Nano. At first glance, you’ll notice several key improvements. Rubicon Nano’s signal inputs, power/ground, and speaker connections are all re-located to the leading edge of the chassis, for an easier, more appealing install. All pre-amp & crossover options are conveiently located on the top surface, making adjustment after installation possible. What you might not notice are additions to the circuit board, including increased power supply & output stage components, & monoblock bridging capability. 2015 Rubicon Nano models include a 4ch, 1-ohm stable 5ch, & class D monoblocks up to 2,500 watts.
- Maximum Power : 2000 Watts
- Low Frequency Response : 50-500 Hz
- High Frequency Response : 50-500 Hz
- Number of Channels : 5
- Frequency Response : 10-50000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 30x3 A
Specifications:
-
- Max Power 2,000 Watts
- RMS Power @ 4Ω 75W x 4 + 300W x 1
- RMS Power @ 2Ω 100W x4 + 500W x 1
- RMS Bridged @ 4Ω 200W x 2 + 500W x 1 (2Ω)

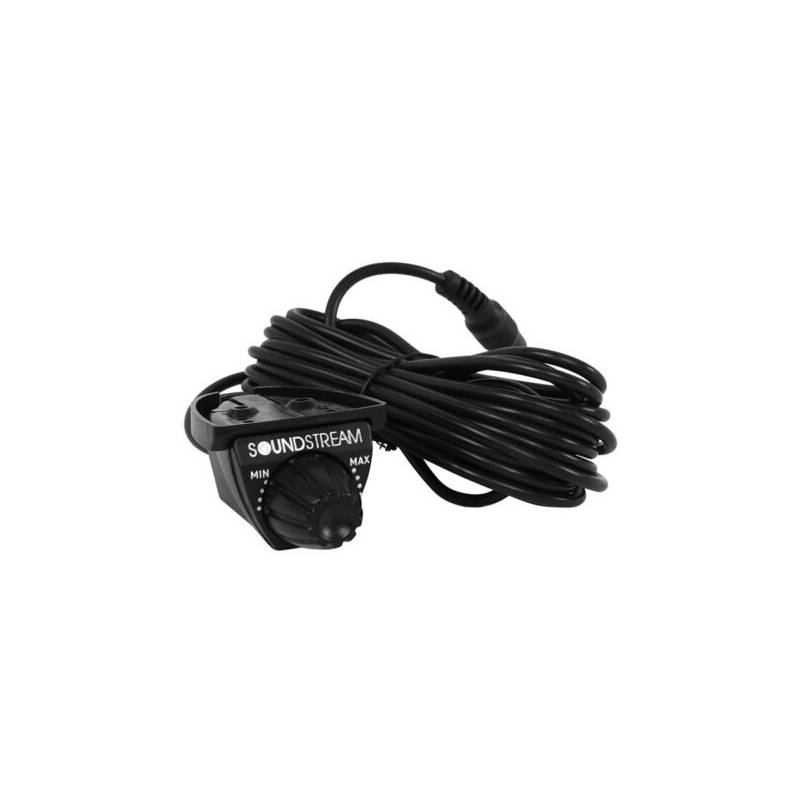

- Remote Gain Control Included
- Low Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
- High Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
- Bass Boost 0-18dB (Ch 5)
- Bass Boost Frequency 45Hz (Ch 5)
- Subsonic Filter 20Hz-50Hz (Ch 5)
- Frequency Response 10Hz-50KHz (Ch 1-4) / 10Hz-150Hz. (Ch 5)
- S/N 104dB
- Input Sensitivity 200Mv-6V
- THD <0.05%
- Operation Voltage 9V-16V DC
- Fuse Rating 30A x 3
- Dimensions
- (8.25″W x 2.75″H) 12″ L
- High Efficiency Class D Full Range Amplifiers
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- 2-ohm Stereo & 4-ohm Bridged Class D Full Range
- Monoblock Bridging Capability for Double Amplifier Application
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal, & Overload Circuits Protect Ampllifier
- 200mV-6V Low Level RCA or High Level Signal Input

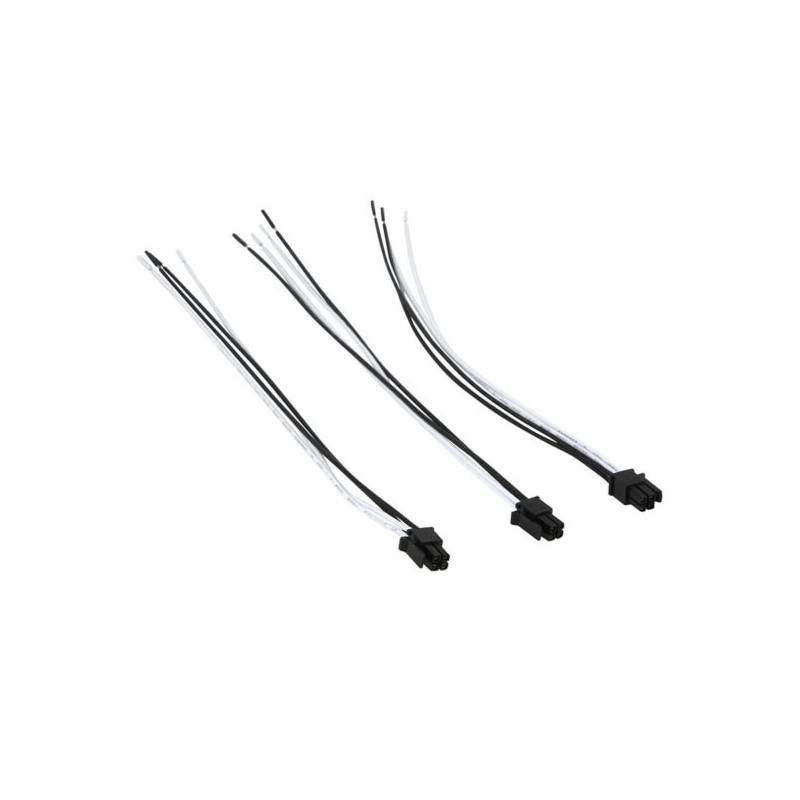

- Quick Disconnect High Level Wire Harness Included
- Easy DIY Install Single Sided Terminals & Controls
- 4g Power Inout Terminals & 12g Speaker Output Terminals
- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- 12dB Bass Boost Increases Low Octave Harmonics
- UPC: 709483050761
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
