Hifonics ZD-1750.5D ZEUS DELTA Series 5-Channel Full-Range Car Amplifier
We are a Hifonics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•5-Channel Full-Range Car Amplifier
• Owner's Manual
Low Noise Preamplifier Circuit
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant.Onboard electronic crossover
Five Channel, Full Range, Bridgeable, Mono: Flexible installation allows this amplifier to run in four channel or bridged mono mode.Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.Class D: High efficiency with big power in a small footprint.
Keeps Voltage Constant
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
Maximum Power : 1750 Watts
Number of Channels : 5
Built In Crossovers : Yes
Amplifier Class : D
Low Noise Preamplifier Circuit
Nickel-plated high-temperature impact resistant
Five Channel, Full Range, Bridgeable, Mono
Onboard electronic crossover
PWM MOSFET Power Supply
Simpatico Coil Design

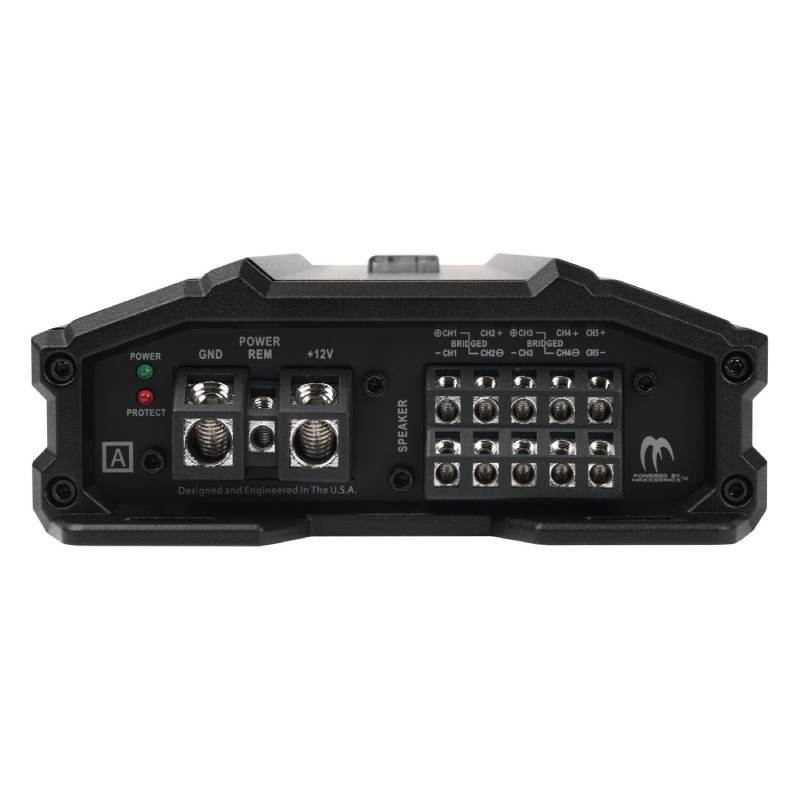

Secure molded connection terminal for all Power
LED System Protection Circuitry Diagnostics
Bass Remote Included
Dimensions: 18.31 × 6.89 × 3.15 in
Item Weight (lbs): 6.48
Item Length (in): 14.8
Item Width (in): 5.75
Item Height (in): 2.16
Series: ZEUS DELTA
Warranty: 1 Year
Compatible Vehicles: Universal
Amp Class: Class D
Amp Total Channels: 5
Amp Max Power (watts): 1750
Amp Power @ 1 Ohm (ch x watts): 1 x 850 Sub Only
Amp Power @ 2 Ohms (ch x watts): 4 x 225 + 1 x 450
Amp Power @ 4 Ohms (ch x watts): 4 x 100 + 1 x 225
Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 450
Amp Crossover: Variable Electronic 12dB Per Octave
Amp Variable High Pass Crossover 12dB per Octave: 50Hz-250Hz
Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
Amp Tone Control / Parametric EQ: Built-in Bass Control
Amp Bass Boost: 0-12dB
Amp Subsonic Filter: 15Hz-40Hz
Amp Variable Voltage: 0.2-6V
Amp Frequency Response: 10Hz-22kHz
Amp Total Harmonic Distortion (THD): < 0.1%
Amp Speaker Level Audio Inputs: Yes
Amp Power Terminal 12v/GND: 4 AWG
Amp Speaker Terminal Wire Gauge: 12 AWG
Amp Fusing: External 100A
