Pioneer TS-WH500A

8.5" HVT Sealed Active Subwoofer, 150 Watts Max Power, Proprietary New Speaker Design Technology

FREE Shipping in US 48!

Save $125.05 | Reg. Price $355.00 In Stock
Add Extended Warranty

Related Video:

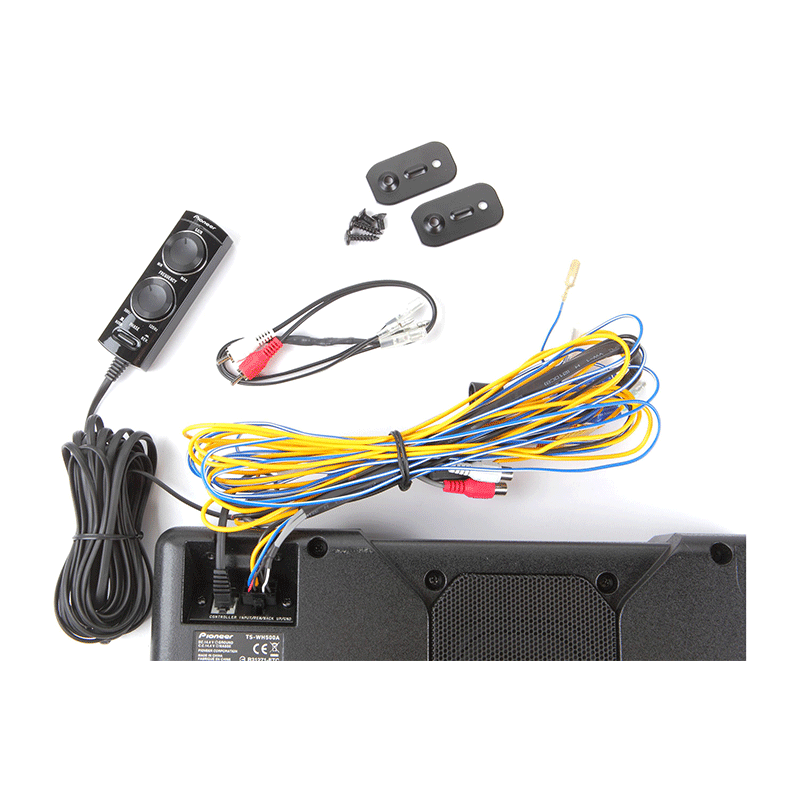

What's Included:

  • 10 amp ATO fuse (installed in the power wire fuse holder)
  • Wiring harness (Power with in-line fuse holder/ Ground/ Remote turn-on with in-line fuse holder/ RCA input)
  • RCA to speaker wire adapter
  • 2 Mounting brackets
  • Two M5x7mm Machine screws
  • 0.5 amp glass fuse (installed in the remote turn-on wire fuse holder)
  • 1" x 1-1/2" Adhesive backed hook and loop fastener
  • Two M3x8mm Machine screws
  • Amplified subwoofer
  • Wired remote control with attached 18' cable
  • 1 Cable bracket
  • Two 5/8" Self-tapping screws
  • Installation instructions

Product Highlights:

  • Just 2-3/8" height for easy installation
  • 2-3/8" height provides easy installation options
  • Unique linkage mechanism allows the magnet and voice coil to be positioned horizontally and to either side of vertically moving dual speaker diaphragms
  • 150 Watts Max Power (50 Watts Nominal)
  • Proprietary New Speaker Design Technology
  • 8-1/4" sealed active subwoofer enclosure
  • Peak: 150 watts
  • RMS: 50 watts
  • Polypropylene cone construction
  • Rubber surround
  • Impedance: 4 ohms
  • Frequency Response: 20-20,000 Hz
  • Sensitivity: 98dB

The TS-WH500A amplified subwoofer system is a truly groundbreaking approach in loudspeaker design. HVT technology uses a unique linkage mechanism, which allows the magnet and voice coil of the dual motor structure to be positioned horizontally to the left and the right side of vertically moving dual speaker diaphragms. Combined, the two diaphragms have an effective surface area equal to a conventional 8" subwoofer and fire in a bipolar arrangement, increasing output while also canceling destructive vibrations within the enclosure. The result of this innovative technology is a subwoofer system with significantly reduced physical depth, while maintaining greater excursion and linearity for superior bass reproduction, natural sound quality and higher output.


Second Voice Coil Impedance 4 ohms
Woofer Size (inches) 7x4 x2
Impedance 4 ohms
Passive Radiator ---
Width 13-7/16"
Second Depth N/A
Sensitivity 98 dB
Enclosure Type Sealed
Height 2-3/8"
Amplifier Power (RMS) 50 watts
Finish Material Metal/Plastic
Woofer Material Polypropylene
Frequency Response 20-200
Maximum Wattage 150 watts
Crossover Point 50-125
Grille Metal
Connector Type RCA/Spkr Wire
Bi-amp Inputs No
Depth 9-7/8"
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • UPC: 884938274234
  • Weight: 11.01
