With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL Audio's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 drivers. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its dual 8Wv3 subwoofer drivers, each in its separate airspace. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through each port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.

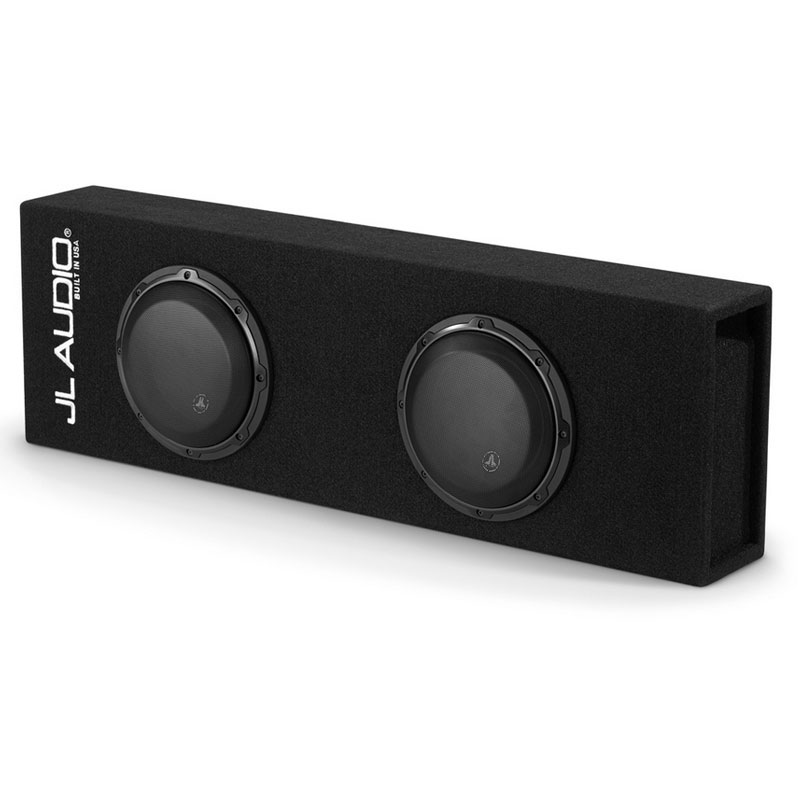

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. Steel mesh grilles are included to protect the subwoofer drivers.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (500 W @ 0.20Ω)
Nominal Impedance: 0.20Ω
Enclosure and Subwoofers Built in USA with global components.
Diameter : 8 Inch
Impedance : 0.40 Ohm
RMS Power Range : 500 Watts
Built-in amplifier 500 W @ 0.20 Ω
Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS
Fuse Rating: 30 A (ATO or ATC)
Filter Modes: Low-Pass only
Filter Slope (dB/Octave): 12 dB
Filter Frequency Range: 50 - 200 Hz
Selectable Output Polarity Switch
Optional Remote Subwoofer Level Control: RBC-1
Active Dual 8W3v3-0.40 Subwoofer Drivers
Power Output: 500W RMS
Built-in Proprietary Class-D amplifier
High quality Black vehicle carpet wrap
Mineral-filled polypropylene cone woofer
DMA optimized motor system
Elevated frame cooling
Vented reinforcement collar
Floating Cone Attach Method (FCAM)
Insert molded suspension, coil, and terminal-sub assembly
Surround stress relief design
Black Steel Mesh Grille Included
Slot-ported, Low-profile Enclosure
Extensive interior bracing
8 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this enclosure.
Dimensions: 36.625" W x 11.125" H x 5.125" D
