JL Audio C3-570cw Evolution C3 Series 5"x7" / 6"x8" 75W RMS (225W Peak Power Handling) Convertible Component Woofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•C3 Series Component Woofer
Advanced Modeling Systems

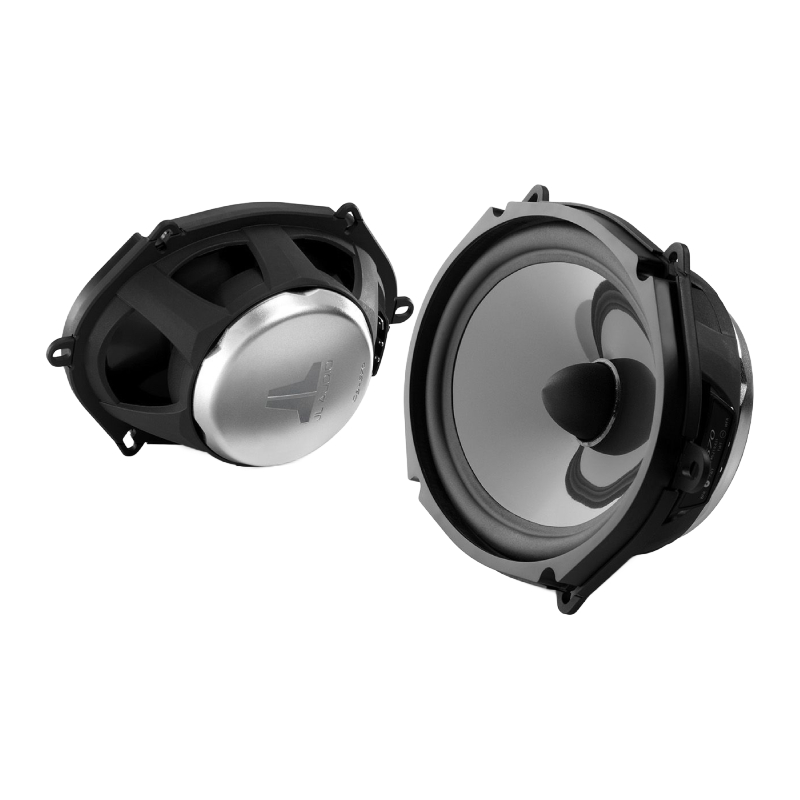

The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
C3 Convertible Component Systems

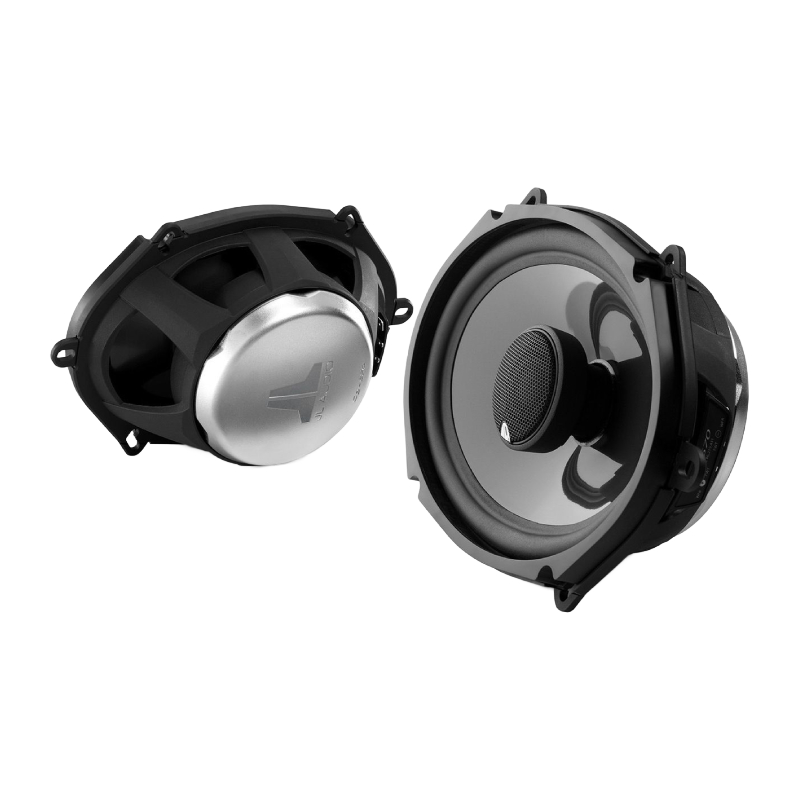

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Diameter : 5x7/6x8 Inch
Sensitivity : 90 dB
Impedance : 4 Ohm
Frequency Response : 48-5000 Hz
Peak Power Handling : 225 Watts
Top Mount Depth : 2.52 Inches
Shallow Mount : No
RMS Power Handling : 75 Watts
Efficiency: 90.0 dB @ 1 watt / 1 meter
Frequency Response: 48 Hz - 5 KHz ± 3 dBRecommended Power Range: 25 - 150 watts per channel
Mineral-Filled Polypropylene Cone
Butyl Rubber Surround
Injection-molded Polymer Basket
1.20" Voice Coil on Kapton® Former
Low-Profile, Symmetrical Roll Spider
Ferrite Woofer Magnet
Elevated Frame Cooling

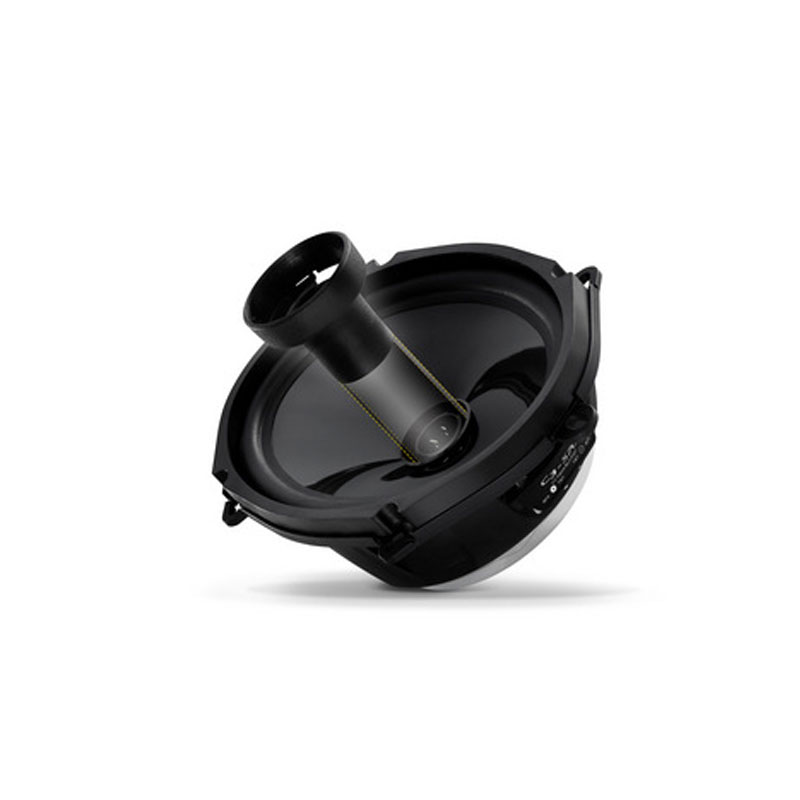

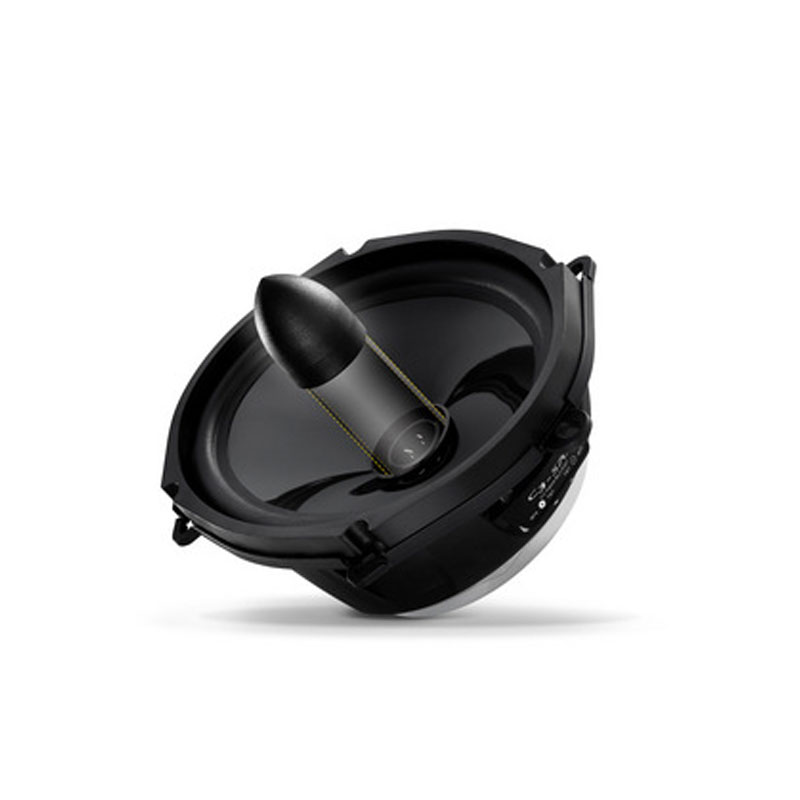

Convertible Drivers: Coaxial or Component
Dynamic Motor Analysis (DMA) Optimized Motor
Series: C3 Series
Priced Per: Each Speaker
Speaker Size: 5" x 7" (also mounts in most 6" x 8" locations)
Woofer Composition: Mineral-Filled Polypropylene
Woofer Surround: Rubber
Peak Power Handling: 150 watts
RMS Power Handling: 75 watts
Total RMS Per Pair/Set: 300 watts
Total RMS Per Pair/Set: 150 watts
Sensitivity: 90.0 dB
Frequency Response: 48 - 5,000 Hz
Impedance (Per Voice Coil): 4 ohms
Shallow Mount Installation: No
Top-Mount Depth (Mounting Depth): 2.52"
Cutout Dimensions: Not Specified by Manufacture
Number of Speakers: 1
